ASUS ROG Strix Z790-A Gaming WiFi D4, Intel® Z790 LGA

ASUS ROG Strix Z790-A Gaming WiFi D4

ASUS ROG Strix Z790-A Gaming WiFi D4, Intel® Z790 LGA 1700 ATX motherboard, 16 + 1 power stages, DDR4, four M.2 slots, PCIe® 5.0, WiFi 6E, USB 3.2 Gen 2×2 Type-C® with PD 3.0 up to 30W, Aura Sync RGB


USB

USB 3.2 GEN 2X2

The Strix Z790-A comes loaded with two USB 3.2 Gen 2×2 Type-C connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

ID DESIGN

UNDENIABLY ROG STRIX​

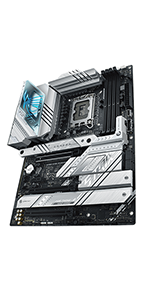

The ROG Strix Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board’s high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.​

CPU Socket LGA1700 LGA1700 LGA1700 LGA1700
CPU Power Connector 8-pin + 8-pin 8-pin + 8-pin 8-pin + 8-pin 8-pin
Power Architecture 18+1 (90A) 16+1 (90A) 16+1 (70A) 10+1 (110A)
Memory 4 x DIMM; Max. 128GB DDR5 4 x DIMM; Max. 128GB DDR5 4 x DIMM; Max. 128GB DDR5 2 x DIMM; Max. 64GB DDR5
Graphics Output HDMI 2.1 (4K@60Hz)/ DP 1.4 HDMI 2.1 (4K@60Hz)/ DP 1.4 HDMI 2.1 (4K)/ DP 1.4 HDMI 2.1 (4K)/ Thunderbolt
Expansion slots 1 x PCIe 5.0 x16 (@x16 or x8) 2 x PCIe 4.0 x16 (@ x4) 1 x PCIe 5.0 x16 (@x16) 2 x PCIe 4.0 x16 (@ x4) 1 x PCIe 5.0 x16 (@x16) 2 x PCIe 4.0 x16 (@ x4) 1 x PCIe 5.0 x16 (@x16, x8/x8)
SATA 6Gb/s 4 4 4 2
M.2 1 x 22110 (PCIe 5.0 x4) from CPU 1 x 2280 (PCIe 4.0 x4) from CPU 2 x 2280 (PCIe 4.0 x4 ) from PCH 1 x 2280 (PCIe 4.0 x4 & SATA mode) from PCH 1 x 22110 (PCIe 4.0 x4) from CPU 1 x 2280 (PCIe 4.0 x4 ) from PCH 1 x 22110 (PCIe 4.0 x4) from PCH 1 x 2280 (PCIe 4.0 x4 & SATA mode) from PCH 1 x 22110 (PCIe 4.0×4) from CPU 1 x 22110 (PCIe 4.0 x4) from PCH 1 x 2280 (PCIe 4.0 x4) from PCH 1 x 2280 (PCIe 4.0 x4 & SATA) from PCH 1 x M.2 2280 (PCIe 5.0 x4) 1 x M.2 2280 (PCIe 4.0 x4)
USB 2x USB 3.2 Gen 2×2, 7x USB 3.2 Gen 2, 8x USB 3.2 Gen 1, 4x USB 2.0 2x USB 3.2 Gen 2×2, 3x USB 3.2 Gen 2, 6x USB 3.2 Gen 1, 8x USB 2.0 2x USB 3.2 Gen 2×2, 3x USB 3.2 Gen 2, 6x USB 3.2 Gen 1, 6x USB 2.0 2x Thunderbolt 4, 2x USB 3.2 Gen 2×2, 4x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 6x USB 2.0 (Including ROG Strix Hive & ROG FPS-II Card)
Ethernet 1 x Intel 2.5Gb 1 x Intel 2.5Gb 1 x Intel 2.5Gb 1 x Intel 2.5Gb


Weight: 1.5 kg
Dimensions: 30.5 x 24.4 x 7.7 cm; 1.5 Kilograms
Brand: ASUS
Model: 90MB1CN0-M0EAY0
Colour: Black
Batteries Included: No
Manufacture: Asus
Dimensions: 30.5 x 24.4 x 7.7 cm; 1.5 Kilograms
