GEEKOM Mini PC AS6, AMD Ryzen7 7735H (up to 4.75GHz) Windows

GEEKOM Mini PC AS6

GEEKOM Mini PC AS6, AMD Ryzen7 7735H (up to 4.75GHz) Windows 11 Pro Mini Computers, 32GB DDR5 RAM 1TB M.2 SSD, Support 4K@60Hz/8K UHD/WiFi 6E/BT5.2/2TB Expansion, Mini Desktop Computer Powerd by ASUS


GEEKOM AS 6 TECH SPECS

Processor AMD Ryzen 7 7735H (8 Cores, 16 Threads, 16MB Cache, 3.2 GHz~ 4.75 GHz)
GPU AMD Radeon Graphics 680M
TDP 35W
RAM Dual-Channel DDR5-4800 SODIMM
Storage 2 x M.2 2280 PCIe Gen 4×4 SSD , supports up to 2TB (* NVMe only) , 1 x 2.5″ 7mm SATA HDD, supports up to 2TB
WiFi Wi-Fi 6E
Bluetooth Bluetooth 5.2
LAN 2.5G LAN (RJ45)
Interface(front) 1 x USB4 Type-C (DP1.4 support, 7680 x 4320 @60Hz), 2 x USB 3.2 Gen1, 1 x audio jack
Interface(rear) 1 x USB4 Type-C (DP1.4 support, 7680 x 4320 @60Hz), 3 x USB 3.2 Gen1, 2 x HDMI 2.1 port (4096 x 2160 @60Hz), 1 x Display Port 1.4 (7680 x 4320 @60Hz), 1 x 2.5G RJ45 LAN , 1 x DC-in, 1 x Padlock ring
Power supply 20V 7.5A, 150W power adapter
Package 1 x AS 6 Mini-PC, 1 x power adapter, 1 x VESA mount (screws included), 1 x SSD mounting screws (2 pcs.), 1 x HDD mounting screws,1 x Qucik manual, 1 x user manual
Other 1 x Kensington lock
System Windows 11 Pro 64Bit

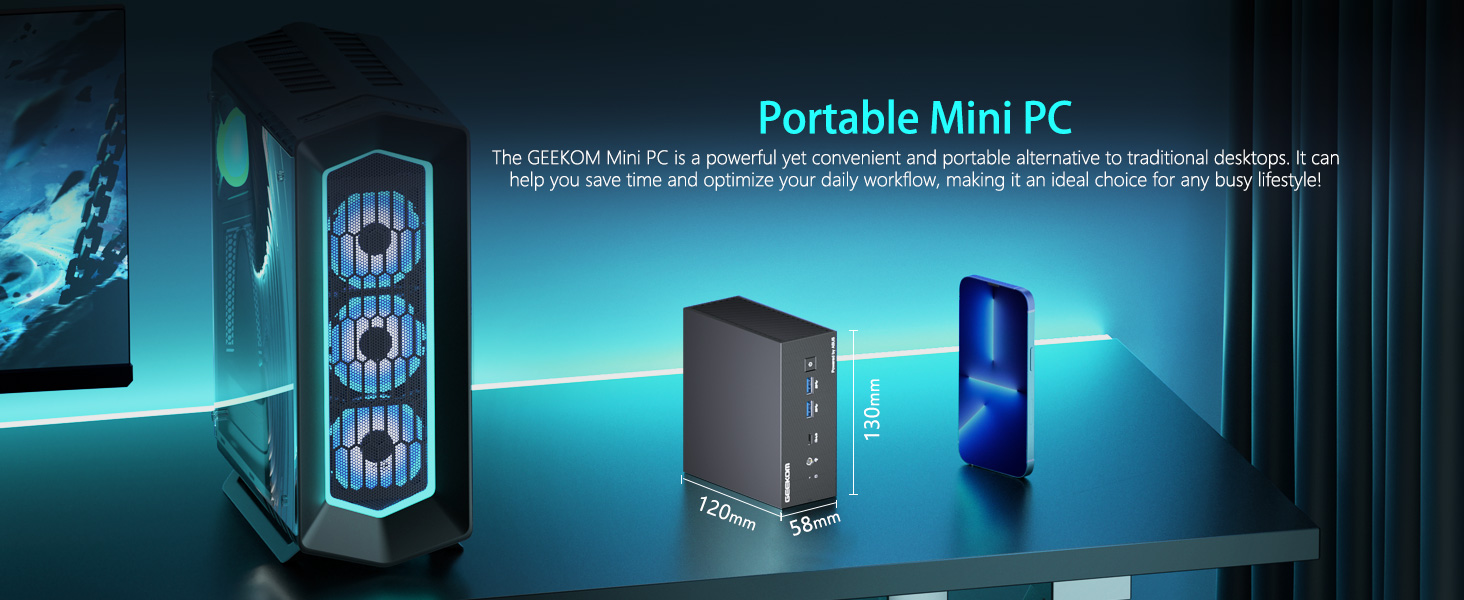

Size 120 x 130 x 58 mm
Weight 0.9 kg
  1. mini pc
  2. Mini PC
  3. Mini PC
  4. Mini PC
  5. Mini PC
1Powered by ASUS2AMD Ryzen 7735H3AMD Radeon Grafik 680M4WiFi 6E5DDR5 RAM & SSD

Watch the unboxing video of the AS6!


  1. Mini PC
  2. Mini PC
  3. Mini PC
  4. Mini PC
  5. Mini PC

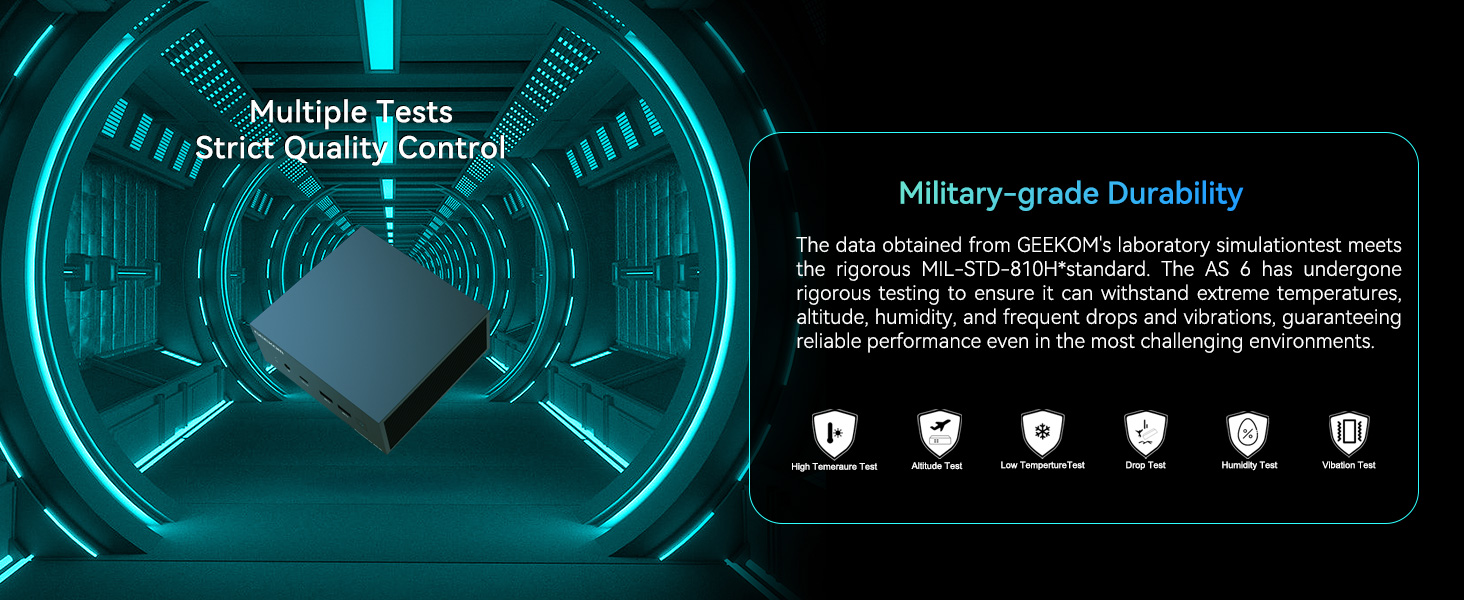

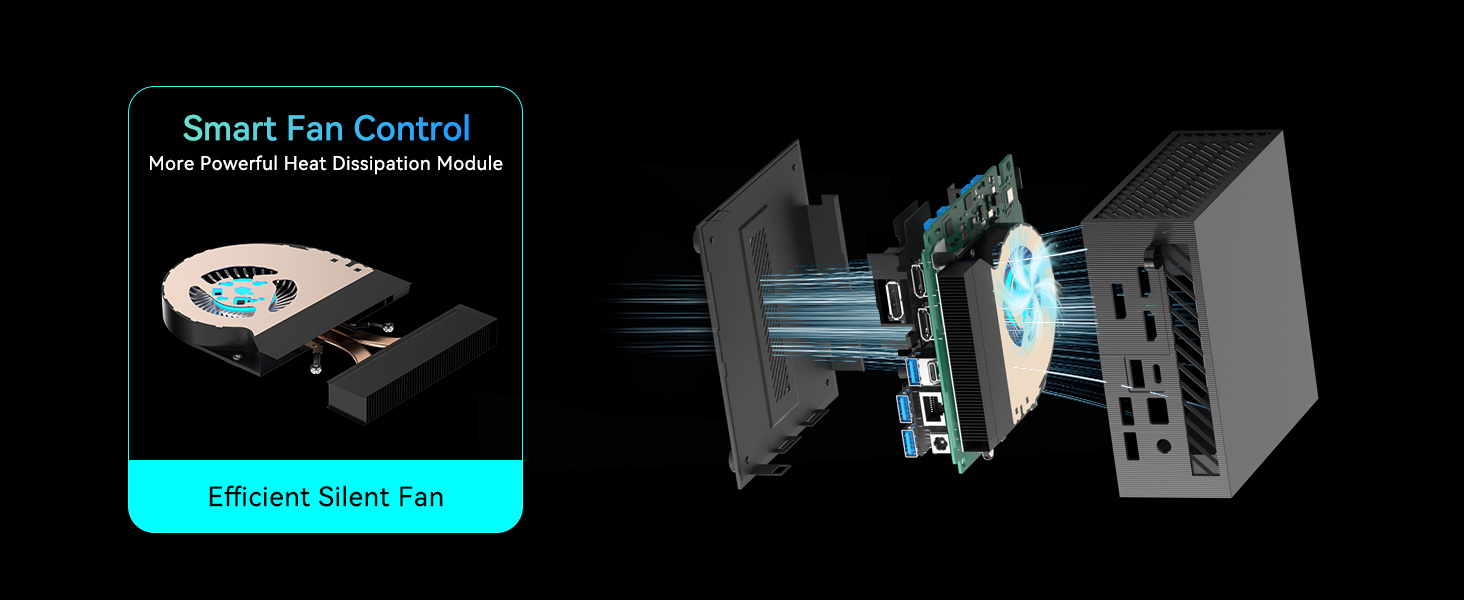

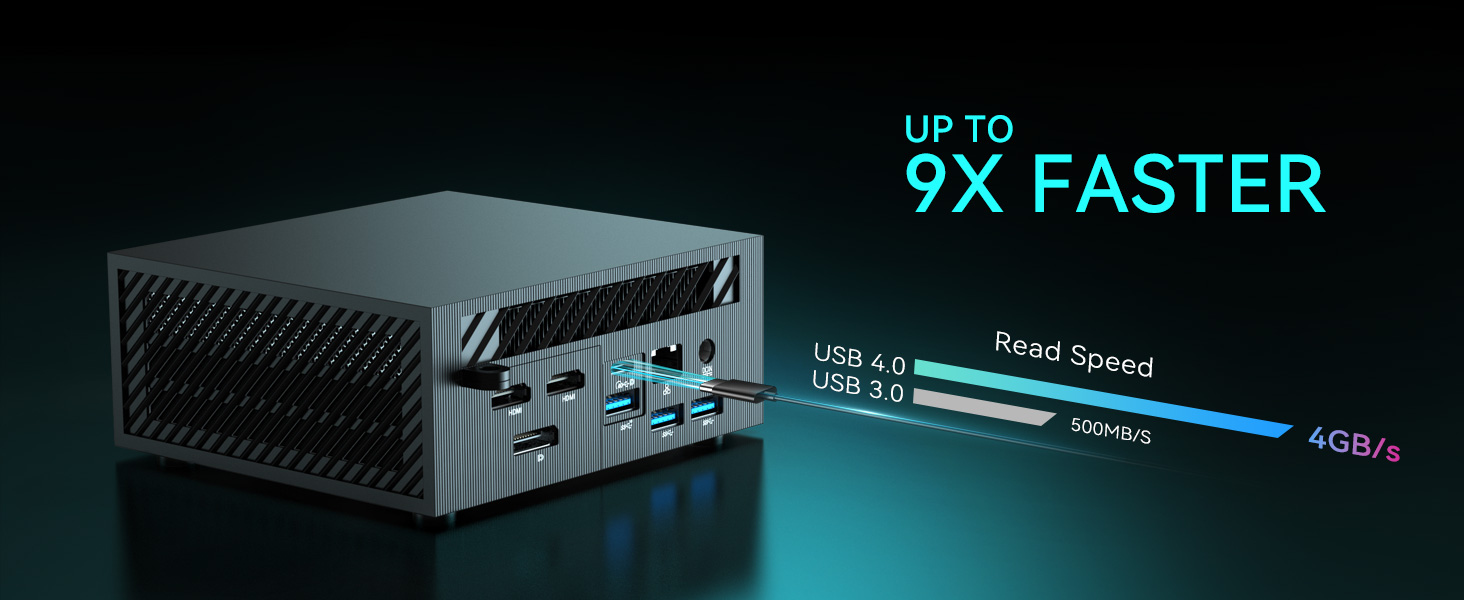

1USB4 (40Gbps)2My ASUS3Portable4Quality control5Cooling module

GEEKOM Mini PC

Mini PCMini PC

IT12

CPU

AMD Ryzen 9 6900HX / AMD Ryzen 7 7735H

CPU

INTEL Core i7 11390H

CPU

INTEL Core i7 1260P

GPU

AMD Radeon Graphics 680M

GPU

Inte Iris Xe

GPU

Intel Iris Xe ( Max. dynamic graphics frequency:1.40 GHz )

  1. Mini PC
  2. Mini PC
  3. Mini PC
  4. Mini PC


Weight: ‎1.92 kg
Dimensions: ‎30.3 x 19.8 x 9.9 cm; 1.92 Kilograms
Brand: ‎GEEKOM
Colour: ‎Black
Manufacture: ‎GEEKOM
Dimensions: ‎30.3 x 19.8 x 9.9 cm; 1.92 Kilograms

9 Responses

  1. Anonymous says:

     United Kingdom

    After reading mixed reviews about mini pcs in general, I ordered this GEEKOM A7 to try out for our office. After some confusion on the Amazon site about the actual model ordered i.e., Ryzen 9 7980H or Ryzen 7 7890H, the item (7890H with 32gm ram and 1T ssd) arrived within two days, earlier than expected.
    Got a VAT invoice from GEEKOM directly and also an explanation and apology about the confusion at the ordering stage.
    Setting up very easy, win11pro pre installed. I can’t believe how this small pc can handle multi tasking, four screens etc etc. It runs pretty cool too and has a constant low level fan noise, much better than the high end laptop I’ve recently had, and returned for noise and heating issues.
    Wondering why the unit is sitting sideways in the picture on the stand?
    Well as all the reviews of other mini pcs will tell you that the wifi card is located at the bottom and cramped between other components. Hence wifi strength of all mini pcs is an issue, not exclusively on GEEKOM.
    Therefore, I had to experiment with changing its orientation to get the best wifi signal.
    I also got the latest WiFi card driver from the GEEKOM support which I haven’t tried as putting it sideways (exposing the bottom plate towards the router) gets the max wifi speed which is almost identical to all the other computers connected to the router.
    All in all, very pleased so far from the product and the support too.
    Good things do come in small packages

    5.0 out of 5 stars Powerful little beas

  2. Justin Pot says:

     United Kingdom

    Having ditched a PC the size of a house. I wanted a replacement that occupied less space in my home office. Spent a lot of time reseaching mini PC’s and decided to give this a whirl. Pleased I did. This is a truely impressive little machine, easy to set up, good value for money and runs all my peripherals – printers, scanner, speakers, CD drive and external hard drive storage with ease. Another selling point that is often missed – it comes free of any bloatware.

  3. Anonymous says:

     United Kingdom

    Over all its a good bit of kit but the fan noise will drive you potty apparently there is a firmware update to fix this but getting a response from Geekom support is nearly impossible [ we are not here right now please leave your question] yes no update in three days(Update support have just sent me a link that you put on a flash drive and fingers crossed has made a big difference)

  4. LanceSLAUun says:

     United Kingdom

    Golden Review Award: 4 From Our UsersFast. Boots up in 15 seconds. Easy to add more RAM, SDD, and HDD. It is more than enough for my needs. But internet download speeds were slow. My router is 6 meters and 3 walls away from this PC and downloads range from 1.5 – 4.5 Mbps. My old laptop (next to this PC) was around 40Mbps. Took it nearer to the router and download was 130Mbps but I need this PC in my office. Changed the adaptor settings to 2.4GHz 802 1b/g (greater range but less data transfer) and this improved to 18Mbps. Not great but workable. Not sure why the downloads are slower than my old laptop. Mailed Geekom and waiting for a reply. Nevertheless, it is a great mini PC, although I suspect the GEEKOM AS 6 Mini PC AMD Ryzen 6000H (AMD Ryzen 9 6900HX, Ryzen 7 7735H) would be a better product as it has a far better graphics card.
    Edit. My download speed now ranges from 18 – 50Mbps.
    Additionally, for buyers who are worried about the product key not being supplied, the following will get your product key
    1. TYpe CMD in your search bar
    2. Run as administrator
    3. Type in the following; wmic path SoftwareLicensingService get OA3xOriginalProductKey.
    4. Your product key will be displayed

  5. Anonymous says:

     United Kingdom

    Golden Review Award: 2 From Our UsersThree months ago I purchased the Geekom Mini Air. It’s the cheapest Geekom Mini PC in their range, only having a Celeron processor. I was intrigued as to how a PC could be made for under 160. I was blown away. Cut a long story short I watched the launch event for the new IT13 a few weeks ago and could not resist getting another Geekom, but this time see what a more powerful model could do.
    Unsurprisingly the I9 and i7 processors had all sold out. I couldn’t wait for a restock so ordered the i5. Figured it could still have more than enough power for what I need it for.
    The unboxing experience is excellent, really well packaged in a nice sturdy box. I love that Geekom also includes a VESA mount in the box so this little PC can be mounted on to the back of your monitor or tv. Nice touch.
    I swapped my shiny new IT13 for my still very capable mini air and pressed the on button. Wow, booted to Windows in seconds. What I love about Geekom, and can’t be said for pretty much all other PC manufacturers is the fact they do not install bloatware or software trials on your machine. What you get with Geekom is a 100% clean Windows 11 Pro install. It’s so refreshing. No spending hours trying to delete all the usual rubbish. Impressed already I updated Windows and decided to run some benchmarks.
    For you techies, achieved well over 95% of the expected Cinebench R23 Scores with
    Multicore 13850 (expected 13970)
    Single Core 1699 (expected 1789)
    Excellent results for the new i13 processors featuring 12 total cores, 16 total threads, 4.70ghz max turbo frequency and 24 mb Intel Smart Cache.
    Graphics are processed via the onboard Iris Xe graphics chip. While this isn’t going to compete with the monster graphics cards found in most gaming PC’s it does a decent job at most games giving a more than acceptable frame rate, and coupled with the DDR 4-300 RAM you should not expect any throttling.
    Looking at the IO the GEEKOM offers some serious connectivity

    3 X USB 3.2 Gen 3 ports
    1 X USB 2.0 ports
    2 X USB 4 ports
    SD Card Reader
    Should also mention the 2 x HDMI ports which along with the USB 4 ports gives quad displays and supports 8k!!!! Amazing
    Incredible. 4 displays and the pc can be mounted into the back of one of the displays for a really clean desktop.

    For the last 6/7 years I’ve been an avid Mac user and totally gave up on PC’s due to all the bloatware and slow loading times. This GEEKOM gives me the same Mac experience, speedy, and no delays but with the ability to upgrade the pc easily. In my mini Air I removed four screws and within a minute had upgraded the RAM and added a new NVMe drive. I was planning on doing the same to this It13 but it’s so rapid I’m not even thinking of upgrading for a while.

    I cannot recommend these GEEKOM units enough. This won’t be the last one I buy. If you want a really easy, reliable home PC you really don’t need to look any further. No big bulky box consuming electricity ( did you know the running costs of these small PC’s saves 100’s per year) these can fit away out of sight and coupled with a Bluetooth keyboard and mouse give a really clean setup. Even attached to back of a tv, brilliant for streaming. The WiFi and Bluetooth connections are also really quick.(WiFi 6 and Bluetooth 5.2).
    Go for it. You will not be disappointed.

    5.0 out of 5 stars Excellent. Unbelievable little PC.

  6. Anonymous says:

     United Kingdom

    Prompt delivery and really easy to get things up and running. Got it to run business related Windows software, and use as a file server. It looks as if it will be more than sufficient to do the job. Great to have such a small computer that takes up such little desk space. The support looks really good as well – but hopefully will not have to use it!

  7. Anonymous says:

     United Kingdom

    My laptop was not powerful enough for the Pioneer FLX10 Controller so I spent a considerable amount of time trying to get up to speed, researching & learning what was appropriate, available and within budget. Thankfully, I bought the Geekom Mini PC. So far, so good! Fantastic mini PC that facilitates perfect interaction with the FLX10. Low latency, allows any mixing actions to be transitioned as desired – no lagging or stuttering as it was with my laptop & makes it just like using the 1210’s & vinyl – perfectly responsive. Very impressed with this computer’s processing speed. Thank you very much Geekom! Happy Customer!

  8. SaritaAgerman says:

     United Kingdom

    Golden Review Award: 28 From Our UsersSolid build quality, nice finish. Very small, compact with lots of ports. It also has an IR sensor so theoretically ehome remote capable – not tried yet.
    W11 preinstalled, once configured and updated it’s ready to go. Very fast!! But not suitable for high end gaming. (Asphalt 9 still runs smoothly.)
    I added my own ssd drive to it as well.
    Perfect for office, family pc, or even as a home theater pc. Plays/streams 4k videos nicely. I use it for audio/video editing, Photoshop, office work etc.
    Due to compact size the cpu temp is always above 40-45 Celsius, even if idle. Under low load or when idle the fan is very quiet, nearly silent. I wouldn’t tell if the device is on without looking at the led button. You can watch 4k movies at night without the fan disturbing.
    Under load the cpu temp can rise above 65-70 Celsius and the fan is annoyingly noisy. The solution is to disable turbo boost from the Bios or from Power mgt: with this the cpu will not overclock and not overheat.. so the fan remains always silent. The system remains still usable and very fast, you cannot really notice any performance difference with everyday usage.
    Generally I am very happy with it, esp. with the performance and connectivity options. Oh, and Ubuntu runs also perfectly on it 🙂
    I can highly recommend it.

    Update:
    If you connect this to a smart TV via hdmi output, it will break the CEC control and ARC feature on the TV. In my case it’s a Samsung 4k TV. This means, if you have other devices connected to the TV (AV-Receiver, sky box, fire tv etc) the unified remote control and audio return channel feature will stop working. This is because the MiniPC’s hdmi port does not support CEC and it scrambles the signal. The same issue can occur when connecting the minipc directly to an AVR via hdmi.
    There are 2 solutions for this problem:
    1. Use a small cec-less hdmi male-female adapter on either end of the hdmi cable (between minipc and TV). This basically stops the cec signal.
    2. Use another port to connect the minipc with the TV (with an adapter). i.e. mini display port to hdmi, or usb-c to hdmi. The picture quality is the same, but these ports do not have CEC control. Although you might get different refresh rates and hdr controls, depending on the cables/adapters used. Buy good quality cables supporting high resulutions and refresh rates!
    No CEC troubles when connecting to a normal pc monitor (via hdmi).

  9. RaeR00kgrlsvxvl says:

     United Kingdom

    Golden Review Award: 5 From Our UsersAs part of my recent reduction of electric usage I managed to reduce my monthly usage by about 20%.

    However a few power hungry appliances remained. One of these was my main PC. This is normally on 24/7 (but sleeps when inactive for a period) and runs Plex, a remote app for work, and used for the occasional Civ 6 game amongst others.

    Using the handy tplinkuk energy monitoring plugs I ran some usage tests on both machines.

    The geekompc I opted for was i5 with 16gb ram and 500gb m2 ssd and my main pc is a AMD 5600x, nvidia 3080 and a samsung 1tb m2 drive.

    At idle, the main PC was pulling 85.2w and when gaming a whopping 462.9w. While geekompc at idle was circa 13w and while gaming between 37w and 49w.

    So even at full tilt it pulls less than half of the main PC at idle.

    I tested 4k videos playing on YouTube and streaming via Plex and the geekompc handled it with ease and sat at circa 24w.

    While the benchmarks in Civ6 were of course no where near the Main PC. The game however was very playable.

    In conclusion, a small (palm size!) PC that uses minimal power even at full tilt that will replace my main PC and run the apps that are on 24/7.

    5.0 out of 5 stars Powerful but not Power hungry
