Geekworm Raspberry Pi 5 Case (P579) | Support PCIe M.2 NVMe
Geekworm Raspberry Pi 5 Case (P579) | Support PCIe M.2 NVMe SSD Shield Top X1001 / X1000 & Raspberry Pi 5 Active Coole
[Packing List]
- 1x Metal case P579
- 4x M2.5×5+5mm spacers
- 4x M2.5×6Ø4mm copper nuts
- 4x KM2.5x4mm screws
- 1x 4pcs rubber pads
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

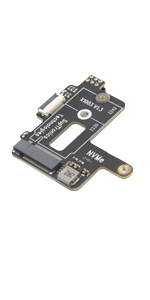

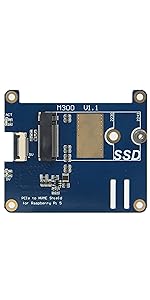

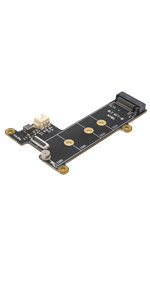

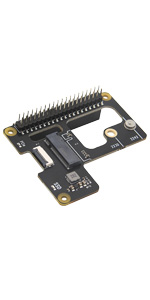

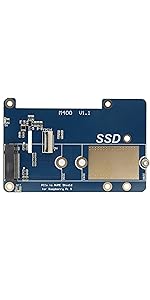

| Compatible with | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 |
| Mounting Position | Top of Pi 5 | Top of Pi 5 | Top of Pi 5 | / | Top of Pi 5 | Top of Pi 5 |
| Supported M.2 NVMe SSD Length | 2230/2242 | 2230/2242/2260/2280 | 2230/2242 | / | 2230/2242 | 2230/2242/2280 |
| Matching Case | P579 | P579 | P579 | / | P579 | P579 |
| Supported Active Cooler | Official Active Cooler / Argon THRML 30mm Cooler (ASIN: B0CSJQC7DV) | Official Active Cooler / Argon THRML 30mm Cooler (ASIN: B0CSJQC7DV) | MUST work with Official Active Cooler | / | Official Active Cooler / Argon THRML 30mm Cooler (ASIN: B0CSJQC7DV) | Official Active Cooler / Argon THRML 30mm Cooler (ASIN: B0CSJQC7DV) |
| Weight: | 128 g |
| Dimensions: | 11.3 x 7.5 x 4.2 cm; 128 Grams |
| Brand: | Geekworm |
| Colour: | Black |
| Manufacture: | Geekworm |
| Dimensions: | 11.3 x 7.5 x 4.2 cm; 128 Grams |
| Reference: | TB-24-0102-EU |
Acabado perfecto, como una caja de buena calidad para un sobremesa pero de tamao para la Pi, no le pongo 5 estrellas porque el metal hace que la recepcin de Wifi sea ms dbil, pero si tienes el router relativamente cerca o usas conexin ethernet entonces eso no supone ningn problema.
Pero pierde algo de seal de recepcin el wifi y el bluetooth, creo que por ser metlica.
Va perfecta para usarla con una tarjeta nvme sobre ella, en mi caso lo compr todo junto.
Auf dem Raspi Board wurde noch eine trgerplatine mit SSD verbaut und passt so nicht mehr in das Standard Raspi Gehuse. Das Gehuse hat gut Platz und passt sehr gut.
pi5 + carte NVME m.2 hat+ officielle + une mmoire nvme – tout rentre parfaitement, et il y a encore de la place. Vraiment produit trs efficace, bien plus que le casing officiel raspberry si vous voulez ajouter des choses sur votre board.
I built my NAS from a Raspberry Pi 5, with an official active cooler, an NVMe SSD drive, and running Open Media Vault 7. This whole package fits neatly into the case forming a secure home. All ports and buttons are accessible. Great.
Valde denna lda d den lter mig f in kombinationen av en Raspberry Pi 5 med aktiv kylare (den officiella) och en s k HAT fr NVMe-minne.
Jag drar av en stjrna fr att skruvarna r ovanligt sm och “pilliga” att f dit.
Gutes, stabiles Gehuse, das besonders fr den Einbau einer SSD geeignet ist. Das kompakte Gehuse hat reichlich Platz fr den Raspberry Pi 5, den aktiven Lfter, die SSD Erweiterungsplatine und eine SSD.
Boitier mtallique plus grand qu’a l’accoutum mais c’est ncessaire pour accueillir le PI5 avec son radiateur officiel, une extension NVME (X1001) et un SSD.
Attention toutes fois, un SSD 2280 (le plus long) ne peut pas tre dmont sans extraire compltement le raspberry (4 vis de plus dfaire ce n’est la mer boire)
The case is well made though not as good as my other one made in Japan, which is much sturdy and well design. However I would not complain as the Japanese made one costs 3 times more. You pay what you get.
Habe den 1001 NVME Adapter auf dem Pi5 montiert und dafr das Gehuse gekauft.
Auf dem Pi ist auch der Raspberry aktiv Khler montiert und alles passt perfekt zusammen.
Das Alucase macht einen guten und vor allem stabilen Eindruck, bisher Null Probleme mit HomeAssistant, das auf dem Pi5 mit der NVME luft.
Looks robust, fits well, would EASILY have been a 5* review if they’d not left the power button and LED just “sitting there” Would it have been too much to have even a little clear plastic push button like on the “official” case?
Other than that, it fits just fine, looks good, plenty of ventilation.
This case means business. Its all metal and of a very high quality. Fits the PI5 and the NVME hat perfectly. If I was to be mega picky, I would have liked something to press for the power button rather than just the exposed PBC button.
Montage impossible avec le ssd Samsung 980 PRO MZ-V8P2T0CW. le radkiateur est trop haut.
Ma configuration:
1)RaspBerry PI5
2)Geekworm X1001 M.2 Key-M NVMe SSD Shield pour Raspberry Pi 5
3)Botier Geekworm Raspberry Pi 5 avec refroidisseur actif pour Raspberry Pi 5 – Adaptateur PCIe M.2 NVMe X1001 / X1000 / X1003
4)Samsung 980 PRO MZ-V8P2T0CW | Disque SSD Interne NVMe M.2, PCIe 4.0, 2 To, Dissipateur de chaleur inclus
This looks and feels like a great case. I am going to keep even though it will not work with my Bottom Hat X1002. Unfortunately, no where does it say this in the description and it is offered on the X1002 Bottom Hat page. Maybe I will buy another Pi 5 and a Top Hat.
