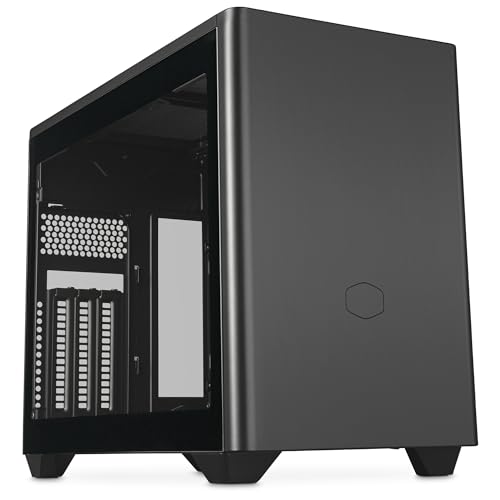

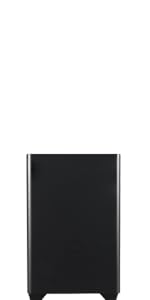

Cooler Master MasterBox NR200P V2 Mini ITX Computer Case
Cooler Master MasterBox NR200P V2 Mini ITX Computer Case – Glass Side Panel, Vertical GPU Layout, PCIe 4.0 x16 Riser Cable, Tool-Free 360 Degree Access, 120mm PWM Fan, USB 3.2 Gen 2×2 Type-C

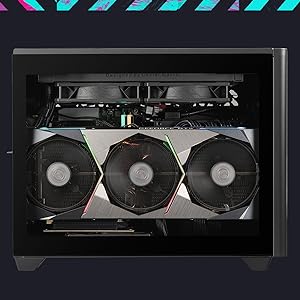

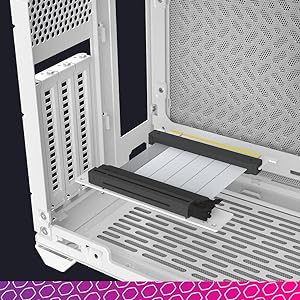

PCIe 4.0 x16 Vertical GPU Support
 |  | |  |  |  | |
|---|---|---|---|---|---|---|
| Customer Reviews | 4.7 out of 5 stars 894 | 4.7 out of 5 stars 894 | 4.7 out of 5 stars 894 | 4.7 out of 5 stars 894 | 4.7 out of 5 stars 714 | — |
| Price | £87.05 | £87.05 | £102.95 | £99.98 | £380.88 | £377.70 |
| Form Factor (colour options) | SFF | SFF | SFF | SFF | SFF | SFF Tower |
| Dimensions (L x W x H) | 376 x 185 x 292 mm | 376 x 185 x 292 mm | 372 x 185 x 292 mm | 372 x 185 x 292 mm | 377 x 185 x 292 mm | 155 x 212 x 481 mm |
| Motherboard Capacity | Mini-ITX (Max. 244 x 226 mm) | Mini-ITX (Max. 244 x 226 mm) | Mini-ITX (Max. 170 x 180 mm) | Mini-ITX (Max. 170 x 180 mm) | Mini-ITX (Max. 170 x 180 mm) | Mini-ITX |
| Graphics Card Capacity | 330 mm (incl. power connector) | 330 mm (incl. power connector) | 336 mm (inc. power connector) | 336 mm (inc. power connector) | 336 mm (inc. power connector) | 337 mm (standard), 357mm (expanded) |
| PSU Support | Up to SFX, SFX-L | Up to SFX, SFX-L | Up to SFX, SFX-L | Up to SFX, SFX-L | 1 x pre-installed 850W SFX (80 PLUS Gold, ATX 3.0) | 1 x pre-installed 850W SFX (80 PLUS Gold, ATX 3.0) |
| Radiator Support | Max. 92 mm (Rear), 240 mm (Bottom), 280 mm (Side Bracket) | Max. 92 mm (Rear), 240 mm (Bottom), 280 mm (Side Bracket) | Max. 280 mm (Top) | Max. 280 mm (Top) | 1 x pre-installed 280mm AIO cooling system (Top) | 1 x pre-installed 120mm custom AIO cooling system (Top, deep radiator) |
| Fan Support | 2 x pre-installed 120mm PWM fans (Top), Max. 7 fans (Top/Bottom/Rear) | 2 x pre-installed 120mm PWM fans (Top), Max. 7 fans (Top/Bottom/Rear) | 1 x pre-installed 120mm PWM fan (Bottom), Max. 4 fans (Top/Bottom) | 1 x pre-installed 120mm PWM fan (Bottom), Max. 4 fans (Top/Bottom) | 2 x pre-installed 140mm PWM fans (Top), Max. 7 fans (Top/Bottom/Rear) | 1 x pre-installed 120mm custom PWM radiator fan (Top), 1 x pre-installed 120mm case fan (Side) |
| I/O Ports | 2 x USB 3.2 Gen 1 Type-A, 1 x 3.5mm Headset Jack (Audio+Mic) | 2 x USB 3.2 Gen 1 Type-A, 1 x 3.5mm Headset Jack (Audio+Mic) | 1 x USB Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 1 x 3.5mm Headset Jack (Audio+Mic) | 1 x USB Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 1 x 3.5mm Headset Jack (Audio+Mic) | 2 x USB 3.2 Gen 1 Type-A, 1 x 3.5mm Headset Jack (Audio+Mic) | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 3.5mm Headset Jack (Audio+Mic) |
| Accessories | Perforated steel panel, tempered glass panel, side radiator bracket, PCIe 3.0 x16 riser cable | Perforated steel panel, tempered glass panel, side radiator bracket, PCIe 3.0 x16 riser cable | Perforated steel panel, tempered glass panel, PCIe 4.0 x16 riser cable | Perforated steel panel, tempered glass panel, PCIe 4.0 x16 riser cable | Perforated steel panel, tempered glass panel, PCIe 4.0 x16 riser cable | Standard top panel, expanded top panel, PCIe 4.0 x16 riser cable |
Ltt stta i komponenterna trots att det r ngt trngt. Ej optimal fr SSD-diskar, dessa r svrt f till en bra plats fr.
Ngot hgljud lda – oavsett vilken vgg som anvnds.
Bra helhetsintryck.
Il case stupendo, puoi smontarlo tutto quanto per aiutarti ad assemblare al meglio la tua configurazione.
Piccola nota: ho acquistato il case bianco, ma il vetro arriva con la fascia nera. Sarebbe stato meglio riceverlo con fascia bianca, ma non la prima cosa a cui si pensa quando lo si guarda.
Ovviamente molto piccolo, bisogna fare un ottimo cable management e stare attenti all’airflow.
Fantastico. 5 Stelle.
The Cooler Master MasterBox NR200P is an outstanding Mini ITX computer case that manages to pack a powerful punch despite its compact size. It is clear that Cooler Master has put in a lot of effort to design a case that offers excellent quality, ease of access to components and outstanding cooling options – making it a top choice for those looking for a high-performance Mini ITX system.
One of the standout features of the NR200P is its compact size. It’s perfect for smaller builds or for people who want a sleek, minimalistic look to their setup. The case is well designed and built with high-quality materials, ensuring that it can accommodate your components without compromising on durability or aesthetics.
Ease of access to components is another area where the NR200P excels. The side panel is easy to remove, allowing for quick and hassle-free installation and removal of components. This makes building or
upgrading your system a breeze, even if you’re new to the world of PC building.
The cooling options on the Cooler Master MasterBox NR200P are truly impressive. The case offers
excellent airflow and supports both air and liquid cooling solutions. With two pre-installed
120mm fans at the top, and an additional mounting points for a 120mm or 140mm fans, you can ensure that your components stay cool even during demanding workloads.
While the Cooler Master MasterBox NR200P is an excellent choice overall, there is one minor drawback – the ATX PSU mount plate is not included by default and requires an additional investment of 20 euros. This may be a deal-breaker for some users, but considering the quality and performance that the case offers, it’s a reasonable trade-off for those looking for an outstanding Mini ITX case.
In conclusion, the Cooler Master MasterBox NR200P is a fantastic choice for anyone in search of a compact, high-quality computer case with excellent cooling options and easy access to components. Although the ATX PSU mount plate comes at an extra cost, the overall value and performance of this case make it well worth considering.
Das Cooler Master MasterBox NR200P Mini-ITX-PC-Gehuse ist ein kompaktes, leistungsstarkes Gehuse, das ideal fr den Einsatz als Home-Entertainment- oder HTPC-System geeignet ist. Es verfgt ber ein schlankes, modernes Design, eine robuste Konstruktion und eine gute Khlleistung. Es bietet Platz fr ein Mini-ITX-Motherboard, eine Grafikkarte bis zu einer Lnge von 310 mm, einen 3,5-Zoll- und einen 2,5-Zoll-Laufwerk, zwei 120-mm-Frontlfter und einen optionalen 140-mm-Rcklfter. Die beiden vorderen USB-C-Anschlsse ermglichen die Verbindung zu modernen Gerten. Insgesamt ist das Cooler Master MasterBox NR200P ein sehr gutes Gehuse
The nr200p is a solid purchase for anyone who wants to enter the sff pc building scene. With the ease of access to all areas of the case and with solid cooling options, it is an all rounder. Make sure to check measurements of certain coolers and for your graphics cards as it can get to be a tight fit.
I love these cases , sure they need a SFP power supply , but they are easy to assemble , easy to access internals , great for small builds. Good cooling – obviously no room for floppy or cdrom , but who uses those nowadays. Space for two 2.5 inch drives hidden behind the front panel. Three normal expansion slots , and space for an extra 2 expansion slots via a riser cable – usually for a GPU – but I’ve used to install 2 PCI cards via a PCIE to PCI adapter.
Es uno de los mejores gabinetes por el precio y prestaciones.
La caja es un pequeo tanque bien construido y con materiales de calidad media. El ensamble ha sido el ms fcil de todos los armados que he tenido con muchos gabinetes itx (nzxt, phanteks, corsair, termaltake) y esto se debe al gran espacio que tiene para cables, fuente y gpu que literalmente cabe cualquiera.
Creo que el punto ms sobresaliente del NR200p es el flujo de aire (con panel metalico), casi a la altura e incluso mayor que muchos gabinetes atx del mercado..
Con vidrio templado la temperatura aumenta de 2 a 5 grados dependiendo de tus componentes
Sin embargo no es tan pequeo como a muchos de nosotros nos gustara, comparndolo con S1, DAN, y otros ms pequeos. Pero por el precio es inigualable. Lo recomiendo al 100%
Eu queria um menor, com menos litros e formato sanduche, mas, esse acabou tendo de ser minha opo j que importei um do ali e voltou pra China ai esse por ter no amazon foi o escolhido. O gabinete muito bom e sua disposio de espao e compatibilidade excelente, unico ponto negativo ao meu ver ser “grande” pra mini itx, mas no demais maravilhoso!
hoje e o gabinete mais pequeno no mercado nacional para comportar uma placa de vdeo de 3 fans, lembrando que necessrio utilizar uma Fonte SFX ou comprar um adaptador para uma Fonte ATX o que eu acho que no e a proposta, no mais recomendo, muito bem disposto para organizao.
Hay que dedicarle tiempo y planear el como poner los cables, pero es sencillo, siempre y cuando no tengas discos duros, ya que hace la tarea ms compleja. El unico “pero” es que los cables de la tarjeta de video no hay manera de ocultarlos o hacerlos ver bien sin tener que gastar en cables a la medida o adaptadores.
Lo tengo con un Ryzen 5800x, 16gb de ram, rtx3080 evga ftw3, nh d15 noctua (para que quepa el disipador imprim un marco de expansion 3d y hace que quede a la perfeccin) y una fuente sfx de 750watts.
Le boitier est fourni avec un panneau latral en mesh et avec une vitre en plus.
Il peut contenir une carte graphique soit a l’horizontal, soit a la verticale jusqu’ une longueur de 33 cm.
Un riser est livr mais je n’ai pas test sa compatibilit PCI express 4.0
Il est galement livr avec 2 ventilateurs de 12 cm pour les fixer sur la partie suprieur du boitier.
Mon conseil : Mettre ces 2 ventilateurs en haut + 2 ventilateurs de 12 cm en bas et mettre votre carte graphique a l’horizontal en supprimant les ventilos de la carte graphiques. Reliez l’ensemble des ventilateur a un Corsair commander pour piloter finement la vitesse des ventilateurs et vous aurez une solution royale pour pouvoir joueur avec des contraintes minimales de bruit.
era ora di cambiare il mio vecchio case mini-itx ed al momento questo case della Cooler Master rappresenta sicuramente la soluzione con il miglior rapporto qualit/prezzo.
Infatti la qualit costruttiva ed i materiali sono premium, ma il prezzo assolutamente alla portata di tutti, a differenza dei prezzi astronomici e, per come la vedo io, davvero senza senso di altri case mini-itx, che alla fine non hanno nulla, ma davvero nulla, in pi di questo per giustificarne l’acquisto a quelle cifre folli (oh… un case per PC!).
Certamente non tra i pi piccoli case itx sul mercato, ma a mio avviso elegante ed economico e soprattutto lo si pu acquistare senza troppi problemi di disponibilit e senza doverlo importare dall’altra parte del mondo, con tutto ci che ne consegue in termini di addebiti di iva, dazi doganali, commisioni del vettore, ecc..
Pagato nuovo di zecca a 65 euro in un momento di calo del prezzo originale (mi ha avvisato Keepa), che se ci pensate praticamente un terzo o anche meno di altri case itx molto pubblicizzati dagli influencers: per me ho fatto un affare, con tanti saluti a Ncase, Dan Case, Mjolnir, Formd T1, SSUPD, Lian Li, Jonsbo, Loque e compagnia bella!
Voldoet zeker aan wat er staat in de beschrijving. Redelijk eenvoudig in te werken (voor een SFF case).
Daarbuiten is het gewoon een mooie case die niet veel ruimte inneemt, maar wel veel in zich kan hebben.
Aanrader dus.
Airflow/temperatuur is top. (air cooled)
Es una caja para ordenador sper verstil, para el precio que tiene el acabado es muy superior al de otras cajas del mismo rango, los paneles laterales son magnticos y las dems piezas de la caja son fciles de desmontar.
El panel de vidrio templado queda muy bonito para mostrar los componentes del ordenador. Me hubiese gustado que fuese un poquito ms alta para poder colocar un disipador de enfriamiento lquido en la parte superior de la caja, pero creo que en una prxima revisin probablemente la agreguen.
En el apartado trmico el rendimiento es espectacular, no tiene nada que envidiarle a una caja que ocupe el doble o ms de espacio para ponerle ms ventiladores y dems, los dos que incluye funcionan muy bien y mantienen al CPU con una temperatura manejable, incluso con el cooler de CPU que viene de fbrica.
Muy recomendada!
I would avoid the tempered glass version as this compromises the airflow and I prefer the descret version and it’s cheaper. The only real negitives are the case clips sometimes dislodge as does the bottom magnetic filter which could have a better design.
Overall I am very happy with the purchase and it is a 100 times better than the acrylic itx which fell apart.
Le montage de la config est simplissime, tout les panneaux s’enlvent et se remettent trs facilement pour avoir accs toutes les parties du botier, trs pratique lors du montage ou du nettoyage. La gestion des cbles, petit format oblige, peut tre complique, mais a fait partie du challenge et a n’en est que plus satisfaisant quand on trouve enfin la disposition qui marche.
Le flux d’air se fait principalement du bas vers le haut, avec possibilit de placer un petit ventilo de 92mm l’arrire (si GPU non mont verticalement) et 2 ventilos de 140mm (ou un rad de water-cooling 280mm) sur le ct face la carte-mre, de quoi tout garder bien au frais. Mes tempratures en charge sont de 65 sur processeur 5600X non overlock, et 75 sur GPU avec lger overclock. Le panneau ventil de droite permet galement de placer un M.2 dans l’emplacement arrire de la carte-mre (si toutefois elle en dispose) et de le garder des tempratures trs confortables, condition surement de ne pas le solliciter pour de longues charges.
Tous les panneaux ars sont par ailleurs filtrs par un filet en mesh, l’exception de l’arrire du botier.
Les deux ventilateurs 120mm fournis sont tout fait honorables. Il est cependant trs vivement conseill de prvoir au moins deux ventilateurs 120mm supplmentaires pour profiter pleinement du bon flux d’air propos par le botier.
Le seul petit regret que j’ai pour ma part est la prsence d’un panneau en verre dans le paquet. On peut peut-tre m’accuser de cracher dans la soupe, mais en ce qui me concerne, je ne me servirai probablement jamais du panneau en verre, condamn rester dans le carton, et j’aurais justement prfr avoir le choix entre deux ditions, une avec panneau verre, l’autre avec panneau ar. L, a fait un peu gchis.
En conclusion, botier vraiment gnial. Une superbe entre en matire pour ceux qui veulent se lancer dans l’ITX. Malgr sa taille relativement compacte, il offre de belles possibilits en matire de refroidissement. Si le manque d’air est un problme rcurrent dans les botiers petit format, celui-ci russit remarquablement son pari.
Nebst dem Case war auch noch das Rauchglas dabei, und paar Schrauberln etc. (Die P Version halt)
Fettes Minus jedoch: Null Beschreibung; man kann nur anhand einiger Abbildungen erahnen, was das Case kann – und nein; nicht jeder Neukufer ist erprobt im Selbstbau
u.a. werden Seiten/Oberteile abgezogen; was nen leichten Kraftaufwand bedarf;
was man so von anderen Cases nicht kennt und vlt. Angst hat, was kaputt zu machen
+/- An der Oberseite sind 2 120mm Lfter (liegen bei) Pltze, die eine Schnellmontage erlaube – supi; Schrauberrei entfllt (wie fast berall bei dem Gert);
Ich habe AlternativLfter (Alpenfhn) verbaut; die zustzlich ne Gummierung haben; das knnte ,mal Probleme ergeben; und auch mchte ich nicht wissen, ob die Schnellhalterung hlt, wenn die Weichmacher im Gummi “veralten”; allzuviel rein/raus wrde ich nicht machen; da die Gefahr des ausnuddelns besteht.
Eigentlich hat man diese Schnellmontagelsung fr so ziemlich alle Teile; egal ob HD, andere Lfter usw.
Also die Mglichkeiten sind schier unendlich
Ansonste: Wow; Unmengen an Kabelmanagmentmglichkeiten; inkl. Schnellverschlssen, Kabelbinder etc;
also da hat man sich schon auch was Gedacht;
Die 7 Lfter; hhh, ja; oben 2x, Frontpanel 2 Kleine, aber wo der Rest hinsoll??? Keine Ahnung,
aber da helfen umengen an UtubesVids bzw. die Homepage
Das soll dem keinen Abbruch tun, weil ich selbst ein komplettes Passiv “Build (J4005b + gt1030 + passives Netzteil) reingepfrimmelt hab, und der Kamineffekt (ohne Lfter) da brav seine Arbeit versieht;
Mit Lfter, klar, pat alles
Natrlich ist das Case eher fr echte Builds ausgelegt, wie die zahlreichen TubeVideos zeigen
Das Pulverbeschichtete Gehuse – edel; schwer, angenehm zum angreifen;
Grade auch das Frontpanel knnte dem Schutzschild vom Ironman entsprungen sein: Schwer, massiv – toll
Zugang: Man kommt echt an “alles” ran; also “vollgestopftere Builds, z.b. mit Wasserpumpe und so, sollten eigentlich kein Problem sein
Trotz einiger Kritik meinerseits ….
volle Punktzahl, einfach weil es etwas ist, wo man jederzeit sein Build up-/downgraden kann;
es chic am Schreibtisch ist, und alle notwendigen Schrauberln&Kabelbinder bei sind
Preis/Leistung pat; wenn man mal vom schwankenden Kurs absieht
Eigentlich ist er (Preis) ja groartig; und das Produkt sehr oft vergriffe
what can I say, this case is awesome I’ve built many itx gaming PC’s and this one was easy to work on.
I paid more on Amazon but that was on me!
But I’m still happy with it… Maybe because I bought the master box versio
The finish of the exterior is quality.
With a 240mm H100i aio & glass side panel a 3080 FE gets to 75degrees and i7-9700k 59 degrees when gaming.
Highly recommended.
Bought from a French shop (Cookie Informatic) on Amazon UK & arrived in 3 days.
