ZDE ZP517B PCIe to M.2 Key-M NVMe SSD Hard Drive Adapter
ZDE ZP517B PCIe to M.2 Key-M NVMe SSD Hard Drive Adapter Board PIP PCIe Peripheral Board for Raspberry Pi 5 Compatible with M.2 SSD 2230/2242/2260/228
Features:
The ZP517B board is an M.2 Key-M NVMe SSD PIP PCIe Peripheral Board for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilize the NVME M2 SSDs for fast data transfers and ultra-fast booting.

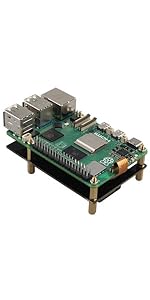

- Model: ZP517B (Mounting under the Raspberry Pi 5)
- ZDE ZP517B M.2 NVMe to PCIe Adapter Board is designed for the latest Raspberry Pi 5, which supports the installation of M.2 KEY-M NVMe SSD in 2230/2242/2260/2280 length.
- How to Power: Power the ZP517B shield directly from the PCIe FPC ribbon.
- Equipped with PWR LED Indicator and ACT Status LED Indicator, practical design for real-time monitoring of the working status for more stable operation.
- ZP517B PCIe Peripheral Board is only compatible with Raspberry Pi 5 8GB / 4GB computer (NOT include Raspberry Pi 5).
- The ZP517B hardware has no limit on NVMe SSD capacity, which depends on the Raspberry Pi OS.
- We don’t recommend to use NVMe SSD drives which is equipped with a Phison controller due to their proven incompatibility.
Note: Make sure that the FPC cable is fully inserted in right direction. The PCIe Peripheral Board is compatible with M.2 KEY-M NVMe SSDs, not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices.
Packing List:
- 1 x ZP517B PCIe to M.2 NVMe SSD Adapter Board
- 8 x M2.5×8+6mm Screws
- 4 x M2.5 Nuts
- 2 x M2x2.5mm Screws (to fix SSD)
- 1 x 4mm Pillar (to fix SSD)
- 1 x PCIe FPC cable
- Note: The Raspberry Pi 5 and M.2 NVMe SSD is not included in the packing list.
 |  |  |  |  | |
|---|---|---|---|---|---|
| Price | £12.99 | £12.99 | £15.99 | £12.99 | £11.99 |
| Supported M.2 NVMe SSD Length | 2230/2242/2260/2280 | 2230/2242/2260/2280 | 2280 | 2230/2242/2280 | 2230/2242 |

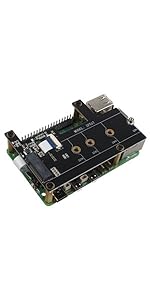

| Mounting Position | Bottom of Raspberry Pi 5 | Top of Raspberry Pi 5 | Top of Raspberry Pi 5 | Top of Raspberry Pi 5 | Top of Raspberry Pi 5 |
| Compatible with | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 |
| Power Supply | From Raspberry Pi 5: FPC cable | From Raspberry Pi 5: FFC cable | *From Raspberry Pi 5: (1)FFC cable (2)2.54mm 2Pin connector (3)1.25mm 4Pin connector **Enhanced power supply: Type-C port | From Raspberry Pi 5: (1)FPC cable (2)40pin header | From Raspberry Pi 5: FPC cable |
