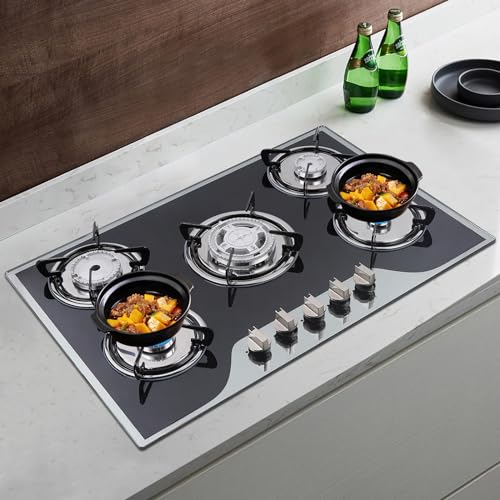

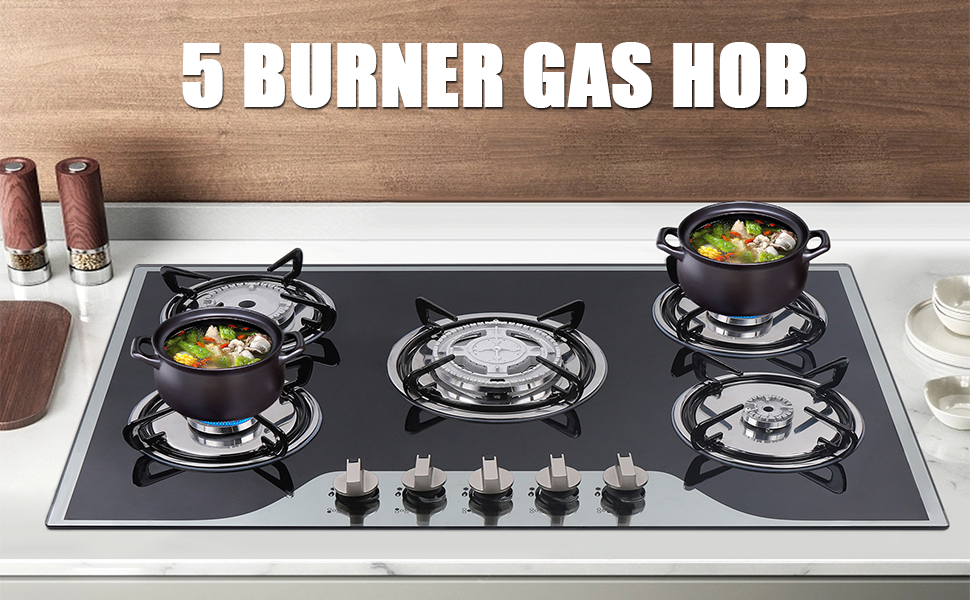

5 Burner Gas Hob – Built-in 5 Burners with Wok Burner Gas
5 Burner Gas Hob – Built-in 5 Burners with Wok Burner Gas Cooker Campervan Cooktops Gas Cookers
CAUTION
1. The gas pipe is less than 2m in length; the gas pipe can’ be bended and can’t pass through the bottom of gas cooker.
2. Please keep well-ventilation when using gas cooker. If the gas is not completely burned due to oxygen depletion, it will cause CO poisoning.
3. If the food falls on burner or flame cover, please clean it with cloth.
4. In case of gas leakage, please stop using gas cooker and shut off gas tank, and open the window for ventilation, forbid turning “ON” or “OFF” electri- cal appliances at the same time. Do not use gas cooker before leakage is stopped.
5. Don’t touch trivet and pane/ on,just after using gas cooker. The gas cooker can’t be used to ignite charcoal or coal.
6. When igniting becomes thin, please replace battery.
7. Don’t use abrasive products to damage surface.
Maintenance
1. After cooking, clean gas cooker with dry cloth.
2. Please usully clean ignitor in order to make sure igniting performance.
3. Please regularly clean frame cover with brush in order to make sure even distribution of fire.
4. Clean plastic product, printing material, painted . surface and non-stick surface with soft cloth, not with strong detergent, lacquer thiner, gas.
Specification
Installation:
Built-in
Gas type:
LPG / NG gas
Ignition type:
Battery automatic pulse ignition
Type:
Gas hobs
Number of gas burners:
5
Furnace head:
aluminum stove head + Enamel cover
Oven frame:
Enamel frame
Button:
Bakelite
Valve body:
Iron shaft normal valve without fire extinguisher
Water bowl:
stainless steel
Gas hob:
8 mm toughened glass
Stove frame:
enamel frame, stainless steel water tray
Load:
3.0+2.75+1.75+1.75+1.0
Panel dimension:
770 x 510 (30.3 “x 20”)
Cutout size:
730 x 470 mm (28.7 “x 18.5”)
Package size:
810 x 560 x 140mm (31.9 “x 22” x 5.5 “)Gross weight: 12.5 kg Net weight: 11 kg
