Black 650W PSU, Switching Power Supply, Computer Desktop PC

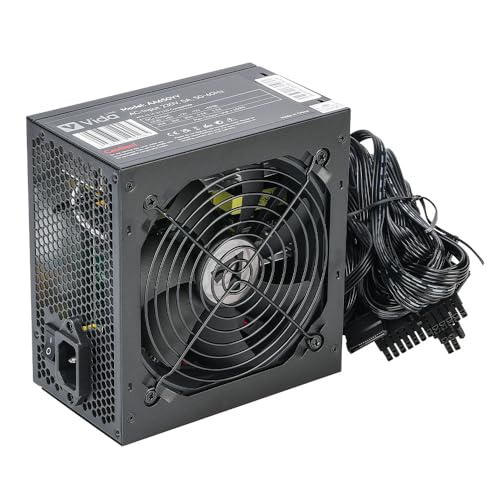

Black 650W PSU

Black 650W PSU, Switching Power Supply, Computer Desktop PC ATX With 120mm Fan, 8-Pin 12V, 6+2 Pin PCI-E, 6x SATA

650W ATX Power SupplyPower Supply With Thermal Controlled FanATX Power Supply

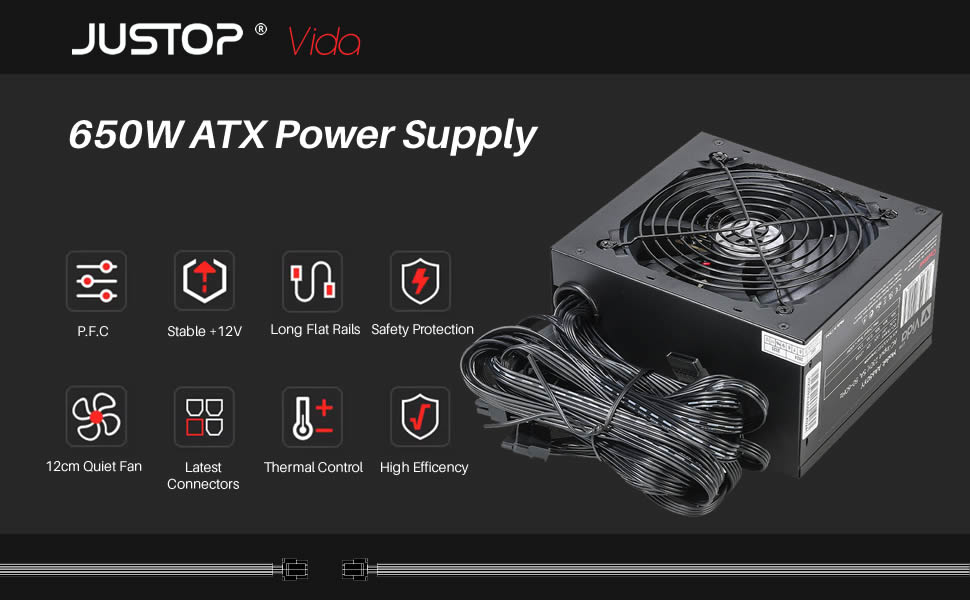

JUSTOP 650W ATX POWER SUPPLY

An excellent choice for your home/gaming/office system building or upgrading

The new 650W ATX Power Supply comes with a 120mm cooling fan offering excellent cooling and quiet operation, ensuring the maximum lifespan of your products. It comes with a PCI-E rail for your graphics card, 6x SATA connectors, and a host of other connectors that provide maximum compatibility with popular hardware.

Features

  • 120mm quiet cooling fan
  • Standard ATX size fits most PC cases
  • Compliant with latest Intel standards ATX 12V, V2.0
  • UK 230V Input adapt with the rear on/off power switch
  • Power Factor Control (PFC)
  • Over-voltage and current protection on: +3.3V; +5V; +12V
  • Short circuit protection EMI Filter
  • Efficiency > 70%
  • Safety Protection: Over Voltage Protection (OVP), Under Voltage Protection(UVP), Over Power Protection (OPP)

Specifications

Dimensions 150mm x 85mm x 140mm (W x H x D)
Power Input 200 – 240V AC, 5A
Input Frequency Range 50-60Hz
PFC Passive PFC
MTBF 50,000 Hours
Wattage Max 750W
Power Output +3.3V 32A; +5V 38A; +12V 37A; -12V 0.5A; +5VSB 2.5A
Operation Temperature 0-40°C (Nominal Input Voltage)

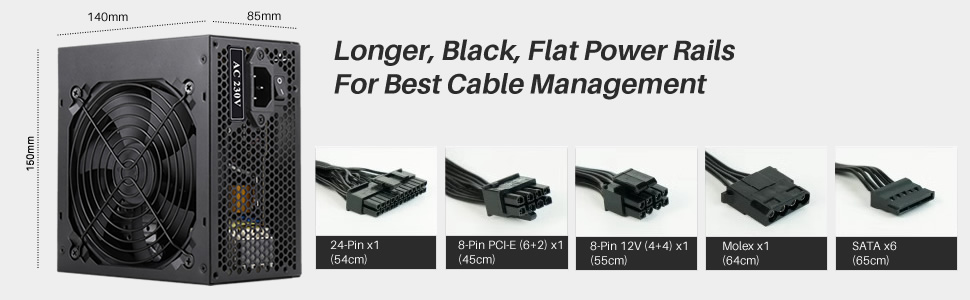

Connectors 24-Pin (20+4) Main x 1, 8-Pin (4+4) 12V x 1, SATA Connector x 6, 4-Pin Molex Peripheral x 1, Floppy Drive Connector x 1

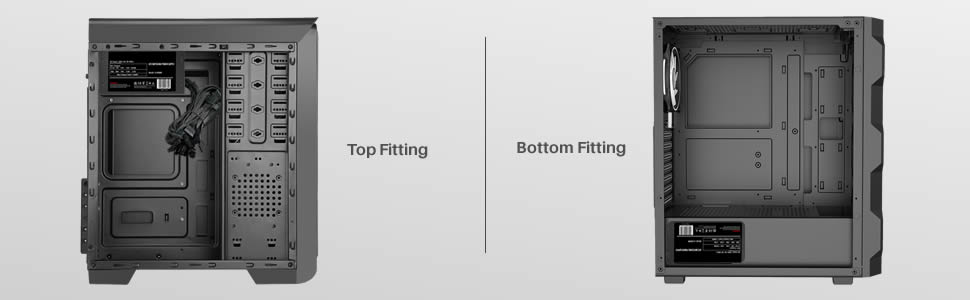

Suitable Case Size Micro ATX (mATX), Midi ATX, Full ATX
650W PSU750w Power Supply With PCi-E


Weight: 1.18 kg
Dimensions: 15 x 14 x 8.5 cm; 1.18 kg
Brand: JUSTOP
Model: AA-650-YY
Colour: Black
Batteries Included: No
Manufacture: Justop Limited
Dimensions: 15 x 14 x 8.5 cm; 1.18 kg
