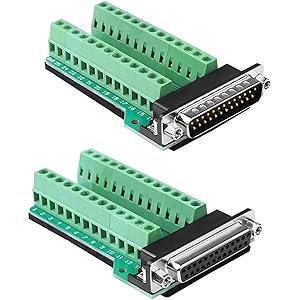

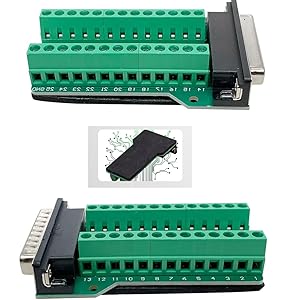

PENGLIN 2PCS DB25 Male Female Breakout Board Connector
PENGLIN 2PCS DB25 Male Female Breakout Board Connector, RS232 D-SUB Serial 25 Pin Port Terminal Solderfree Serial Adapter with Nu
Bottom sponge protects the circuitSponge on the bottom protects the circuit from external damage. | No Soldering RequiredJust use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. | DB25 Male and FemaleMale/female connectors selectable for flexible use(male with pins and female with holes) |
Specification:
Plug material: | Pure copper nickel-plated connections |
Contact material: | Copper |
Pitch: | 3.81mm |
Wire Specification: | 26-16 AWG(0.1281mm²-1.318mm²) |
Stripping length: | 5-6mm |
Tightening torque: | 0.2Nm (1.7Lb-in.) |
Rated voltage: | 24V |
Rated current: | 2V |
Size: | 78 mm×53 mm |
Package includes: | 1 x DB25 male solderless Serial adapter 1 x DB25 female solderless Serial adapter |
|
---|
