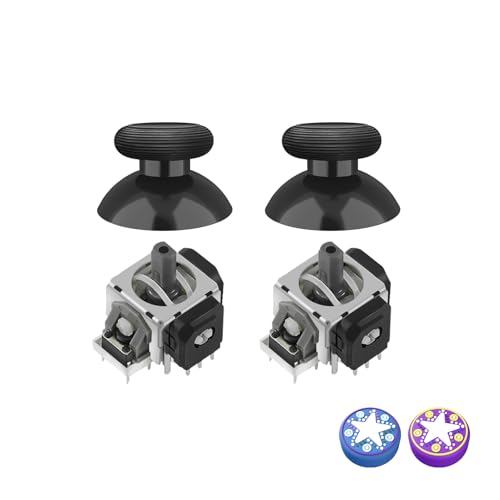

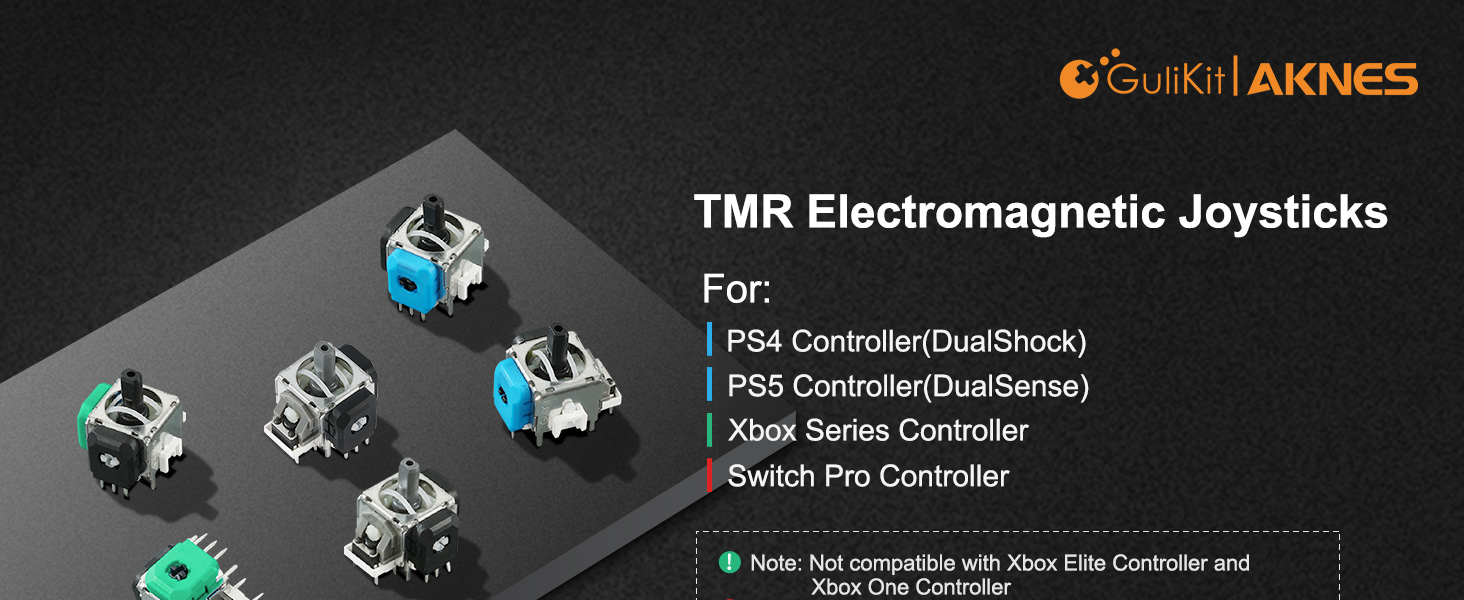

AKNES GuliKit TMR Electromagnetic Joysticks for DualSense
AKNES GuliKit TMR Electromagnetic Joysticks for DualSense PS5 Controller, Sticks Replacement Accessories for Playstation 5 Controller, Thumbstick Caps included
Why is TMR electromagnetic joystick rather than Hall electromagnetic joystick?
Original controller uses a constant power supply design, with about 1mA limited.

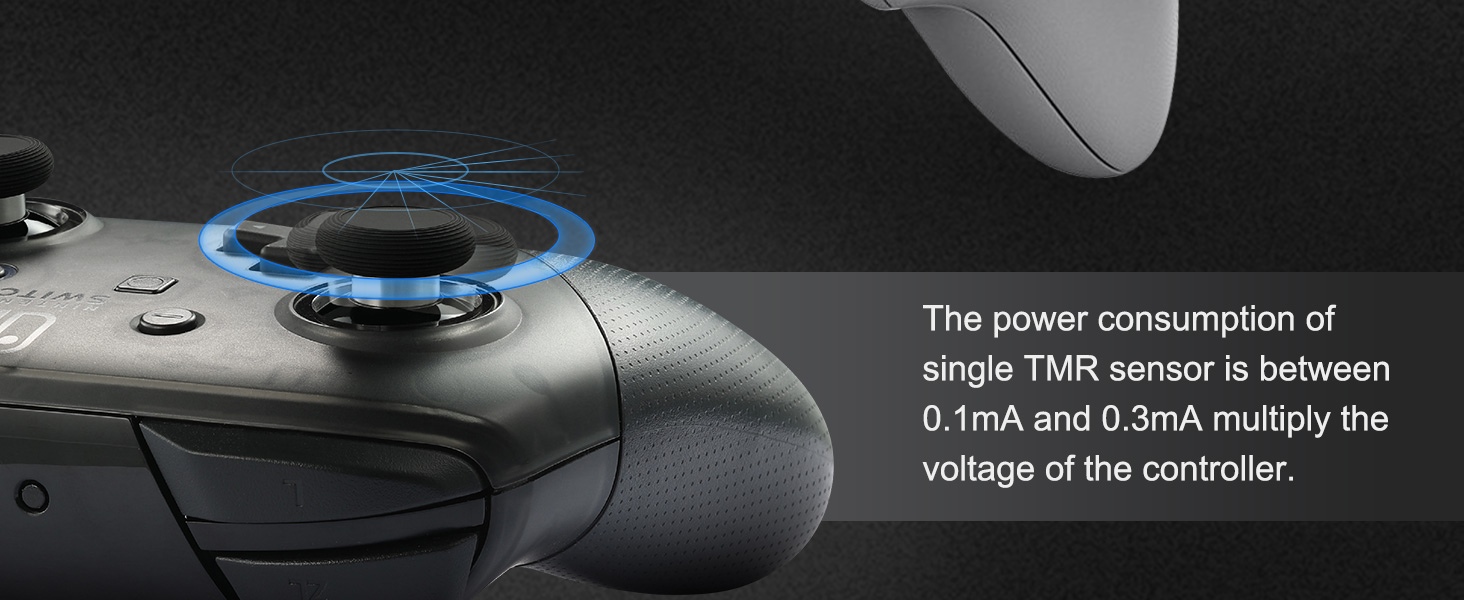

Power consumption of single TMR is between 0.1mA-0.3mA, while single linear Hall consume 0.5mA-2mA.
Is the resolution of the TMR joystick much higher than Hall effect joysticks?
No. For controllers, the bandwidth of these three types is sufficient. The resolution mainly depends on the sampling precision of the backend MCU
So resolution, polling rate, and others will be same with the original.
Is the power consumption of the TMR joystick much lower than the Hall joystick?
If just the sensor, TMR is lower.
But if the controller uses Hall joysticks(Like KK3), technical methods were used to control the power consumption to 0.1-0.3mA, which makes no big difference on the battery life.
Why GuliKit TMR is not compatible with Xbox Elite/Xbox One/DualSense Edge?
Because there are no good softwares/tools available to perform joysticks calibration.
What is the relationship between GuliKit and AKNES?
We are the exclusive agent of GuliKit.
There are different sellers currently selling.
AKNES, focusing on the products we provides, also attaches great importance to buyer services. You can search (AKNES) everywhere to see what we’re doing.
Tags: AccessoriesPlayStationPlayStation 5SELLING
Installed them yesterday and so far they work very well. Installation of course requires soldering so if you don’t have much experience, it could be a little difficult for you, but anyone with some experience shouldn’t have much problem. After installing, calibrating was quick and easy resulting in a really centered dead zone and good circularity.
Recommended if you’re suffering stick drift with the stock analogs.
1. the joystick module sits slightly lower than the original module. If you choose to use the original joystick caps from with these joystick modules, they will be slightly lower than the originals from Sony; that means less range, but you compensate with the calibration tool online. That’s probably why they provided their own joystick caps along as a bundle; which sits higher and compensates for the lower height of the modules.
2. they work great after calibratio
You’ll need to have some soldering skills and tools to install them (decent soldering iron, flux, 60/40, braid/wick, solder sucker, and basic hands tools). A hot air station or electric desoldering pump makes removing them much easier/faster, but isn’t required.
The hardest part for a beginner will be desoldering the old sticks from the board (Tip: apply fresh 60/40 to all the solder joints first to help the old solder flow better).
That being said… These have a faster response time, better accuracy, very tight dead zone/low jitter, and about a 5-7% error rate (compared to my original controllers which ranged between 11-18%).
Note: You DO NOT lose the L3/R3 buttons by installing these (as another review mentions). If they are not working after the install, inspect your solder joints for those connections, they function the same as the original sticks. Just be sure to properly calibrate your controllers stick center and range after you install the new sticks for the best results.
Install was a pain, but that’s par for the course as a beginner at soldering. Even with accidentally being a little rough with the install and looking like I burnt the pcb, the sticks work great. Feels and works just like a fresh stick without any drift and a smoother movement detection than stock ones. Had zero issues with r3/l3 as well. I’ll probably have to buy a few more on pay day before more people catch on to this thing and they sell out.
Einfach nur Geisteskrank dieser Hall Effect! Es ist mit Abstand der beste auf den gesamten Markt! Die Ltarbeiten waren zwar aufwendig, aber es hat sich definitiv gelohnt! Nach der Kalibrierung auf der Seite von Aleks Rakic, kann man mit ruhigem Gewissen sagen: Auf nie wiedersehen StickDrift!! Die Przision ist nicht von dieser Welt! Alles funktioniert einwandfrei! DANKE!!
