Tilta Mini PD V Mount Battery Plate with 1/4″-20 Threads

Tilta Mini PD V Mount Battery Plate with 1/4"-20 Threads

Tilta Mini PD V Mount Battery Plate with 1/4″-20 Threads, USB-C / 2 Pin/P-Tap Port – Black TA-BTP4-V-B

TA-BTP4-V-B

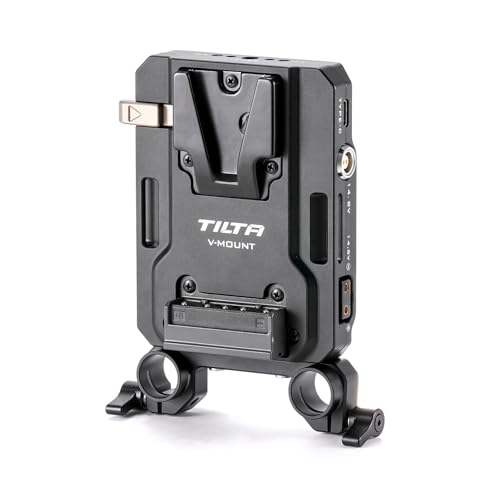

Introducing the Tilta Mini PD V Mount Battery Plate.

  1. TA-BTP4-V-B
  2. TA-BTP4-V-B
  3. TA-BTP4-V-B

  • This battery plate allows users to extend the operating time of their camera and accessories via larger capacity V-Mount batteries.

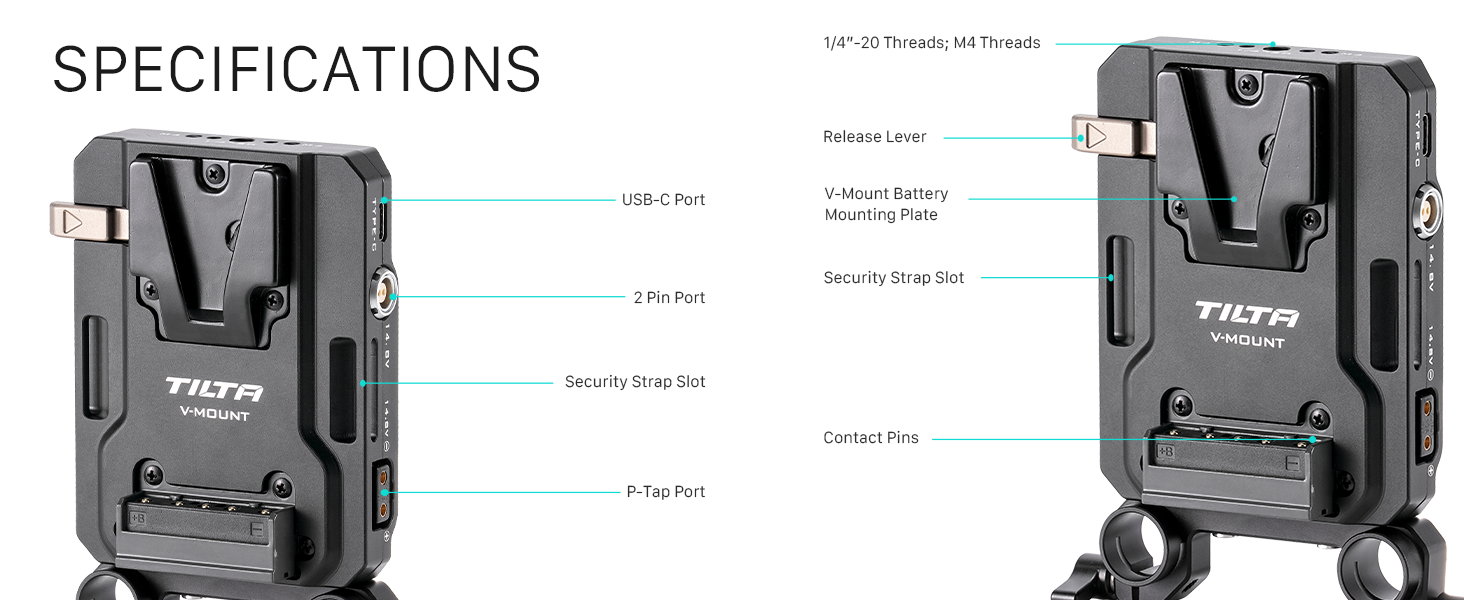

  • This plate features multiple power output options such as a 60W PD USB-C, a P-Tap, and a 2-Pin connection.

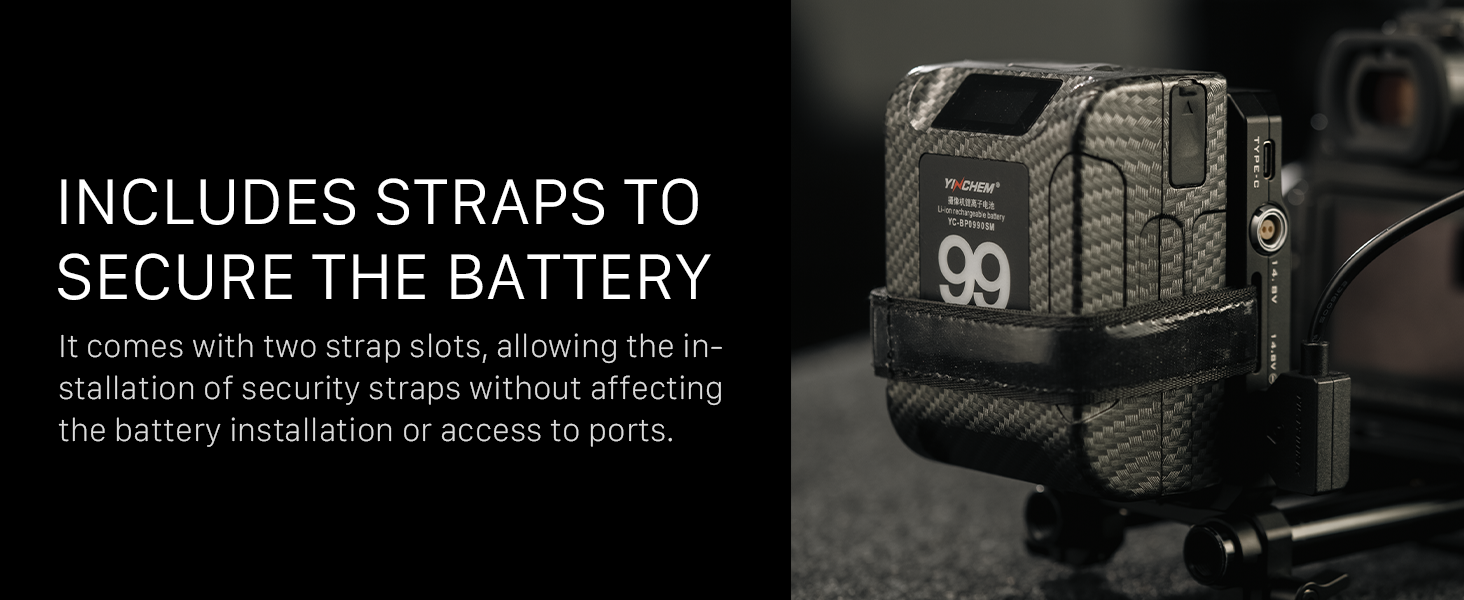

  • It also equipped with integrated strap slots which allows users to connect an included security strap to their V-Mount battery. This limits the possibility of accidental disconnection, which is especially useful when rigging the camera to support systems such as car mounts.
  • Included with the battery plate is a dual rod adapter which makes the unit easy to integrate into systems that utilize 15mm LWS rods.

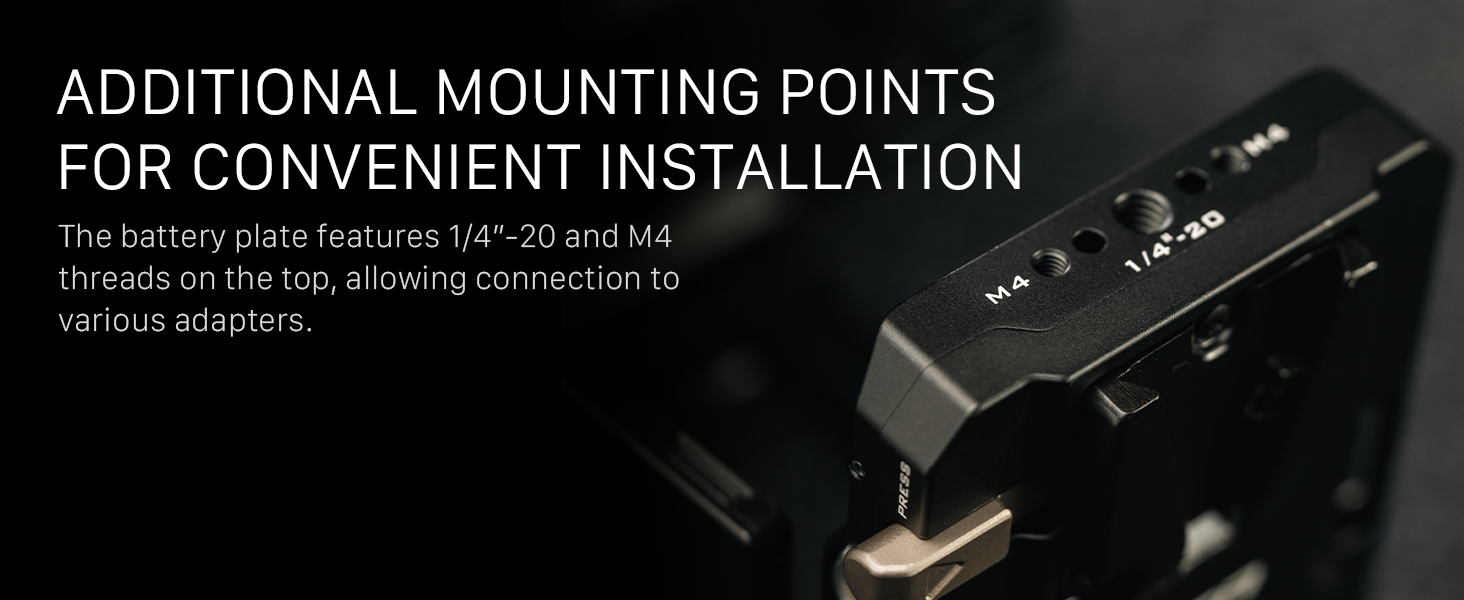

  • The battery plate also features 1/4″-20 and M4 threads on the top, allowing the unit to be easily mounted in unique ways via additional adapters or articulating arms.
  • NOTE: P-Tap/2 Pin Ports provide 20V/3A.

TA-BTP4-V-B

Packing List:

1: Tilta Mini PD V Mount Battery Plate – Black

Technical Data:

Dimensions: 9 x 6 x 3.5 inches

Weight: 0.9 lbs

Materials: Aluminum alloy

Color: Black
