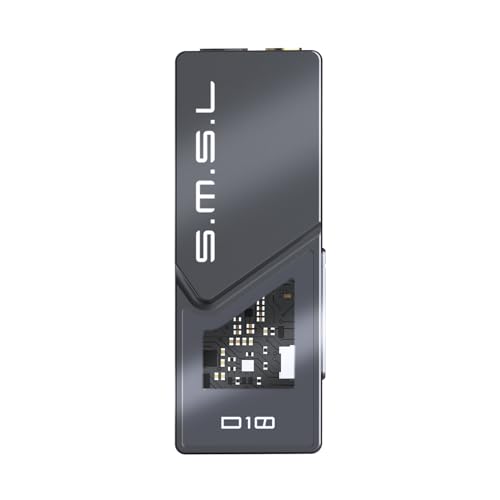

S.M.S.L D10 Headphone Amplifier USB Potrable Dac with 3.5mm
S.M.S.L D10 Headphone Amplifier USB Potrable Dac with 3.5mm & 4.4mm Balacnced Dual Mini Audio Amp Outputs Support 500mw 16ΩDSD256 PCM 32bit/384khz Hi-Res Earphone Amp
| Input | USB(Asynchronization) |
| Output | 3.5mm headphone jack , 4.4mm balanced headphone jack |
| USB compatibility | Windows 7/8/8.1/10/11(Needs Driver) , Mac OSX10.6+、Linux 、Android、iOS |
| Maximum output level | 2 Vrms |
| Headphone output power | 16Ω 500mW |
| Headphone output power | 32Ω 500mW |
| Headphone output power | 150Ω 160mW |
| Headphone output power | 300Ω 80mW |
| Headphone output power | 600Ω 40mW |
| THD+N(non-Weighting) | 0.00015%(116dB) |
| Dynamic range | 121dB |
| SNR | 121dB |
| Sampling Rate | USB PCM 44.1~ 384kHz |
| Sampling Rate | DSD 2.8224 ~11.2896MHZ |
| Bit Depth | USB 1bit,24 ~ 32bit |
| power | 5V/200mA |
