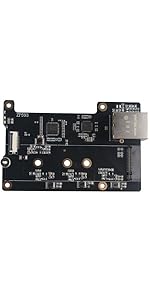

ZDE ZP593 PCIe to 2.5G Ethernet PCIe to M.2 Key-M NVMe SSD
ZDE ZP593 PCIe to 2.5G Ethernet PCIe to M.2 Key-M NVMe SSD HAT Expansion Board For Raspberry Pi 5 Support M.2 NVMe 2230/2242/2260/2280 SSD
Features:
- This adapter board adds one 2.5G network port and one M.2 Key-M interface for Raspberry Pi 5, which can meet your various needs for those who need to use Raspberry Pi 5 as a router, gateway, firewall, and other network devices that need more than one network port.
- Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces and then through the RTL8125 chip to achieve the expansion of 2.5Gbps Ethernet and M.2 Key-M NVME.
- OS network port driver: Drive-free of Raspberry Pi official OS and OpenWrt system, while under Ubuntu system, it needs to install the driver.
- Support M.2 NVMe SSD for expansion and storage, compatible with M.2 KEY-M NVMe SSD in 2230/2242/2260/2280 length. Accessories are provided for 2230/2242/2260 SSD installation.
- Support boot from SSD, and it needs Raspberry Pi official firmware, which is at least 2024.5.13.
- With four M2.5 fixing holes, the concave design on the top of the shield is convenient for the operation and use of 40Pin GPIO.
- Specially designed for Raspberry Pi 5, compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB pc computer (NOT include Raspberry Pi 5 and SSD).
Note:
- Make sure that the FPC cable is fully inserted in right direction.
- The PCIe Peripheral Board is compatible with M.2 KEY-M NVMe SSDs, not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices.
Packing List:
- 1 x ZP593 Expansion Board
- 4 x M2.5x20mm Spacers
- 8 x M2.5x4mm Screws
- 2 x M2x2.5mm Screws (to fix SSD)
- 1 x 4mm Pillar (to fix SSD)
- 1 x PCIe FPC cable
- Note: The Raspberry Pi 5, M.2 NVMe SSD and Ethernet cable are not included.

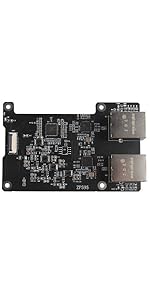

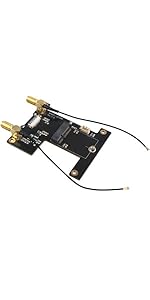

 ZDE ZP593 PCIe to 2.5G Ethernet PCIe to M.2 HAT Key-M NVMe SSD Adapter |  ZDE ZP511 PCIe to M.2 HAT Key-M NVMe SSD Adapter |  ZDE ZP517B PCIe to M.2 HAT Key-M NVMe SSD Adapter |  ZDE ZP581 PoE HAT PCIe to M.2 Key-M NVMe SSD Adapter |  ZDE ZP590A PCIe to WiFi7 Adapter |  ZDE ZP595 PCIe to Dual 2.5G Ethernet Port HAT Adapter | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | 2.8 out of 5 stars3 | — | — | — | — |
| Price | £25.99 | £11.99 | £11.99 | £29.99 | £27.99 | £45.99 |
| Supported M.2 NVMe SSD Length | 2230/2242/2260/2280 | 2230/2242/2280 | 2230/2242/2260/2280 | 2230/2242/2280 | None | None |
| Mounting Position | Top of Raspberry Pi 5 | Top of Raspberry Pi 5 | Bottom of Raspberry Pi 5 | Top of Raspberry Pi 5 | Top of Raspberry Pi 5 | Top of Raspberry Pi 5 |
| Compatible with | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 | Raspberry Pi 5 |
| Weight: | 58 g |
| Dimensions: | 9.3 x 7.7 x 2.9 cm; 58 g |
| Brand: | ZDE |
| Manufacture: | ZDE |
| Dimensions: | 9.3 x 7.7 x 2.9 cm; 58 g |
