Glovary Firewall Mini PC N355 (Upgraded N305), 6 x i226V
Glovary Firewall Mini PC N355 (Upgraded N305), 6 x i226V 2.5GbE LAN OPNsense Hardware, Barebone NO RAM NO SSD, Fanless Micro Appliance, AES-NI, 2 xM.2 NVMe Slot, 2 xSATA3.0, TypeC Po
Q: Where can I find the BIOS upgrade file?
A: Through Glovary online disk.(Please tell us if you need)
Q: Windows 11 Pro not activated?
A: It is not activated by default. Please let us know if you need a key
Q: Device cannot boot?
A: It takes 7-10 minutes to recognize the new memory when first install. After successful recognition, device will start normally. Please be patient
Q: What memory configuration is recommended?
A: DDR5 SO-DIMM 4800MHz, Max 32GB
Q: I want to install a fan, how do I install it?
The package includes a 12V 4Pin fan cable and screws, supporting 12V 4Pin 8010 Fan
Q: Can I use the WiFi function?
A: USB WiFi card is recommended. N100/N305 6L need NVMe to WiFi signal adapter board to use WiFi (not included, please ask us if need pre-installed WiFi adapter board), WiFi function is only supported under Windows system, and requires additional AX210 module (not included)
Q: How to turn off the buzzer sound when booting?
A: Press the “Delete” key to enter UEFI BIOS and find Beep Support in “Boot”

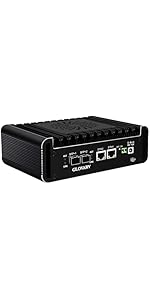

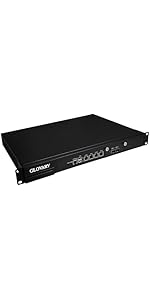

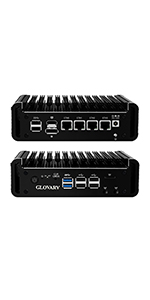

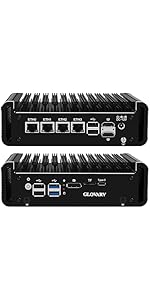

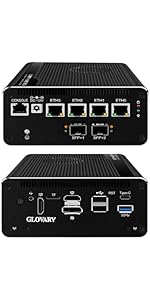

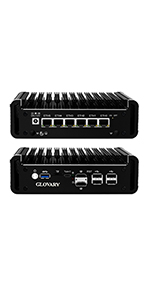

 Glovary Firewall Mini PC N150 (Upgraded N100) |  Glovary Dual 10GbE SFP+ 19″ Firewall Rackmount Quad Core N100 |  Glovary Firewall Mini PC Quad Core N100 |  Glovary Core i5 1240P Firewall Appliance Dual 10GbE SFP+ |  Glovary Firewall Mini PC Octa Core i3 N305 |  Glovary Firewall Hardware Appliance N100 Mini PC, Dual 10GB 82599ES SFP+, 2 x… | |
|---|---|---|---|---|---|---|
| Customer Reviews | 5.0 out of 5 stars1 | 4.4 out of 5 stars3 | 4.6 out of 5 stars118 | 4.8 out of 5 stars7 | 4.6 out of 5 stars118 | 4.1 out of 5 stars5 |
| Price | £225.00 | £399.00 | £279.00 | £557.00 | £313.00 | £197.61 |
| CPU | N150, 4C4T, up to 3.6 GHz | N100, 4C4T, up to 3.4 GHz | N100, 4C4T, up to 3.4 GHz | Core i5 1240P, 12C16T, up to 4.4 GHz | N305, 8C8T, up to 3.8 GHz | N100, 4C4T, up to 3.4 GHz |
| LAN | 4 x 2.5GbE i226V LAN | 2 x 10GbE SFP+ LAN, 4 x i226V 2.5GbE LAN | 6 x 2.5GbE i226V LAN | 2 x SFP+ 10GB LAN, 4 x i226V 2.5GB LAN | 4 x 2.5GbE i226V LAN | 2 x SFP+ 10GB LAN, 2 x i226V 2.5GB LAN |
| RAM | 1 xDDR5 SO-DIMM, Max 32GB | 1 xDDR5 SODIMM 4800MHz, Max 32GB | 1 xDDR5 SO-DIMM, Max 32GB | 2 xDDR5 SO-DIMM, Max 64GB | 1 xDDR5 SO-DIMM, Max 32GB | 1 xDDR5 SO-DIMM, Max 32GB |
| Storage | 2 x M.2 2280 NVMe SSD slot, 2 x SATA 3.0 for 2.5″ SSD/HDD | 1 xmSATA SSD slot | 2 x M.2 2280 NVMe SSD slot, 1 x SATA 3.0 for 2.5″ SSD/HDD | 1 x M.2 2280 NVMe slot (PCIe 4.0 x 4), 2 x SATA 3.0 slot for 2.5″ HDD/SSD | 1 x M.2 NVMe (PCIe3.0 x4) SSD slot supports expansion of 4 x NVMe via adapter board, 1 x M.2 NVMe SSD Slot, 1 x SATA3.0 | 2 x M.2 2280 NVMe SSD slots (1 on the front, 1 on the back), 1 x SATA 3.0 slot for 2.5″ SSD/HDD |
| Output | 2HD+DP 3 Display with UHD Graphics | VGA Display with UHD Graphics | 2HD+Type-C Triple Display with UHD Graphics | 2HD + DP + Type-C 4K@60Hz 4 Display with Iris Xe Graphics | HD+DP Dual Display with UHD Graphics | 2HD Dual Display with UHD Graphics |
| WiFi | x | 1 xMini PCIe(support WIFI, 3G/4G module), 1 xSIM card slot | Support | x | Support | Support |
| Port | 2 xHD, 1 xDP, 1 xType-C, 2 xUSB3.0, 4 xUSB2.0, 1 xTF Card slot | 1 xUSB3.0, 1 xUSB2.0, 1 xConsole, 1 xGPIO, 1 xON/OFF, 2 xPower Supply | 1 xUSB3.2, 4 xUSB2.0, 1 xTF card slot | 1 x TF card slot, 1 x 10Gbps Type-C, 1 x 5Gbps USB3.2, 2 x USB2.0, 1 x SPK/MIC, 1 x Reset, 1 x Console | 2 xUSB3.0, 6 xUSB2.0, 1 xTF card | 1 xType-C, 1 xUSB3.2, 4 xUSB2.0, 2Pin Phoenix Port, DC-IN, SPK/MIC, 1 xTF Card slot |
| Fan | x | ✓ | x | ✓ | x | ✓ |
| Brand: | Glovary |
| Model: | G1 |
| Manufacture: | Glovary |
