Mac Mini M4 Dock & Stand with M.2 SSD Enclosure(SSD Not Included)

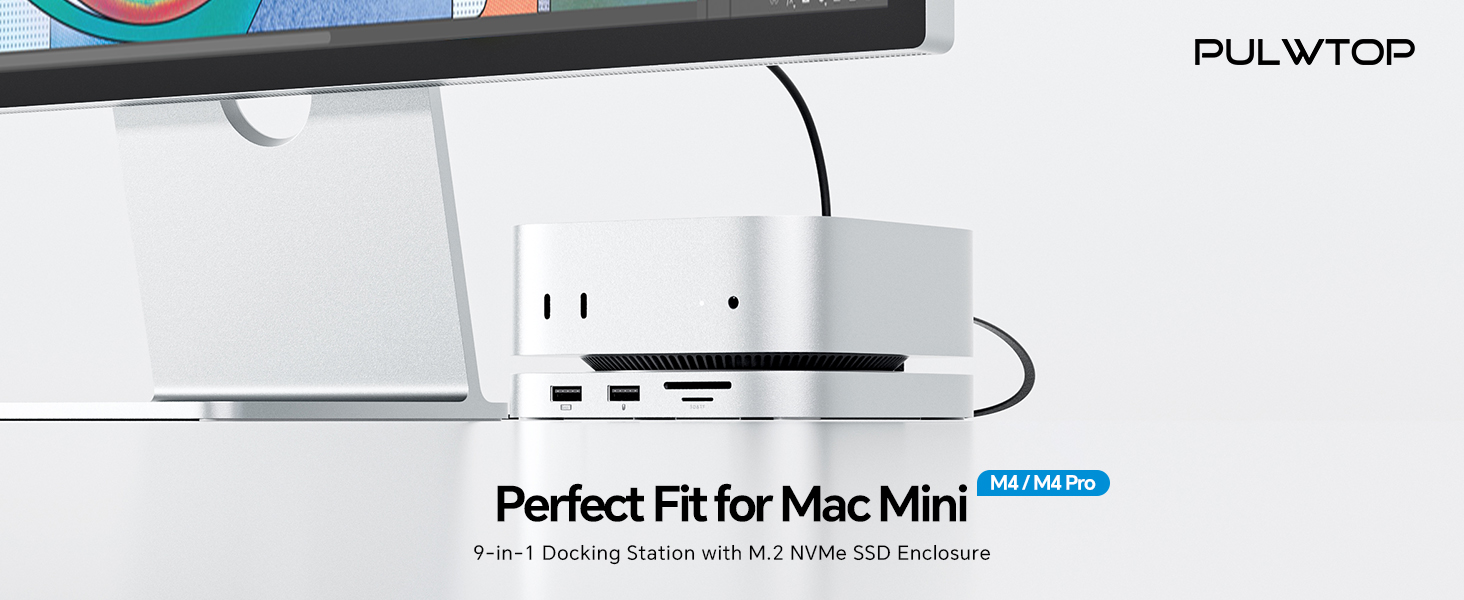

Mac Mini M4 Dock & Stand with M.2 SSD Enclosure(SSD Not Included), with HDMI 4K 60Hz, 3 x USB A 2.0, SD/TF 3.0, 3.5mm Audio/Mic, USB C Hub Accesorios for Mac Mini 2024 M4 Pro

240A
  1. 240A
  2. 1
  3. 1
  4. 1
  1. 1
  2. 1
  3. 240A
1
  1. 1
  2. 1
  3. 1
  1. 1
  2. 1
  3. 1

Specification

Product Name 9 in 1 USB C Hub Mount for Mac Mini M4 /Mac Mini M4 Pro 2024 (Model: BD240A)
Input USB-C port 10Gbps

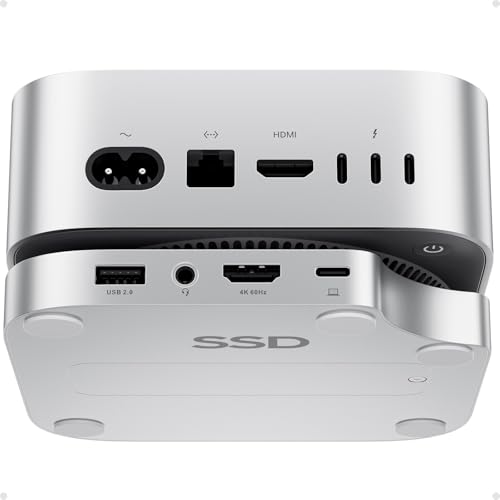

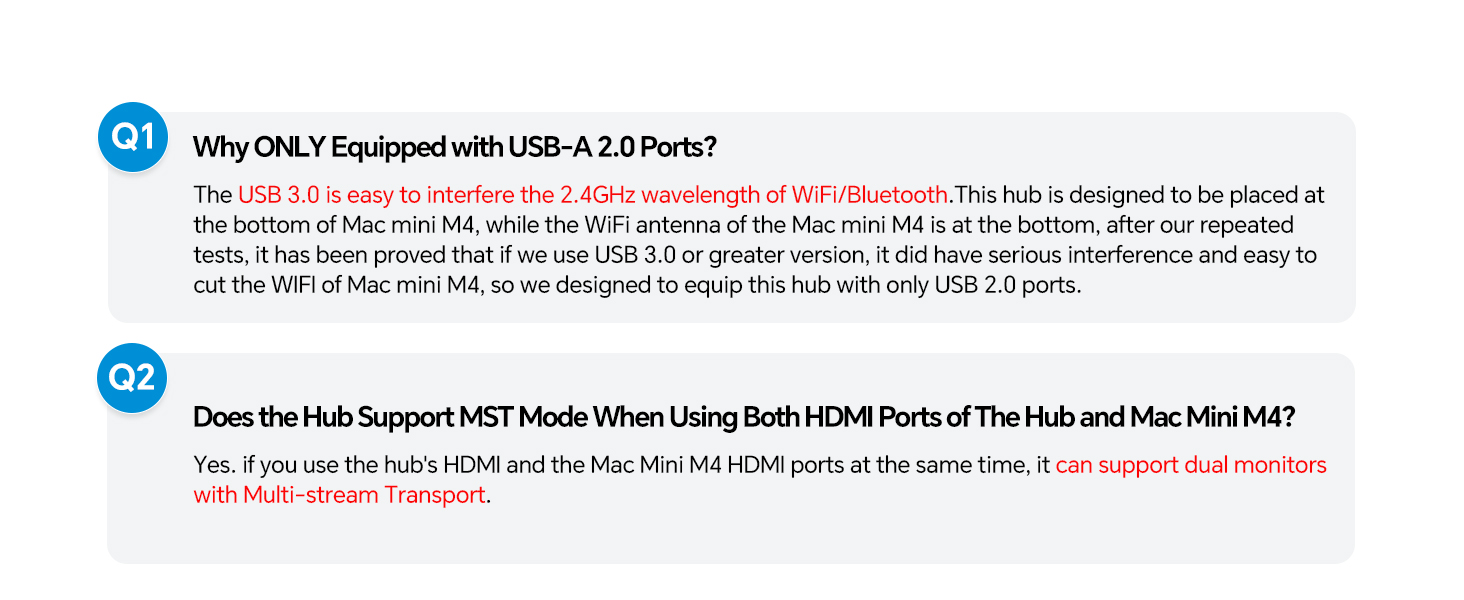

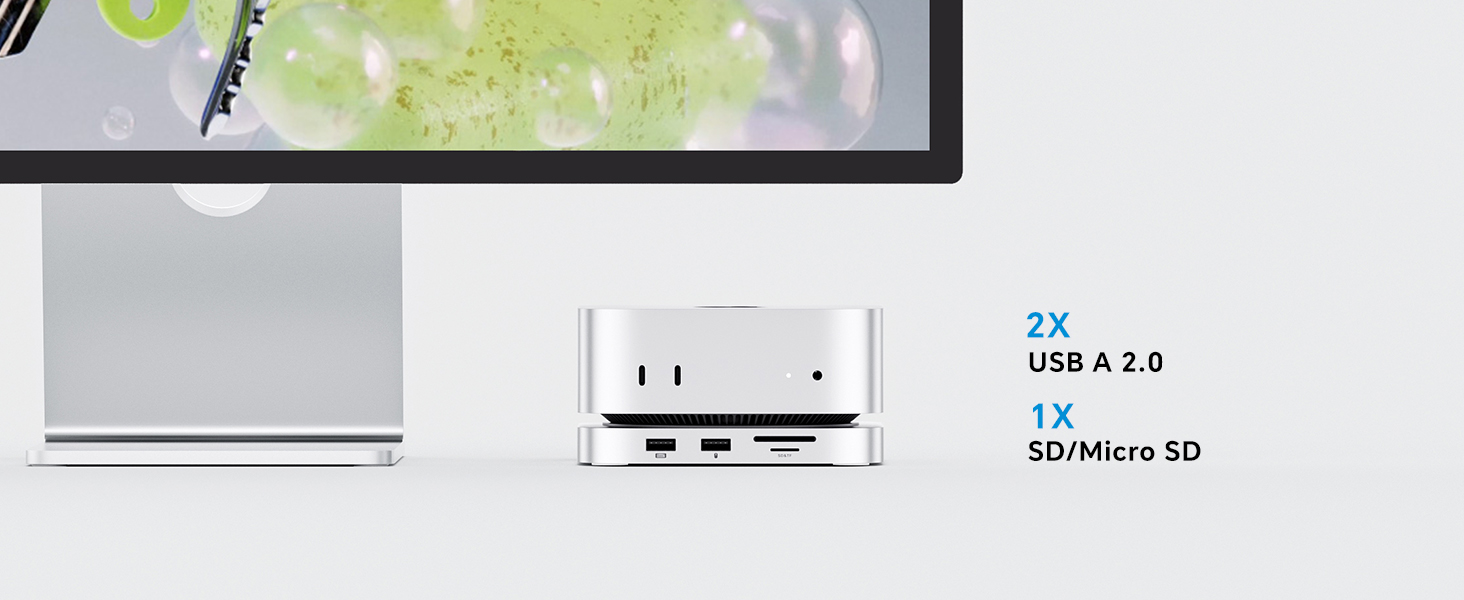

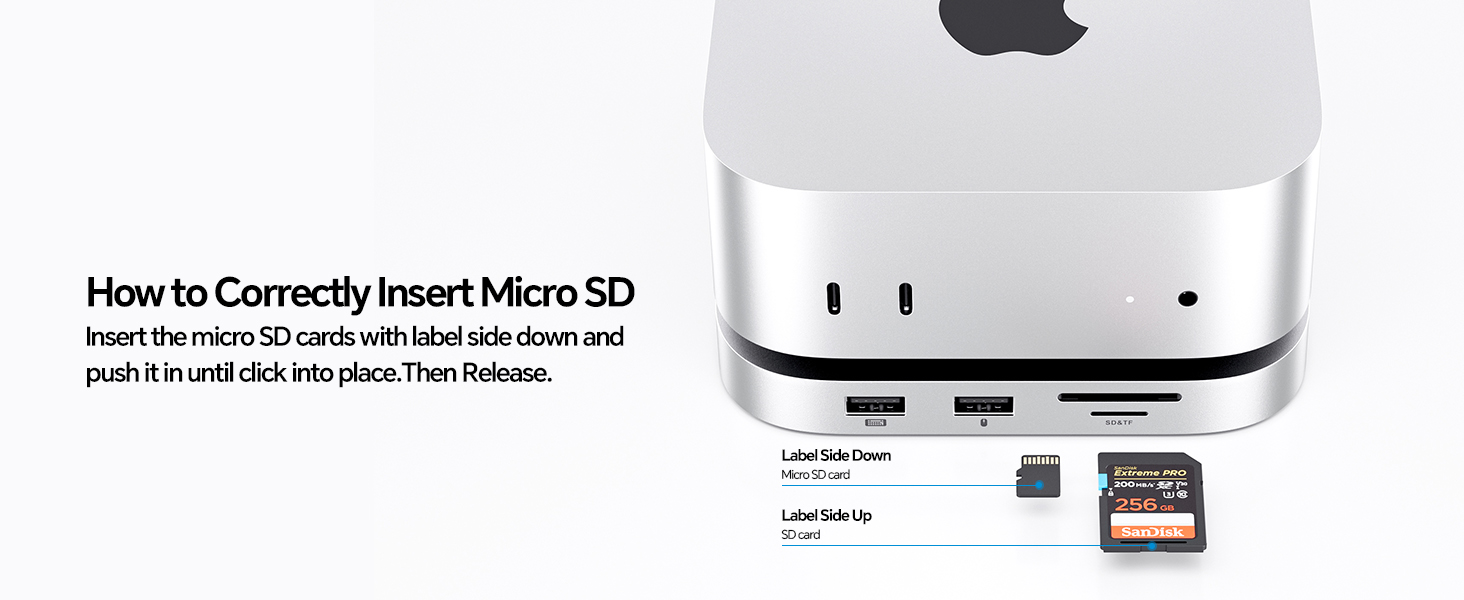

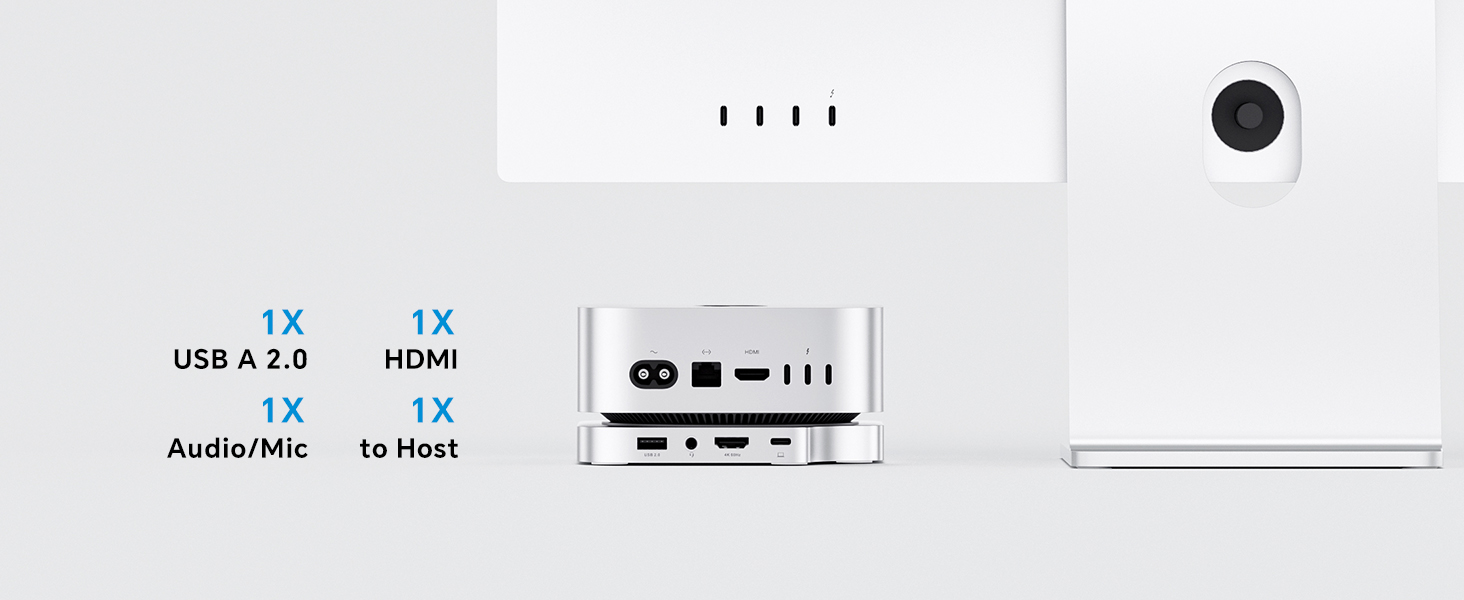

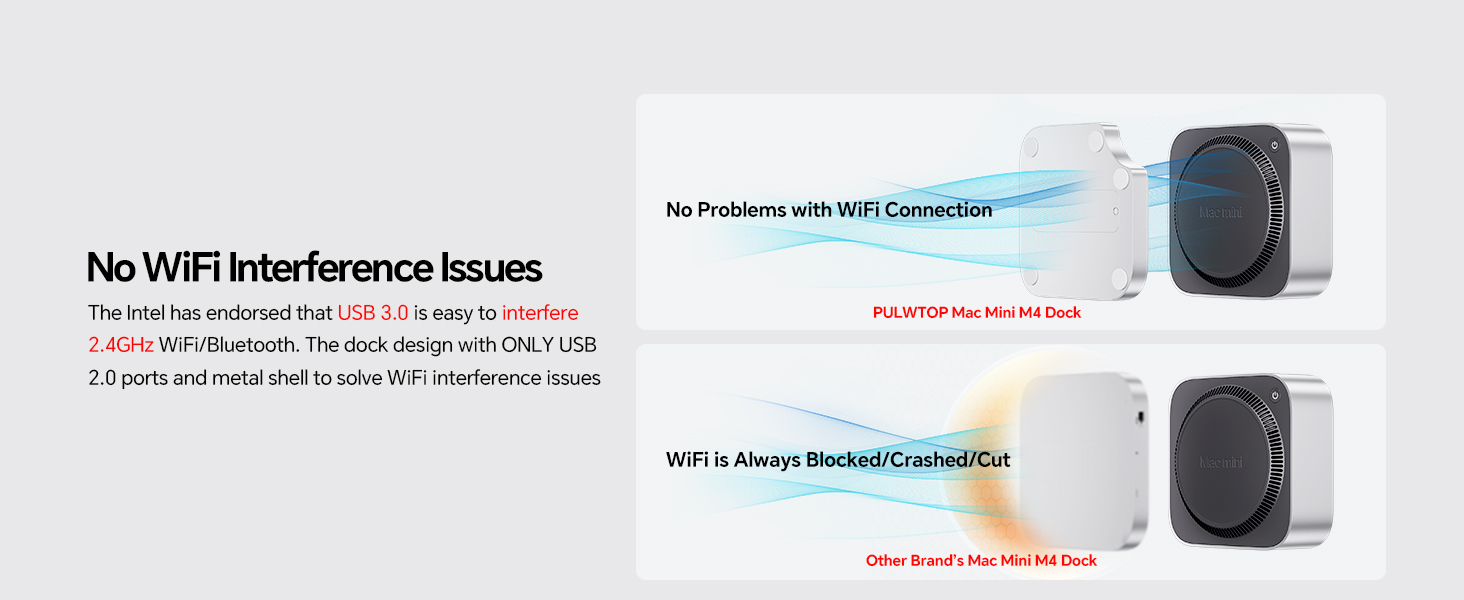

Output 1 x 4K 60Hz HDMI; 3 x USB-A 2.0 (up to 480Mbps); 1 x 3.5mm Audio/Mic jack; 1 x SD/TF 3.0 (up to 104Mbps) ; 1 x M.2 SSD Enclosure (up to 10Gbps) ; 1 x USB-C to Host (up to 10Gbps); NOTE: Why the Hub only equipped with USB-A 2.0 ports？As the USB-A/C USB 3.0 or greater version may interfere with 2.4G signals (Mac mini WIFI/ Bluetooth signals) that may lead Mac mini WIFI/ Bluetooth Interruption or even not available for use
Compatible Devices USB C Hub Specially Designed for Mac Mini M4/ M4 Pro 2024. As universal USB-C Hub, it is also compatible with USB4, and full-featured USB-C laptops (support Power Delivery, Data Transfer and Display Alt Mode)

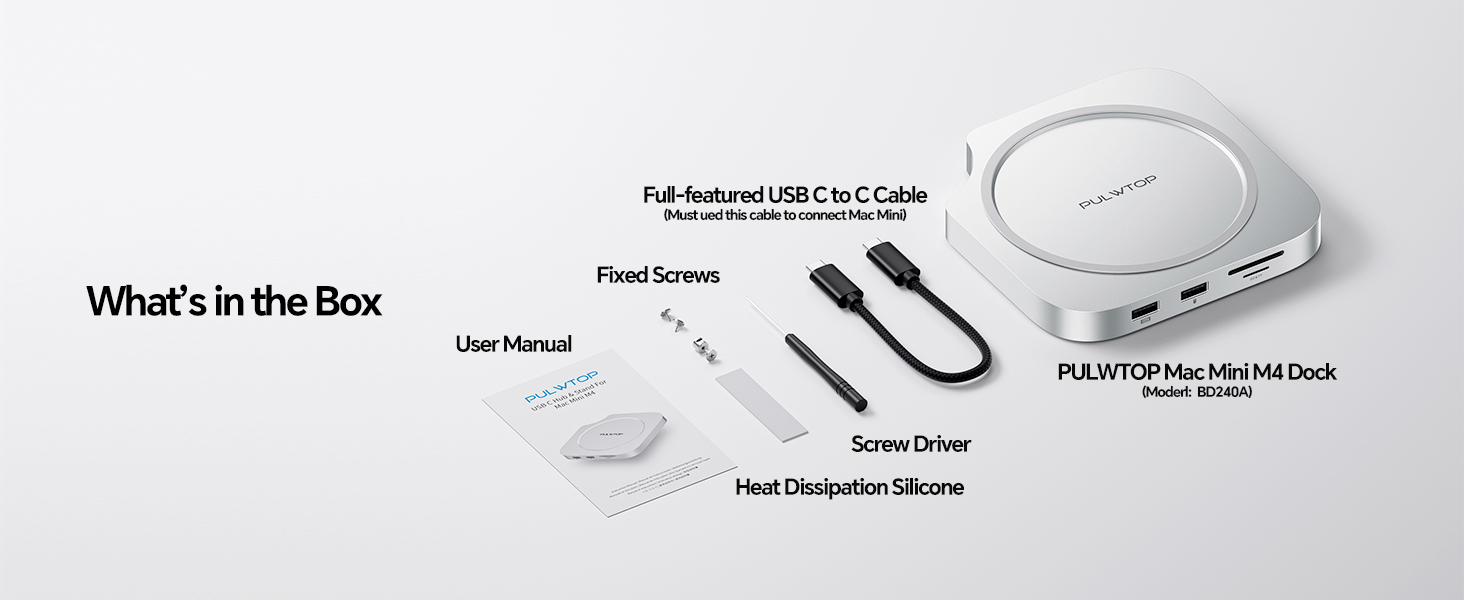

Cable Length Detachable TPE Cable, 20cm USB-C (M) to USB-C (M) cable
Materials Aluminum
Package Weight A‌pprox. 329g
Package Dimension A‌pprox. 125 x 125 x 15mm

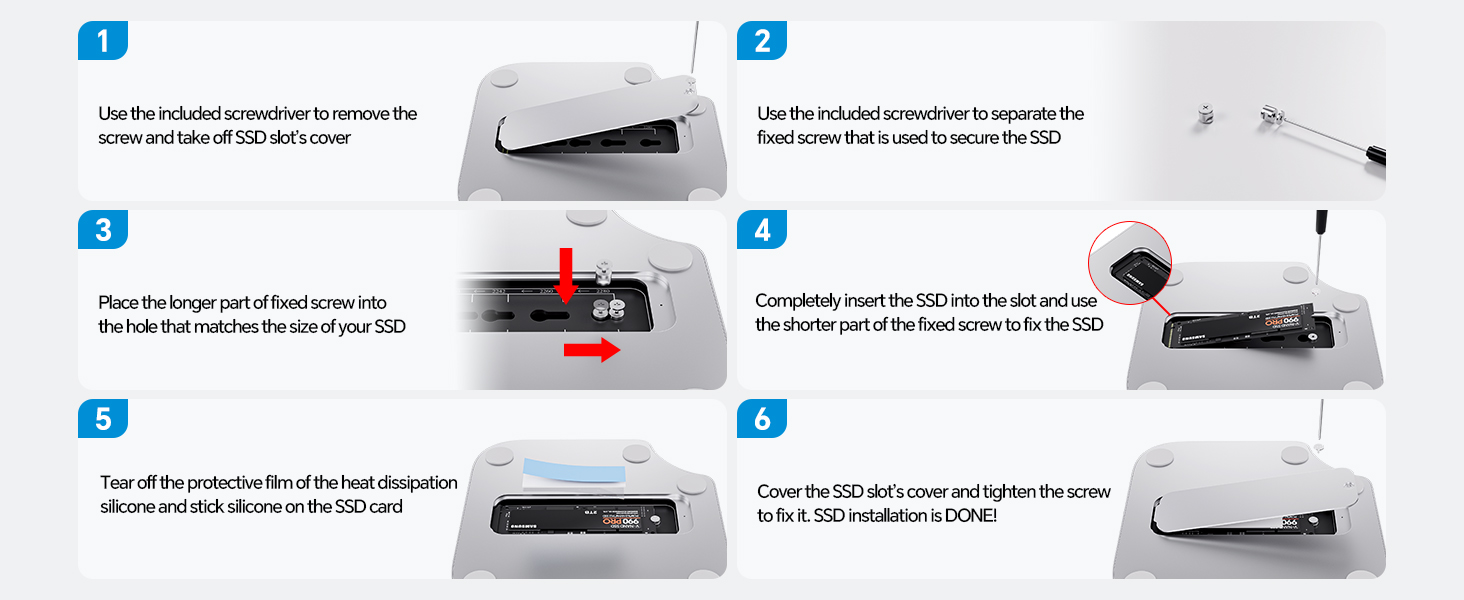

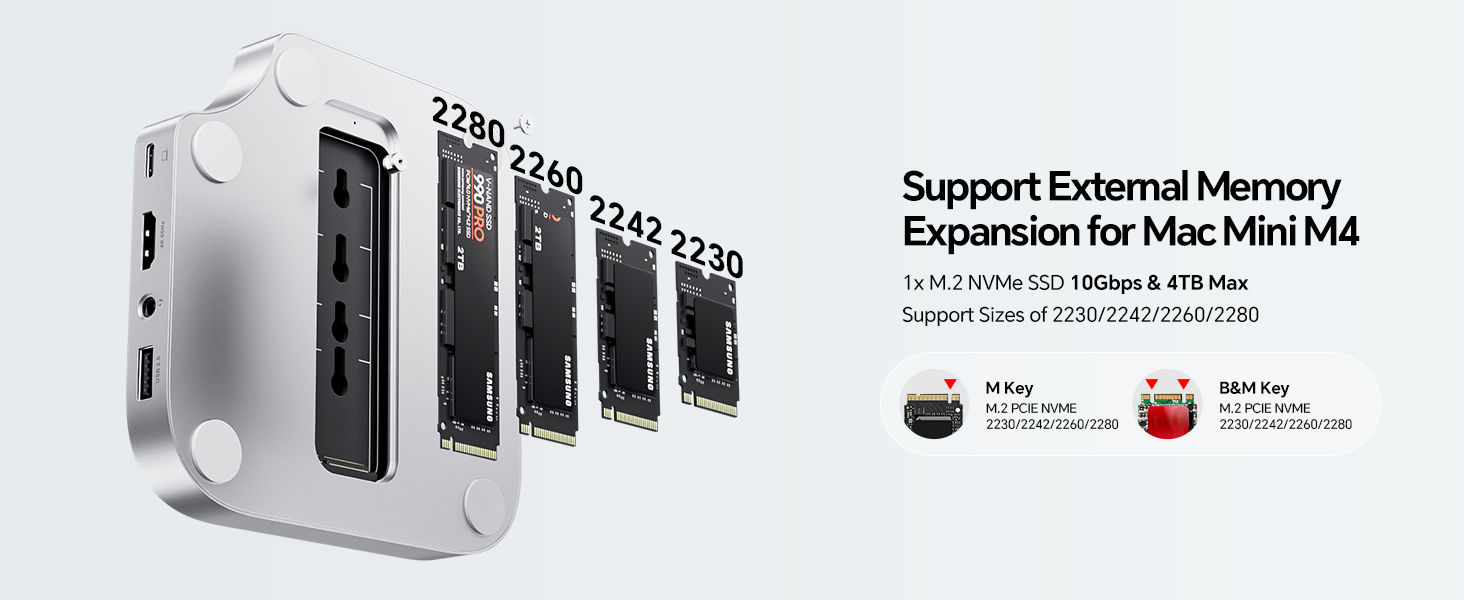

Compatible SSDs Type Support up to 4TB PCIe NVMe M.2 SSD (2230/2242/2260/2280) that complies with M key and B+M Key, NOT support SATA SSD and SSDs with heat sink.
Some Compatible SSDs Samsung 980 Pro, Samsung 970 EVO; Western Digital Black SN850, Western Digital Black SN750, Western; Digital Blue SN550; Acer FA100; Crucial P2; Intel 670P Series; Siliconmotion SM2263XT, etc.

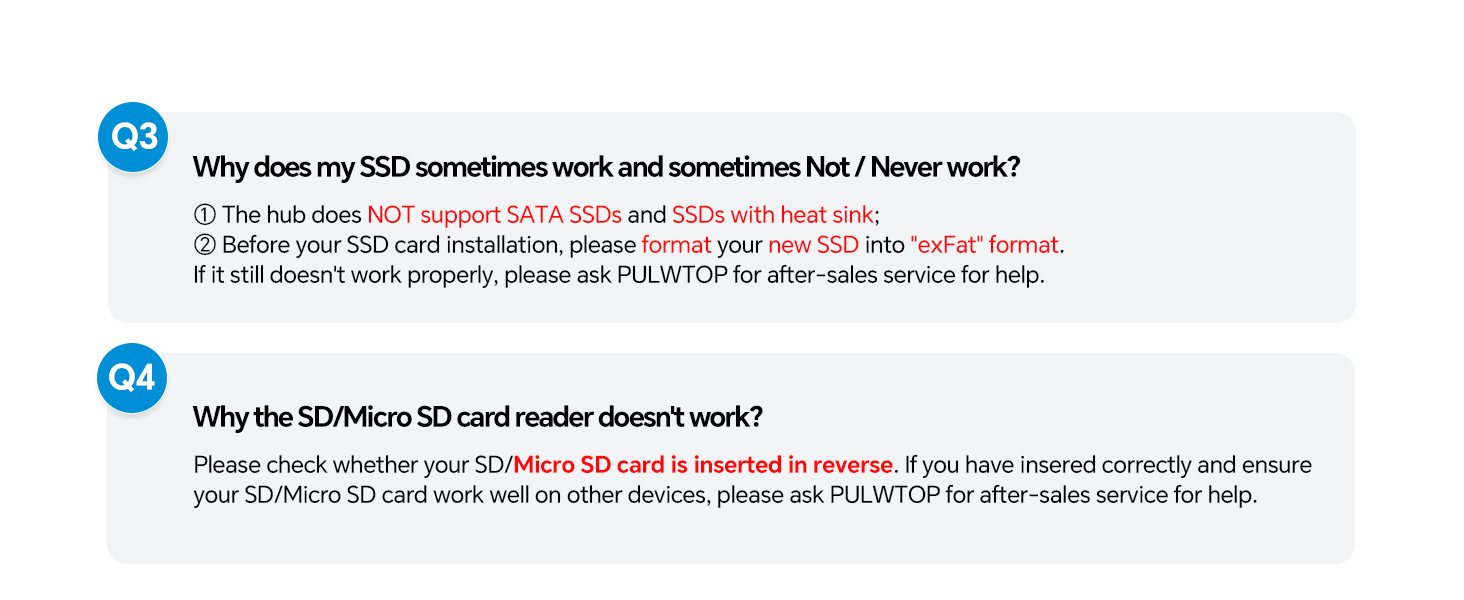

Note 1 Please format your new SSD in “exFat” format before use;
Note 2 All USB-A ports ONLY support data transfer, DO NOT support charging;
Note 3 All USB-A ports do not support CD readers, Apple SuperDrive

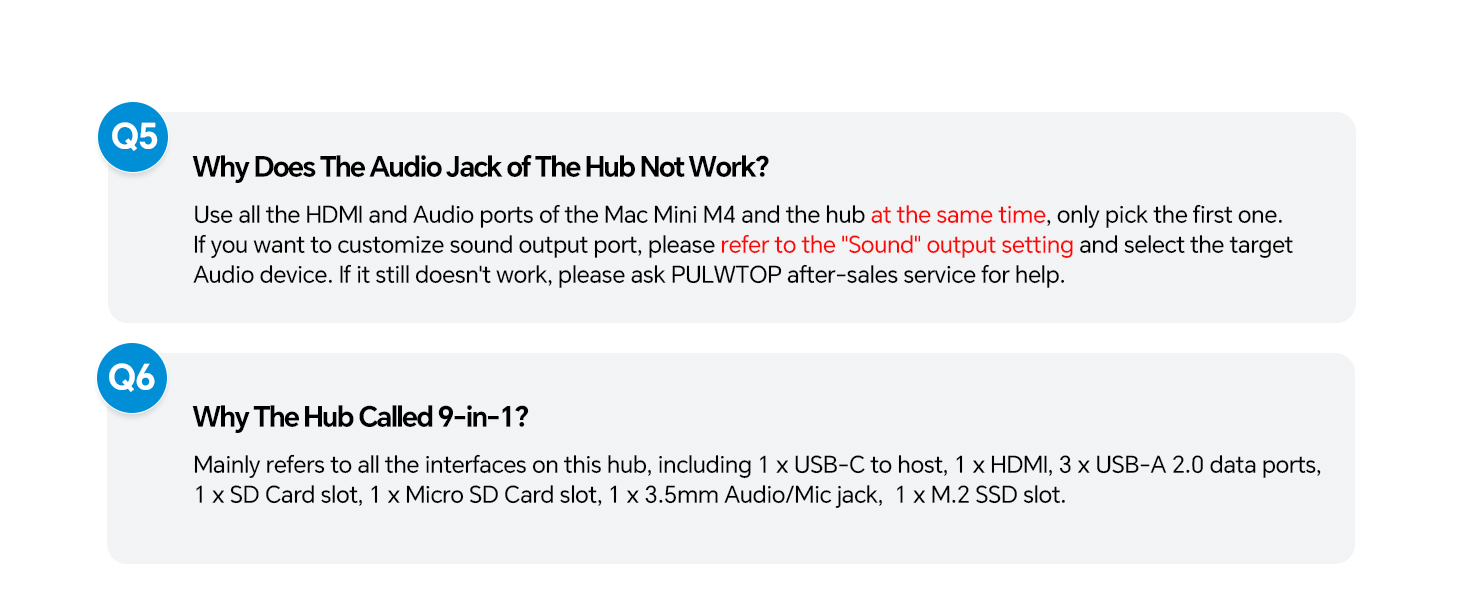

Note 4 Use all the HDMI and Audio ports of the Mac Mini M4 and the hub at the same time, ONLY pick the first one to work. Need to pre-set the audio output device, detailed setting steps refer to the product video on to know more.
