CWWK Mini PC Firewall Micro Appliance, Pentium J3710, 4 Port

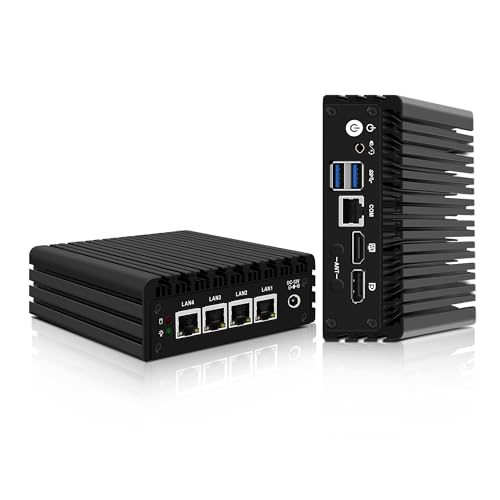

CWWK Mini PC Firewall Micro Appliance

CWWK Mini PC Firewall Micro Appliance, Pentium J3710, 4 Port i225 2.5GbE LAN, OPNsense Hardware Mini Computer, Fanless PC, DDR3L 8GB RAM 256GB SSD, AES-NI, Console COM, HD, DP

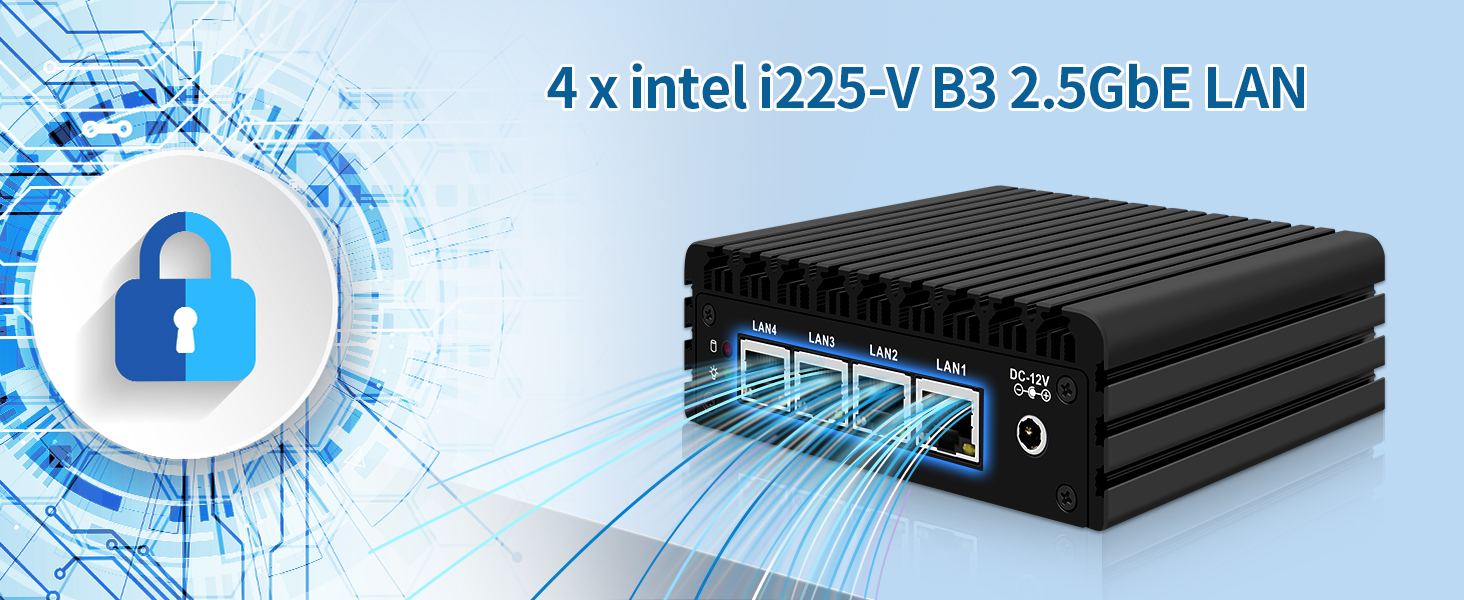

  1. Text reads '4 x intel i225-V B3 2.5GbE LAN'. Black rectangular network device shown against blue technical background with circuit patterns.
  2. Text reads 'Low power Pentium J3710 CPU'. Technical marketing images showing processor specifications with blue graphic elements and performance metrics.

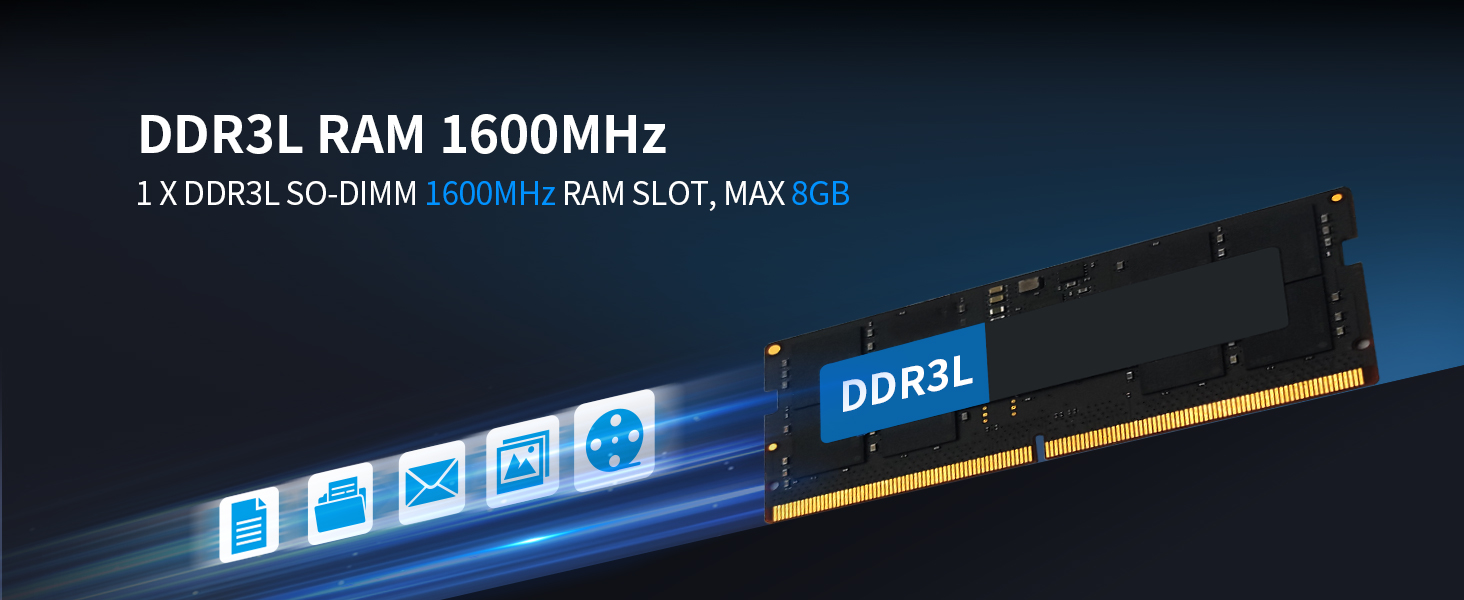

  3. Text reads 'DDR3L RAM 1600MHz'. Close-up product shots of computer RAM memory stick with blue LED lighting effects.

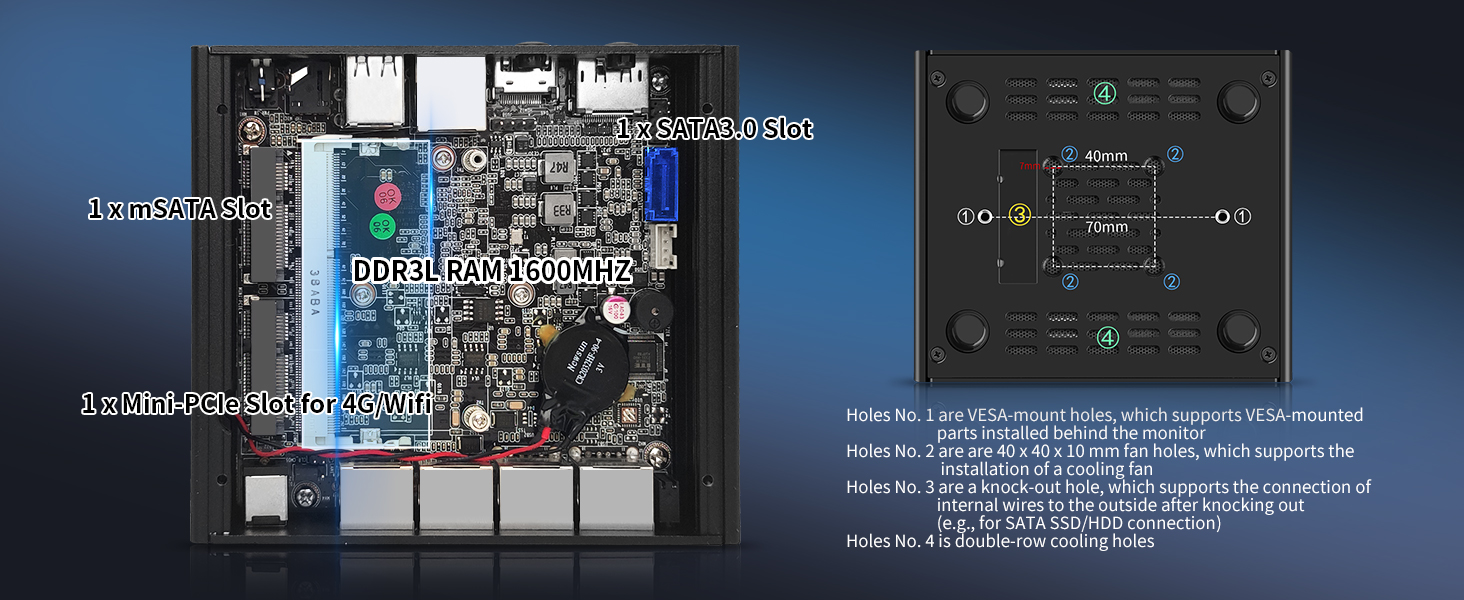

Technical interface screenshots showing blue-tinted display panels with various menu options and settings configurations. Multiple screens demonstrate system navigation and controls.

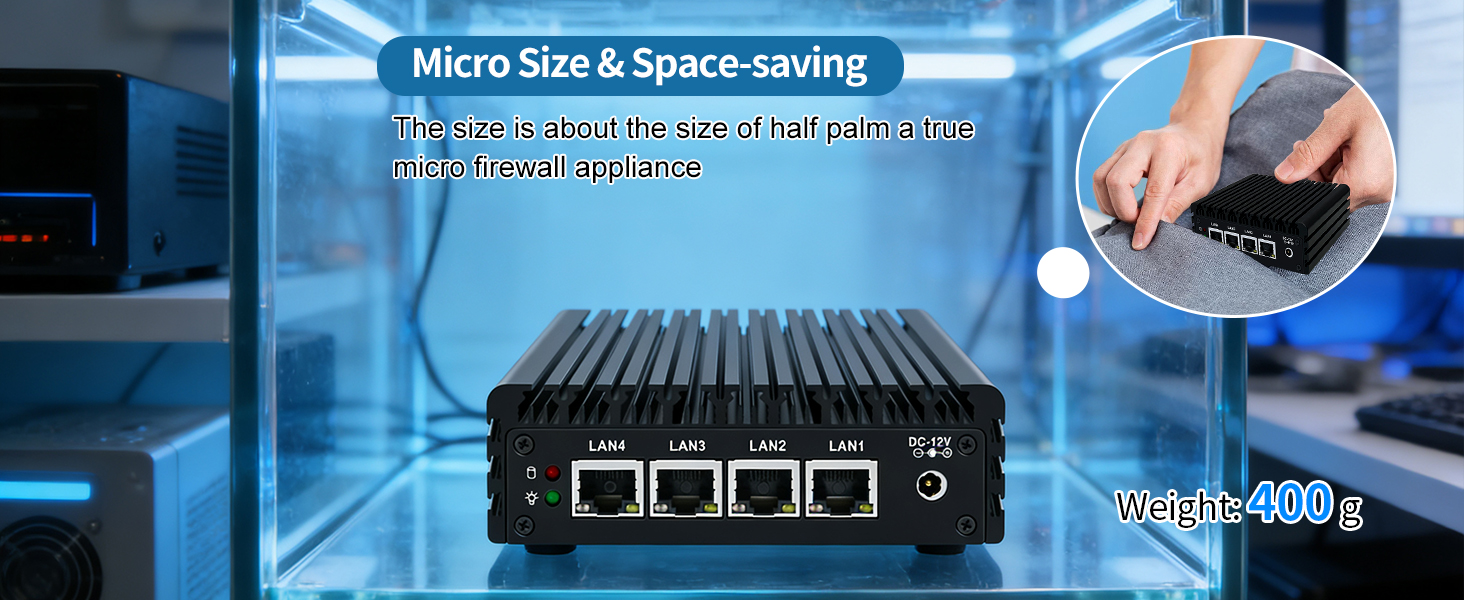

  1. Text reads 'Micro Size & Space-saving'. Technical product image showing a compact device with digital display against blue technological background.

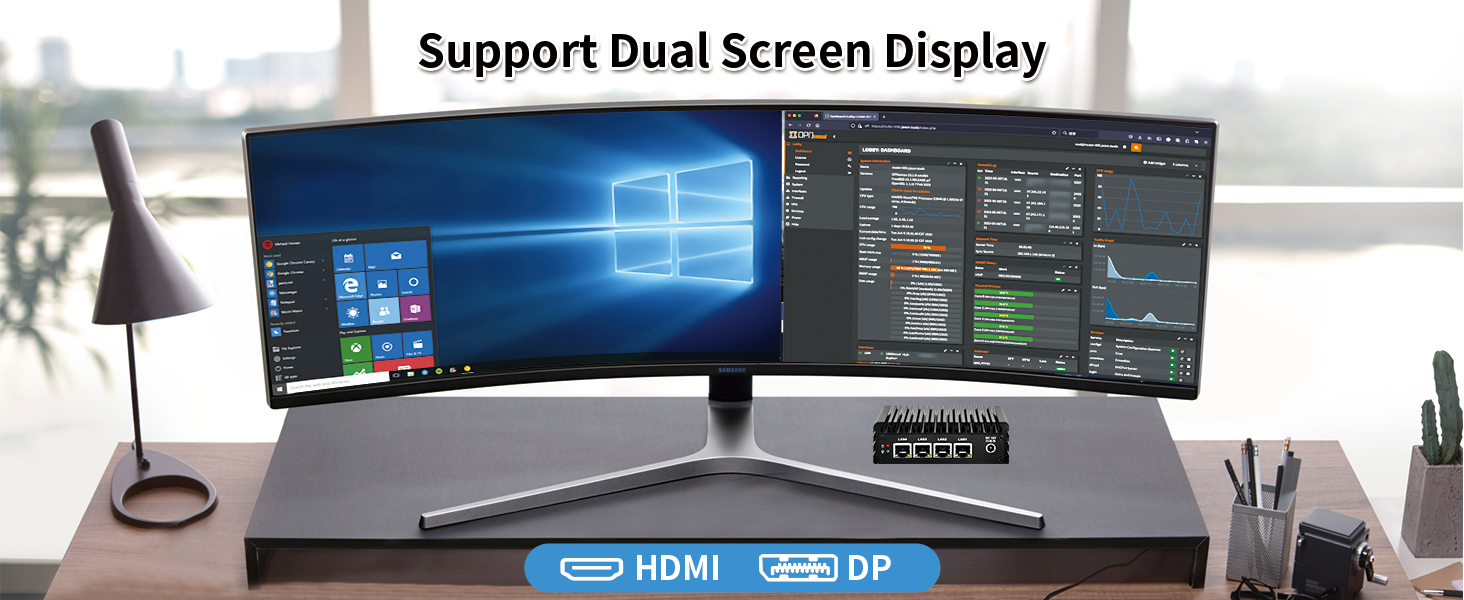

  2. Text reads 'Support Dual Screen Display'. Workspace setup showing dual monitors on desk with Windows interface displayed, desk lamp, and HDMI/DP connection ports visible.

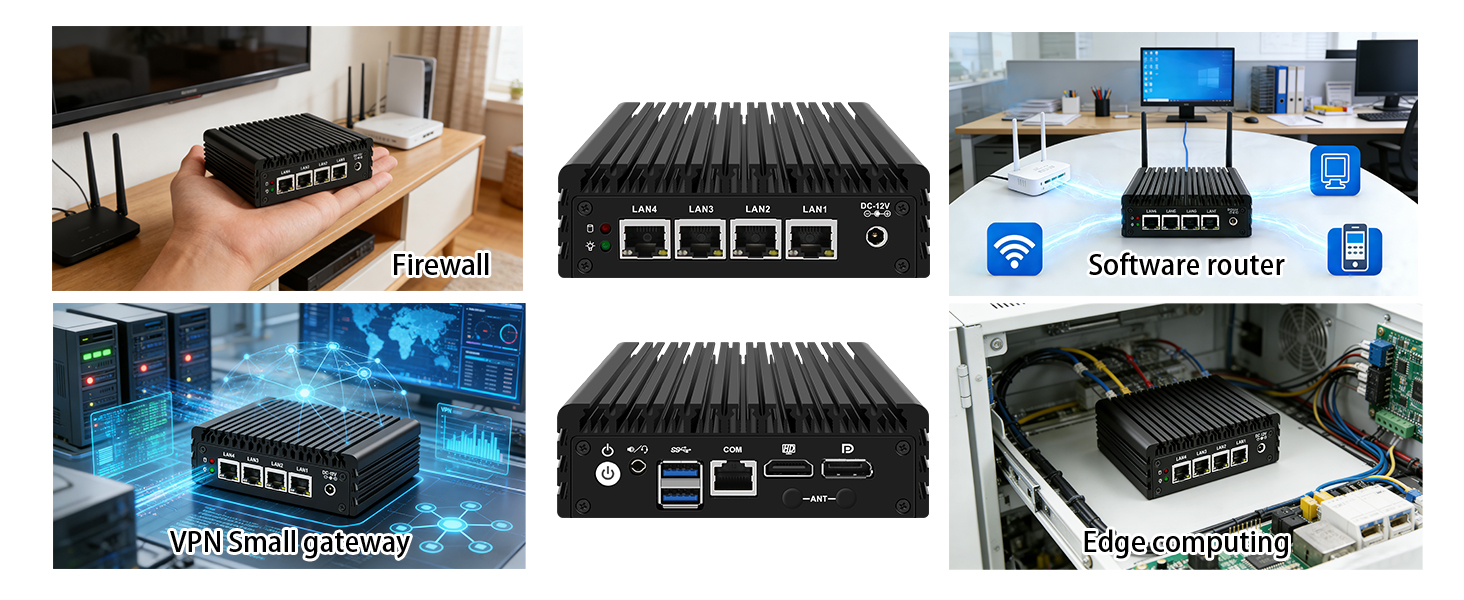

  3. Multiple views of a black industrial network switch or router device with various ports and connections, shown from different angles in technical setting.

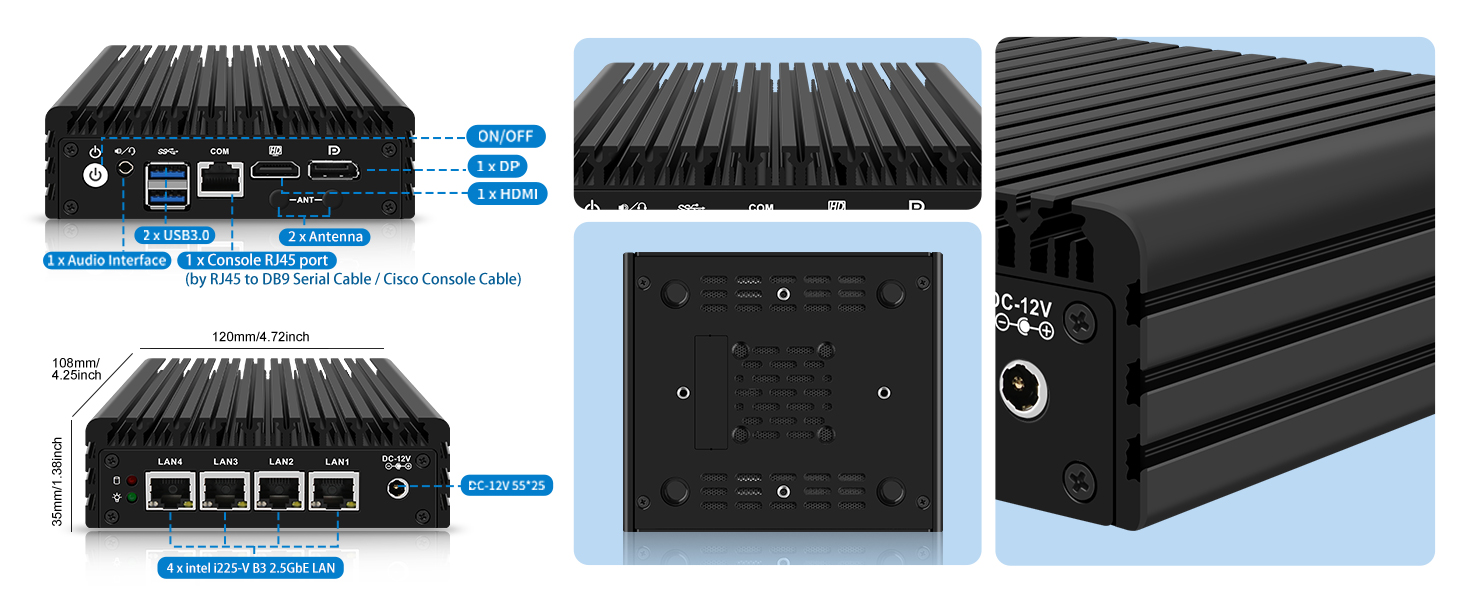

Multiple views of a black industrial computer or networking device with heat sink fins. Shows front ports, side profile, and mounting options. Multiple ethernet ports visible.Blue-tinted FAQ or instruction panel with numbered questions and answers. Multiple sections contain detailed text explanations with question marks and numbering.

CWWK F37 4 x 2.5GbE RJ45 Network Port 12*11cm Ultra-mini Firewall Box

CPU Options: Pentium J3710
Memory: 1 x SO-DIMM DDR3L RAM slot, up to 8GB (1600MHz / 1333MHz)
Storage: 1 x mSATA SSD slots, 1 x SATA 3.0 slot
Ethernet Ports: 4 x i225-V B3 2.5GbE RJ45 LAN
Wireless Module: 1 x mini-PCIe slot for WiFi/BT/4G module
Display Ports: 1 x HD1.4 up to 1920 x 1080@60Hz, 1 x DP1.2 up to 2K@60Hz
USB Ports: 2 x USB 3.0
Other Ports: 1 x Console COM rj45 port, 1 x audio port, 2 x Wi-Fi antenna connectors, CLR_CMOS jumper, Auto Power-On jumper, USB Pin header, F_PANEL Pin header
Case: Full aluminum alloy case
Cooling Type: Passive Cooling
Power Supply: DC 12V (55*25)
Size: 12.0 x 10.7 x 3.7 cm / 4.72 × 4.21 × 1.46 inches
Weight: 500 g / 1.1 lb
Package Contents: CWWK Firewall Mini PC, Power Adapter, SATA adapter cable, VESA
Features: Supports AES-NI, Auto Power On, Wake-on-LAN, PXE boot, Power Management
Operating System: Supports software router system, FreeBSD-based systems, OpenBSD, Win OS, Linux, PVE, ESX

CWWK Firewall Software Router Series

CWWK F37

CWWK F5

CWWK F17

CWWK S7 Pro

CWWK S3

CWWK F2

CWWK F16

Customer Reviews 5.0 out of 5 stars24.7 out of 5 stars85.0 out of 5 stars14.8 out of 5 stars10 — — —
Price £186.00£411.99£238.20£294.75£277.89 — £296.58
CPU Options Pentium J3710 N97 / N150 / N300 Pentium 8505 / U300 N150 N100 / N150 / N305 / N355 N100 / N305 Ryzen 5 5500U
RAM Type DDR3L DDR5 DDR4 DDR5 DDR5 DDR5 DDR4
LAN Type 4 x i225-V B3 2.5GbE RJ45 6 x i226-V 2.5GbE RJ45 6 x i226-V 2.5GbE RJ45 2 x 10GbE RJ45 + 2 x 2.5GbE 2 x 10GbE SFP+ & 4 x 2.5GbE 4 x i226-V 2.5GbE RJ45 4 x i226-V 2.5GbE RJ45
SSD Type mSATA + SATA3.0 M.2 NVMe + SATA3.0 M.2 NVMe + SATA3.0 M.2 NVMe + SATA3.0 M.2 NVMe M.2 NVMe + SATA3.0 M.2 NVMe + SATA3.0
Wireless Expansion Type mini-PCIe not soppurt M.2 E-key PCIe M.2 E-key PCIe mini-PCIe not soppurt M.2 E-key PCIe


Weight: 0.4 Kilograms
Dimensions: 12 x 10.7 x 3.7 centimetres
Brand: CWWK
Model: CW-F
Manufacture: CWWK
Dimensions: 12 x 10.7 x 3.7 centimetres
Origin: China
