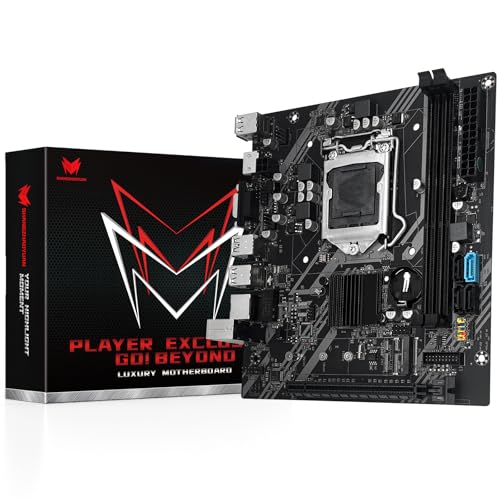

SHANGZHAOYUAN LGA 1155 Motherboard B75 for Intel 2th/3th Gen
SHANGZHAOYUAN LGA 1155 Motherboard B75 for Intel 2th/3th Gen i3,i5,i7/Xeon E3 12XX V2 Series CPUs, DDR3, NVME M.2, PCIe X16, 100M LAN, VGA, HDMI-Compatible, SATA 3.0, USB 3.0, Gaming PC Mainboard
Computer won’t start, fan doesn’t spin, indicator lights are off

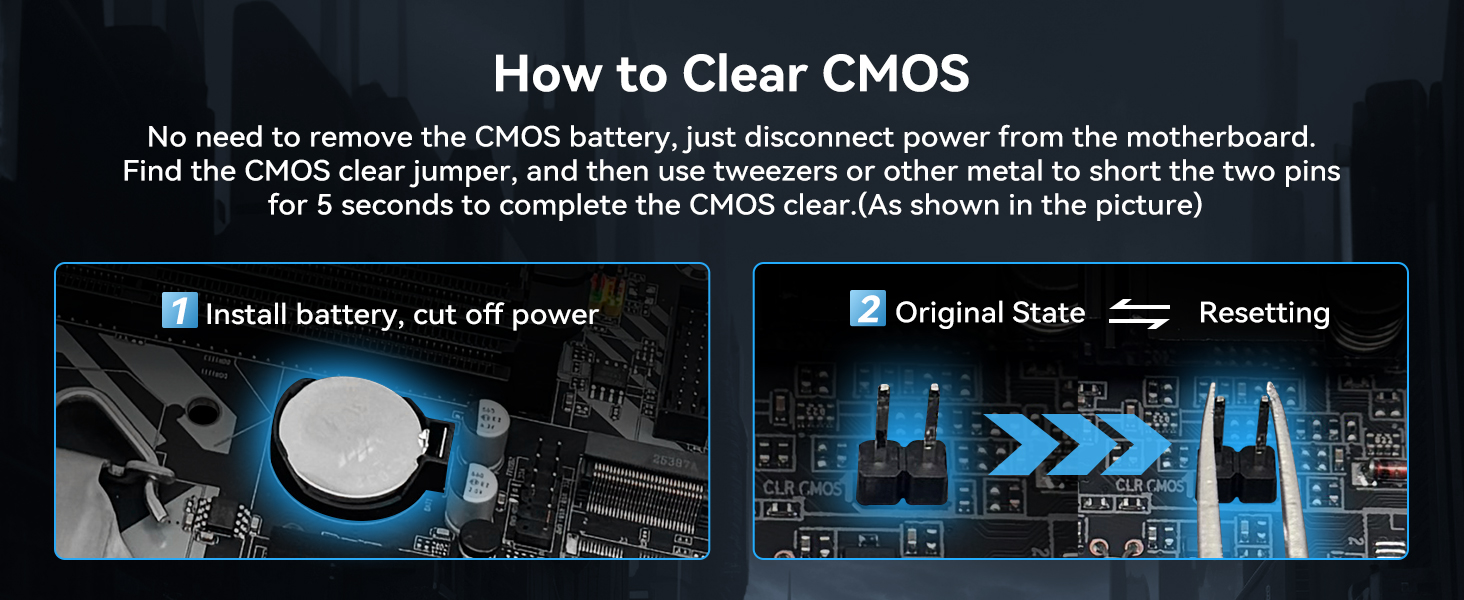

Check CPU compatibility or damage; check motherboard and CPU power supplies; check power button cable; check power switch on; check power supply; disconnect graphics card, hard drive, USB devices, etc., then try powering on again; clear CMOS.
The fan spins briefly and then immediately shuts off, or the computer repeatedly restarts
Clear the CMOS; check CPU and memory compatibility or damage; disconnect the graphics card, hard drive, USB devices, etc., and then try powering on.
The fan is spinning, but pressing the Caps Lock key on the keyboard doesn’t activate the indicator lights
Try clearing the CMOS; checking that the motherboard and CPU power supplies are properly connected; checking for CPU and memory compatibility issues or damage; and checking that the memory is installed correctly.
The fan is spinning. Pressing the Caps Lock key on the keyboard illuminates the indicator light, but there is no display
Check if the monitor and display data cable are properly connected or damaged. If using integrated graphics, ensure your CPU supports it. If using an external graphics card, connect cable to GPU output; Verify the graphics card functions normally.
Blue screen, system crash
Check if the CPU cooling fan is spinning and if the cooling fan base is properly seated on the CPU; replace the CPU, memory, hard drive, operating system, and power supply.
Motherboards you might like
 B75 X7 V91 MOTHERBOARD |  H97M PRO MOTHERBOARD |  H110 MOTHERBOARD |  H61C MOTHERBOARD |  B85M PRO MOTHERBOARD |  X99 PR9-H1 MOTHERBOARD |  X99 PR9-H MOTHERBOARD | |
|---|---|---|---|---|---|---|---|
| Customer Reviews | — | 4.0 out of 5 stars67 | 3.3 out of 5 stars42 | 3.2 out of 5 stars42 | 3.6 out of 5 stars76 | 2.9 out of 5 stars9 | 2.4 out of 5 stars3 |
| Price | £40.99 | £90.99 | £76.99 | £40.99 | £80.99 | £55.99 | £54.99 |
| Chipset | Intel 7 Series Chipset | Intel H97 Chipset | Intel H110 Chipset | Intel H61 Chipset | Intel B85 Chipset | Intel HM55 Chipset | Intel HM55 Chipset |
| CPU Socket | LGA 1155 | LGA 1150 | LGA 1151 | LGA 1155 | LGA 1150 | LGA 2011-3 | LGA 2011-3 |
| Memory Slot | 2*DDR3(up to 16GB) | 4*DDR3(up to 32GB) | 2*DDR4(up to 32GB) | 2*DDR3(up to 16GB) | 4*DDR3(up to 32GB) | 4*DDR4(up to 128GB) | 4*DDR4(up to 128GB) |
| Network Card | 1*100MB LAN | 2*Gigabit LAN | 1*100MB LAN | 1*100MB LAN | 1*Gigabit LAN | 1*Gigabit LAN | 1*Gigabit LAN |
| Display Port | HDMI;VGA | HDMI;VGA;DVI | HDMI;VGA | HDMI;VGA | HDMI;VGA;DVI | No(Requires graphics card) | No(Requires graphics card) |
| PCIe Slot | 1* PCIe x16 | 1* PCIe x16; 1*PCIe x1 | 1* PCIe x16 | 1* PCIe x16; 1*PCIe x1 | 1* PCIe x16; 1*PCIe x1 | 1* PCIe x16; 1*PCIe x1 | 1* PCIe x16; 1*PCIe x1 |
| M.2 Slot | 1*NVME M.2 | 1*NVME/NGFF M.2 | 1*NVME/NGFF M.2 | 1*NVME/NGFF M.2 | 1*NVME/NGFF M.2 | 1*NVME/NGFF M.2 | 1*NVME/NGFF M.2 |
| SATA Port | 2*SATA 3.0, 2*SATA 2.0 | 3*SATA 3.0, 2*SATA 2.0 | 3*SATA 3.0 | 3*SATA 2.0 | 3*SATA 3.0, 2*SATA 2.0 | 3*SATA 2.0 | 3*SATA 2.0 |
| Motherboard Size | 195mm*170mm | 243mm*193mm | 190mm*170mm | 190mm*170mm | 244mm*195mm | 215*185mm | 215*185mm |
| Brand: | SHANGZHAOYUAN |
| Model: | B75 |
| Manufacture: | SHANGZHAOYUAN |
| Origin: | China |
