ELEGOO Mercury Plus 2 in 1 Wash and Curing Machine for LCD/DLP/SLA 3D Printed Models Resin UV Curing Box for Mars Series Photon S Photon Mono with Rotary Curing Turntable and Washing Bucket
ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine
ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine
Wash and Cure 2 in 1 design makes washing and curing for 3D printed models realized in one machine. The operating process is now more efficient with less effort to meet your different needs.
ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine
Operation Instructions:
- After the model is printed, please clean and blow-dry the model before putting it into the machine.
- If the model become yellow after curing, please reduce the curing time. Over curing will lead to a yellowish model.
- Recommended ambient temperature is 0-40 degrees, and the ambient humidity temperature is 20%-50%.
- Please do not use it for more than 40 minutes at a time to avoid overheating
ELEGOO Wash & Cure Machine
Technical Specification:
- Control Method: Touch button
- Rated Power: 48W
- Input Voltage: 110V/220V 50/60H

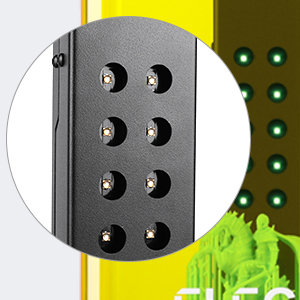

- UV Light: 385nm+405nm（8+8）
- Time Setting: 0-30mins
- Machine Size: 200mm*200mm*352mm
- Maximum Wash Volume: 125mm*85mm*160mm
- Maximum Curing Size: φ140*165mm
- Machine Net Weight: 4.8kg
- Cure Time: If model diameter less than 30 mm, the curing time is recommended to be 2 minutes. If the surface structure of the model is complex, it is recommended to increase the curing time properly.
- Special Notes: The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine
| | | |
|---|---|---|

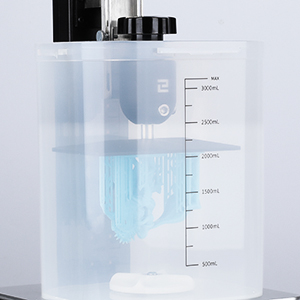

Washing with Printing PlatfromIf the printed model is not removed from the build platform, please mount the build platform to the adjustable platform bracket (The height of the platform bracket can be adjusted to fit the liquid level in the bucket, up to a maximum model height of 120 mm), then hang the adjustable platform bracket on top of the pillar to start the cleaning. | Washing with BucketIf the printed model has been removed from the build platform already, you will need to place the model in the cleaning basket (maximum model height is 160 mm) and hang the cleaning basket on top of the pillar to start cleaning the model. Models larger than 15 mm in size are available with this cleaning option. Some small models can be cleaned together in the bucket. | Intelligent Curing ControlPlace the curing turntable firmly against the turntable positioning hole and place the model on the center of it. Cover the anti-UV lid which can block 99.95% of ultraviolet rays to protect your vision. Operating with the sensitive touch button and 0.96 inch TFT LCD screen, you can easily set and monitor the time. The machine will beep when the curing is done. |
| | | |
|---|---|---|

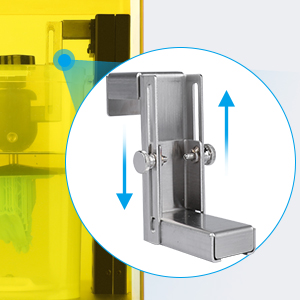

| The height of the platform bracket can be adjusted to fit the liquid level in the bucket to make the models to be cleaned completely. | Powerful UV Light of the built-in 8pcs 385nm and 8pcs 405nm UV curing lamp beads to cure the model fast. | The 360-degree rotating turntable work with UV light can make the models to be cured perfectly. |
ELEGOO Mercury Plus 2 in 1 Washing and Curing Machine
| Dimensions: | 50 x 27.5 x 27 cm; 4.8 Kilograms |
| Manufacture: | ELEGOO |
| Origin: | China |
| Reference: | EL-3D-090 |
