LUX ELEMENTS TUB-BAS-DV 100 LTUBE1169 Vertical Drain Pan with Tilable Grate Stainless Steel Grey

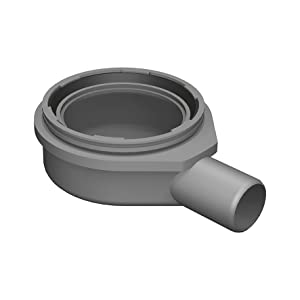

Point and line drainage with simple click system – horizontal drain pot.
The drainage system for point drainage consists of a click-system easy to assemble horizontal floor drain pipe with odour trap, plus rust holder made of ABS and standard or design grate made of stainless steel. Universal height adjustment possible to the thickness of the flooring. The drainage system for line drainage consists of an easy to assemble horizontal floor drain socket. The slightly narrower odour trap is already integrated into the gutter so that only the drain pot has to be mounted using a simple click system.

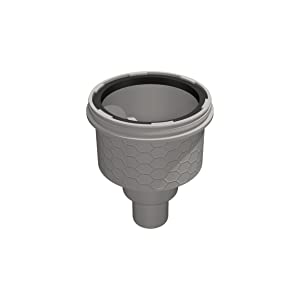

Point and line drainage with simple click system – vertical drain pot.
The drainage system for point drainage consists of a click-system easy to assemble floor drain pipe vertical (DN 50 for core hole 160 mm or DN 40/50 for core hole 100 mm) with odour trap, plus rust holder made of ABS and standard or design grate made of stainless steel. Universal height adjustment possible to the thickness of the flooring. The drainage system for line drainage consists of an easy to assemble vertical floor drain pipe (DN 50 for core hole 160 mm). The slightly narrower odour trap is already integrated into the gutter so that only the drain pot has to be mounted using a simple click system.
Drain pots horizontal and vertical.
| | | | |
|---|---|---|---|
Set (horizontal) for point drainage.TUB-BAW-S, floor drain pipe DN 50 horizontal, with odour trap, incl. Rust holder made of ABS and standard stainless steel grate, universal height adjustment to tile thickness. Frame outer dimensions: 130 x 130 mm, grate: 120 x 120 mm. | Set (vertical) for point drainage.TUB-BAS-S 100, floor drain pipe DN 40/50 vertical, for core hole 100 mm, with odour trap, incl. Rust holder made of ABS and standard stainless steel grate, universal height adjustment to tile thickness. Frame outer dimensions: 130 x 130 mm, grate: 120 x 120 mm. | Set (horizontal) for point drainage.TUB-BAW-DV, floor drain pipe DN 50 horizontal, with odour trap, incl. Rust holder made of ABS, with stainless steel frame and tiled cover “VARI” made of stainless steel, universal height adjustment to tile thickness possible, thickness of the top (tile + adhesive) for the shower floor at least 5 mm, for the tiled cover 8 mm. Frame outer dimensions: 132 x 132 mm, Cover: 110 x 110 mm. | Set (vertical) for point drainage.TUB-BAS-DV 100, floor drain pipe DN 40/50 vertical, for core hole 100 mm, with odour trap, incl. Rust mount made of ABS with stainless steel frame and tiled cover “VARI” made of stainless steel, universal height adjustment to tile thickness possible, thickness of the top (tile + adhesive) for the shower floor at least 5 mm, for the tiled cover 8 mm. Frame outer dimensions: 132 x 132 mm, Cover: 110 x 110 mm. |
| | | |
|---|---|---|

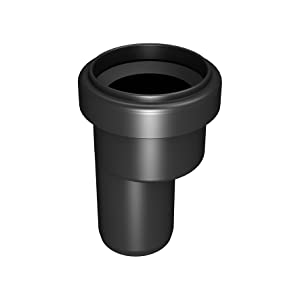

Horizontal drain pot for line drainage.TUB-Line BA-W 22 Floor Drain Connector DN 50 Horizontal | Vertical drain pot for line drainage.TUB-Line BA-S Floor Drain Connector DN 50 Vertical for Core Hole 160 mm | Reducer.TUB-BAZ DN 50/40 Reducer from DN 50 to DN 40 with Lip Seal |
Accessories for point and line drainage.
| | | | |
|---|---|---|---|
Hair Strainer Point DrainageTUB-BAZ HS Removable Hair Strainer | Multi-stop point drainage.TUB-BAZ STOP, odour, foam and vermin barrier, can also be retrofitted in already built-in drains. | Hair strainer line drainage.TUB-Line BAZ HS Hair Strainer for TUB-LINE Removable | Multistop line drainage.TUB-LINE BAZ STOP, odour-, foam- and vermin barrier, can also be retrofitted in already built-in gutters of the TUB-LINE model. |
| Weight: | 680 g |
| Size: | senkrecht, befliesbar |
| Dimensions: | 48 x 27 x 16 cm; 680 Grams |
| Model: | Senkrechter Ablauftopf |
| Part: | LTUBE1169 |
| Colour: | Gray |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Manufacture: | LUX ELEMENTS GmbH & Co. KG |
| Colour: | Gray |
| Quantity: | 1 |
| Size: | senkrecht, befliesbar |
vite d’avoir dmonter le siphon chaque fois, d’avoir les cheveux qui partent dans lacanalisation. Gain de temps er meilleure hygine ! L’coulement de l’eau pendant la douche n’est pas gn et le ramassage des cheveux est efficace. Juste un bmol sur le prix de ce morceau de plastique, je trouve que c’est excessif , une toile en moins cause de cela
J’ai enfin trouv une solution mes mes problmes
1) de remonte d’odeurs
2) dbit d’coulement d’eau (je ne suis plus oblig d’enlever le bouchon du siphon)
Nb : adapt au siphon ultra plat q-board achet chez casto
Die Lcher (Sternchen) sind sehr sehr klein. Wir mssen das Sieb jeden dritten Tag putzen, da ansonsten das Wasser nicht weg rinnt. Eventuell kann man selbst die Lcher grer machen. Wir haben uns nun aber schon an das regelmige wegwischen der Fussel gewhnt.
Ich benutze diese klappe in einem Bodenablauf im Keller. Der Geruchsverschluss ist auf jeden Fall gegeben. Ich habe das Teil zustzlich noch mit Karosseriekleber eingeklebt um es gleichzeitig noch als Rckstauklappe zu benutzen und es funktioniert.
Eine gute Idee Haare abzufangen, bevor sie sich im Geruchsverschluss verklemmen. Haare sind einfach abzuziehen und es erspart Arbeit. Das Element besteht aus Plastik. Ein Stern Abzug, weil es verhltnismig teuer ist.
