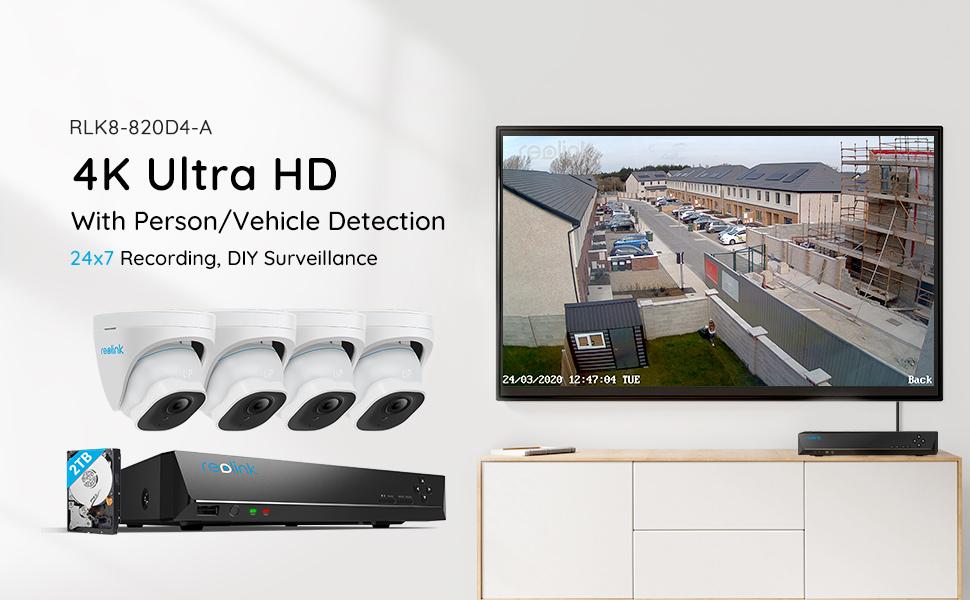

Reolink 4K PoE Security Camera System H.265, 4pcs 8MP Person/Vehicle Detection Wired Outdoor PoE CCTV IP Cameras and 8CH NVR with 2TB HDD for 24/7 Recording Night Vision Audio, RLK8-820D4-A
FAQ:
- Question 1: Could be a person and vehicle-triggered alarms distinguishable?
- Answer: Yes, Reolink 820A PoE IP camera can identify people and vehicles in terms of their shapes, and the cameras can specify the type of detection when sending alerts to you.
- Question 2: How can I add an external hard drive?
- Answer: There’s one SATA port inside and one e-SATA behind the NVR. You can add an external HDD (up to 6TB) via the port and provide an extra power supply for it to enlarge the capacity.
- Question 3: Does this security camera support time-lapse feature?
- Answer: This feature is only available when the camera is used without the NVR and you can set time-lapse videos only on Reolink App, the time-lapse video needs to be stored on an SD card. (not included)
Key Features
4K PoE Surveillance Security Camera System Specifications
| RLC-820A PoE IP Camera | Specifications |
| Image Sensor: | 1/2.49″ CMOS Sensor (8 Megapixel) |
| Lens: | f=4.0mm fixed, F=2.0, with IR Cut |
| Angle of View: | Horizontal: 87°; Vertical: 44° |
| IR Distance: | 30 Meters (100 ft) (LED: 18pcs/14mil/850nm) |
| Power Input: | DC12V 1A or 48V PoE( IEEE 802.3af),<12W |
| Frame Rate: | Main Stream 2fps – 25fps(default: 25fps), Sub Stream 4fps – 15fps(default: 10fps) |
| Microphone: | Built-in Microphone |
| RLN8-410 PoE NVR | Specifications |
| IP Video Input: | supports 8 IP cameras |
| Video Output: | Monitor or HDTV via VGA, HDMI |
| Video Format: | H.265 |
| USB Port: | USB 2.0 x 2 |
| Synchronous Playback: | 1CH-8MP; 4CH-4MP |
| HDD Installed: | Pre-installed a 2TB HDD |
| HDD Capacity: | 1x internal port, 1x external port, 6TB for each port (support up to 12TB in total) |
Product Features
| | | |
|---|---|---|
Easy PoE Set-upPower, video, and audio run through one single PoE cable, making the installation simple. Cameras come with 60ft 8Pin network cables, which can be directly connected to the NVR. Users enjoy an easy set-up without additional purchases. | Data Encryption, Cyber SecurityWe use AWS server to achieve remote access, Reolink server is not involved, no customer data will be left to us. Besides, all the data is dynamically encrypted and safe. poe cctv camera kit can protect your privacy very well. | Simultaneous Live View for 12 Users12 users can access to the cctv camera system at the same time. You can share access with 11 neighbors, friends or family members, having live view simultaneously via the FREE Reolink software. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Resolution | 8MP(3840×2160) | 8MP(3840×2160) | 8MP(3840×2160) | 8MP(3840×2160) | 8MP(3840×2160) | 8MP(3840×2160) |
| NVR Channel | 8 Channels | / | / | 8 Channels | 8 Channels | 16 Channels |
| NVR Pre-installed HDD | 2TB | / | / | 2TB | 2TB | 3TB |
| Smart Human/Vehicle Detection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Night Vision | Up to 100ft | Up to 100ft | Up to 100ft | Up to 100ft | Up to 100ft | Up to 100ft |
| NVR HDD Capacity | 6TB via SATA, 6TB via e-SATA, 12TB in total | Built-in Micro SD Card Slot | Built-in Micro SD Card Slot | 6TB via SATA, 6TB via e-SATA, 12TB in total | 6TB via SATA, 6TB via e-SATA, 12TB in total | 2x 6TB via SATA, 12TB in total |
| Dimensions: | 38.1 x 31 x 24.6 cm; 6.67 Kilograms |
| Model: | RLK8-820D4-A |
| Manufacture: | Reolink |
| Origin: | China |
Pros:
– Plug and play simplicity
– Good quality cameras with good range of adjustment and field of view
– Waterproof covers for the ethernet connections
– Apps for phones, computers and tablets plus a built-in web server interface
– Lots of flexibility in what and how you record, with many options for storage, notifications etc.
– Easy to export and download local copies of high quality 4K footage with optional audio
Cons:
– The various apps all differ in what they allow you to do and use inconsistent terminology (e.g. High or Low image quality is also called Clear or Fluent)
– The web interface doesn’t scale well on phones
– The fixed camera tails are rather unwieldy
– The cameras cannot be locked in position and can thus easily be re-adjusted by anyone unless you glue them in position
– No easy way to scrub through playback footage other than varying the speed of replay up to 16x
The unit is initially set to record 24/7 constantly which will fill up the 1TB hard drive in about a week — this is “timer” mode. You can unset this and use “alarm” mode instead which only records detected motion (along with a configurable pre and post motion buffer period) which should give months of recording before starting to overwrite the disk.
The dome cameras can be installed vertically or horizontally — I have mine all fixed vertically to brick walls. There is enough lateral and vertical movement and field of view to capture footage of the house doors below the cameras on the same vertical plane (see my photos). The cameras have fixed non-removeable tails about 60cm long which are 20mm thick at the widest point. You can drill directly behind the camera to pass the tail the through the wall and thus hide the tail and all the wiring completely. You will need a 25mm hole and 25mm round PVC conduit to allow the tail to pass through a standard 30 cm cavity wall. The tail can then be easily connected to the ethernet cable inside the house. I recommend using the supplied protectors which make the ethernet connection much less liable to be pulled apart. These are fitted over the ethernet cable terminations before you plug them into the tails. They use rubber sealing washers and a split rubber grommet and therefore do not require the cables to be cut or re-terminated.
The computer and phone apps work fine but take some getting used to. By default they use Reolink’s remote servers to give you access to the system wherever you are via an automated UID login and Reolink’s private protocol. You can disable this by turning off the UID in the advanced networks settings (which kills the apps) and instead just use the control unit’s web interface. This is accessed on your local network by entering the control unit IP address into your browser. The web interface lets you store the unit in a non-accessible location without an attached monitor and administer it from a browser on a computer on your LAN. It seem to have all the facilities of the local control unit app, including renaming the cameras and formatting the hard drive, neither of which are possible on the computer and phone apps. You can of course also expose the web interface to the internet if you use a dynamic DNS service and port forward it externally. You can even install a proper TLS cert via the web interface – I used the one provided by NO-IP as part of their DDNS service (just be sure to create a PEM cert with the full chain embedded, named as a .pem file with the the private key named as a .key file). The only downside is that the web interface is designed for computer or tablet screen access and scales poorly on phones (the camera images get badly stretched).
On the whole I am very pleased with the system. I hope to use it in “set and forget” mode for many years.
Very pleased with the system. Easy to set up and easy to use. Very good quality for the price. Having read reviews before I bought, I invested in cat 6 cables, instead of the cat 5 ones supplied. Maybe this could be offered as an upgrade.
This is the best cctv we have had. There is so many out there.
We use to have Swann. And can say we are very happy with this new purchase.
Why would you use black leads on a white camera? Totally spoils the look.
This is a power over ethernet (PoE) system so why does it need an unnecessary power lead on the camera?
The 3rd lead is a reset switch. Surely you can reset the camera remotely or just unplug and reconnect it?
I have bought stone coloured paint to try and disguise these ugly leads.
The system is easy to set up although I had to use 2 ethernet extension leads. Some systems have 2 longer leads included.
The NVR box is small and modern and makes little or no noise.
The camera mountings are easy to fix to a wall and the camera just twists onto the mounting plate easily.
Picture quality is good both day and night and playback is simple to use.
It offers vehicle, person or motion detection, or just 24 hour recording.
This is my 4th system, after Anlapus, Zosi and Annke, and is far better than all of them.
Amazon offered 100 off so it was a decent price.
I would recommend this system for someone looking at a home or business ‘fit and forget’ system.
Great cameras great pic quality highly recommended at a great price
Fantastic product and great picture quality
That’s why i gave it a 5 star rating
– Long length ethernet cables provided, including waterproof glands for the connections.
– Easy to position to any angle or position once fitted.
– 24/7 recording with AI vehicle/Person detection so far has been flawless.
– Sound recording is really good, very clear and picks up everything.
– CCTV warning stickers included for placing in windows etc..
Few things that I’d possibly liked to of known/researched prior to purchase:
– Genuine junction boxes are very expensive. I 3D printed my own for this reason.
– No geofencing for notifications, they’re either on or off, you can set scenes, but these are manually set.
– Setting up through a PoE switch gives added functionality to the cameras, such as auto update firmware for each camera and different settings for each camera, without this global settings are applied. (you will need an SD card in each camera though to do this)
Good quality images and easy to set up. Some of the camera shrouds felt a bit loose holding the cameras but seem to stay in place.
If you shut the system down, it seems to just sit there and not shut down. Had to unplug and hope it didn’t corrupt the system.
Happy overall though.
Perfect all in one solution that just works and no messing about , the quality is absolutely insane day or night it’s like looking out the window
NON MI ASPETTAVO UNA VISIONE SIA DIURNA CHE NOTTURNA COSI LIMPIDA, INOLTRE E’ POSSIBILE INGRANDIRE L’IMMAGINE ANCHE ATTRAVERSO L’APP SUL PROPRIO SMARTPHONE . OTTIMO PRODOTTO A UN PREZZO RAGIONEVOLE
Tutto ok, facile installazione e montaggio. Visione perfetta sia diurna che notturna, ottimi i sensori di movimento e riconoscimento persona e veicoli, app facile ed intuitiva!!!! Molto soddisfatto
The installation was extremely easy. Set up the NVR in the loft and drilled a single hole through soffit where I wanted each camera. The attached cable on each camera was long enough to run through the outside brick, cavity and thermablock meaning the connections are all inside the loft and not subject to the weather. I have used the supplied seals for the connections even though its inside the loft because I thought why not.
The camera quality and set up is fantastic. Both daytime and nighttime quality is fantastic, the set up I literally plugged the camera into the NVR and it brought the image straight up on screen without any messing about.
I’m happy that I can add a further 4 cameras in time and because Mt Internet is so good (fibernest) the viewing comes up on the app almost immediately.
All together, fantastic cameras for the price and I am very impressed.
Trs facile installer, menu interactif, qualit de l’image trs correct.
Je recommande.
Einfache Installation, extrem gute Bildqualitt. Einfache Handhabung. Die Kameras verbinden sich wie beschrieben automatisch und sind sehr einfach zu installieren und genau so einfach zu bedienen. Bei mir sitzen sie direkt unter dem Dach (ca. 7m Hhe). Bin sehr zufrieden mit der Auflsung (ich kann auf den Boden zoomen und kann Maserungen im Holz erkennen am Tag und in der Nacht sind diese nur leicht schlechter erkennbar. Schade nur, dass es sie nicht in der Farbe schwarz gibt. Sonst kann ich absolut nichts negatives berichten, nach 2 Monaten im 24h Einsatz.
Good value all round good vision but night vision could be bette
Ive Since upgraded the the 16 Channel 4k NVR and further added more Cameras and 2 x 6TB Hard drives. This system is excellent in many ways. The App is very easy to use when away from home. Only gripe is Spiders and Cobwebs often trigger false motion detection.
Ho installato la soluzione in appartamento con 4 camere in esterno e 4 all’interno. Il supporto POE rende l’installazione semplice e veloce. Attenzione al cavo che esce dalla telecamera un po’ lungo ed ingombrante (non entra in una scatoletta 503, andrebbe accorciato di almeno 10-15 cm.
Le telecamere sono ben fatte, robuste e semplici da installare.
Il software completo e semplice da gestire in fase di configurazione del sistema cos come da utilizzare per controllare l’abitazione anche da remoto.
Visione notturna ottima , semplice da installare , l ‘app. per il controllo da remoto utilissima , il sensore di movimento si potrebbe migliorare.
il secondo kit che acquisto
Fr das Geld ein bombensystem, vielen Dank leute alles wunderbar
Bei uns hngen 30m Lan Kabel dran, keine Probleme
A cost effective upgradable cctv system which is easy to setup, install and use
Excellent system. Very easy to install. Spend a little bit of time setting up motion alerts and you won’t have any issue. Amazing picture quality and great phone app. Make sure you budget for junction boxes (making install a breeze). Cannot recommend enough.
Dies HD System ist gut fr kein Haus. Fr eine lange bertragung wie 40m werden das Poe leider nicht stark genug weil die Leistung ein bisschen schwach ist.
This is a very good NVR kit.
I cut and ran my own cables instead of using the supplied ones as I didn’t want the extra length.
The quality of the image is outstanding in the day, colours are extremely accurate and you can easily read registration plates.
Night vision is excellent, the IR LED’s are very well placed and easily light up the entire field of view of the camera.
NVR is REALLY easy to setup and use, I was really surprised when I was setting it up for the first time.
If you’re looking for a 4K NVR Kit then this is definitely the one to get.
This is a very good NVR kit.
I cut and ran my own cables instead of using the supplied ones as I didn’t want the extra length.
The quality of the image is outstanding in the day, colours are extremely accurate and you can easily read registration plates.
Night vision is excellent, the IR LED’s are very well placed and easily light up the entire field of view of the camera.
NVR is REALLY easy to setup and use, I was really surprised when I was setting it up for the first time.
If you’re looking for a 4K NVR Kit then this is definitely the one to get.
That said, I found this set to be of sufficient quality for the price, which included an extra discount with coupon at the checkout.
It is very likely that I will try one of the 12mp cameras when they become available/in stock again, just to see if there is a marked difference as I do like the brand and their design.
I would also like there to be an option for black housing for aesthetic purposes in some locations.
Clearly, 4K doesn’t necessarily mean better quality image, the image sensors are good but not superior.
That said, I found this set to be of sufficient quality for the price, which included an extra discount with coupon at the checkout.
It is very likely that I will try one of the 12mp cameras when they become available/in stock again, just to see if there is a marked difference as I do like the brand and their design.
I would also like there to be an option for black housing for aesthetic purposes in some locations.
Ho acquistato e installato personalmente questo prodotto.
Punti a favore.
– L’articolo arrivato nei tempi stabiliti.
– Facile da installare: le telecamere si collegano soltanto con i cavi di rete (1 cavo di 18 metri per ogni telecamera).
– Visione notturna/diurna buone: solo con la nebbia non si riesce a vedere granch.
– Applicazione per smartphone facile da usare e intuitiva.
– Diverse lingue selezionabili
Punti a sfavore
– Istruzioni assenti: tutto molto semplice ma se non si pratici di tecnologia l’avvio e il settaggio possono risultare un po complicati.
– Servizio clienti scortese
– Le telecamere sono facilmente rimovibili. Troppo semplice svitarle per rubarle. Ho dovuto provvedere ad una soluzione “hand made” per limitare questo difetto.
Expdition rapide, trs facile installer, qualit vido top, application reolink intuitive, bref, satisfait ++
Dans l’ensemble plutt satisfait.
La qualit d’image de jour et de nuit sont plutt bonne. Le fait qu’il y ai l’audio est un vraie plus et pouvoir faire un backup des vido en FTP vers un NAS galement.
Seul petit bmol, il faut jongler entre l’appli PC et mobile pour avoir accs a l’ensemble des paramtrages possible, c’est dommage.
Having setup the 8 camera NVR with the 4 included cameras it was all was working very well for about 2 minutes.
Sadly after messing around with settings, trying to update firmware and several hundred restarts we could not get the NVR to record for longer than 2 minutes.
The good part is that customer service is excellent. They decided that it must be a faulty HD but didn’t have any in stock to replace it, they sent a link to a replacement on Amazon to purchase ourselves.
Once that arrived we installed it and it now works great, customer services refunded the HD cost via our first purchase, including the postage to return the faulty HD.
Just a shame about the camera fixings.
The cameras are very easy to move (pivot, tilt etc) due to them only being in a plastic housing and no grub screws to fix in place, this could be an issue if installed within reach of devious hands.
Having setup the 8 camera NVR with the 4 included cameras it was all was working very well for about 2 minutes.
Sadly after messing around with settings, trying to update firmware and several hundred restarts we could not get the NVR to record for longer than 2 minutes.
The good part is that customer service is excellent. They decided that it must be a faulty HD but didn’t have any in stock to replace it, they sent a link to a replacement on Amazon to purchase ourselves.
Once that arrived we installed it and it now works great, customer services refunded the HD cost via our first purchase, including the postage to return the faulty HD.
Just a shame about the camera fixings.
I did a lot of research before settling on this unit by Reolink. Its been installed for 2 weeks now and the cameras are simply excellent. The 4K is crisp and night time vision is amazing. Cannot fault this as a DIY install. The AI movement of people is also very impressive. You do need to have a little bit of technical know how with the email notifications etc as is the same with most units of this quality but overall an excellent package and can only fully recommend it. Did I mention the night vision. Wow.
I did a lot of research before settling on this unit by Reolink. Its been installed for 2 weeks now and the cameras are simply excellent. The 4K is crisp and night time vision is amazing. Cannot fault this as a DIY install. The AI movement of people is also very impressive. You do need to have a little bit of technical know how with the email notifications etc as is the same with most units of this quality but overall an excellent package and can only fully recommend it. Did I mention the night vision. Wow.
The cctv quality is great .i purchased four extra dome cameras to complete my security system .the cameras are well built and strong
L’UNICA DIFFICOLTA’ E’ QUELLA TI TIRARE LE LINEE PER IL POSIZIONAMENTO DELLE TELECAMERE, IL PRODOTTO E’ ECCEZIONALE, AUTOCONFIGURANTE ED ESTREMAMENTE INTUITIVO.
I install CCTV for s living and find Reolink, fast easy to install and for excellent quality.
Et faire quelques essais pour comprendre le fonctionneme
Purchased this for home security. I am very pleased with it.
We have no problem with these cameras, night vision very good , motion just as good, picture quality very good in colour, our son recommended them to us we are very happy
We have no problem with these cameras, night vision very good , motion just as good, picture quality very good in colour, our son recommended them to us we are very happy
s bon produit camras design sympathique et belle qualit d’image
Es muy simple de instalar, prcticamente plug and play. Lo nico es el montaje en casa tirando cables a las diferentes zonas donde se coloquen las cmaras. Eso ya depende de lo manitas que sea cada uno.
Tanto las cmaras como el NVR tienen buena pinta, espero que me duren mucho.
El servicio tcnico muy bueno tambin. Tena un problema porque no poda tener otras cmaras de vigilancia funcionando al mismo tiempo. El NVR se reiniciaba cada pocos minutos en bucle. Me lo solucionaron envindome un firmware que elimin el problema. Ahora todo va genial.
Las alertas push en el mvil a veces fallan. No mucho, pero ah estn los fallos espordicos.
Poco ms puedo decir, estoy bastante contento con este producto.
Produkt macht einen Hochwertigen Eindruck. Die Kameras sind nicht aus billigen Plastik. Die Halterungen aus Metall. Auflsung der Kameras sind sehr gut. Installation per Plug and Play relativ einfach.
Klare Kaufempfehlung.
Es el primer sistema de cmaras que compro y no lo puedo comparar con otros, pero la calidad de las cmaras es muy buena. Estoy muy contento con la compra. Lo recomiendo al 100%
Ottimo prodotto con immagini sicure e di buona qualita’
Lo consiglio.
Top Support, antwortet innerhalb 24h
Top Support, antwortet innerhalb 24h
Produit complet et trs pratique pour une installation de surveillance chez le particulier et pour un complment d’information le service client est trs ractif.
Happy with the system, a little slow on notifications but still good. Shame the mounting is plastic and mounting bracket could be a little more secure instead of twist on, a holding screw would do.
Happy with the system, a little slow on notifications but still good. Shame the mounting is plastic and mounting bracket could be a little more secure instead of twist on, a holding screw would do.
Unica pecca, a mio avviso, riguarda la sensibilit delle telecamere.
Non distinguono effettivamente la presenza di una persona rispetto ad un movimento generico causato ad esempio dallo spostamento di alberi e per questo motivo le notifiche sono continue anche se si imposta “solo persone”.
