Hakko FX951 Soldering Station Soldering Iron and Tip Set – UK
For over 60 years, Hakko Corporation has been producing superior quality soldering and desoldering tools, hot air rework stations, smoke and fume extraction systems and a wide assortment of accessories and related equipment for the electronics, industrial and hobby industries.
Designed and manufactured in Japan, Hakko tools are precision engineered for quality and reliability, you can trust the Hakko brand to go the extra mile.
Always ensure your purchase is genuine Hakko brand.

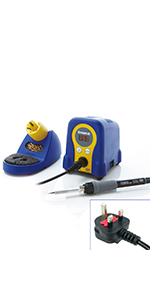

FX-951 Compact High-Power Soldering Station
Professional grade soldering station and soldering iron ideal for hobbyists or professionals
The Hakko FX-951 is a compact soldering station with a slim, thermally controlled FM2028 soldering iron included. There are a huge range of tips available for any soldering requirement making it a great choice for the professional or more experienced hobbyist.
The FX951-64 is manufactured specifically for the UK voltage and includes a British Standard plug and transformer.
- British Power Supply 230V & BS Plug
- 75W AC 24V
- 200 to 450ºC Temperature range
- Compact 80(W)×130(H)×131(D)mm
- Soldering Iron and Stand Included
- Includes 5 x T15 Tips, B2, D12, D16, D32 + D52
- 93 Variations of T15 Tip available for purchase separately
| | | | |
|---|---|---|---|
Compact Easy To Use DesignThe FX-951 has a balanced, space saving design to easily fit on any work bench. It is also supplied complete with a Control Card which allows programming of process parameters whilst ensuring that any changes are only made by qualified personnel. | Easy Tip ChangesSimple to change tip design with a click-lock system and colour coded grip options available to easily differentiate tips or Lead/Lead Free operation. 91 Variants available. | Thermal Management SettingsTemperature adjustment is an essential part of any strict quality control regime. With adjustment mode, what used to be a troublesome procedure is now quick and simple. | Excellent Thermal RecoveryTip temperature climbs rapidly from ambient and maintains the tip temperature over periods of prolonged use. This also allows for soldering at a lower set temperature ranges. |
 |  |  |  | |
|---|---|---|---|---|
| Primary Function | Soldering Station | Soldering Station | Multi-Purpose | Desoldering Station |
| Tool Included as standard: | Soldering Iron + Tip | Soldering Iron | Soldering Iron | Desoldering Gun |
| Standard Soldering Tips | T18 (31 varieties) | T15 Tips (91 Varieties) | T15 Tips (91 Varieties) | T15 Tips (91 Varieties) |
| Power | 70W | 75W | 140W | 120W |
| Channels | 1 | 1 | 2 | 1 |
| Soldering | ✓ | ✓ | ✓ | ✓ |
| Heavy Duty Soldering | ✓ | No | ✓ | No |
| Micro-Soldering | No | ✓ | ✓ | No |
| SMD Rework | ✓ | ✓ | ✓ | No |
| Desoldering | No | No | Yes (Requires Compressed Air) | Yes (No Compressed Air Required) |
| Weight: | 2.67 kg |
| Dimensions: | 27.9 x 23.7 x 15.1 cm; 2.67 Kilograms |
| Model: | FX951 -64 |
| Part: | FX951-64 Set1 |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Hakko |
| Quantity: | 1 |
Performance wise this things hard to beat at the price
The only thing that’s a bit annoying is the menu system but it’s mostly set and forge
The only moan is the plastic key used to change setting could easily get lost.
Initially I had problems getting the bits to correctly connect, getting error messages. I followed the instructions exactly, there is a knack to doing this and there was a very useful instruction on a forum. I have no difficulty now, so it may have been newness of fitting clearances. Do not use force, this is quite a fragile precision instrument. There are many more accessory bits, the 4 provided will do most amateur SMD requirements. I thought it was a bit pricy, have to see how long it actually lasts. I will check back in 2 years time and update if allowed.
Cost more than the other dozen or so soldering irons I have had put together, but worth it in my opinion.
Very fast heat up and recovery time, and very accurate temperature control. The heating element is in the tip itself, not the iron, resulting in the very high performance. Additional features include selectable sleep times to increase tip life, temperature offsets if you require very precise temperature and others. I’m very pleased. Very well made too, Japanese quality.
Cost more than the other dozen or so soldering irons I have had put together, but worth it in my opinion.
Very fast heat up and recovery time, and very accurate temperature control. The heating element is in the tip itself, not the iron, resulting in the very high performance. Additional features include selectable sleep times to increase tip life, temperature offsets if you require very precise temperature and others. I’m very pleased. Very well made too, Japanese quality.
I was torn between this and the cheaper 888d. If you are just soldering, the 888d is a solid choice. If you may need the separate micro pencil soldering iron (for chip level small component soldering) then this unit will work well as it will plug straight in. Best of all, these hold a lot of value, so if you find you are not using it in the future, you can easily get 60-70% of your money back by selling it as used.
Moved from my T100 and have not looked back.
I was torn between this and the cheaper 888d. If you are just soldering, the 888d is a solid choice. If you may need the separate micro pencil soldering iron (for chip level small component soldering) then this unit will work well as it will plug straight in. Best of all, these hold a lot of value, so if you find you are not using it in the future, you can easily get 60-70% of your money back by selling it as used.
Moved from my T100 and have not looked back.
