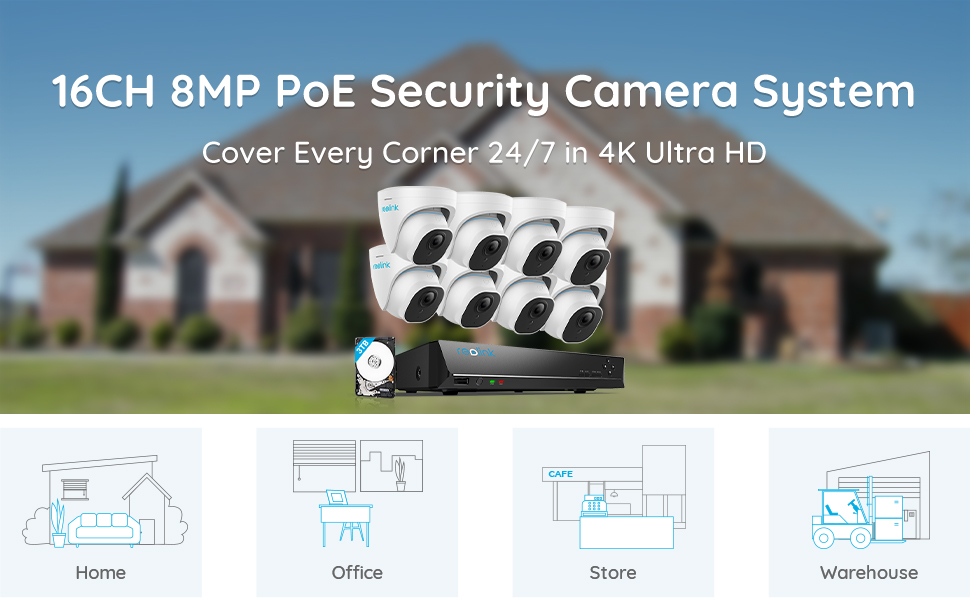

Reolink 4K 16CH PoE CCTV Camera Systems, 8pcs 8MP Person/Vehicle Detection Security IP Cameras Outdoor, H.265 4K NVR with 3TB HDD, Night Vision Waterproof 24/7 Recording, RLK16-820D8-A


RLK16-820D8-A PoE Camera systemHuman / vehicle detectionRLK16-800D8 Camera system24/7 Continuous Recording Reliable Security Grade HDDNVR systemRLK16-800D8 Camera system
PoE Network Video Recorder Specifications

  • IP Video Input: supports 16 IP cameras
  • Video Output: Monitor or HDTV via VGA, HDMI
  • Playback: 4 cameras can playback simultaneously
  • Video Format: H.265
  • HDD Installed: Pre-installed a 3TB HDD
  • HDD Capacity: 2 x internal port, 6TB for each port(support up to 12TB in total)
  • Power over Ethernet Sockets: RJ45 X 16

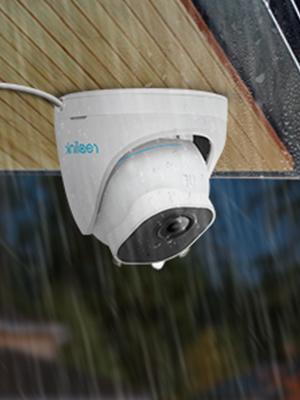

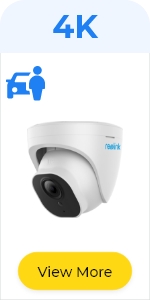

New Version Reolink RLC-820A PoE IP Camera Specifications

  • Image Sensor: 1/2.49″ CMOS Sensor, 8MP (3840 × 2160)
  • Lens: f=4.0mm Fixed, F=2.0, with IR Cut
  • Night Vision: 100ft, 18pcs IR LEDs
  • Audio: Built-in Microphone
  • Viewing Angle: Horizontal: 87°; Vertical: 44°

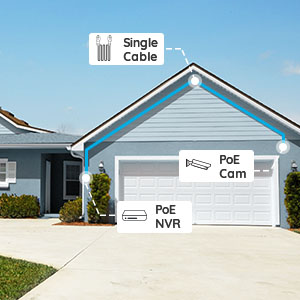

  • Power: Power over Ethernet (PoE)
  • Waterproof: IP66
  • Working Temperature: -10℃~+55℃ (14°F~131°F)

  • Note: The cameras included in this camera system are all new versions. The camera system can only be used with Reolink cameras.

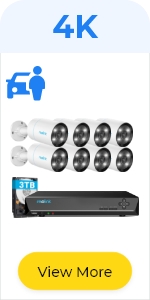

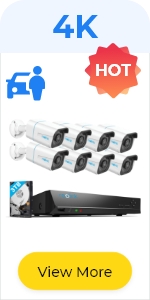

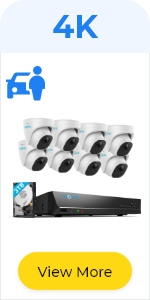

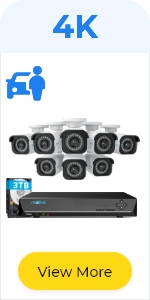

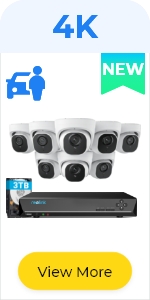

Reolink RLK16-820D8-A 4K Smart PoE Camera SystemRLK16-800D8-A UKReolink RLK16-812B8-A 4K Smart PoE Camera SystemReolink RLK16-810B8-A 4K Smart PoE Camera SystemRLK16-800B8-AReolink RLC-820A Smart PoE IP Camera
Resolution 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160)
NVR Channel 16 Channel 16 Channel 16 Channel 16 Channel 16 Channel /
NVR HDD Pre-installed 3TB 3TB 3TB 3TB 4TB /
Smart Human/Vehicle Detection ✓ ✓ ✓ ✓ ✓ ✓
Waterproof IP66 IP66 IP66 IP66 IP66 IP66
NVR HDD Capacity 2x 6TB via SATA, 12TB in total 2x 6TB via SATA, 12TB in total 2x 6TB via SATA, 12TB in total 2x 6TB via SATA, 12TB in total 2x 6TB via SATA, 12TB in total Micro SD Card(No include), FTP, NVR
Frame Rate (default) 25fps 20fps 25fps 25fps 20fps 25fps
MicroSD Card Slot ✓ / ✓ ✓ / ✓


Dimensions: 33 x 28.5 x 4.5 cm; 12.17 Kilograms
Model: RLK16-820D8-A
Manufacture: Reolink
Dimensions: 33 x 28.5 x 4.5 cm; 12.17 Kilograms
Origin: China

30 Responses

  1. GilbertE55 says:

     Italy

    Ho ordinato questo impianto e l’ho provato sul banco di prova. Le immagini sono ottime e il ritardo minimo nella visione in diretta.
    E’ arrivato in uno scatolo ben imballato e con tutti gli accessori previsti. Telecamere che si autoinstallano ed un piacere non perdere del tempo prezioso.
    L’unico neo, a cui la Reolink dovrebbe provvedere quello di inserire una uscita di allarme ON/OFF e diventerebbe il “TOP”. Potreste dirmi che ha la possibilit di inviare email di allarme. Ma con una uscita ON/OFF di allarme, potrebbe essere installato su una “zona di allarme” o pi zone. Farebbe un figurone.

  2. Anonymous says:

     Germany

    Anlage ist professionell und gut verarbeitet. Sie erfllt ihren Zweck fr meine Anwendung.

  3. Anonymous says:

     Germany

    Was leistungsmig darf man nicht meckern ein wenig mehr erwartet was Software angeht schon, im Groen und Ganzen bin ich sehr zufrieden. Na gut wir lassen das sehr raus also zufriede

  4. lH4xI5eO6k says:

     Italy

    Ottimo kit di video sorveglianza ben fatto e facile da installare.
    Consiglio l’acquisto.

  5. Anonymous says:

     Italy

    Mi sonno ricreduto di questo prodotto di buona qualit nvr molto facile da gestire l’app la devo ancora conoscere bene ma le telecamere si sono connesse e si vede molto bene assistenza via chat ma pronti a dare aiuto, molto disponibili.

  6. Anonymous says:

     Germany

    Hohe Sicherheit bei der Lieferung Total einfach einzurichten und zu steuern. Bildqualitt erste klasse sogar bei mehrfachem zoomen sieht man alles. Ich habe beide meiner Lden unter einer App

  7. RosieRounds says:

     Italy

    Facile da installare. Robusto, ottima qualit, facilmente configurabile. Base di supporto delle telecamere in metallo. Purtroppo unico difetto che non specificato che per Italia il servizio cloud non disponibile.

  8. OtalChristensen says:

     United Kingdom

    Bought these for my workshop. I was worried about the negative reviews over delivery. Got my very quickly and all was there. Easy to set up I had two cameras installed and up and running in around 30 min picture quality is excellent too.

  9. Anonymous says:

     Italy

    Le telecamere hanno una ottima definizione se le si fa lavorare in HD. Per risparmiare sul flusso dati, la modalit “video fluido” pur sempre definita e nitida, anche di notte. I colori durante il giorno sono sufficientemente fedeli. La connessione web da remoto a volte un po’ lenta ma tutto sommato accettabile. La parte audio assolutamente da riferimento. Si sente distintamente cosa accade, anche se la fonte emittente non cos vicina alla telecamera! Consigliate!

  10. Anonymous says:

     Italy

    Questo il prodotto migliore che io abbia mai provato! La qualit video diurna e notturna eccellente! Il sistema di sorveglianza ottimo, ci tante funzioni e allarmi personalizzabili oltre ad un sofisticato servizio di “rilevamento”. Il servizio di assistenza quasi istantaneo! Il mese successivo dal giorno in cui ho ricevuto il prodotto, a causa di un fulmine, si brutiata la scheda madre dell NVR; contattando il servizio di assistenza, dopo una settimana, ho ricevuto il nuovo NVR senza sostenere nessun costo!
    Raccomando vivamente i prodotti dell’azienda!

    Qualita e assistenza sono i valori dell'azienda!

  11. MilanIJYpfa says:

     United Kingdom

    I purchased this because of the name and because of the specification.
    The unit was well packed and supplied all you need for a basic installation.
    The system was easy to set up, but the UI is not user friendly, you hover mouse over icons but not all explain what they do.
    I also don’t think its difficult to do something and stop recording
    I want my system to record 24/7 sometimes I find it has stopped recording.
    The unit comes with a wd green (desktop spec) 3tb hard drive, so I purchased a 6tb wd purple (CCTV spec) in addition.
    The picture quality is OK, but not as sharp or as good as I would have liked especially at this price point.

    In my opinion if this is the best reolink has to offer, then I would purchase a system from another manufacturer.

  12. Anonymous says:

     United Kingdom

    Easy to setup.
    Motion detection on latest firmware is better in that it will playback a few seconds before the event.
    I need the motion detection to work ona long driveway, therefore need to increase sensitivity.
    Unfortunately once I increase sensitivity, flies & general bugs set it off at night. Cobwebs also set it off, therefore you need to turn off push notifications until you clean lense.

    In discussions with support at the moment regarding the above but I think this is the way it is.

    I also had to replace the standard noisy high pitched fan with one recommended by Riolink themselves. Seemingly they know its an issue but you can only get a heatsink replacement on 8 ch NVR & not the 16ch NVR.

  13. Anonymous says:

     Italy

    il rilevatore di movimento potrebbe essere migliorato per l identificazione delle persone rispetto agli oggetti

  14. KarlO42gywkk says:

     Spai

    Excelente producto, fcil de conectar y al ser poe se usa solo cable de red, gran solucin !!!

  15. Anonymous says:

     France

    Super produit, facile installer.
    Qualit d image au top. Application super.
    J ai mont un kit mon domicile, puis un autre chez mes parents et un pour surveiller un robot de soudure.
    J avais un kit Samsung avant ce produit est au dessus du Samsung
    Je recommande.

  16. MitziNolte says:

     Germany

    Golden Review Award: 5 From Our UsersPro:
    – wirklich leichte Plug&Play- Einrichtung
    – POE Switch (am NVR) hat keine Probleme mit einer Kabellnge von 45m
    – sehr gute Bildqualitt gemessen am Preis (Kennzeichen lassen sich aus einer Entfernung von ~20m noch erkennen)
    – Soundqualitt ebenfalls gut, Stimmen hrt man auch in 20m Entfernung
    – auch bei Nacht eine sehr gute Qualitt
    – einfach zu bedienende Software und simple Einrichtung
    – groer Funktionsumfang der Software (Alarmzonen, Zeiteinstellung, Verdecken) und intuitive Bedienung
    – Erkennung von Menschen und Fahrzeugen funktioniert bis jetzt zuverlssig
    – Einfache Aufnahmensuche und Download eines Ausschnitts
    – manuelle Archivfunktion
    – bis jetzt 3 Wochen absolut strungsfreier Betrieb und bereits einen wichtigen Vorfall registriert!

    Neutral:
    – fr schnelles Laden der Aufnahmen (Live, Aufgezeichnet) auerhalb des Netzwerks wird eine schnelle Internetverbindung im Upload bentigt
    – Aufzeichnungsdauer bei 8 Kameras und 4k Aufnahme (Standardeinstellungen) mit Sound betrgt bei der verbauten 3TB Festplatte 7 Tage

    Negativ:
    – Aufnahmequalitt einzelner IP-Kameras lsst sich scheinbar nicht einstellen, um die Aufnahmedauer zu erhhen (bzw. die Einstellung nicht gefunden)
    – NVR wohl nicht mit Kameras anderer Hersteller kompatibel (strt mich persnlich nicht und selber nicht getestet)

  17. Anonymous says:

     United Kingdom

    Golden Review Award: 2 From Our UsersOverall have been impressed with Reolink products as their app/firmware/software has been kept well updated also picture/audio quality great for the price when on offer.

    However recently on a project it was brought to our attention that in particular the dome cameras have major design/security flaw/issue, there is no way of securing the camera and position in place! therefore if someone wanted can move/point the camera away or even simply twist and pull it out of place if reachable and if not with something long can simply move/twist/point away! surely couple of security screws to secure it place would have been a wise choice seeing they have thought of most other areas.

  18. Anonymous says:

     United Kingdom

    We bought this product because the spec looked really good. We even checked out some Youtube videos but even though the cameras looked to be an older type and not exactly what we were buying, we still decided to go ahead. However, after the product arrived, we realised there was no user manual and the interface we had seen on the Youtube videos did not match what we were getting on the screen so we couldn’t even use those for guidance. I contacted Reolink and to be fair to them they have been very responsive but they say that since this new interface is newly released, its corresponding manual is still under preparation! So I have had to email them several times just to get the system up and running. The next step was to get remote access to the system and for that you need the Reolink Client which I downloaded with ease from the App Store. But again working blind without a manual we were struggling to get half of the features on there to work! They sent me a link for a new client as they say the one on the App Store is old but Apple block downloads from external sources and of course Apple did exactly that when I tried. There is oodles on information on their website but it’s all old interface which we don’t have and all new client which I can’t get! I can not believe a company would release a product of this complexity without an up to date manual and ensuring the up to date Client is on the App Store. Other than that, the cameras are small and discreet, all the bits you might need for installation and more are provided in the box and the picture quality is great. We will just have to wait for the Reolink manual writers and the App tech departments to catch up (and hope that it’s not too long) before we can gain full functionality! Just had an update today – there are no plans to put the New Client on the App Store so you either bypass the security settings on your Mac to download their version, or suffer with a client with limited functionality. Oh and a tip for anyone who is a novice (as we are) – apparently you are meant to format the hard drive when you first get the machine. Without the manual how are you supposed to know this?? Overall I’m disappointed and we now wish we had not bought this system.

  19. Stefan Abram says:

     Italy

    Golden Review Award: 2 From Our Usersho avuto una difficolta con 2 camere, devo dire che l’assistenza funziona molto bene, pratici, veloci ed esaustivi, rivolti cmq a risolvere. Sono contento di aver scelto reolink

  20. Anonymous says:

     France

    Tout est dans le titre, je vais racheter des camras supplmentaires

  21. Anonymous says:

     Italy

    Golden Review Award: 13 From Our UsersScrivo questa recensione a distanza di tempo in modo da fornirne una testata e convalidata data l’importanza del prodotto.
    Ho acquistato il kit da 16 ch con 8 telecamere da interno a 5 MP e in aggiunta altre 4 da esterno a 4 MP. Che dire, ne ho approfittato in tempo di saldi ma se anche avessi dovuto acquistarlo a prezzo pieno l’avrei fatto di certo!! Vengo da un passato dove ho iniziato con telecamere wifi con Cloud giapponesi a pagamento inappropriati (poca spesa poca resa) per poi passare a un kit serio ed efficente a circuito chiuso come questo. Lavoro in un supermercato di 1500 metri e ora possiedo un kit migliore di quello del lavoro.

    Partiamo dal collegamento: facile e veloce, si fanno i fori sul cartongesso/muro dove si vogliono posizionare le telecamere avendo l’accortezza di creare anche un foro centrale ove fare passare i tre cavi necessari per il funzionamento, se come me dovrete comprare una punta per il trapano da cemento armato una con un diametro da 25 sufficiente.
    Una volta fissate si collegano all’NVR con il cavo di rete in dotazione che funge da audio, video e alimentazione.

    Per quanto riguarda l’utilizzo una volta collegato il tutto e acceso l’nvr basta procedere con la prima configurazione base con i dati del modem, la formattazione del o degli HD interni e poi se lo desiderate potrete anche modificare qualsivoglia parametro di immagine o di allarme in ogni telecamera. (Nel dubbio potrete trovare in rete diversi video sulla configurazione iniziale)
    Come funziona l’allarme? Si imposta tramite il programma le aree di allarme e il grado di sensibilit, una volta fatto ci si impostano i metodi di ricezione se tramite app, mail, bip sonoro nellnvr ad ogni minimo passaggio nelle zone di allarme. Io ho optato per i primi due e se accettate un consiglio createvi una mail apposta per questo allarme in modo da non intasare la vostra principale in quanto ci vorr un po’ di pratica per tarare bene la sensibilit e le zone in modo che non vi scriva ogni 30 secondi.

    Le telecamere funziona ottimamente alla luce del sole come al buio, sono ultra resiste ti agli eventi atmosferici (ovviamente quelle da esterno) e hanno un audio davvero eccezionale!! Quella che ho installato nel balcone della cucina arrivava a sentire a 10 metri le chiacchere dei vicini in strada!!

    Nell’nvr presente un HD da 3 tb ma io ne ho acquistato e installato uno secondario da 6 TB in modo da prolungare la durata del mio Cloud personale. (Per il collegamento davvero semplice consultate i video in rete)
    Per farvi un esempio pratico con 12 telecamere impostate a 4 mb con audio e registrazione H24 ho un’archiviazione di oltre 3 settimane!!! La registrazione ovviamente ciclica. Quindi ottimo direi.

    Ho avuto modo di contattare anche la succursale italiana della Reolink per assistenza su configurazioni e sono sempre stati rapidi, cortesi e super professionali risolvendo qualsivoglia mio problema tecnico!!

    Ripeto: SUPERCONTENTO del mio acquisto lo consiglio a tutti!!!

  22. ShantaeChauvin says:

     France

    Produit rapidement mis en uvre.
    Support trs ractif et compltant par rapport une demande relative la mise jour des firmeware.
    Je recommande

  23. Lizzie Cox says:

     United Kingdom

    Easy to set up, good quality image. I got everything I ordered so it looks like the earlier delivery issues people mentioned have been sorted. The only downside is the rtsp main stream isn’t available to stream and the substream on the NVR is locked to a very low quality so unless you use the reolink software the streaming quality will be poor.

  24. Anonymous says:

     United Kingdom

    Good quality camera customer service just a bit slow they not respond straight away far from that overall good

  25. Anonymous says:

     United Kingdom

    Very good system, been using Reolink for about 4 years now and they cameras and NVRs are brillia

  26. Anonymous says:

     United Kingdom

    Easy to fit and really good picture but set up procedure could be a bit better explained. But very happy with it!

  27. Anonymous says:

     United Kingdom

    Golden Review Award: 5 From Our UsersRead some bad reviews but I wasn’t put off, tested the one last night and the picture quality is truly 8mp!

    Don’t be put off by bad reviews. Really good purchase for the money and quality

  28. Anonymous says:

     United Kingdom

    No more spider webs thank you Reolink, the cameras are fantastic and much better than the bullet ones had before from Reolink, I haven’t had one spider web yet thank god. I like being able to add an extra hard drive inside the NVR so I will be upgrading to 2 x 4gb hard drives = 8gb, night vision on these cameras are surprising good and the sound quality is pretty good too. I like Reolink for the ease of use and the smoothness of the live view app compared to other manufacturers its a more friendly app and just works. Reolink all the way for me.

  29. Anonymous says:

     United Kingdom

    Great product. Cheaper and better 4k picture quality than what professional installers offer. Top notch app too 10/10

  30. JeffereyRauch says:

     France

    Aprs quelques changes, un problme logistique ct Amazon a t dtect (et j’espre corrig pour les prochains), je reois le colis en plusieurs parties, l’important tant de tout avoir la fin et surtout que le SAV du vendeur est trs professionnel : ractif, comprhensif, et la recherche de relles solutions.
    Concernant le produit en lui mme, les camras sont des bonnes factures, l’image est nette, je n’ai pas encore trop regard la nuit. Le NVR est relativement silencieux (viter dans une chambre coucher quand mme, si vous avez le sommeil lger). Installation simple et rapide. L’application est bien faite et simple d’utilisation, mieux qu’une marque concurrente que j’avais connue dans mon ancien logement. Je n’ai pas compar avec les rsolutions infrieures.
