Reolink 4K PoE CCTV Security Camera System Ultra HD, Smart Person and Vehicle Detection, 4X 8MP Outdoor PoE IP Cameras and 8CH 2TB HDD NVR for Continuous Recording, Night Vision, RLK8-810B4-A


Reolink RLK8-810B4-A 4K Smart PoE Camera SystemReolink PoE IP camera systemReolink PoE IP camera systemPoE camera systemReolink PoE IP camera system

8MP PoE CCTV Security Camera System Specifications

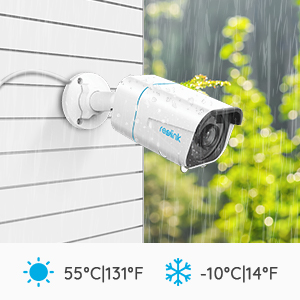

RLC-810A PoE IP Camera: Specifications
Image Sensor: 1/2.49″ CMOS Sensor (8 Megapixel)
Lens: f=4.0mm fixed, F=2.0, with IR Cut
Angle of View: Horizontal: 87°; Vertical: 44°
IR Distance: 30 Meters (100 ft) (LED: 18pcs/14mil/850nm)
Power Input: DC12V 1A or 48V PoE( IEEE 802.3af),<12W
Microphone: Built-in Microphone
Frame Rate: Main Stream 2fps – 25fps(default: 25fps), Sub Stream 4fps – 15fps(default: 10fps)
RLN8-410 PoE NVR: Specifications
IP Video Input: Supports 8 IP cameras
Video Output: Monitor or HDTV via VGA, HDMI
USB Port: USB 2.0 x 2
Video Format: H.265
Power over Ethernet Sockets: RJ45 X 8
HDD Installed: Pre-installed a 2TB HDD
HDD Capacity: 1x internal port, 1x external port, 6TB for each port (support up to 12TB in total)

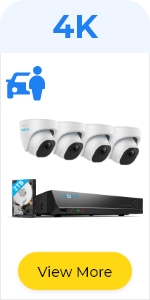

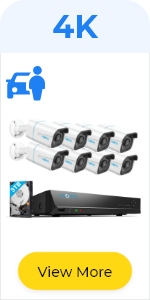

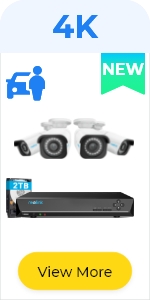

Reolink RLK8-810B4-A 4K PoE Camera SystemReolink RLK8-800B4-A 4k Smart PoE Camera SystemReolink RLK8-820D4-A 4K Smart PoE Camera SystemReolink RLK8-810B6-A 4K Smart PoE Camera SystemReolink RLK16-810B8-A 4K Smart PoE Camera SystemReolink RLC-810A Smart PoE Camera
Resolution 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160) 8MP(3840×2160)
NVR Channel 8 Channels 8 Channels 8 Channels 8 Channels 16 Channels /
NVR Pre-installed HDD 2TB 2TB 2TB 2TB 3TB /
NVR HDD Capacity 6TB via SATA, 6TB via e-SATA, 12TB in total 6TB via SATA, 6TB via e-SATA, 12TB in total 6TB via SATA, 6TB via e-SATA, 12TB in total 6TB via SATA, 6TB via e-SATA, 12TB in total 2x 6TB via SATA, 12TB in total Micro SD Card(No include), FTP, NVR
Smart Human/Vehicle Detection ✓ ✓ ✓ ✓ ✓ ✓
Night Vision Up to 100ft Up to 100ft Up to 100ft Up to 100ft Up to 100ft Up to 100ft
Frame Rate (default) 25fps 20fps 25fps 25fps 25fps 25fps
MicroSD Card Slot ✓ / ✓ ✓ ✓ ✓


Weight: 6.63 kg
Size: 4 Count (Pack of 1)
Dimensions: 19.6 x 12.2 x 10.5 cm; 6.63 Kilograms
Model: RLK8-810B4-A
Part: EU-RLK8-810B4-A
Colour: White
Pack Quantity: 1
Batteries Required: No
Batteries Included: No
Manufacture: Reolink
Colour: White
Dimensions: 19.6 x 12.2 x 10.5 cm; 6.63 Kilograms
Quantity: 1
Size: 4 Count (Pack of 1)
