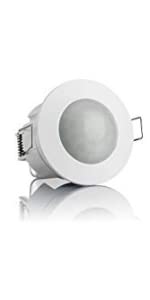

SEBSON PIR Sensor Indoor, Ceiling Flush Mounted, Infrared Motion Sensor, LED suitable, Range max. 6m/360°, max. 1200/300W, IP20, white
IR motion detector flush mounted
The infrared sensor detects movements of persons, large animals and vehicles within a detection range of up to 6m at a detection angle of 360° and switches on the connected lighting.
Product features
- Operating voltage: 220-240V AC 50/60Hz
- Power consumption on standby: 0.5W
- Detection speed: 0.6-1.5m/s
- Ambient temperature: -20° to +40°C
- Humidity: < 93%
- Dimensions: Ø75x75mm
- Mounting hole: 65-75mm
Infrared motion detector ceiling mounting indoor
Detection range up to 6m, 360° detection angle, swivelling
After a preset time of approx. 10 seconds to 15 minutes, the motion detector switches off again when no more movements are detected. With the help of a controller, the switch-on sensitivity of this device can be regulated depending on the ambient brightness (in the range between 3 and 2,000 LUX).
- Max. Power consumption: max. 1200W with usual lamps; max. 300W for energy saving lamps
- Housing material: Plastic
- Protection type: IP20

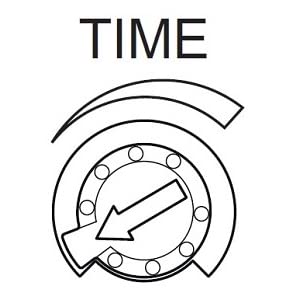

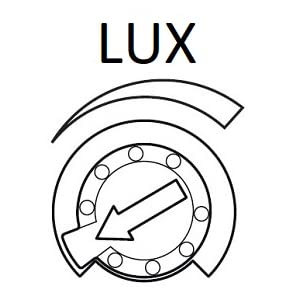

IR sensor adjustment options
| | | |
|---|---|---|

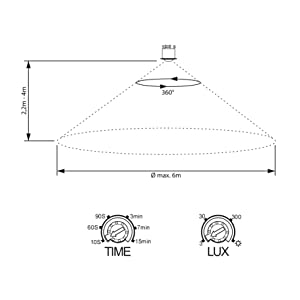

Detection rangeThe infrared sensor detects movements within a detection range of up to 6m at an angle of 360° and switches the lighting on. | Duty cycleHow long should the lighting remain on? The duration of the operating time can also be set either continuously or according to specific times. As soon as the sensor detects movement again, the operating time starts again. | Ambient brightnessYour lights should only switch on at night? No problem, you can decide whether the sensor switches on your lighting during the day or at night. The sensor can be adjusted either continuously depending on the ambient brightness or day or night. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Area of application | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Detection range | Ceiling mounting, flush mounting | Ceiling mounting, flush mounting | Ceiling mounting, flush mounting | Ceiling mounting, surface and flush mounting | Ceiling mounting, flush mounting | Ceiling and wall mounting, flush mounting |
| Detection range | Max. 6m (< 24°C)/ 360° | Max. 3-6m (< 24°C)/ 360° | Max. 6m (< 24°C)/ 360° | Max. 8m (< 24°C)/ 360° | 2 – 16m/ 360° | Ceiling: Max. 6m (< 24°C)/ 360°; Wall: Max. 6m (< 24°C)/ 120° |
| Duty cycle | min. 10s +/-3s – max. 15min +/-2min | min. 10s +/-3s – max. 15min +/-2min | min. 10s +/-3s – max. 15min +/-2min | min. 10s +/-3s – max. 30min +/-2min | min. 10s +/-3s – max. 12min +/-1min | 5 or 30sec, 1, 3, 5 or 8min |
| Ambient brightness | 3-2,000LUX | 3-2,000LUX | 3-2,000LUX | 3-2,000LUX | 3-2,000LUX | 10/2,000LUX |
| Max. Power consumption | max. 1200W with usual lamps, max. 300W with energy saving lamps | max. 1200W with usual lamps, max. 600W with energy saving lamps | max. 800W with usual lamps, max. 200W with energy saving lamps | max. 800W with usual lamps, max. 400W with energy saving lamps | max. 1200W with usual lamps, max. 300W with energy saving lamps | max. 800W with usual lamps, max. 200W with energy saving lamps |
| Operating voltage | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz | 220-240V AC 50/60Hz |
| Dimensions | Ø75x75mm | Ø85x56mm | Ø50x66mm | Ø79x40mm | Ø75x75mm | 56x37x26mm |
| Housing material | Plastic | Aluminium | Plastic | Plastic | Plastic | Plastic |
| Scope of delivery | 1 x SEBSON built in IR motion detector | 1 x SEBSON swivelling built in IR motion detector | 1 x SEBSON built in IR motion detector | 1 x SEBSON built in IR motion detector | 1 x SEBSON built in HF motion detector | 1 x SEBSON built in IR motion detector |
| Weight: | 75 g |
| Size: | Pack of 1 |
| Dimensions: | 7.5 x 7.5 x 7.5 cm; 75 Grams |
| Model: | IR_ES_A |
| Part: | IR_ES_A |
| Colour: | White |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | SEBSON |
| Colour: | White |
| Quantity: | 1 |
| Size: | Pack of 1 |
Detecta desde la oscuridad casi total, muy contento con la compra, tarda algo asi como medio segundo en activar las luces.
Funciona correctamente y muy fcil de ajustar la sensibilidad y tiempo de encendido
Instalados en un bao para luz y aspirador de olores. Mucho ms elegantes y discretos al ir empotrados en falso techo de pladur. Funcionan bien, pero he visto otros que tardan menos en detectar movimiento y activarse.
does the job but detection speed could be a little quicke
El producto se ve bien lo malo es que no lo he podido montar saltaba los trmicos todo el rato lo pusiera como lo pusiera
Para encendido en pasillos vivienda
til para mayores que se desorientan de noche
All I asked for used in on suite for a little light when going for a pee in the night to save turning on lights and disturbing my partne
Me ha solucionado el problema de iluminacin de un bajo con dos entradas pero con interruptor en una de los accesos. Instal este detector de movimiento en la otra entrada y asunto solucionado.
Fcil de instalar.
prodotto ben fatto, utilizzato per le luci in bagno nel contro soffitto.
istruzioni molto chiare.
Es la copia de la marca buena pero que funcioan igual de bien y solo cuesta un tercio de la misma.
Ideale per comandare faretti ad incasso,rendendo uniforme il soffitto. Facile da collegare.controllate sempre i carichi che attaccate stando dentro i limiti di assorbimento,nel caso aggiungere un teleruttore adeguato
Great item just what I needed to replace my faulty ligh
very pleased with this. Looks discreet and seems to work very well.
Funciona perfecto, con sensor de tiempo y luminosidad. Conexiones sencillas, tamao algo grande por ponerle una pega.
La instalacin es muy sencilla, aunque en este caso lo he tenido mas fcil porque la instalacin de cableado ya estaba hecha y solo ha sido sustituir.
Shame it was not push in cabling rather than screws, other than that great product and good value.
Item delivered quickly and is working well in a very small cloakroom.
Mise en place simple, correspond parfaitement mes attentes. Reste voir dans la dure.
Quite en dos sitios unos Orbis q se haban fundido y ocupan el mismo hueco para su instalaci
Bought this for my bathroom for when I get up in the night. Comes on no problem. Has time control on it which is useful. Good buy, glad I bought it, and easy to install
Hat alles sehr gut geklappt,funktioniert einwandfrei.schne Optik
Danke
Easy to connect and fit. Great item that does what it should!
Easy to install works ok just looks like a a lamp fitting
Excellent product, does exactly what it needs to. Adjustable dusk setting to allow you to control whether it comes on in daylight to darkness. There will be a setting that suits all conditions. Can also adjust how long lights stay on for. Perfect for my in wardrobe lights.
Very pleased with this product easy to install and connect clear plan how to wire it up
TOP Versandzeit, ber die Wirkungsweise braucht man ja keine Worte mache
Verwende ihn nun seit zwei Jahren um unsre Treppe zu beleuchten. War leicht zu installieren und funktioniert prima.
Un plaisir de monter cet interrupteur dtection de mouvements : produit bien fait, notice claire, montage ais.
Un tuto youtube pourrait toutefois tre utile pour les novices.
Fourni avec notice meme un neophyte en electricite comme moi peu l installer.
Facile regler et fonctionne tres bie
Excellent product excellent ebayer 100 percent recommended. I am about to buy2 more.
Good luck
Product well made for the price
Compared to other makes on the market which are a lot more expensive
Todo perfecto, incluso no es dificil de desmontar si se quiere limitar el ngulo de detecci
J’en suis ma 2me commande, et je trouve a toujours aussi utile, efficace. Conforme la description. Trs utile pour les zones de passage frquent, grenier, buanderie etc..
The sensor itself works well and I am pleased with it. It also looks good being recessed.
The instructions needed more detail. At first I did not understand the wiring instructions but managed to work it out. No hole size for the cut out were given. I tried on a scrap of plasterboard and 65mm seemed to work out.
Purchased to replaced existing (faulty) unit. Simple and easy to fit and set up (time and lux).
Easy to fit and set up. Used to switch LED feature likes on stairs.
Gestern bestellt, heute geliefert, innerhalb von Minuten den baugleichen Ersatz angeschlossen, funktioniert wieder!
Einen Stern weniger, weil mir die 3 Jahre Lebensdauer der Fotozelle oder des Schaltrelais innerhalb des Sensors zu wenig erscheint. Der Preis passt aber.
Funcionan muy bien, captan presencia a 3-4 metros y adems son muy bonitos y se pueden empotrar en cualquier superficie vertical u horizontal.
Installs dans les couloirs, c’est parfait! plus de lampe inutilement allume!
Il marche trs bien. Il est juste un peu plus sensible de ce que j’ai compris des instructuions fournis, ce qu’il fait qu’il se dclenche avant que prvu. Pas vraiment un problme, mais il convient de tester avant de choisir l’emplacement dfinitif (avant de percer vu qu’il est encastr)
Easy to install and setup. Neat appearance and designed so that you can ease down and adjust the light levels and timer should you wish to change them.
Buenos materiales, con instrucciones detalladas, colocado en la entrada de mi cocina para olvidarme del interruptor que quedaba detrs de la puerta. La deteccin es muy buena, el rango para ajustar tiempo de encendido y la luz ambiental a la que decides que se encienda es bueno. Aspecto discreto, parece que tienes colocado un foco, seguro que adquiero alguno ms para otras habitaciones de la casa.
Sehr guter bewegungsmelder, sieht genau aus wie der vom Conrad aber viel gnstige
PRODUIT PARFAIT – A CONSEILLER – LIVRAISON PRIME TRES RAPIDE
Looks very well made, easy to install and does exactly what it is supposed to.
mes anciens dtecteurs on rendu l’me aprs quelque anne , ces nouveaux Dtecteurs de Mouvements sont facile a monter 3 fils et fonctionne a merveille.
Son perfectos,detectan muy muy bien,gran radio de deteccin,comparados con los anteriores de O…s estos son mucho mejores,solo falta probarlos das de viento para ver si encienden la luz o n como me hacan los anteriores.
Los he instalado hoy y estoy muy contento con ellos.
BON RAPPORT QUAITE PRIX FONCTIONNE UNE CINQUANTE DE FOIS PAR JOUR AVEC ECLAIRAGE LED
Bon produit pour un prix trs correct. Installation facile. Ravi de mon acha
Installed to operate lights in my porch. No problem. Works fine
Funcionan a la perfeccin, tiene un buen campo de deteccin como indican las caractersticas.
Semplicemente fantastici, usati per accendere le luci in alcuni locali dove abitualmente restavano accese. Hanno un raggio di azione davvero ottimo e funzionano alla perfezione.
instrucciones sencillas y graficas, sin ser un manitas lo he instalado con toda facilidad u muy rapido.
Muy recomendable.
Edito. Como informacion. Agosto 2021. Se estrope. Justo 2 aos y un mes despus de la compra se puso en modo bypass con lo que las luces quedaban seguido encendidas. Por suerte era un pack de 2 as que he puesto el otro.
I fitted it in the bathroom and it’s working perfect with four led spots.
Easy to install, flawless motion detection, and just as good as the much more expensive one it replaced.
Dclenchement un peu bruyant mais trs sensible et trs bon fonctionneme
Produit conforme la description et compatible bien avec les ampoules led
Voor in het toilet. Verlaagd plafond, sluit perfect aan. Goed en degelijk produkt.
Perfecto! Lo he instalado y queda muy bien. Detecta perfectamente cuando pasa alguien y puedes regular el tiempo de durada de la luz y la luminosidad con la que quieres que se encienda.
Werkt heel goed zeer tevreden verschillende hangen enkel het systeem voor vast te zetten niet ideaal moet echt perfect zitten om mooi tegen het plafond aan te sluite
Schnelle Lieferung, 1A Gert. Einfach einzubauen und bringt das was es soll. Wir haben es im Durchgang eingebaut und sind echt zufrieden. Kann man nur empfehlen.
utilis pour l’clairage d’un corridor fonctionne sans problme depuis 2 semaines.
Trs sensible sans possibilit de rglage ,dtecte un petit chat a 3 mtres.
Todo perfecto instalacin perfecta funcionamiento perfecto muy satisfecho con el producto ya es el segundo que compro
semplice da installare, regolabile e supporta carichi di oltre 1KW. per me ottimo.
Consegna super veloce, prodotto conforme alla descrizione, consiglio l acquisto.
Kleiner, unaufflliger Und Zuverlssiger Bewegungsmelder. Helligkeit und Schaltdauer sind nur einstellbar wenn er aus der Decke gezogen wird. Deshalb auch fr ffentliche Bereiche geeignet. Bei mir in der abgehngten Decke ber der Haustre montiert.
Gibt nichts zu meckern. Tut was es soll und sieht nicht billig aus
Ottimo prodotto sensibile e, sembra, affidabile. Provato per azionare luc in un corridoio ed una piccola ventola di estrazione in bagno, in questo caso regolare la sensibilita’ in modo che prescinda dalla luce ambiente, la scala dei tempi non e’ molto precisa ma e’ semplice trovare la regolazione desiderata con qualche prova, per il momento decisamente consigliato
Sehr schnelle Lieferung. Zur Haltbarkeit knnen wir noch nichts sagen.
Funktioniert jedenfalls bis jetzt prima…
Very easy to fit and does a great job.
Plenty of adjustability for both the duration of the activation as well as the lux level that it becomes active.
Ganz ehrlich. Top. Ein Markenprodukt ist nur eins. Teurer. Nur die Kabel in der Halterung rumbiegen ist wenn es richtig isoliert ist, einfach nur Quatsch und nicht machbar. Ansonsten wie gesagt technisch und preislich top.
Alles bestens …. hab mich sehr gefreut … Produkt wie erwartet … schnelle und gut verpackte Ware … immer wieder gerne ….
Wir haben diesen Melder im Vordach ber derr Haustre. Funktioniert Perfekt.
Das ist der gleiche bewegungungsmelder den wir schonmal hatten und er hat einige Zeit gehalten Top
Lsst sich gut in integrieren, Einbau und Funktion einfach und gut erklrt.
