Triton TSPST450 450W Oscillating Spindle and Belt Sander 230V
Triton TSPST450 450W Oscillating Spindle & Belt Sander

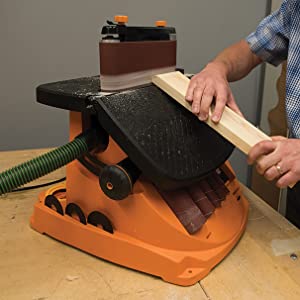

Versatile sander offering fast, easy changing between belt and spindle sanding modes. Dual rotating and vertical oscillating action for fast sanding and improved rate with reduced chance of burning. The sander is powered by an impressive 450W motor and features a 0-45° tilting table for easy chamfering and edge work.
Vented throat plates offer enhanced dust extraction via an under-table channel, and a dust port adaptor is included for easy connection to a vacuum or dust extraction system. The sander offers freestanding or bench-mounted operation.

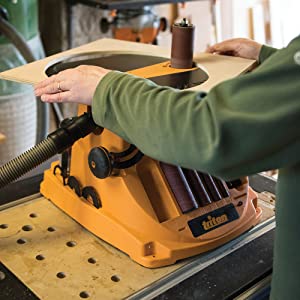

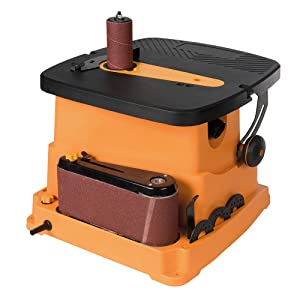

The Triton 450W Oscillating Spindle Sander allows easy finishing and shaping of a wide variety of workpieces, standard and intricate.
– Non-latching safety on/off switch with dust cover
– Includes: 5 x sanding sleeves (114mm length) in diameters 13 – 51mm, 5 x throat plates, 4 x drum washers, 4 x drums, 100mm dust port adaptor and a spindle wrench
Technical Specifications
- Power: 450W
- No Load Speed: 2000rpm (spindle) / 480m/min (belt)
- Table size: 430 x 410mm
- Oscillations: 58opm x 16mm (5/8″) stroke length
- Weight: 12.9kg
- Sleeve Sizes: 13 – 51mm dia x 114mm length
- Belt Size: 100 x 610mm
Key Features
| | | |
|---|---|---|
| 0 – 45° tilting table | Includes: 5 x sanding sleeves (114 mm length) in diameters 13 – 51 mm | Freestanding or bench mounted operation |
Key Features
| | | |
|---|---|---|

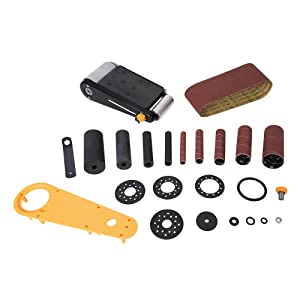

| Includes: 5 x throat plates, 4 x drum washers, 4 x drums, 100 mm dust port adaptor and a spindle wrench | Dust port adaptor is included for easy connection to a vacuum / dust extractor | Easy finishing and shaping |
| Weight: | 12.9 kg |
| Dimensions: | 45 x 53 x 47 cm; 12.9 Kilograms |
| Model: | TSPST450 |
| Part: | TSPST450 |
| Colour: | Orange |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Triton |
| Colour: | Orange |
| Quantity: | 1 |
Far una recensione commentando altre varie recensioni che ho letto in giro, visto che la uso da un po’. Primo, onestamente pi grande di quello che pensavo, ma non una cosa negativa, anzi. Secondo, ho sentito di alcuni parlare dicendo che il tavolo davanti non il dritto a 90 gradi, in effetti vero, mi arrivata che era pi alto di qualche decimo, ma basta regolarla con una squadra con le manopole, non so perch in molti si sono lamentati, invece quello dietro perfetto. C’ differenza tra altre levigatrici simili su amazon? S. Non posso dire dei componenti interni, ma ho notato che questa dotata di migliori plastiche, le manopole stesse sono in plastica antiscivolo anzich solo plastica di altre marche, in pi questa garantita 3 anni. Le puleggie sono in plastica come ho letto in qualche recensione? Sni, togliendo la parte pi lunga della levigatrice sotto c’ un “adattatore” in plastica, ma soltanto un appoggio, a me no che non lo vogliate rompere apposta, dubito che ri rovini molto facilmente. Per ultimo, ho visto in vari video su YouTube che questa levigatrice funziona a carboncini, andrebbe girata e smontata da sotto, quindi se fra un annetto vi dar problemi, dovreste prima vedere i carboncini, vi rispermier molto tempo con l’assistenza 🙂
Per ultimo devo dire che proprio una bella levigatrice, vi permetter di fare ottimi dettagli sui vostri progetti, io partendo da un blocco squadrato l’ho portato a livello, e poi, inclinandola di 22,5 gradi ho dato alla mia barchetta questo look. Se volete prendere una levigatrice, e avete poco spazio, vi consiglio questa. veramente comodo la possibilit di renderla una levigatrice per i lavori rotondi. Le uniche due pecche che ho riscontrato, che a levigare i pezzi molto piccoli, un po’ complicato, soprattutto se il tavolo inclinato, ma ho preso della grana 400 per questo, cos da evitare che scappino dalle mani. Secondo, non bisogna premere troppo il pezzo sulla levigatrice o potrebbe rallentare. In pi, pi che consigliabile, anzi, quasi obbligatorio avere uno di bastoncini color oro che se usati sulla carta vetrata in funzione, la puliscono completamente dal legno, o dopo poco sar inutilizzabile. Sembra scontato dirlo, ma evitate di usarla con i guanti se tenete alle vostre dita.
Ottimo prodotto, funziona veramente bene. Molto solida, funzione 45 gradi molto comodo. Non indispensabile, ma ti risparmia un sacco di tempo e fa un lavoro di precisione. Consiglio con l’acquisto anche un blocchetto per la pulizia della carta abrasiva cos finito il lavoro si riporta l’abrasiva in buono stato, logicamente materiale di usura. Soddisfatto.
Good machine. easy to setup. The only thing is that it only comes with 80grit paper for all sleeves and belt. Furthermore worth the money.
As a hobby woodworker I’ve been meaning to buy a belt and bobbin sander for the last couple of years and finally went for it. Great bit of kit and wish i had bought this tspst450 ages ago. Fast material removal with supplied belts. Nice quality finish with the extra 150 grit belt i bought separately. Good dust collection using my old hoover with a dust deputy cyclone and a 32mm pipe – using the bobbins i get nearly 100% dust collection, belt sander does leave a small quantity of dust behind but it still catches probably 90-95% of the dust. Seems well built but as i only bought it a few weeks ago (march 2023) i cant comment on longevity but seems well made.
Cons
– It would be helpful to have the ability to adjust the sanding speed for some fiddly small jobs eg reduce the speed for finer work.
– Bobbins would be better if they were tight to the top of the spindle for sanding deep into holes that have a bottom (basically the nut sits about 10mm down from the top of the thread so the threaded rod bottoms out way before the sanding bobbin. Top of bobbin sits about 15mm below the top of the threaded spindle.
Overall very pleased with my purchase.
This is really helpful at tidying up saw cut marks before joining and finishing, really handy after bandsaw work. Changing out the belt sander part it’s been said by many that the top nut over tightens itself and it’s true for me also but just keep a spanner handy to remove it easily otherwise a great useful tool.
Fitting a kitchen and needed alot of intricate pieces to be manufactured. This machine works a treat, it is really two machines in one. Excelle
This is really well made & extremely robust. We use it for final edge finishing on aluminium plates & it works perfectly.
If you have a limited amount of space this sander may be your best option. It is light weight so it is easy to move about. The cabinet has slots for all of the accessories but it would have been nice to have an accessory case instead. I couldn’t find the duty cycle rating for the sander but I would assume that it is 20%. I don’t think it will bare up to heavy sanding for extended periods. Overall, I think it’s a fantastic tool for hobbyist and smaller workshops.
Eine gute Maschine mit sehr guter Verarbeitung. Ich mochte es nicht mehr missen. Die Absaugung ist hervorragend.
Der oszillierende Spindelschleifer ist robust durchdacht konzipiert und gehrt in die Liga der Premiumwerkzeuge, ich habe von Triton die Oberfrse und die ist schon sehr gut ! Zwei Anmerkungen das Gert hier hat einen UK Stecker (siehe Bilder) den kann man aber ohne Probleme abmontieren und dann hat man den EU Stecker ohne Schutzleiter, also kein Problem und man kann loslegen, den UK Adapter nehme ich jetzt als Reiseadapter wenn ich mal die Insel besuchen gehe od. In hnlichen Gefilden. Ich wrde jeden empfehlen, der viel damit schleift sich gleich den Reinigungsblock fr Schleifmaschinen zu besorgen, zwei von den Spindelschleifern haben sich schnell zugesetzt. Ich hab mein Bosch GAS35 Staubsauger als Absauger mit dem Triton verbunden, wahnsinn wirklich kaum Holzstaub nur ein bisschen in der Maschine und auf dem Tisch. Tolle Maschine!
This machine is an excellent hobby/light use machine as it is not too heavy and can easily be stored away when not in use.
This machine is an excellent hobby/light use machine as it is not too heavy and can easily be stored away when not in use.
I did not know if i would use this much . as i haveall sorts of sanders . Well the answer in short i have only used this sander since i have had it . its a great item.
I did not know if i would use this much . as i haveall sorts of sanders . Well the answer in short i have only used this sander since i have had it . its a great item.
Pendelschleifer Triton Gebraucht gekauft weil Neu war hier viel zu teuer.
Schnelle Lieferung und aufgebaut. Aber egal wie fein ich ihn eingestellt habe das Schleifband lief immer nach oben oder unten aus der Fhrung. Ich habe mir ein neues Schleifband von Abranet gekauft und es luft perfekt. Die Absaugung ist auch okay und es lag ein Reiseadapter dabei da der Schleifer wohl nicht fr das Ausland gedacht war. Aber das stand in der Beschreibung und ich habe jetzt einen Reiseadapter zu viel:). Trotzdem danke dafr. Ja ich brauche den Schleifer nicht jeden Tag aber er macht sich gut egal ob ich eine Flche Schleife oder eine Rundung. Fr mich eine gute Wahl.
There are some very good reviews here and there is little I can add. Make sure you buy some finer grit papers to use with it, though, the 80 grit is very coarse for a sander like this.
One thing to mention is the unit is pretty high and I made mini table to stand it on. The table I made is 50cm square and a height of 70cm. It didn’t have to be that wide but a few experiments showed it was wise for added stability. The table was made out of some cheap stud-work timber, so it only cost a few pounds, but built like a tank so it was nice and heavy and stable. I also screwed the Triton down with four 12ga screws. The 70cm height puts the works surface of the sander at 103cm, which I found just about right.
I eventually added a small draw under the table to keep all the extras in. Although the storage on the sander works well, it’s a bit of a nightmare vacuuming the sander without all the extras ending up on the floor or the inside of the vacuum cleaner!
The hose you see attached is just a Karcher.
The main switch failed about six months in, but one email to Triton and I just bought a new switch from an independent supplier. The switch arrived the next day. It was easier to do this than to return the sander to Triton.
I didn’t find dust a problem with the sander. Checking this out, it seems the taller the wood you sand, the less the vacuum collects, so its all about height of the workpiece. I usually sand wood that is at most a few inches thick so dust isn’t a problem.
My only minor complaint is that there is some vibration a the small diameter end of the belt sanding attachment.
All in all a very useful sander. The performance is great for the money.
Solid little unit that performs way above it’s price.
There are some very good reviews here and there is little I can add. Make sure you buy some finer grit papers to use with it, though, the 80 grit is very coarse for a sander like this.
One thing to mention is the unit is pretty high and I made mini table to stand it on. The table I made is 50cm square and a height of 70cm. It didn’t have to be that wide but a few experiments showed it was wise for added stability. The table was made out of some cheap stud-work timber, so it only cost a few pounds, but built like a tank so it was nice and heavy and stable. I also screwed the Triton down with four 12ga screws. The 70cm height puts the works surface of the sander at 103cm, which I found just about right.
I eventually added a small draw under the table to keep all the extras in. Although the storage on the sander works well, it’s a bit of a nightmare vacuuming the sander without all the extras ending up on the floor or the inside of the vacuum cleaner!
The main switch failed about six months in, but one email to Triton and I just bought a new switch from an independent supplier. The switch arrived the next day. It was easier to do this than to return the sander to Triton.
I didn’t find dust a problem with the sander. Checking this out, it seems the taller the wood you sand, the less the vacuum collects, so its all about height of the workpiece. I usually sand wood that is at most a few inches thick so dust isn’t a problem.
My only minor complaint is that there is some vibration a the small diameter end of the belt sanding attachment.
All in all a very useful sander. The performance is great for the money.
Excellent machine and perfect for woodworking, easy to use and value for money.
Pretty impressive machine. It’s a welcome addition to my shed shop.
Have now used both the belt and spindle and everything so far is working well. Made tidying up some curved work an easy task.
Have now used both the belt and spindle and everything so far is working well. Made tidying up some curved work an easy task.
small and great value . a worth well addition to workshop
Have only had this sander a few days so can’t speak for longevity but I am absolutely thrilled with it. I spent most of yesterday effortlessly shaping small components for a toy I’m building, and I shudder to think how long it would have taken without.
If you’ve already had a belt or spindle sander this won’t be news to you, but I’ve had neither (other than a cheap handheld one which I never use), but it really is the bees knees for effortlessly sanding profiles, sanding down to a line, sanding angles onto the edge of small pieces etc. – if you want to make little wooden objects, you need this tool!
Best things about it: Changing modality is really easy. Sometimes multifunction machines take a long time to change round, but it is really simple and easy.

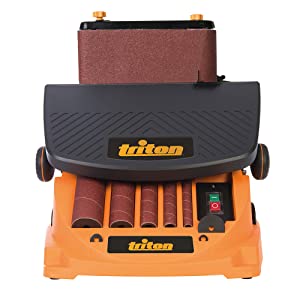

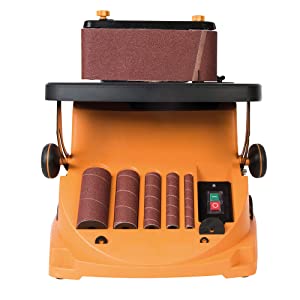

Which brings me to the next point – there is moulded storage for every spindle, nut, bolt, washer etc! This is such a good design – no need to set aside a tub of “bits and bobs” which requires more storage space or gets misplaced. It is entirely self-contained; everything you need is stored on the body of the sander.
Finally, it is both light enough to move around a small workshop, but sturdy enough not to feel flimsy or flex in use.
Downsides? The manual is atrocious, so look it up on YouTube, plenty of good reviews that demonstrate the use.
The simple piece of spring steel that gives the table angle its positive stop makes selecting a custom angle close to a positive stop quite tricky (I.e. I wanted 12 but it kept clicking into 15 – just left it at that in the end!) but this could easily be removed if you were regularly going to want to sand at unusual angles.
The storage slots mentioned above are great, but I feel some recesses for some of the smallest components are not quite deep/tight enough. I nearly lost the smallest washer which had dropped out onto the floor when moving the sander, so I now put a strip of masking tape over the smaller pieces to keep them secure.
Overall, I could not be happier with this machine which I think is a perfect addition to a small workshop. I wish I’d bought one sooner, and even if it cops out the day after its generous 3 year guarantee, I will have had my money’s worth.
Well made great belt sander, used it loads and belts last ages
ottimo prodotto fa bene il suo lavoro,anche solido.Mi sono trovato bene. Consigliato.
General sanding of woodworking particularly when making band saw boxes.
I wanted an oscillating bobbing sander and a belt sander.you get
Both in one and very nice it is two
Je ne recommande donc pas ce matriel, au profit d’un matriel europe
It’s a really great product, the best value for money, low noise, easy connection with my Bosch Univac for a dust free environme
It’s a really great product, the best value for money, low noise, easy connection with my Bosch Univac for a dust free environme
Wichtigste Kriterien waren fr mich stabile Bauweise, leichter Werkzeugwechsel und Aufbewarungsmglichkeit fr Zubehr.
Das Gert erfllt all diese und berzeugt dazu noch mit einem usserst ruhigen Lauf.
War ein langer Weg bis zum Kauf bin von der Maschine berzeugt und kann sie weiter empfehlen. Einige teile knnten besser ausgefhrt werden aber da alle erkufer beim gleichen Hersteller bestellen ist es egal welche dieser Schleifer man sich kauft lediglich die Logos sind anders.
utile per il fai da te e anche per il lavoro professionale attrezzo da avere in laboratorio
11 Monate im Gebrauch.
Bis jetzt luft die Kiste ohne murren und Meckern.
der Wechsel vom Bandschleifer auf die Spindeln problem los und schnell.
Die Mutter oben bei der Spindel nur etwas fester anziehen, sonnst rutscht das Schleifpapier nach oben.
Ich kann nicht klagen – in dem Moment wo man ihn hat geht man schnell mal ran um was zu begradigen.
Ein bischen gnstiger knnte er sein aber wie gesagt bis jetzt keine Klagen.
Fantastic piece of kit removes material very effectively, dust extraction could be a lot bette
Eins meiner Lieblingsgerte in meiner hobbywerkstatt. Ja, die in den Rezensionen beschriebenen Mngel” wie z.B. der nicht genaue Winkel von 90 Grad beim bandschleifer stimmen, aber bei mir kommt es nicht unbedingt auf ein Grad Genauigkeit an und von daher komme ich mit dem Gert ganz gut zurecht. Trotzdem habe ich anfnglich gedacht ich knnte meinen bisherigen bandschleifer in Rente schicken”, dem ist nicht der Fall. Als Zusatzgert fr Rundungen etc. ist es durchaus zu gebrauchen. Auch hier muss man immer wieder den Preis im Auge haben. Ich meine, man knnte fr das Geld nicht mehr erwarten. Die vielfltigen nutzungsmglichkeiten und ein aufgerumtes” unterbringen der Zubehrteile haben mich berzeugt.
Leider sind bei meiner Maschine die Brckengleichrichter-Dioden schon bald durchgebrannt. Glcklicherweise konnte ich den Defekt selber beheben. Ich habe dazu 10 A Dioden verwendet.
Me ha gustado todo. Tamao ideal. Peso justo. Fcil de transportar. Potente y muy completa. Volvera a comprarla
A tip would be to add a couple of sets of finer grit sleeves and a cleaning block to really make the most of it.
A tip would be to add a couple of sets of finer grit sleeves and a cleaning block to really make the most of it.
Ich konnte bisher super Ergebnisse erzielen. Die Maschine ist zwar relativ laut aber wo gehobelt und geschliffen wird, da fallen bekanntlich auch Spne. Bisher durchweg eine positive Bewertung von mir.
C’est dsormais chose faite depuis que j’ai achet cette machine.
C’est un trs bon outil efficace et facile d’emploi . Changement des bandes et cylindres trs rapides et l’aspiration est au top. Trs peu de poussire. Pratique aussi la possibilit de modifier l’angle de la table.
Seul bmol il y a des rayures et des tches sur le plastique orange du chssis et le carton semble avoir pas mal vcu, mais le reste est neuf. J’ai l’impression d’tre en possession d’un appareil reconditionn pour le prix d’un neuf . l pas top.
Cela mis part tout va bien.
Les manchons vendus en sachets par triton sont au nombre de six (cinq pour cette machine). Le plus gros 76mm est prvu pour l’autre modle tsps 140.
Le plus petit n’a pas besoin de cylindre il se met directement sur la tige d’entranement ( pour ceux qui se poseraient la question).
another fine tool from Triton.
another fine tool from Triton.
Un peu encombrante sur l’tabli, un peu bruyante mais a fait plutt bien le boulot; bien choisir le grain de la bande en fonction de ce que l’on veut faire et du bois utilis.
Bonjour,
J’ai bien reu mon colis.. cependant aprs vrification il me manque 1 pice:
Le cylindre 1/2″ pour le plus petit manchon?
J’espre que le service aprs vente est efficace !
Para el trabajo en carpintera nos faltaba la mquina, genial.
excellent machine, does exactly what its meant to do, should have got one long ago.
+ Delivery prompt as usual, Two machines in one, easy to use, onboard tool storage Good, can’t comment on reliability yet as only just purchased, – instructions not the bes
La rputation de cette machine n’ est plus faire, le seul hic c’ est qu’ il manque le tambour de 76 mm comme sur l’ autre modle, quand on rachte des manchons de rechange, il y en a un de 76 mm dont on ne peut pas se servir a cause du manque de ce tambour.
Trs bonne ponceuse, permet vraiment de poncer des pices avec facilit, recommander.
La he usado poco pero me parece realmente til y fuerte creo que la recomendara sin dudas
I can’t recommend this enough, it has cut down on so much work time for my various projects. I wouldn’t want to be without it now.
I can’t recommend this enough, it has cut down on so much work time for my various projects. I wouldn’t want to be without it now.
Da ich ab und an Kinderspielzeug pastle, oder Feinsgearbeiten mache, hat sich das Teil wunderbar bewhrt. Fr groe Teile ist es wahrscheinlich nicht so geeignet, da der Auflagetisch sich dann eventuell doch etwas verzieht. Die Aufbewahrung der ZUbehrteile finde ich ganz toll, da man immer alles gleich zur HAnd hat. Extraplus: das Schleiband ist die gleiche GRe wie die meine s Bandschleifers! Passt!!!
The manual is bloody awful. Triton have saved money by printing it as an A5 booklet – which results in the type being so small that you need a magnifying glass to read it! Fortunately, the machine is pretty much intuitive.
I was able to read the bit that suggest that the machine should be bolted to the workbench. Absolute nonsense! This machine does not vibrate – I have it sat on a cutting mat on my bench and it doesn’t move. It is also relatively quiet – I think that my shop-vac makes more noise than this sander.
The first job that I gave it was removing the bandsaw marks from a bunch of toy cars that I am making for my grandchildren. It accomplished that very quickly – very much quicker than I could have done using sanding drums and flap-wheels on my pillar drill. It absolutely saved me hours of boring sanding and for that reason alone, I love it to bits! For the first time in my life, I actually enjoyed sanding!
I really liked being able to transition flat surfaces into smooth curves using the belt sander. I thought that I would be using the spindles more often than the belt but that wasn’t the case. The spindles are great for internal curves, but for external curves, the belt is the way to go.
When you look at the photo of the wooden toys (work in progress) you can’t help noticing that my bench is covered in dust. Dust extraction by vacuum when using the spindles is surprisingly good . But when using the belt, it isn’t. Which is why my bench is covered in dust. I have since fixed this problem by constructing a hood – by cutting a plastic storage box in half. The difference that the hood makes is remarkable, because most of the dust is thrown toward the back of the machine. The hood catches it, preventing it from being sprayed all around the workshop.
The next problem was that the fixed portion of the table and the moveable part wasn’t smooth. The two parts didn’t line up – there was a step.
This was easy to adjust. I simply loosened the hinge-bolts and nudged the table into its correct position. On inspection it was clear that my machine had been assembled by an apprentice – look at the brutality that has been inflicted on the poor hinge-bolt! That apprentice was clearly unaware that the two parts of the table need to be inline! But, hey-ho, this is a budget machine. If I had expected precision, I’d have paid a lot more money.
The machine is supplied with a set of 80-grit spindle tubes and one 80-grit band. These produce a surprisingly good finish for a coarse grit. But I knew that I would need more, and finer, abrasives than were supplied with the machine, so I ordered Triton bands and tubes in 150-grit.
The 150-grit tubes are fine and work as they should. The 150-grit bands, however, are terrible! Truly awful! How can Triton put their name to such an appalling product?
OK. I know that Triton don’t make abrasives, they buy abrasives. But their incoming quality control people need a succession of well-aimed kicks up the bum for accepting products as bad as this.
The seam that joins the band is lumpy and sets up a distressing knocking vibration that cannot be good for the machine and makes working unpleasant and difficult. I’ll be returning those Triton 150-grit bands as unfit for purpose. I have already ordered alternative (and finer grit) non-Triton belts from a specialist abrasives supplier.
In conclusion:
1. It works well and makes sanding (almost) a pleasure.
2. Dust extraction (with a vacuum) is very good when using spindles, but not so good when using the belt-sander.
3. A simply-constructed hood makes a big, really big, improvement to dust collection when using the belt-sander.
4. Some minor adjustments may be required if your machine was, like mine, assembled by an apprentice.
5. Don’t buy Triton-branded replacement sanding-belts.
Despite my whinges, I’m really pleased that I bought it this machine. Delighted, actually. And I would (whilst mentioning the above reservations) recommend it to anyone. Used carefully, precision sanding is easy to achieve – and that is a Very Good Thing.
I just wish that it wasn’t such a ghastly colour.
The manual is bloody awful. Triton have saved money by printing it as an A5 booklet – which results in the type being so small that you need a magnifying glass to read it! Fortunately, the machine is pretty much intuitive.
I was able to read the bit that suggest that the machine should be bolted to the workbench. Absolute nonsense! This machine does not vibrate – I have it sat on a cutting mat on my bench and it doesn’t move. It is also relatively quiet – I think that my shop-vac makes more noise than this sander.
The first job that I gave it was removing the bandsaw marks from a bunch of toy cars that I am making for my grandchildren. It accomplished that very quickly – very much quicker than I could have done using sanding drums and flap-wheels on my pillar drill. It absolutely saved me hours of boring sanding and for that reason alone, I love it to bits! For the first time in my life, I actually enjoyed sanding!
I really liked being able to transition flat surfaces into smooth curves using the belt sander. I thought that I would be using the spindles more often than the belt but that wasn’t the case. The spindles are great for internal curves, but for external curves, the belt is the way to go.
When you look at the photo of the wooden toys (work in progress) you can’t help noticing that my bench is covered in dust. Dust extraction by vacuum when using the spindles is surprisingly good . But when using the belt, it isn’t. Which is why my bench is covered in dust. I have since fixed this problem by constructing a hood – by cutting a plastic storage box in half. The difference that the hood makes is remarkable, because most of the dust is thrown toward the back of the machine. The hood catches it, preventing it from being sprayed all around the workshop.
The next problem was that the fixed portion of the table and the moveable part wasn’t smooth. The two parts didn’t line up – there was a step.
This was easy to adjust. I simply loosened the hinge-bolts and nudged the table into its correct position. On inspection it was clear that my machine had been assembled by an apprentice – look at the brutality that has been inflicted on the poor hinge-bolt! That apprentice was clearly unaware that the two parts of the table need to be inline! But, hey-ho, this is a budget machine. If I had expected precision, I’d have paid a lot more money.
The machine is supplied with a set of 80-grit spindle tubes and one 80-grit band. These produce a surprisingly good finish for a coarse grit. But I knew that I would need more, and finer, abrasives than were supplied with the machine, so I ordered Triton bands and tubes in 150-grit.
The 150-grit tubes are fine and work as they should. The 150-grit bands, however, are terrible! Truly awful! How can Triton put their name to such an appalling product?
OK. I know that Triton don’t make abrasives, they buy abrasives. But their incoming quality control people need a succession of well-aimed kicks up the bum for accepting products as bad as this.
The seam that joins the band is lumpy and sets up a distressing knocking vibration that cannot be good for the machine and makes working unpleasant and difficult. I’ll be returning those Triton 150-grit bands as unfit for purpose. I have already ordered alternative (and finer grit) non-Triton belts from a specialist abrasives supplier.
In conclusion:
1. It works well and makes sanding (almost) a pleasure.
2. Dust extraction (with a vacuum) is very good when using spindles, but not so good when using the belt-sander.
3. A simply-constructed hood makes a big, really big, improvement to dust collection when using the belt-sander.
4. Some minor adjustments may be required if your machine was, like mine, assembled by an apprentice.
5. Don’t buy Triton-branded replacement sanding-belts.
Despite my whinges, I’m really pleased that I bought it this machine. Delighted, actually. And I would (whilst mentioning the above reservations) recommend it to anyone. Used carefully, precision sanding is easy to achieve – and that is a Very Good Thing.
I just wish that it wasn’t such a ghastly colour.
You can purchase a separate 3” drum for this sander (when you buy packs of sleeves a 3” is usually included). Quick changeover between drums and belt sander. Excellent value.
Das derzeit beste Gert in meiner Werkstatt.
Der Bandschleifer ist fr meine Zwecke ausreichend, ob der rechte Winkel erreicht wird, ist bei meinen Bastelarbeiten nicht relevant,
drfte aber halbwegs passen.
Strend finde ich die runden zylindrischen Schleifaufstze. Diese bleiben trotz Gummiauflage nicht an der gleichen Stelle, sondern rutschen nach oben.
Ich klebe diese mit einem Klebestreifen fest, so ist es fr mich kein Problem mehr
und kann weiterhin total 5Punkte gebe
Drumsander everything that it said. Easy to use and change from spindle to belt. Just the ideal tool for what I wanted it for.
Drumsander everything that it said. Easy to use and change from spindle to belt. Just the ideal tool for what I wanted it for.
Bien fini fait le boulot mais je l’aurais pens un peu plus lourde quand on passe de grosse pice de bois est la tendance glisser et le moteur est un peu faiblard ralenti
Be honest watch the you tube video will show and tell you all you need to know
Be honest watch the you tube video will show and tell you all you need to know
Je cherchais une ponceuse qui s’adapte tous mes besoins et je suis pas du. Trs bonne ponceuse et efficace. Par contre elle est assez imposante. En mme temps, a lui permet d’tre bien stable, mme quand elle n’est pas fixe au support.
Desempea bien su trabajo. Puedes tener en una misma mquina una lijadora de banda y otra para perfilar curvas. La mesa, con una parte inclinable, tambin facilita aproximar ingletes y biseles. La aspiracin, conectada a una aspiradora de arranque automtico, funciona bien, lo que es de agradecer en talleres pequeos o domsticos.
Sehr schn in dem Zusammenhang ist das alle nicht benutzen Teile einen Platz an der Maschine finden, so geht nichts verloren und man braucht keine extra Aufbewahrung dafr.
Wenn man die Feineinstellung des Bandes mal im Griff hat luft die Maschine sehr ausdauernd und kontinuierlich, bis dato konnte ich keine Leistungseinbuen feststellen.
Defizite:
Die Maschine ist brutal laut
Das Maschinengewicht ist sehr gering, man kommt fast nicht darum herum das Teil zu fixieren.
Die Beiden Punkte sind wohl ein Kompromiss hinsichtlich des Preises, mit ein wenig mehr Gewicht und Dmmung wre schon viel gewonnen. Wie lange das Ding dann letztendlich durchhlt sei dahingestellt es ist schon sehr viel Plastik verbaut.
Der letzte Passus fliet nicht in die Bewertung ein da die Maschine eigentlich nichts dafr kann!!
Absolutes no go ist der Fakt das meine Maschine offensichtlich schon einmal ausgepackt war bzw. als Vorfhrer irgendwo herum stand. Ein tiefer Kratzer auf dem Teller sowie einige kleinere Abnutzungen sowie ein paar Fingerabdrcke lassen daran leider keinen Zweifel.
Nachdem all das der Funktion nicht schadet und ich auch nicht vor habe das Plastemonster wie ein rohes Ei zu behandeln ist das aber verschmerzbar fr mich zumal ich keinen Bock hatte alles wieder einzupacken und zur Packstation zu befrdern.
Habe mir bei dem Preis ursprnglich gedacht, ok wird ein wenig besser sein als der Schrott den ich bisher hatte. Da habe ich mich aber grndlich getuscht und bin einfach nur begeistert.
Alleine das sich das Schleifband eigenstndig auf und ab bewegt ist schon ein groes Plus fr ermdungsfreies Arbeiten. Der einfache Anschlag ist auch recht praktisch, da man das zu bearbeitende Werkstck viel lockerer halten kann, ohne das es gleich mal wegdst wenn man nicht konzentriert aufpasst.
Das wechseln der Aufstze geht auch recht einfach von statten, bentigt aber natrlich seine Zeit.
Die Verarbeitung ist ganz gut,stabiler Kunststoff-Sockel mit Alu-Guss Tisch.
Der Tisch ist mittig leicht verbogen,macht nicht’s am Schleifbild.
Die Winkeleinstellung kann man nachjustieren, 2 Schrauben am Federstahl fr die Gradeinstellung.
Die Absaugung ist ok.
Fr diesen Preis ,ist es eine gute solide Maschiene.
For years I have been using a bench mounted belt and disk sander, but I find it very difficult to sand smaller pieces on this and have managed to sand the end of my fingers a little on occasion! Not badly, but in the end I decided that I wanted to find a better solution that gave me more control. After a lot of research I decided to buy this Triton machine. The reason that I picked this one was because Triton have a good reputation, (If you look at reviews, their products are always well liked by the majority of buyers) and I also wanted a machine with a belt sander as well as spindle sander. With this set up you get the best of both worlds. A belt sander for straight edges and spindle sander for curves. The belt sander is great for smaller pieces and that is what I wanted it for. I have way more control with the belt vertical and the table horizontal. As for a spindle sander, I have wanted one of those for years! Please see the video for an in-depth look at it. Also, with a 3 year guarantee you can’t go wrong.
This machine feels well made; it comes with 5 spindle sanding sleeves, “, “, 1″, 1″ and 2″. There are only 4 rubber drums and this is because the ” sleeve fits directly onto the spindle without a rubber drum. The other Triton spindle sanders come with a 3″ drum. In fact, if you order Triton sanding sleeve sets you will get 6 because the 3″ is included. Now, the thicker end of the sanding belt is actually 3″ in diameter, so you can use that to some extent, but only on semi circles and a 3″ drum would be much more versatile on curves giving full 360 degree access. I decided to buy a Triton 3″ rubber drum assuming it would fit the spindle being a Triton spare. Sure enough it fits and I made my own insert to allow me to use the 2″ spindle safely. Making this was easy using the sander to fine tune the insert and make it fit. So now I have all of the available spindle sizes.
As far as sanding is concerned, it is great, very aggressive with the 80 grit sleeves and belt. Luckily the sander has a dust extraction port and my shop vac fits perfectly. Dust extraction is brilliant, you can see this on the video with hardly any dust being thrown out.
There is a space for everything on the sander base and if you are careful about replacing everything once you have finished with it, you will always have everything at hand. The motor is not too noisy, you can clearly hear the shop vac over the top of it in the video and the camera is much nearer the sander. I checked that everything was square to the table and it was spot on.
So, I love this machine. I notice that other manufacturers sell identical models and I do not know whether they are different in any way, but the three year guarantee clinched it for me. I am very happy with it and it is a brilliant addition to my workshop.
For years I have been using a bench mounted belt and disk sander, but I find it very difficult to sand smaller pieces on this and have managed to sand the end of my fingers a little on occasion! Not badly, but in the end I decided that I wanted to find a better solution that gave me more control. After a lot of research I decided to buy this Triton machine. The reason that I picked this one was because Triton have a good reputation, (If you look at reviews, their products are always well liked by the majority of buyers) and I also wanted a machine with a belt sander as well as spindle sander. With this set up you get the best of both worlds. A belt sander for straight edges and spindle sander for curves. The belt sander is great for smaller pieces and that is what I wanted it for. I have way more control with the belt vertical and the table horizontal. As for a spindle sander, I have wanted one of those for years! Please see the video for an in-depth look at it. Also, with a 3 year guarantee you can’t go wrong.
This machine feels well made; it comes with 5 spindle sanding sleeves, “, “, 1″, 1″ and 2″. There are only 4 rubber drums and this is because the ” sleeve fits directly onto the spindle without a rubber drum. The other Triton spindle sanders come with a 3″ drum. In fact, if you order Triton sanding sleeve sets you will get 6 because the 3″ is included. Now, the thicker end of the sanding belt is actually 3″ in diameter, so you can use that to some extent, but only on semi circles and a 3″ drum would be much more versatile on curves giving full 360 degree access. I decided to buy a Triton 3″ rubber drum assuming it would fit the spindle being a Triton spare. Sure enough it fits and I made my own insert to allow me to use the 2″ spindle safely. Making this was easy using the sander to fine tune the insert and make it fit. So now I have all of the available spindle sizes.
As far as sanding is concerned, it is great, very aggressive with the 80 grit sleeves and belt. Luckily the sander has a dust extraction port and my shop vac fits perfectly. Dust extraction is brilliant, you can see this on the video with hardly any dust being thrown out.
There is a space for everything on the sander base and if you are careful about replacing everything once you have finished with it, you will always have everything at hand. The motor is not too noisy, you can clearly hear the shop vac over the top of it in the video and the camera is much nearer the sander. I checked that everything was square to the table and it was spot on.
So, I love this machine. I notice that other manufacturers sell identical models and I do not know whether they are different in any way, but the three year guarantee clinched it for me. I am very happy with it and it is a brilliant addition to my workshop.
Gekauft am 9.2.2018. Gibt leider den Geist auf, bleibt im Betrieb stehen. Kommt allerdings nach einige Zeit wieder hoch.
Da hat Triton ein super Gert. Praktisch, durchdacht und Sinnvoll.
Der nicht winkelige Tisch (mit Beweisfoto in einer der Bewertungen) ist bei leichten andrcken an das Band nur noch minimal ausser Winkel.
Da man das zu bearbeitende Teil sowieso an das Band andrcken muss ist das meiner Meinung nach durch ein unterlegen der beiden
Haltearme die unter dem Tisch mit jeweils einer Halteschraube befestigt sind in fnf Minuten erledigt.
Mein Gert war einwandfrei verpackt und in einer Tte war der kleine Sterngriff fr die Befestigung des Bandschleiferaufsatzes ein klein wenig rostig.Mit ein ein bisschen Rostlser und Stahlwolle nach zwei minuten wie Neu.
Alles in allem ein tolles Gert was mir bei vielen verschiedenen Schleifarbeiten bis jetzt gute Dienste geleistet hat.
Preisbedingt ist das Triton meiner Meinung nach fr schwere Schleifarbeiten and grsseren Teilen nur bedingt zu gebrauchen.
Je suis cette machine sur des sites de boiseux depuis longtemps au Canada et aux USA o elle est TRS populaire.
Dornavant on trouve cette machine en France et j’en suis fort aise.
Je suis loin d’en avoir fait le tour mais fort de l’exprience de nos cousins je n’ai pas d’inquitude quant son potentiel.
Elle est livre en grain de 80 donc un petit tour d’achats complmentaires s’imposera pour du grain plus fin vendu uniquement par Triton.
montage simple
aprs premiers essais, travail parfait, prcis et propre, machine assez silencieuse ; la combinaison des 2 mouvements apporte un plus la finition ; changement des rouleaux simple et rapide.
absurdit : le rassort des rouleaux se fait pour 6 tailles alors que la machine n’en a que 5 …
Respecto a la mquina en si la mesa no est perfectamente a 90grados con el husillo pero no es un gran problema ya que la mesa es inclinable ycon una simple escuadra la dejas a 90 grados en unos segundos. Quiz por debajo lleve u tornillos de ajuste, no lo s, pero como digo para mi se soluciona fcil ajustando la mesa.
Fcil de cambiar de husillos y con muchas opciones de granos.
I hope that this machine has the same level of quality as Triton routers but given I have seen this identical machine shape for sale in various places or being used in Youtube videos in several colours and brand names I don’t know if it’s really a Triton product or just a generic machine with a Triton sticker but I suppose time will tell. On the plus side of this it comes with a three year warranty from Triton so that helps to give some peace of mind.
The machine arrived well packaged. Inside the box you of course get the machine but you also get one of each size sanding drums and one sanding belt…. to be honest given the price of the machine to only get one grit type of each smacked a little of penny pinching. There is also the various spindle holders (sorry don’t know the right word) and their insert plates to give zero clearance on the machine depending on what spindle size you would be using. Because of the penny pinching with the included belts / spindles and given this isn’t exactly a cheap machine I have deducted a star from what otherwise would have been a 5 star review.
The machine itself has a decent bit of weight to it to allow the machine to be used without jumping around the bench while not clamped or screwed down but not really what I would call heavy either so can easily be moved around the workshop as required. The machine is actually a really good design and has various holes and cut outs all around it for storage of all the parts so they don’t get lost…. although in my workshop it’s nearly guaranteed they will get lost in the first month! The table as you can see in the listing image is adjustable should you need to sand something at an angle. It’s very easy to change spindle sizes or to change to the belt mode and the change can easily be done in under a minute.
It runs very smoothly and given it’s only using 450w it has some considerable power to it and will easily throw a workpiece across the workshop if you are not paying attention but that was my fault and not the machines. It works very well and is easy to use immediately out of the box so no learning curve required for the novice. This is my third sanding machine after my 1″ belt and a large disc sander so I have brought them all together on their own workbench as a sanding station which is a real luxury to have as for years I had to make do with a cheap and nasty handheld belt sander turned upside down and held in a vice.
The sanding belts for this machine being 100mm x 610mm are the standard hand held sized belts so easily available to buy across the UK either on Amazon or from local hardware shops like Screwfix etc so you are not stuck having to buy a propitiatory sized belt at inflated prices. The spindle sanding drums also seem to be fairly standard across all types of these machines so like the belts they can easily be found online but probably not something you could get from the standard local hardware shop.
I take my reviews very seriously so once the honeymoon with this machine is over and I start to notice any problems I will most certainly edit this review to reflect that but so far so good and if you are reading this then everything is still good with the machine.
