XINPUGUANG 100W Watts 18V Solar Panel Monocrystalline Photovoltaic Module for Caravan, Boat, Car, Home 12v Battery Charging (100w)
Description:
The 100w solar panel is convenience and perfect to provide free electricity to charge a 12V battery that can power hundreds of devices and electrical appliances.
The high efficient monocrystalline silicon solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. Waterproof design ensures the solar panel can be used in all weather conditions.
Each solar panel has been thoroughly tested at the factory for highest quality standards.
Specification:
Meterial: monocrystalline silicon
Maximum power (Pmax): 100W
Maximum supply voltage (Vmp): 18V
Open circuit voltage: 21.6 V
Maximum supply current (Imp): 5.55A
Short circuit Current: 6.06 A
Dimensions: 1160 * 530 * 25mm
Weigh: 6.5kg
Max System Voltage : 1000V DC(IEC)/600V DC (UL)
Temperature range: -40 Degree to 80 Degree
Packing list:
(1) 1 x 100W solar panel
Details
| | | | |
|---|---|---|---|
| Tempered glass of 3.2mm is a strong, durable, anti-reflective, high-transparency, low-iron glass with improved stiffness and impact resistance. It supports wind and snow loads, winds (2400Pa) and snow loads (5400Pa). Has a good performance in low light. | Aluminum frame resistant to corrosion and shock. Make the solar panel more durable. The shelf life is 25 years. | The new 100w solar panel is composed of high-efficiency 125 * 125mm monocrystalline silicon solar cells, the conversion rate is as high as 19.8%. | Photovotaic 90 cm (35.4 inch) cable with MC4 connector. The IP 67 rated 65 * 65 * 20mm junction box provides complete protection from environmental particles and low pressure water jets. |
Application
| | | |
|---|---|---|

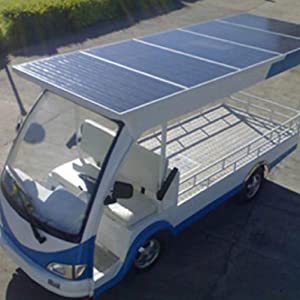

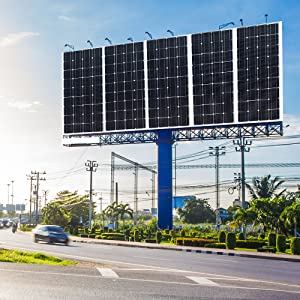

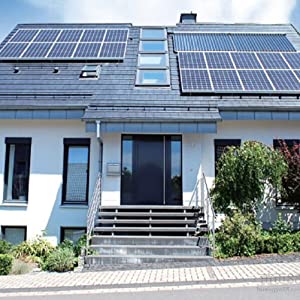

| Applied to the roof, street light power supply. | Applied to large power stations, yacht, boat/marine, outdoor. | Applied in RV, van, electric car power supply. |
| Weight: | 7.62 kg |
| Size: | 100w |
| Dimensions: | 116 x 53 x 2.5 cm; 7.62 Kilograms |
| Model: | XPG-100000 |
| Part: | XPG-04-100W |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | XINPUGUANG |
| Size: | 100w |
Super ce produit m’vite le vidage de ma batterie lorsque je branche ma caravane sur mon camion mme avec le frigo qui pompe lui seul 144w soit 16A en 12V content de mon achat, j’espre que a durera.
No dislikes done the job I wanted kept my 2 leisure batteries topped up recommend it to anyone
Il pannello sar montato sul tetto di un camper, non posso ancora confermare il suo funzionamento.
Negativo che il venditore non emette fattura elettronica secondo le normative italiane.
Good product for the cost
Nice quality and works well on motorhome
Si cette commande est bien arrive jeudi, j’ai constat qu’il manquait le contrleur et le cblage. Peut tre que l’envoi
s’est fait en 2 colis????? Je ne suis pas le seul dans cette situation.
Contact, le vendeur m’a confirm qu’il y avait bien 2 colis. A ce jour, les panneaux sont poss sur le toit de mon camping car et fonctionnent trs bien comme le contrleur d’intensit.
Je recommande ce vendeur.
Well packaged nice items.well worth the money.delivered next day super fast 100%
I’ve had this kit for 2 months now and so far so good. I have them hooked up to a tie inverter at the moment. they arrived on time and well packed.
