Airflow QT100HT (9041261) Quiet Humidity Timer Version Two Speed 100mm Extractor Fan, White, Spigo
Airflow Developments
Pioneers in Ventilation since 1955.
For over 60 years, Airflow has been forging a path of leading innovation in the design and manufacture of ventilation systems and air measuring instruments.
QuietAir Range
The Whisper Quiet Fan
QuietAir is a range of extremely quiet, elegant and discreet axial fans with various integral options that only activate when needed.
These two speed fans can be controlled by remote switching, timer, humidity timer and motion sensor with timer. The second speed can be activated via an optional remote switch. By using exceptionally low energy, your carbon emissions and energy bills are reduced.
The sleek and discrete design means there is no intrusion to your aesthetics.
- Up to 72 l/sec
- Integral flow straightener and back draught flap
- Low power consumption from only 5w.
- Delay start feature allows you to prevent fan from being activated when using the room for a quick visit. The delay start feature can be adjusted from 45 seconds to 2 minutes (excludes Basic models)
- The QuietAir fan enables the user to choose between one of two speed options, a low or a high. By using an independent switch, you can alternate between the two speeds.
- It has a high efficiency impeller for extraction through up to 10 meters of rigid ducting and still able to comply with the Building Regulations
The QuietAir Range
| | | |
|---|---|---|

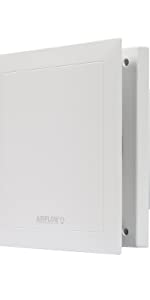

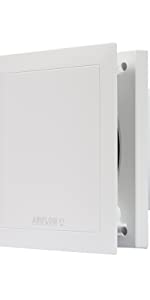

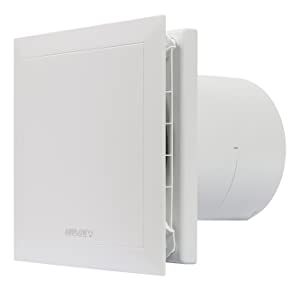

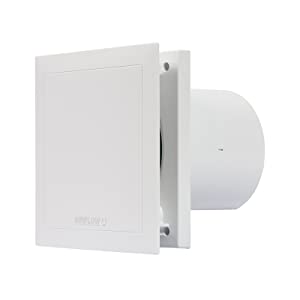

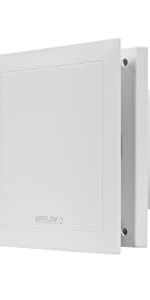

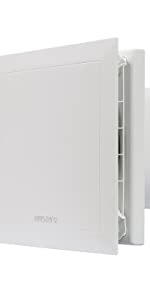

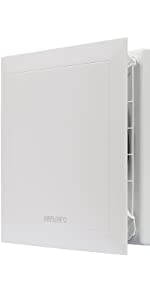

QuietAir 100Toilet, Bathroom and En-suite The QuietAir 100mm is the quietest fan available complying with the latest Building Regulations Installed Performance requirements on both speeds, when ducted. The QuietAir 100 carries the Quiet Mark accreditation. 2021 – Quiet Mark Approval | QuietAir 120Toilet, Bathroom, Utility Room and kitchen (adjacent to the hob) The more powerful performing QuietAir 120mm is designed for larger wet rooms to provide extraction levels that exceed the requirements of the latest Building Regulations. The QuietAir 120 has been awarded the Quiet Mark accreditation for the kitchen category. 2021 – Quiet Mark Approval | QuietAir 150Kitchen (Adjacent to the hob) The powerhouse of the range – the QuietAir 150 is ideal for kitchens and larger rooms whilst still achieving a low noise level for its size of only 35dB(A). Variable speed control is available for quick and easy adjustment of the flow rate. |
 | |  |  | |
|---|---|---|---|---|

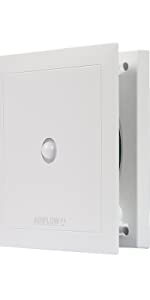

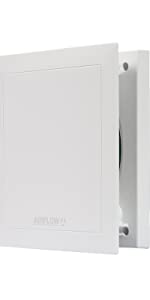

| Model | QT100B – 9041259 | QT100T – 9041260 | QT100HT – 9041261 | QT100MST – 9041262 |
| Flow Rate (l/sec) | 21 / 25 | 21 / 25 | 21 / 25 | 21 / 25 |
| Sound Level (dB(A)) | 25 / 30 | 25 / 30 | 25 / 30 | 25 / 30 |
| Power (W) | 5 / 9 | 5 / 9 | 5 / 9 | 5 / 9 |
| IP Rating | IP45 | IP45 | IP45 | IP45 |
| Basic | ✓ | – | – | – |
| Timer | – | ✓ | ✓ | ✓ |
| Humidity | – | – | ✓ | ✓ |
| Motion Sensor | – | – | – | ✓ |
| Dimensions | 147 x 147 x 131 | 147 x 147 x 131 | 147 x 147 x 131 | 147 x 147 x 131 |
 |  | |  | |
|---|---|---|---|---|

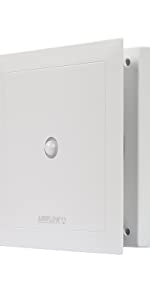

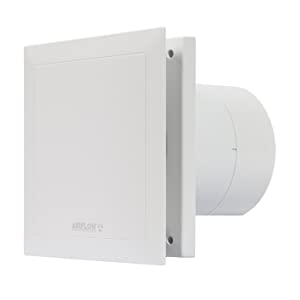

| Model | QT120B – 9041497 | QT120T – 9041498 | QT120HT – 9041499 | QT120MST – 9041500 |
| Flow Rate (l/sec) | 21 / 25 | 21 / 25 | 21 / 25 | 21 / 25 |
| Sound Level (dB(A)) | 25 / 30 | 25 / 30 | 25 / 30 | 25 / 30 |
| Power (W) | 5 / 9 | 5 / 9 | 5 / 9 | 5 / 9 |
| IP Rating | IP45 | IP45 | IP45 | IP45 |
| Basic | ✓ | – | – | – |
| Timer | – | ✓ | ✓ | ✓ |
| Humidity | – | – | ✓ | ✓ |
| Motion Sensor | – | – | – | ✓ |
 |  |  | | |
|---|---|---|---|---|

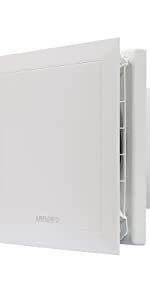

| Model | QT150B – 90000454 | QT150T – 90000455 | QT150HT – 90000456 | QT150VS – 90000458 |
| Flow Rate (l/sec) | 61 / 72 | 61 / 72 | 61 / 72 | 61 / 72 |
| Sound Level (dB(A)) | 35 / 39 | 35 / 39 | 35 / 39 | 35 / 39 |
| Power (W) | 6 / 10 | 6 / 10 | 6 / 10 | 6 / 10 |
| IP Rating | IP45 | IP45 | IP45 | IP45 |
| Basic | ✓ | – | – | ✓ |
| Timer | – | ✓ | ✓ | – |
| Humidity | – | – | ✓ | – |
| Motion Sensor | – | – | – | – |
| Variable Speed | – | – | – | ✓ |
| Weight: | 740 g |
| Size: | 100mm Spigot |
| Dimensions: | 5.2 x 14.7 x 14.7 cm; 739.99 Grams |
| Model: | QT100HT (9041261) |
| Part: | QT100HT (9041261) |
| Colour: | White |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Airflow |
| Colour: | White |
| Quantity: | 1 |
| Size: | 100mm Spigot |
Replaced a similar fan installed about 8 years ago so an easy fi
V quiet. Neat enough. Humidity activation means it works when it needs to.
Nice and quiet. First one appears to have got clogged up with fluff (like tumble dryer fluff. On closer inspection, due to poor fitment by the workmen.
Would recommend and bought again to replace broken one.
