DC Buck Converter 24V to 12V 10A 120W Step Down Transformer with Fuse Waterproof, Voltage Reducer for Golf Cart LED Light Motor Truck Vehicle Boat Solar System etc. (Accept DC 15-40V Inputs)
DC Buck Converter, 24V to 12V 10A 120W Step Down Transformer with Fuse Waterproof
It is a highly reliable DC-DC Converter,they have the characteristics of wide input voltage, low power consumption, high efficiency and high reliability.We provide different power supply voltage converters for various application equipment.
Safety Instructional Manual
1. The load connected to the output end of the converter should not be more than max listed load power, any higher rated load will cause damage to the power regulator.
2. Can not used long time by the MAX. If your device’s load is close to MAX power, please select a higher power converter.
3. Please connect the converter and your device according to the wiring diagram provided.
Converter Connection
Input: red(+) black(-)
Output: yellow(+) black(-)
Protection: input transient high voltage protection, output over-current protection, chip over-temperature protection.(please note that there is no input short circuit protection and reversed connection protection, please connect wires correctly, or the power may be burnt)
| | | |
|---|---|---|

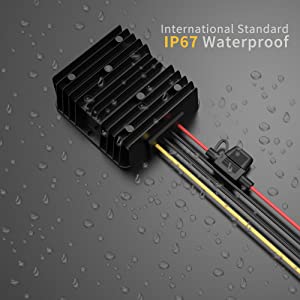

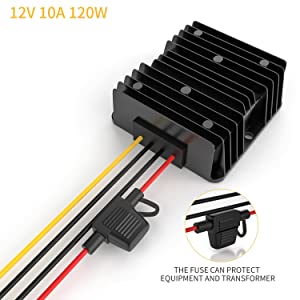

Fuse & SaferThe transformer is equipped with a fuse, and the fuse will be blown if the voltage is too high, which can reduce the risk of fire or explosion and fully protect the safety of users. | IP67 waterproof moduleDC transforme Better Heat Dissipation. Adopts thermal conductive organic silicone filling and sealing technology is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment. | Wide ApplicationsWidely used to golf cart, motor, speaker, GPS, LED car display screen, photo-voltaic power,industrial equipment ect. |
 |  | |  | | |
|---|---|---|---|---|---|

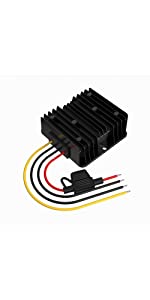

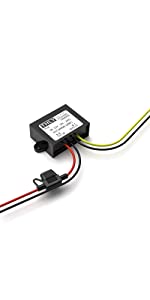

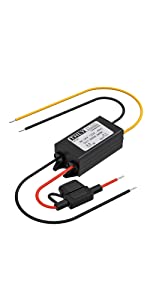

| Mode | 24V-12V | 24V-12V | 12V-24V | 12V-24V | 24V 12V-5V |
| Input voltage | DC 15-40V | DC 15-40V | DC 9-20V | DC 9-20V | DC 8-40V |
| Output voltage | DC 12V | DC 12V | DC 24V | DC 24V | DC 8-40V |
| Max Current | 10A 120W | 5A 60W | 10A 240W | 5A 120W | 10A 50W |
| Efficiency | 96% | 96% | 96% | 96% | 96% |
| waterproof | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fuse | 15A | 5A | 35A | 25A | 15A |
| Net Weight | 264g | 264g | 264g | 264g | 264g |
| Dimensions: | 14.1 x 10.9 x 3.8 cm; 264 Grams |
| Model: | 24T12-10A |
| Manufacture: | THLY |
