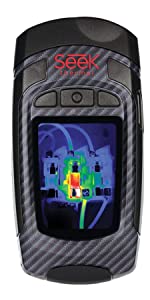

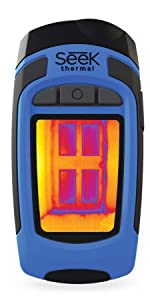

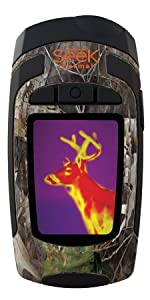

Seek Thermal Reveal Pro High Resolution Thermal Imaging Camera – Camouflage/Black


Thermal Sensor 206 x 156 320 x 240 206 x 156
Detection Distance 500 Feet 1,800 feet 900 Feet
Field of View 36 Degree FOV 32 Degree FOV 20 Degree FOV
Temperature Range -40°F to 626°F (-40°C to 330°C) -40°F to 626°F (-40°C to 330°C) -40°F to 626°F (-40°C to 330°C)
Frame Rate 9Hz Available in 15 Hz & 9Hz FastFrame in normal mode Available in 15 Hz & 9Hz FastFrame in normal mode
Battery Up to 10 hours continuous thermal imaging Up to 4 hours thermal imaging in normal mode Up to 10 hours continuous thermal imaging
Focus Fixed focus Fixed focus Fixed focus
Storage Media MicroSD card included 4GB internal drive (>4,000 images) MicroSD card included
Ideal for Contractors, DIY homeowners, engineers Contractors, DIY homeowners, engineers Outdoor use – animal tracking, safety and security


Weight: 5 g
Size: 2.4"
Dimensions: 3.81 x 5.08 x 5.08 cm; 5 Grams
Model: RQ-AAA
Part: RQ-AAA
Colour: Black
Pack Quantity: 1
Batteries Required: Yes
Batteries Included: Lithium Ion
Manufacture: Seek Thermal
Colour: Black
Quantity: 1
Size: 2.4"

You may also like...

18 Responses

  1. nborchelt says:

     Canada

    I got that as replacement for my old FlirOne dongle. The RevealPro is very solidly built and the battery is amazing, but the weird angle and the lack of MSX doesn’t allow me to see where actually i’m pointing it. I was hoping to get use to it, but after few jobs, which i had to repeat with my old FlirOne i gave up and returned it. Also – no option for regular photos. I have to pull another camera if i need to include it in report.

  2. eliben says:

     United States

    A major upgtade from my phone attachment. Great for around the house as usual and with great resolution. I enjoy the added security and awareness while camping. No issues and highly recommend.

  3. Peach Gallagher says:

     United States

    Golden Review Award: 6 From Our UsersI use it for home inspections and I can’t say anything bad about this imager at this price. Didn’t think I would care too much about the built-in flashlight, but it has proved itself very useful. If you’re on the fence and deciding between this and a Flir with 320 x 240 resolution ($2000), DEFINITELY save the $1400 extra bucks and get this one! Crazy good resolution for the $ and is by far good enough for home inspections. Super portable also, which is a huge plus when having to carry multiple instruments around all day.

    I use it for home inspections and I can't say anything bad about this imager at this price. Didn't think I would care too much about the built-in flashlight, but it has proved itself very useful. If you're on the fence and deciding between this and a Flir with 320 x 240 resolution ($2000), DEFINITELY save the $1400 extra bucks and get this one! Crazy good resolution for the $ and is by far good enough for home inspections. Super portable also, which is a huge plus when having to carry multiple instruments around all day.

  4. EstelleAGGQ says:

     United Kingdom

    Golden Review Award: 2 From Our UsersThe Reveal Pro is a very handy thermal imaging camera, that also happens to resolve and display a class-leading resolution of 320×240 individual thermal pixels. I’ve previously owned the excellent Flir One Pro, but that relied on being plugged into a smart-phone, which was a bit fiddly and prone to damage. But the Flir device only had a quarter of the resolution of this Reveal Pro.

    I particularly like the ease of use. As it’s a small dedicated device, all you need to do is take it out of your pocket and switch it on: the camera begins displaying the thermal image in about three seconds – that’s very fast compared to my old Flir One. It also has an integrated torch which is very useful.

    It comes with an integrated Lithium battery that lasts four hours. That’s also impressive compared to competitors, although I personally tend to prefer the option of using standard batteries for gadgets that I don’t use every day.

    This is a great tool for identifying insulation problems in the house, tracking hot water pipes / central heating and damp/leaks. It’s also fascinating to use indoors to see the heat signatures of things in the home, and is useful outside for spotting dogs and other animals in the dark.

    All in all, a quality item with a spec that other companies would charge at least double the amount for.

  5. Nancy says:

     United States

    My Seek thermal reveal pro works perfect. My impression is that the battery life is less than the information given by Seek. But that’s always the case with electronics that you buy and works on batteries. It still works long enough, for about 80 – 120 minutes and that’s long enough. For the rest it works perfect. Put your finger somewhere for one second and the camera picks up the heat difference which is less than one degree centigrade.

  6. jessicagibb says:

     United States

    for the price, packs high end specifications.
    some things could be better in terms of graphics and such, but again, very high resolution for the money.

  7. Anonymous says:

     United States

    Things on screen looks a lot smaller than you would expect. Videos reviews of product deceptive. But good for home defense and been using at my electronic job to fine hot chips on boards. It”s actually found lots of problems fast that would have taking time to find even though it’s not really designed for that.

  8. faintingviolet says:

     United States

    This is a very nice thermal camera that is able to produce high resolution thermal images. Compared to Seek thermal shotpro, this is clearer and much easier to use. It thermal calibration is also less annoying compared to Shotpro and has a nice LED light with independent switch that is very useful in the dark. Runtime is amazing and so far I am still on my first charge even though I have used it on several outdoor occasions.

  9. Adrian Willings says:

     Canada

    Golden Review Award: 2 From Our Users1-2 defrees off true temp
    Battery life is about 3-3.5 hours
    Good clearity
    Comfortable to hold and use
    Rugged grippy feel
    No instructions
    9hz frame rate seems to be more reliable that others i have used.
    Over all a good product for the price.
    Good for BEGINNERS and AMATURES.
    NOT PROFESSSIONAL QUALITY!!

    My favorite thing about this is the sensor. Very clear and i am picking up heat sources from over 2200ft. Advertised at 1800ft.
    Yes you can tell its a human figure at that far of a distance.

    Also says it has an sd card alot- no it does not.
    Seems to be some miss information on the ad.

  10. Anonymous says:

     United States

    Love this thing, great improvement on original seek for phone!

  11. LorenCBRIkgflzs says:

     Canada

    Great little heat camera. Mostly for entertainment. We bought it to scan for bears at night at the farm. It works well for deer—you can clearly see the animal’s outline from a safe distance. Haven’t had many bears this year…yet.

  12. Anonymous says:

     Mexico

    Lleg antes de tiempo (aunque el envo fue bastante caro y lo enviaron en una bolsa, ni siquiera una cajita), y funciona de primera, es todo lo que las mejore opiniones dicen que es y ms

  13. Peter Holden says:

     United States

    Golden Review Award: 2 From Our UsersI bought this as a tool to use when hunting to spot a deer I shot that ran off and hid in the foliage. Works surprisingly well for that, though I wish it had a longer range. After about 100 ft the thermal image becomes so small it’s hard to tell what you’re looking a

  14. MyAt_27 says:

     United States

    I bought this as an aid to tracking animals. I’ve used it once. There was no blood trail and I found the animal in less than a minute 60 yards from where I arrowed it relying solely on the imaging. Good enough for me.

  15. TMR Research says:

     Canada

    Let’s start with professionals. For money this unit will keep u happy. For job get 2-3K unit and stop reviewing this one. Hunters! Outdoorsman’s! Homeowners! WOW!!! That’s all I can say!!! Battery life good distance excellent price even better. 5 stars!!!

  16. TrentSasaki says:

     United States

    Not quite as good as I thought it would be. It does what I need it to do. Color temperature difference changes depending on angle and distance, which matters when you’re trying to determine an issue or not.

  17. RevaQRTwpjot says:

     United States

    There is a slight delay in display, but it’s a good quality camera

  18. Pocket-lint Promotion says:

     United States

    This is a high quality tool. Does the job well, and it’s compact and durable. It does not come with a case, so I am using an older phone case to protect the lens. Images are accurate, and it boots up fast.
