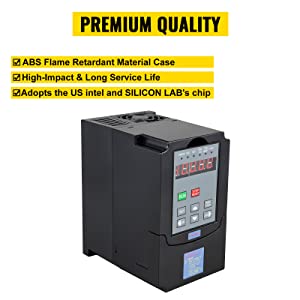

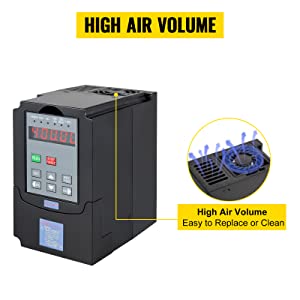

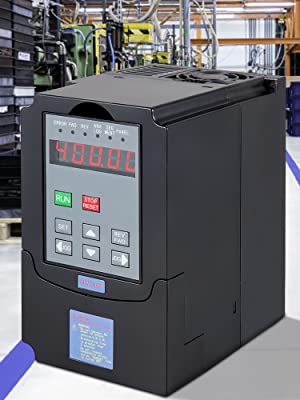

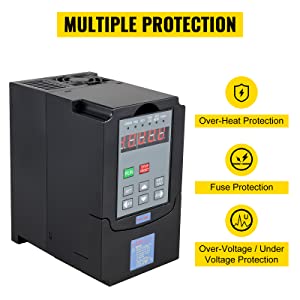

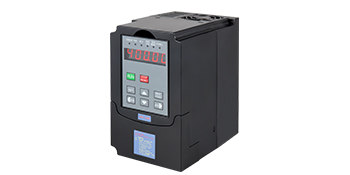

VEVOR VFD Variable Frequency Drive Inverter for Spindle Motor Speed Control (2.2KW-220V)
Package Content
- 1 x 2.2KW Variable Frequency Drive Inverter
- 1 x English Manual
Specifications
- Model: A2-8022
- Power: 2.2 kW
- Input Voltage: AC 200-260V
- Output Voltage: AC 220V
- Input Current: 10A
- Output Current: 15A
- Input Phase: 1 or 3 Phase
- Output Phase: 3 Phase
- Input Frequency: 45-65 Hz
- Output Frequency: 0.1-400 Hz
| Weight: | 1.04 kg |
| Size: | 2.2KW-220V |

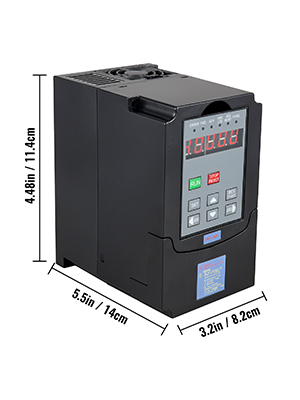

| Dimensions: | 19.05 x 18.03 x 12.95 cm; 1.04 Kilograms |
| Model: | VFD |
| Part: | VFD |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Manufacture: | VEVOR |
| Quantity: | 1 |
| Size: | 2.2KW-220V |
Found it easy to use and connect up. I find it to be value for money.
Instruction manual contained all parameters that can be set ( lots) but very little guidance on how to set for general applications. Took me several hours to get it to successfully run my 3 phase linisher.
Just got this wired up, easy to follow instructions to get it up and running. I used a kettle lead for the power, stripped and connected to the single phase input. Just a normal 3 core wire to the spindle as I’m going to run the cable along my extraction hose, if you want it in the drag chain or near other low voltage cables you’ll need some shielded cable for interference. Just want to connect the earth from the kettle lead to the aircraft plug on my spindle then its ready to go on my machine. Obviously I can’t comment on the longevity of the unit, I’ll have to come back and update later but I’m very happy with this so far.
I’m using this with a Vevor 1.5kw air cooled spindle on a standard Workbee 1015.
I was originally nervous about buying such a technical item from Amazon. But I’ve had a fantastic experience and the product itself is really great. It hasn’t got hundreds of parameters to set so much more user friendly than other VFDs I’ve used and the instructions are really well laid out. For anybody who wants to research the item it used to trade as an ASKPOWER unit. I’m using it to power my 1.5kw spindle for a CNC machine. Also, the service I received from the VEVOR team was great when I wanted to track the parcel after DPD took a while to deliver. They found it and sorted the issue same day. It’s been running a week now full time with no hiccups.
Easy to configure, good instructions. Would be nice if it had an extension lead for the detachable lcd display. Overall, though well designed and packaged. Thanks!
