Gaming Mini PC, Core i9 9880H UHD Graphics 630 Mini Desktop Computer, Windows 10 Pro 64-bit, DDR4 32GB RAM / 512GB M.2 SSD, RJ45 Gigabit Ethernet, HDMI 2.0 & DP Ports, TPC, Dual WiFi/BT 4.2
S210H models highlights:
- 2xSO-DIMM memory slot, dual channel more powerful performance improve work efficiency and give you a smooth experience.
- Brushed Aluminum Alloy Black color shell, Exquisite production craft on outside design.
- Onboard a copper fan for heat dissipation can keep the computer steady working long time.
- Support PXE, AWAL, RTC, Auto power on.
More Choices of Processor (CPU):
- Core i7-9850H, 2.60 GHz, up to 4.60 GHz, 12 MB Cache, 6 Cores 12 Threads, UHD Graphics 630
- Core i9-8950HK, 2.90 GHz, up to 4.80 GHz, 12 MB Cache, 6 Cores 12 Threads, UHD Graphics 630
- Core i9-9880H, 2.30 GHz, up to 4.80 GHz, 16 MB Cache, 8 Cores 16 Threads, UHD Graphics 630
Onboard Core 9th generation powerful processor for online games.
DP + HDMI Double Screens Display – Double your work efficiency
- Dual DP+HDMI outputs can show the Synchronous and Asynchronous display in different monitors at the same time.
- Both ports support 4k ultra HD streaming to stunning visual and provide you high productivity.
- Memory (RAM): Dual memory slot,2 x DDR4 SO-DIMM Socket up to 64GB RAM
- Socket: 2 * 260-pin SO-DIMM
- Graphics: UHD Graphics 630
- m.2 SSD: 2 x M.2 KEY M for SATA&PCIE3.0 bus SSDs (M.2 2280, NVME)
- SATA: 1 x SATA3.0 for 2.5 inch HDD/SSD
- Power Adapter: 19V Power Input, supply 19V 7A power adapter within the package
- Auto Power On: Support Auto Power On Function
- Wifi Module: Dual Band Wireless-AC 3165 433 Mbps WiFi and Bluetooth 4.2; 2 x Inside WiFi Antennas
- TDP: 45W; Material: Aluminum Alloy Plastic
- Language: Defauled English(support setting any language )
- Size: Mini PC size 14.4*13.4*6.4CM(5.67*5.28*2.52 inches); Package size 21*19*14CM; Net Weight: 2.5KG/5.51 Ib
- Switch: 1 x Power On/Off Switch; USB: 4 x USB 3.0 port, 2 x USB 2.0 port, 1 x Type C USB 3.1 port
- HDMI: HDMI2.0 out (support 4K@60Hz); DP: DP1.2 out（support 4k@60Hz）
- Power: 1 x 19V DC In

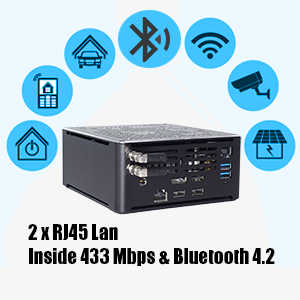

- Lan: 2x RJ45 Giga Lan; Audio: 1 x SPK Out / MIC In
| | | |
|---|---|---|
Highly efficient Core i9-9880H ProcessorSmall But Powerful Mini gaming Desktop Computer. 4K Ultra HD for visually home entertainment, perfect for home office, Internet surfing, watching movies, or simply browsing the web. | Super stable and strong connectivityComes with Dual Band Wireless-AC 3165 433 Mbps WiFi, Bluetooth 4.2, 4* 3.0 USB ports and 1000 Mbps LAN fast internet speed. Be first to connect to the world at unprecedented wireless speed. | Windows 11 Pro Mini Gaming PCThe Operating System is activated,Default version : Windows 11 Pro,Optional: Windows 10, Linux Ubuntu etc. Please kindly advice your favorite OS before shipping. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Operating System | Windows 10 Pro | Windows 10 Pro | Windows 10 Pro | Windows 11 Pro | Windows 11 Pro | Windows 10 Pro |
| GPU | HD Graphics 630 | UHD Graphics | UHD Graphics 600 | UHD Graphics 620 | UHD Graphics 750 | GeForce GTX 1650 4GB GDDR6 |
| RAM | Dual Channel DDR4 (max 32G RAM) | Dual Channel DDR4 (max 64G RAM) | Dual Channel DDR4 (max 32G RAM) | Dual Channel DDR4 (max 64G RAM) | Dual Channel DDR4 (max 64G RAM) | Dual Channel DDR4 (max 64G RAM) |
| Size | 15.0 x 13.7 x 6.5CM | 15*13.7*4.8CM | 13.6×12.6×4.3CM13.6×12.6×4.3CM | 23.7 * 17.5 * 5.3CM | 19.8x 19.8 x 5.5 CM | 27.7 x 20.1×5.6CM |
| USB Ports | 6 x USB 3.0 | 4*USB 3.0+4*USB 2.0 | 4 x USB 3.0 port | 4 x USB3.0 + 4 x USB2.0 | 4 x USB 3.1 + 4 x USB 2.0 | 4 x USB 3.0 + 4 x USB 2.0 |
| Hard Disk | Support 1 X M.2 SATA SSD or NVME SSD + 1 x M.2 NVME SSD for PCle 3.0 | Support 1 x M.2 KEY M for SATA&PCIE bus SSDs (M.2 2280, NVME); 1 x SATA3.0 for 2.5 inch HDD/SSD | Support 1 x M.2 NVME SSD for PCIE 3.0 x SATA3.0 for 2.5 inch HDD/SSD | Support 1 * mSATA 3.0 + 1 * M.2 SSD + 1 * sata III 2.5-inch laptop HDD / SSD | Support 1 x M.2 KEY M for SATA&PCIE 3.0 bus SSDs (2242/2260/2280) + 1 x SATA3.0 for 2.5 inch HDD/SSDs | Support 1 x M.2 KEY M for SATA&PCIE 3.0 (M.2 2280, NVME)+1 x SATA3.0 for 2.5 inch HDD/SSD |
| Color | As picture showed | As pictures showed | Black | Black | Black | Black |
| Output | DP+HDMI | DP+HDMI+2LAN | VGA+HDMI | HDMI+DP+EDP | HDMI | 2HDMI+DP+DVI |
| Com Ports | No | No | 2 x RS232 Com port | 4 * RS232 + 2 * RS485 / 232 COM port | 1 x RS232 Com Port | NO |
| Built-in Fan | ✓ | ✓ | No | No | ✓ | ✓ |
| Weight: | 2.12 kg |
| Dimensions: | 21.1 x 19 x 14.9 cm; 2.12 Kilograms |
| Brand: | WEIDIAN |
| Model: | ES210H-i9-9880H |
| Colour: | Window 11 Pro CPU Core i9 9880H |
| Batteries Included: | Yes |
| Manufacture: | WEIDIAN |
| Colour: | Window 11 Pro CPU Core i9 9880H |
Matriel informatique idal.
Ne prend pas de place mais permet un travail tip top.
je le conseille tous.
C’est une formule d’avenir.
For now (I used it for a week now) the pc is working fine and was delivered earlier then expected.
This pc is one of the best i have used, it is compact and one of the best products i have purchased from Amazon, the help from support is second to none, all around great purchase!
Caixa toda em alumnio, silencioso, vem com Windows 10, licena no interior na tampa da caixa, compatvel com Windows 11, comprovado com upgrade.
Muito rpido e com boa capacidade de expanso d para instalar 3 discos e at 64 GB de Ram dividida em duas slots.
Uso como servidor de virtualizao para laboratrios e estou muito satisfeito.
Recomendo, levou um pouco a chegar mas valeu a pena a espera.
The Computer arrived on the delivery date promised by the seller. I had contacted the seller via amazon between ordering and delivery. All responses from the seller were quick, courteous and helpful. Based on this order I would have no problem recommending fanlesspc-eu to anyone wanting to buy a Mini PC.
Very versatile pc,
After 6 months my power adaptor stopped working. i contacted the supplier and they sent me a new one. .
Consegnato in anticipo, non ha dato problemi per l’installazione. Ottimo per grafica.
Great seller. The product arrived faster then expected and the spec whcih I was given was higher then ordered. I supposed to receive processor 10 Pro Intel Core i9-8950HK, but the seller have installed Intel Core i9-9880H Processor 16M Cache, up to 4.80 GHz. The computer is fast and with installed windows 10 Pro. Higly recomended.
Cos piccolo cosi cosi potente GRAZIE
dit : aprs quelques jours, le mini pc fait un bruit horrible au dmarrage (voir vido), j’imagine qu’un ventilateur est dfectueux.
Premier commentaire :
Tout d’abord, je tiens remercier le vendeur pour sa flexibilit, j’avais dans un premier temps command un autre mini pc, puis j’ai chang d’avis pour ce modle avant la livraison, et le vendeur t trs conciliant.
Le mini pc en lui-mme est agrable visuellement et jusqu’ici trs efficace, j’espre le garder longtemps !
Molto pronto a risolvere favorevolmente il problema
