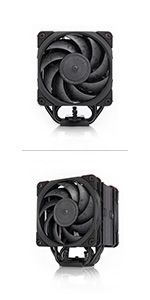

Noctua NH-U12A chromax.black, 120mm Single-Tower CPU Cooler (Black)
The NH-U12A chromax.black is an all-black version of Noctua’s award-winning NH-U12A premium-quality quiet CPU cooler. Thanks to the same proven asymmetrical single-tower heatsink design and state-of-the-art NF-A12x25 PWM fans, it stays true to the NH-U12A’s successful formula of fusing top-tier cooling performance with superb quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 multi-socket mounting system and Noctua’s enthusiast-grade NT-H1 thermal compound, the NH-U12A chromax.black is a deluxe choice for customers who seek a highly compatible 120mm heatsink that can rival the performance of 140mm units and looks just as great as it cools.
| | | | |
|---|---|---|---|
140mm performance in 120mm sizeThanks to its completely revised 7 heatpipe layout, 37% more fin surface area and a dual fan push/pull configuration that uses the new, state-of-the-art NF-A12x25 fans, the NH-U12A can actually match or even outperform many 140mm sized coolers. | 100% RAM compatibility on LGA115x and AM4Due to its asymmetric design, the NH-U12A does not overhang the RAM slots on Intel LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heatspreaders. On LGA2066, the rear fan will overhang the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 42mm in height.* | Classic 120mm tower size for excellent case and PCIe compatibilityStanding 158mm tall, the NH-U12A is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups. | Colour-customisableStanding 158mm tall, the NH-Using the optional NA-HC7 and NA-HC8 heatsink covers as well as the NA-SAVP1 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-U12A chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white. |
Measurements
- Height (without fan): 158 mm
- Width (without fan): 125 mm
- Depth (without fan): 58 mm
- Height (with fan): 158 mm
- Width (with fan): 125 mm
- Depth (with fan): 112 mm
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications
Scope of delivery
- Black NH-U12A heatsink
- NF-A12x25 PWM chromax.black premium fan
- NA-RC14 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NT-H1 high-grade thermal compound
- Black SecuFirm2 mounting kit
- Noctua Metal Case-Badge
* In cases with more than 158mm CPU cooler clearance, the rear fan can be moved upwards to make room for memory modules taller than 42mm.
chromax.black design
The NH-U12A chromax.black is black from head to toe: featuring a black coated heatsink, a black fan with black anti-vibration pads, black fan clips and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| LGA2066, LGA2011-0 & LGA2011-3 | ✓ | X | ✓ | ✓ | ✓ | ✓ |
| LGA1700 | with NM-i17xx-MP78 | X | with NM-i17xx-MP78 | with NM-i17xx-MP78 chromax.black | with NM-i17xx-MP78 | ✓ |
| LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) | ✓ | X | ✓ | ✓ | ✓ | ✓ |
| LGA775 & LGA1366 | with NM-I3 | X | with NM-I3 | with NM-I3 | with NM-I3 | with NM-I3 |
| Xeon LGA2011 Narrow ILM / Xeon LGA1366 & LGA1356 | X | X | X | X | X | X |
| Xeon LGA3647 | X | X | X | X | X | X |
| Xeon LGA4189 | X | with NM-i4189 | X | X | X | X |
| AM2(+), AM3(+), FM1, FM2 (+) | ✓ | X | additional backplate required | ✓ | ✓ | ✓ |
| AM4 | ✓ | X | ✓ | ✓ | ✓ | ✓ |
| sTRx4, sWRX8, TR4, SP3 | X | ✓ | X | X | X | X |
| Weight: | 1.22 kg |
| Dimensions: | 12.5 x 11.2 x 15.8 cm; 1.22 Kilograms |
| Brand: | Noctua |
| Model: | NH-U12Achromaxblack |
| Colour: | Black |
| Manufacture: | Noctua |
| Colour: | Black |
Muy recomendable
Dude entre este y una AIO. Me decante por este para evitar en el futuro problemas con bombas y mantenimiento en general.
Fue lo mejor que hice. Facil instalacin y estticamente al ser todo negro queda genial. Temperaturas que no pasan de 60 dandole mucha caa y que de uso normal no pasa de 30 en un i5 13600K. Obviamente va sobrado y se que me servir para un futuro i9.
Gran disipador para un Ryzen 7 5800x3D
Muchas reseas hablan acerca de que Noctua es sinonimo de calidad y vaya que tienen razn. Buscando en su pagina web para ver compatibilidades y estadisticas de rendimiento, vi que este disipador era apto para refrigerar sin problemas mi procesador (el cual debo de decir, es muy caliente si no se le regulan los niveles energeticos desde la BIOS) el cual a maxima capacidad llega hasta los 75 grados, con regulacin en BIOS no pasa de los 60 grados. Hace un poco de ruido pero no de maneras ridiculas como otros ventiladores de otras marcas o incluso enfriamientos liquidos con respecto a la bomba o los ventiladores del radiador. Recomendado 100%, incluso puede que algunos piensen que al ser mas pequeo que sus hermanos mayores ser menos efectivo pero por su construccin y los ventiladores de 120mm especializados para el enfriador, harn que valga la pena (aparte de tener mas espacio tanto para memorias RAM o la anchura que hay entre placa madre y la tapa de tu gabinete).
It is a beas
Wow did not expect that this cpu fan comes with a huge heatsink and two fans.
My case was only able to fit one fan but one fan still works good. Your cpu wont overheat and keep it nice and cool
