FEELWORLD FW568 5.5 inch DSLR Camera Field Monitor Peaking
FEELWORLD FW568 5.5 inch DSLR Camera Field Monitor Peaking Focus Assist Small Full HD 1920×1080 IPS 4K HDMI 8.4 V DC Input Output Include Tilt Arm
More Detail about FW568
Display Spec.
- Screen Size: 5.5″ IPS
- Resolution: 1920×1080 pixels
- Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm
- Aspect Ratio: 16:9
- Brightness: 500cd/m²
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input/ Output
- Input: 1 X 4K HDMI
- Output: 1 X 4K HDMI, DC Output
- Audio: Stereo Headphone
- HDMI Input/ Output Support Format:
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p(60/59.94/50/30/29/25/24/23.98)
- 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
- 4K UHD 3840×2160p(30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
- Input Voltage: DC7～24V
- Power Consumption: ≤8W
- Power Connector: DC
- Working Temperature: -20°C~55°C
- Storage Temperature: -30°C~65°C
- Install Way: One removable ¼-20 thread points
- Unit Size: 142Lx87.2Hx27.5D (mm)
- Unit Weight: 175g
Package Include
- 1 x FW568 Monitor
- 1× Micro HDMI Cable
- 1× Sunshade
- 1× Tilt Arm
- 1× Manual
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

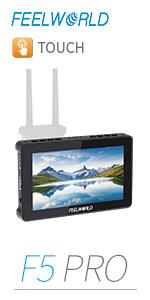

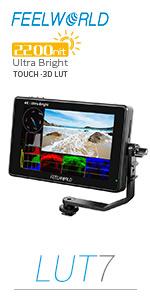

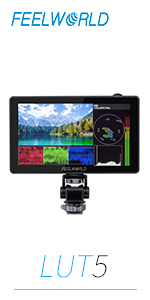

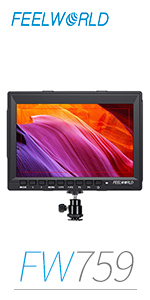

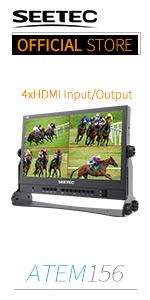

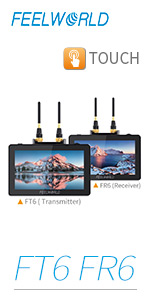

| Screen Size | 5.5″ Touch Screen | 5.5″ IPS | 5.5″ Touch Screen | 7″ IPS | 7″ Touch Screen | 15.6″ IPS |
| Resolution | 1920 x 1080 pixels | 1920 x 1080 pixels | 1920×1080 pixels | 1280×800 pixels | 1920×1200 pixels | 1920×1080 pixels |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:10 | 16:10 | 16:9 |
| Brightness | 500cd/m2 | 3000cd/m² | 500cd/m² | 400cd/m2 | 2200cd/m² (Light Sensor) | 250cd/m² |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 800:1 | 1200:1 | 800:1 |
| Inputs | 4K HDMI, Type-C 5V In | HDMI | HDMI | HDMI, AV, OSD controller | 4K HDMI, SD Card | HDMIx4 |
| Outputs | 4K HDMI, Stereo Headphone, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) | HDMI, DC OUT 8V, Stereo Headphone | HDMI, Stereo Headphone, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) | Stereo Headphone, Speaker(built-in) | 4K HDMI, DC OUT 8.4V, Stereo Headphone | HDMIx4, 3.5mm Stereo Headphone |
| Features | 3D LUT, Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip | 3D LUT, HDR, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip | 3D LUT, HDR, All Waves display, Parada, Vector, Histogram, Focus assist, False color | Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Ratio marker, Marker Color, Check Field, Image Flip, Image Freeze, Zoom All, Color Temperature Adjustment | 3D LUT, Waveform, Vector Scope, RGB Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Nine Grid, Center Marker, Safety Marker, Ratio Marker, Check Field, Image Flip | Quad Split Display, Peaking Focus Assist, False Color, Anamorphic, Display Rotate , Check Field, Image Freeze, Zoom, Pixel to Pixel, Center Marker, Safety Marker, Line Color |
| Unit Size | 148Lx93Hx20D (mm) | 142Lx86Hx28D(mm) | 148Lx103.5Hx41W (mm) | 176L×130H×17D (mm) | 190Lx126Hx27D (mm) | 372L×262H×28.4D (mm) |
| Unit Weight | 245g | 270g | 370g | 300g | 460g | 1.57kg |
| Size: | FW568 (5.5" 1920×1080 with Tilt Arm) |
| Dimensions: | 14.8 x 1.9 x 8.2 centimetres |
| Brand: | Feelworld |
| Model: | FW568-EU |
| Part: | FW568-USED |
| Colour: | FW568 (5.5" 1920×1080 with Tilt Arm) |
| Dimensions: | 14.8 x 1.9 x 8.2 centimetres |
| Size: | FW568 (5.5" 1920×1080 with Tilt Arm) |
We are amazed at how light these are compared to our older ones made by someone else. The light and clarity output is perfect. I have not messed around too much with outdoor/bright light but I bet a hood or sun shade would be enough to see it. The best aspect of this is how light it is and that matters when you are holding a DSLR for hours at a time.
We are amazed at how light these are compared to our older ones made by someone else. The light and clarity output is perfect. I have not messed around too much with outdoor/bright light but I bet a hood or sun shade would be enough to see it. The best aspect of this is how light it is and that matters when you are holding a DSLR for hours at a time.
Love this little monitor!! It's not very fancy but for the price, it packs a punch! I feel like I take better shots which the monitor on the camera than I do when I don't use it. It's nothing fancy like I said but it still has a lot of features that videographers can use.
Love this little monitor!! It’s not very fancy but for the price, it packs a punch! I feel like I take better shots which the monitor on the camera than I do when I don’t use it. It’s nothing fancy like I said but it still has a lot of features that videographers can use.
This is a great little monitor for my camera setup, it’s cheap and lightweight, buttons feel sturdy too. Something to note here – this monitor does not come with batteries. Search Amazon for this:
