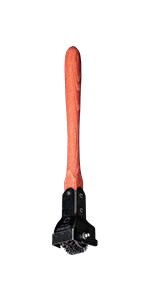

Pferd 33300001 Dressing Roller Grinding Disc Cutte

General information:

Recommended use:

Regular removal of the disc releases sharp grain and maintains a straight grinding surface. The workpiece support constantly adjust the diameter of the grinding wheel (gap width max. 3 mm).

Safety information:

The maximum permissible circumference speed is 35 m/s. The specified maximum permissible speed must never be exceeded for safety reasons. Before clamping, the grinding wheel must be subjected to a sound sample to ensure that it has no cracks (undamaged grinding wheels give a clear sound).

Editing tasks

• Deburring
• Edging (chamfering, rounding).
• Sharpening

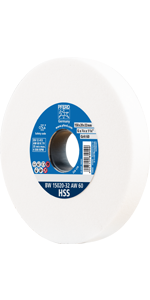

Diameter (D).	150 mm.	150 mm.	150 mm.	200 mm.	250 mm total length.	55 mm wheel diameter.
Width (D).	20 mm.	20 mm.	20 mm.	20 mm.	22 mm diameter.	39 mm roll width.
Bore (H).	32 mm.	32 mm.	32 mm.	32 mm.
Reductions.	25 / 20 / 16 mm.	25 / 20 / 16 mm.	25 / 20 / 16 mm.	25 / 20 / 16 mm.
Grain size:	60.	60.	120.	60.
Abrasive.	Normal corundum.	Corundum.	Silicon carbide.	Normal corundum.	Silicon carbide.
Workable materials.	Steel, cast steel, stainless steel (INOX), cast iron.	Tool steels, insert steels, hardened, tempered steels over 1,200 N/mm² (> 38 HRC).	Hard metal, hardened, tempered steels over 1,200 N/mm² (> 38 HRC), steel materials with a hardness > 54 HRC, glass.	Steel, cast steel, stainless steel (INOX), cast iron.	Sanding stand discs.	Sanding stand discs.
Ceramic binding.	✓	✓	✓	✓
Hardness:	M	K	J	M
Structure density	6.	7.	7.	6.
