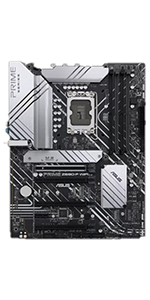

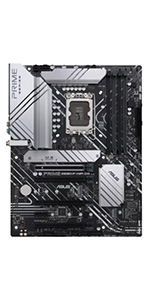

ASUS Prime Z690-P D4 Intel Z690 LGA 1700 ATX Motherboard
ASUS Prime Z690-P D4 Intel Z690 LGA 1700 ATX Motherboard PCIe 5.0, Three M.2 Slots, 14+1 DrMOS, DDR4, 2.5 GB LAN, HDMI, DP, USB 3.2 Gen 2×2 Type-C, Front USB 3.2 Gen 1 Type-C, Thunderbolt 4 heade
USB 3.2 Gen 2×2 Type-C
Numerous USB ports support high-end rigs loaded with peripherals, including both front and rear USB Type-C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.
Thunderbolt 4 Support
Prime Z690-P features Thunderbolt 4 support via an on-board header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
No DRAM Detected– Fast blinking 4 Hz (0.25s)
No VGA Detected– Slow blinking 1/2 Hz (2s)
No Boot Device Detected– Very slow blinking 1/8 Hz (8s)
Installation Completed– Solid light
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

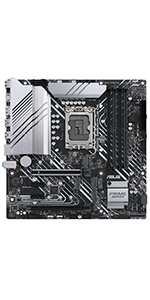

| CPU | LGA1700 | LGA1700 | LGA1700 | LGA1700 | LGA1700 | LGA1700 |
| CPU power | 14+1 (50A) | 14+1 (50A) | 14+1 (50A) | 14+1 (50A) | 16+1 (60A) | 10+1 (50A) |
| Memory | DDR4 4 x DIMM, Max. 128GB | DDR4 4 x DIMM, Max. 128GB | DDR4 4 x DIMM, Max. 128GB | DDR4 4 x DIMM, Max. 128GB | DDR4 4 x DIMM, Max. 128GB | DDR4 4 x DIMM, Max. 128GB |
| Graphic output | DP1.4/HDMI2.1 | DP1.4/HDMI2.1 | DP1.4/HDMI2.1 | DP1.4/HDMI2.1 | DP1.4/HDMI2.1 | DP1.4/HDMI2.1 |
| Expansion slots | 1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 (max. @x4) 2 x PCIe 3.0 x16(max. @x4) | 1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 (max. @x4) 2 x PCIe 3.0 x16(max. @x4) | 1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 (max. @x4) 2 x PCIe 3.0 x16(max. @x4) | 1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 (max. @x4) 2 x PCIe 3.0 x16(max. @x4) | 1 x PCIe 5.0 x16 (@x16) 1 x PCIe 3.0 x16(max. @x4) | 1 x PCIe 5.0 x16 (@x16) 1 x PCIe 4.0 x16 (max. @x4) |
| SATA 6Gb/s | 4 | 4 | 4 | 4 | 4 | 4 |
| M.2 | 1 x 22110 (PCIe 4.0 x4) 1 x 22110 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) | 1 x 22110 (PCIe 4.0 x4) 1 x 22110 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) | 1 x 22110 (PCIe 4.0 x4) 1 x 22110 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) | 1 x 22110 (PCIe 4.0 x4) 1 x 22110 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) | 2 x 22110 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) | 1 x 2280 (PCIe 4.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) |
| USB | 1 x USB 3.2 Gen 1; 1 xUSB 3.2 Gen 2×2 (1C@B); 1 x USB 3.2 Gen 2 (2A1C@B, 1C@F); 7 x USB 3.2 Gen 1 (2@B, 4@F, ,1C@F) | 1 x USB 3.2 Gen 1; 1 xUSB 3.2 Gen 2×2 (1C@B); 1 x USB 3.2 Gen 2 (2A1C@B, 1C@F); 7 x USB 3.2 Gen 1 (2@B, 4@F, ,1C@F) | 1 x USB 3.2 Gen 1; 1 xUSB 3.2 Gen 2×2 (1C@B); 1 x USB 3.2 Gen 2 (2A1C@B, 1C@F); 7 x USB 3.2 Gen 1 (2@B, 4@F, ,1C@F) | 1 x USB 3.2 Gen 1; 1 xUSB 3.2 Gen 2×2 (1C@B); 1 x USB 3.2 Gen 2 (2A1C@B, 1C@F); 7 x USB 3.2 Gen 1 (2@B, 4@F, ,1C@F) | 1 x USB 3.2 Gen 2; 1 xUSB 3.2 Gen 2×2 (1C@B); 4 x USB 3.2 Gen 2 (2A1C@B, 1C@F); 6 x USB 3.2 Gen 1 (4@B, 2@F) | 1 x USB 3.2 Gen 1; 1 xUSB 3.2 Gen 2×2 (1C@B); 1 x USB 3.2 Gen 2 (2A1C@B, 1C@F); 7 x USB 3.2 Gen 1 (4@B, 2@F, ,1C@F) |
| Wireless | – | Intel Wi-Fi 6 | – | Intel Wi-Fi 6 | – | – |
| Ethernet | 1 x Realtek 2.5Gb | 1 x Realtek 2.5Gb | 1 x Realtek 2.5Gb | 1 x Realtek 2.5Gb | 1 x Intel 2.5Gb | 1 x Intel 2.5Gb |
| Weight: | 1 kg |
| Dimensions: | 30.5 x 23.4 x 4 cm; 1 Kilograms |
| Brand: | ASUS |
| Model: | 90MB18P0-M0EAY0 |
| Batteries Included: | No |
| Manufacture: | ASUS |
| Dimensions: | 30.5 x 23.4 x 4 cm; 1 Kilograms |
