MSI MAG B660M Mortar Max Wifi DDR4, PCIe 5.0, Intel B660

MSI MAG B660M Mortar Max Wifi DDR4

MSI MAG B660M Mortar Max Wifi DDR4, PCIe 5.0, Intel B660 Mainboard – Sockel 17


msi-mag_b660m_mortar_max_wifi_ddr4-amazon_reseller_page-banner.pngMAG-B660M-MORTAR-MAX-WIFI-DDR4-_A+_MAINMAG_B660M_MORTAR_MAX_WIFI_DDR4_A+_1.pngMAG_B660M_MORTAR_MAX_WIFI_DDR4_A+_3.pngMAG_B660M_MORTAR_MAX_WIFI_DDR4_A+_7.pngMAG_B660M_MORTAR_MAX_WIFI_DDR4_A+_6.png

4 x DDR4 Dual Channel (4800+ MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 4800+ MHz.

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

  • 1 x PCI-e 5.0 x16 slot (with Steel Armor)
  • 1 x PCI-e 3.0 x16 slot (CrossFire supported)

Gen4 M.2 Connectors

The MAG B660M MORTAR MAX WIFI DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • 2 x Gen4 x4 64Gb/s slots

Wi-Fi 6E & Bluetooth 5.2

2.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.

USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.

Wi-Fi 6E: Features an Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

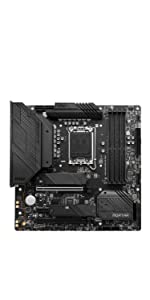

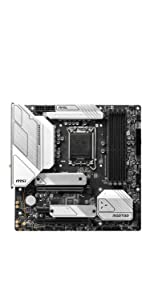

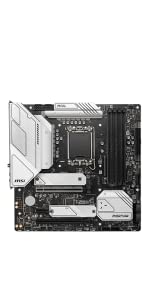

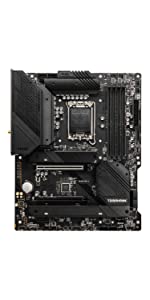

MAG B660M MORTAR DDR4MAG B660M MORTAR WIFI DDR4MAG-B660M-MORTAR-MAX-WIFI-DDR4-_A+_comparisonMAG B660 TOMAHAWK WIFI DDR4
MSI Gaming Series MAG MAG MAG MAG
Form Factor Micro-ATX Micro-ATX Micro-ATX ATX
VRM 12 Duet Rail Power System 12 Duet Rail Power System 12 Duet Rail Power System 12 Duet Rail Power System
DIMM Slots DDR4 x 4 (4800+MHz/OC) DDR4 x 4 (4800+MHz/OC) DDR4 x 4 (4800+MHz/OC) DDR4 x 4 (4800+MHz/OC)
PCI-e x16 Slots 4.0 x 1 / 3.0 x 1 4.0 x 1 / 3.0 x 1 5.0 x 1 / 3.0 x 1 4.0 x 1 / 3.0 x 1
M.2 Slots 4.0 x 2 4.0 x 2 4.0 x 2 4.0 x 3
M.2 Shield Frozr Single-Sided Single-Sided Single-Sided Single-Sided
Audio 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost 8-Channel (7.1) HD Audio with Audio Boost
LAN RTL8125BG 2.5G LAN RTL8125BG 2.5G LAN RTL8125BG 2.5G LAN RTL8125BG 2.5G LAN
WiFi & Bluetooth Intel Wi-Fi 6 module, Bluetooth 5.2 Intel Wi-Fi 6E module, Bluetooth 5.2 Intel Wi-Fi 6 module, Bluetooth 5.2


Weight: 1.59 kg
Dimensions: 28.3 x 27.7 x 8.1 cm; 1.59 Kilograms
Brand: MSI
Model: 7D97-002R
Colour: Black
Batteries Included: Yes
Manufacture: MSI
Dimensions: 28.3 x 27.7 x 8.1 cm; 1.59 Kilograms

13 Responses

  1. Anonymous says:

     United Kingdom

    A future (as you can get for LGA1700] proof motherboard with BIOS Flashback/clear CMOS button all on rear panel. The B660M series doesn’t have that, so you must already own a 12th Gen before being able to flash (with a running operating system) to 13th or 14th gen. Support for DDR 5, Gen 5 PCI-E (steel reinforced PCI-E slot), Wifi 6E. Cracking onboard sound. Quad M.2 support. (First M-2 shares the PCI-E slot X4, so if your card is X4 your fine as it’s a Gen 5 X8) 7 SATA, Bluetooth 5.3. Only 2 SATA cables in the box which is poor.
    The BIOS has a simple CPU cooler select. Boxed ,water or tower cooler. Which sets the power plus tons of features. Excellent purchase

    5.0 out of 5 stars Support out the box for 13th Gen CPUs and 14th Ge

  2. Joseph S Anzalone says:

     Germany

    Ich kaufte es als Ersatz fr ein Gigabyte Z790 UD, weil dessen BIOS fehlerhaft ist/war.

    Meine Wahl fiel auf dieses Board, weil es sechs freie SATA Stecker fr meine Laufwerke bietet. Auch die Platzierung aller Stecker auf dem Board fand ich gnstiger. Ansonsten bietet es nicht mehr oder weniger als alle Board dieser Preisklassse. Leider liegen die Steckpltze fr die Erweiterungen so, dass ich den Deckel nicht mehr auf den PC gebracht htte. Deshalb musste es zurck.

  3. Anonymous says:

     France 🇫🇷

    s bonne carte mre en ddr4, avec la puce renegade pour oc les cpu intel non-k

    j’ai mont un i3 12100f et oc plus de 5ghz, nickel stable, performent sans oublier le pcie 5.0
    je suis trs satisfait des perf et de l’esthtique de la carte, c’est du solide, le prix vaut le coup

  4. Annie @ Mama Dweeb says:

     France 🇫🇷

    CM au top pour OC et autre!! Il mme le bluetooth!!!!! Je recommande pour les gen 12 et 13th!!!!!

  5. AugustaWild says:

     Italy

    ottimo prodotto, completo. per ora svolge bene le sue funzioni

  6. Anonymous says:

     Spai

    Buena placa base para tener buena conectividad y estar actualizado.

  7. Anonymous says:

     Italy

    Golden Review Award: 3 From Our UsersMatx perfetta per il miei scopi: un sffpc appena sotto i 20L ma con tutta la flessibilit (porte connessioni slot memoria ) di un formato pi grande di una ITX. La versione di BIOS con cui la ho ricevuta ( al 30 novembre ) del 2020.. ergo per il supporto della serie 13 intel (io ho montato un 13700k) di processori, occorre aggiornarlo PRIMA di montarli per poterli far riconoscere: serve un processore della serie 12,( la MORTAR Mag, NON ha il flashback bios..) e un bios almeno da Giugno scorso, io ho utilizzato l’ultimo disponibile sul sito MSI , ver. 7D42vA8 .
    Ho scelto la versione con memorie ddr5 ( Kingston FURY Beast 32GB (2x16GB) 5600MT/s .. NO RGB… ) che sono state riconosciute alla corretta velocit con il profilo 1 xmp settato nel bios ( non configurato questo , venivano riconosciute come 4800 ); non ho provato overclock di queste comunque. Gli slot M2 hanno adeguato “cuscinetto” per assicurare il contatto e rendere efficace la dissipazione del calore dei dischi montati ( protetto da una sottile pellicola , ricordarsi di toglierla quando si monta uno di questi… ). Per l’installazione del sistema operativo bastato generare un disco (..chiavetta USB ..) del sistema ( w10pro ) con l’utility di Microsoft, partendo dal sistema che questa scheda andava a sostituire, e con la versione 22H2 del sistema l’installazione proceduta senza problemi, anche perch ho provveduto a copiare i driver della scheda madre in una cartella posta sulla stessa chiavetta. In conclusione scheda non di altissima gamma ( sigh.. la schedina thunderbolt che in grado di supportare, sembra introvabile se non a prezzi iperbolici ..) ovviamente non adatta all’overclock dei processori ma in grado di supportare anche versioni elevate degli stessi, senza doversi svenare, e naturalmente pi adatta a costruire sistemi compatti. Ottima!

  8. ClevelandGabrie says:

     United Kingdom

    Upgraded my pc from an i5 4440 to i5 12400f using this MSI board. Easy to install (well for someone who’s built his own rigs since ’92) and boots my older SATA SSD when switched to CSM mode. Took some time to figure it out but all’s well that ends well. Great upgrade with DDR5 too

  9. TrudyT28xonwc says:

     Italy

    Ho avuto un disguido con Amazon che mi ha inviato la scheda madre predisposta per le memorie DDR4 anzich DDR5 come avevo in realt ordinato, ma mi hanno prontamente rimborsato e sono riuscito ad acquistarne una dal Warehouse praticamente nuova (scheda madre ancora imballata e sigilli intatti, solo qualche graffio alla scatola). La scheda madre in questione compatibile con CPU Intel con socket LGA1700 (quindi 12esima gen), ha 4 connessioni per le ventole (system fan 1 e 2, CPU fan e PUMP fan) e diversi pad termici. La mia versione aveva il WIFI ed il bluetooth. Qualit prezzo ottima considerando che le altre schede madri DDR5 costano dai 50 ai 100 euro in pi, davvero consigliata.

  10. Anonymous says:

     France 🇫🇷

    Golden Review Award: 2 From Our UsersCette MSI MAG B660M Mortar DDR5 est une carte mre compacte, mais qui offre la plupart des fonctionnalits ncessaires une bonne configuration PC, sans en offrir de trop et risquer de faire grimper le tarif de manire significative, sans pour autant offrir des performances suprieures.

    Dans l’ide, cette carte mre MSI est parfaite pour monter une configuration avec les derniers processeurs Intel, sans se ruiner dans un chipset plus haut de gamme dont la plupart des utilisateurs n’ont pas le besoin. Ici, c’est une carte mre de jeu, solide, fiable et agrable, seulement le ncessaire pour un prix raisonnable, bravo MSI.

  11. Anonymous says:

     France

    Golden Review Award: 10 From Our UsersUne bonne carte mre, facile installer.

    Trois points savoir cependant:

    -Le support du wifi n’est pas natif au premier dmarrage…il faudra d’abord tlcharger (en ethernet?) les drivers intel wifi sur le site MSI

    -Si vous voulez enregistrer votre CM sur le site MSI pensez noter le numero CHK qui se trouve sur le connecteur ATX. Une fois installe dans le boitier c’est assez compliqu

    -Certains connecteurs ‘secondaires’ ne sont pas compatibles avec les vieux boitiers. Par exemple mon connecteur ‘speaker’ (HP de boitier) est sur 3 pin de large l o la CM est sur 2 pi

  12. Anonymous says:

     Spain 🇪🇸

    El producto en si est genial, el problema es la gestin de Amazon. 1 lo ped 3 veces ya que la 1 vino mal con un picotazo en la caja del producto y un slot de RAM daado. Reemplazo de producto no era compatible con RAM DDR5 sino con DDR4. Devolucin de producto y reemplazo el 16 de agosto y la devolucin se a realizado el da 1 de Septiembre por que reclame y aun espero a que se refleje en la cuenta bancaria. 2 En ms de una llamada a Amazon por este producto no me daban solucin y me han colgado en alguna ocasin. 3 El producto viene en el embalaje de la placa y sin embalaje de Amazon y por lo tanto el producto es visible al transportista y viene sin ninguna proteccin. Lo ped por tercera vez ya que lo bueno de Amazon son las garantas de devolucin.

  13. Anonymous says:

     United Kingdom

    Golden Review Award: 10 From Our UsersThe motherboard is just wat I wanted, M-ATX and DDR5, easy to set up and pair with the new Intel 12th Gen Processor I5 12600F, does everything a motherboard should and from a great company
