wolfcraft Pump With Plastic Casing I 2202000 I For pumping
wolfcraft Pump With Plastic Casing I 2202000 I For pumping liquids with a power drill
For pumping liquids
Power Drill Pump from wolfcraft
Handy and inexpensive – the compact power drill pump with plastic casing is ideal for fast and uncomplicated pumping of liquids. Perfect for draining water beds or the water butt.

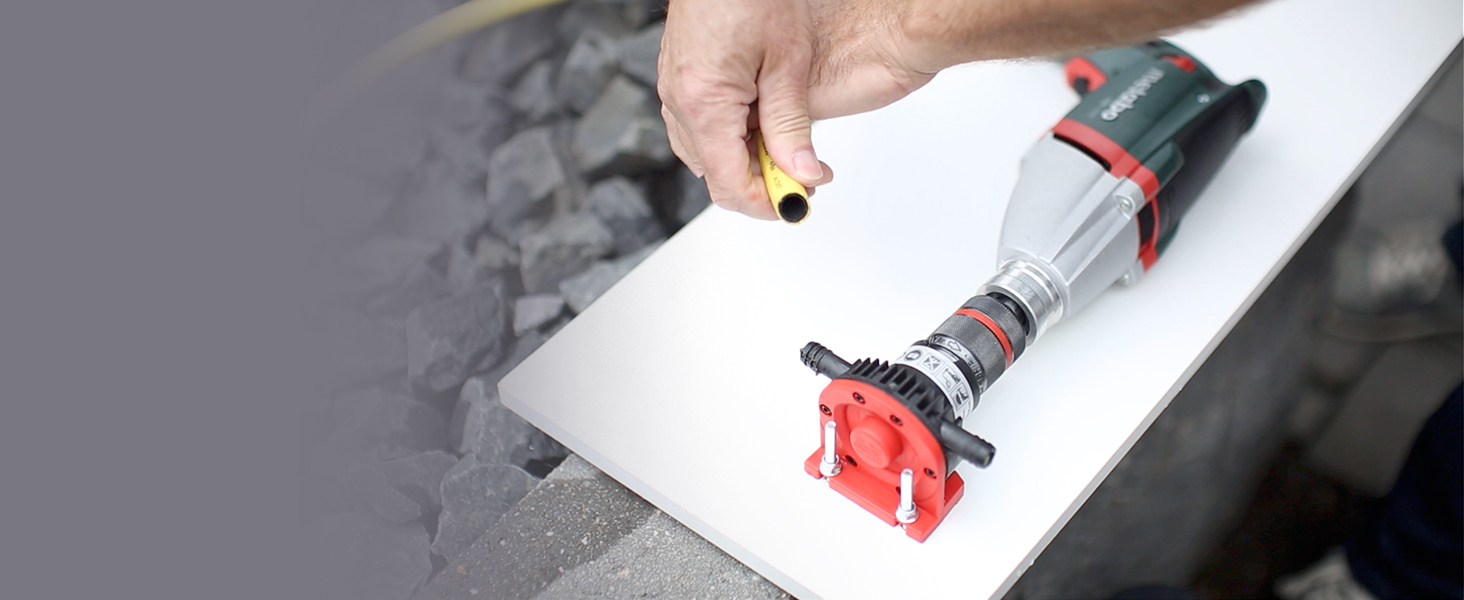

Power drill
The water pump works with customary power drills with at least 600 W power.

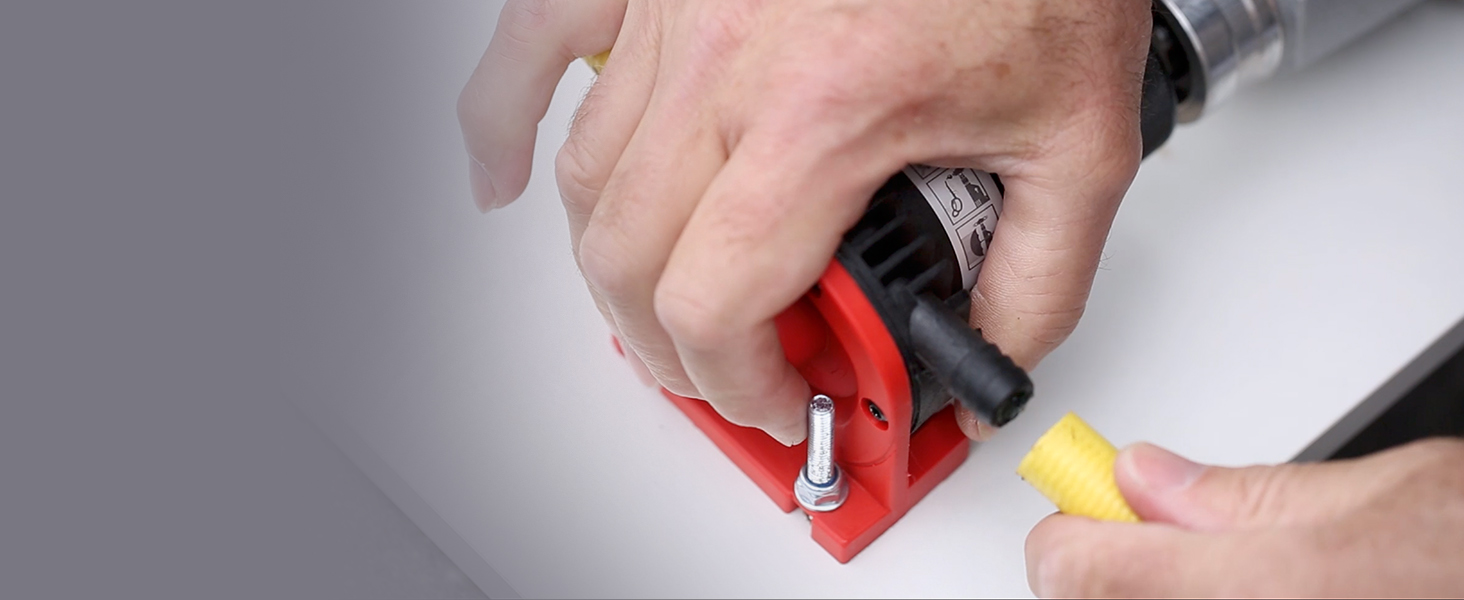

Connecting the hose
Attach 2 garden hoses to the hose connections with a diameter of 13 mm.
Pumps
Start the pump at low speed and then increase the speed to max. 2,800 rpm.
Water pump from wolfcraft – quick to install!
1Power drill2Connecting the hose3Pumps
wolfcraft
Since 1949, wolfcraft has been developing products for greater speed, precision and safety in home and professional applications. With more than 3,000 products, we make it possible for users all over the world to achieve great results at the first try.
With which power drills is the pump compatible?
The power drill requires at least 600 W to operate the pump. The pump has an 6 mm shank, which is compatible with customary commercially available models. The pump must be lubricated with commercially available machine oil at regular intervals.
What is the maximum speed and delivery rate?
The maximum machine speed for driving this pump is 2,800 rpm & the max. delivery rate of the pump is 1,300 l/h.
To what do I have to pay explicit attention when using this pump?
The pump is not suitable for pumping toxic, corrosive and highly flammable substances, drinking water or water for aquariums. In addition, it is not permitted to use the pump for foodstuffs or hot liquids above 40 C.
What suction and delivery head does the pump have?
It sucks in water up to a height of 3 m and then pumps it up to a height of 15 m.
| Weight: | 296 g |
| Dimensions: | 8.4 x 15 x 21.5 cm; 296 Grams |
| Model: | 2202000 |
| Part: | 2202000 |
| Colour: | Black |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Wolfcraft |
| Dimensions: | 8.4 x 15 x 21.5 cm; 296 Grams |
| Quantity: | 1 |
Like everything, pumps well, cheap and appears well made
Did not attach to support board. Tried without and just held pump and drill. No problem.
Bought this to help transfer water from a water butt to holding tanks ( some old wheelie bins ). I use a Bosch battery drill for this operation and it works perfectly.
I had a bad experience with a cheap one of these drill pumps. But this Wolfcraft one does the job very well. It has power and it appears to be well made and it takes standard 13mm hosepipe.
It states that a corded electric drill is required but my Einhell cordless drill worked very well. I mounted it on a piece of thick wood and then added a thin piece of wood to lay the drill on to give it a bit of height to meet the spindle.
I’m planning to use this to pump out a small pond, and also use it to pump from my garden water butts, using my cordless drill.
I need to mount it on a board using the fixings suppled with it, plus some clear half inch hose, which I have to get.
I’m confident it will work fine when I have set up. Its a Wolfcraft produc
Got my first one back about 8 years ago. Burnt that out a month back and just got a replacement. I use it to move water between water butts in the garden. Simple cheap product.
I used this to pump out my water feature for the winter to avoid the reservoir freezing and damaging it. Used a cordless drill and it did the job perfectly.
Brilliant product. Bought one to see if it would pump oil while servicing machines and it does perfectly.
So good in fact I now have a pair of these in the van, one for clean oil and one for waste oil.
What a great pump! For some reason I got the impression it’d be ok with flammable liquids but it turns out the instructions say “No”. However I had little choice as the fuel needed immediate transferral, so I screwed it to a board, connected my drill and hoses and fired it up. It self-primed in about 3secs and shifted about 100lit in half an hour- that included frequent stopping to check for overheating which wasn’t an issue, the pump remained stone cold throughout. The feed hose was about 2m long, output hose about 1m with about 1m head. I highly recommend it.
2 other times for emptying cistern/tanks on macerator toilet.
The item is very compact and lightweight, I ended up fixing mine to a piece of marine ply to keep it sturdy when in use.
Be mindful that you his can only be operated for a certain amount of minutes at a time as it is made from abs plastic and will get hot under load for lengthy periods and possibly fail.
You could spend a lot more money and get better quality equipment but for the smaller domestic jobs this works very well.
Thought Wolf tools generally good quality-the Germans generally don’t make any rubbish. Beware this pump is packed with grease so no good for drinking water (caravanners to note). I admit to struggling a bit to get the pump to self-prime at first and thought I’d bought a ‘pup’ but it does need a decent length of outlet pipe and a drill going quite fast to get it working. Maybe needs some back pressure on the outlet? Once running it did an admirable job on an18V Li-ion drill no problem. You can’t turn the shaft manually by hand and the grease packing needs to be reduced by running hot water through it first. It’s cheap but not nasty and would be better with ptfe dry bush bearings for potable water use but you can’t have everything for a tenner! Has to be board mounted for stability. Just go and buy one it’s a great little gadget.
I needed a pump to drain the water tank of a Narrowboat. Problem was that the only easy access was a filler with only a 2″ hole. So most pumps, being submersible , would not fit.
This seemed a toy for the job as I needed to move almost a ton of water, but as the reviews of this device were good, for about 7 I thought it worth a gamble.
As a precaution I fitted a Jabsco pump guard filter (cost about 12 from any marine or caravan chandler ) which also uses half inch hosepipe connections. I am not sure if this was necessary though
A piece of scrap timber as a base, two lengths of old hose pipe and away we went .
The instructions say that a drill of at least 600 watts power is needed. I used one of only 500watt, admittedly only needing to move liquid through four or five foot of height . Drill showed no straining or overheating – indeed it stayed cool throughout .
Only problem encountered was to keep the inlet hose at the bottom of the tank, it being somewhat curly and prone to come to the surface. To solve this I simply put the hose inside a spare three foot length of plastic domestic half inch waterpipe which accepts half inch hosepipe perfectly. I drilled a few holes around the bottom rim of the pipe.
Made the enire rig in under half an hour. Total cost, inc pump, filter etc under 20.
Emptied the tank in under an hour, so the claimed 1300 litres per hour is probably accurate .
Much interest in the Marina, and several boaters lost money on betting it would not do the job.
We only drain this tank once year, but normally it’s a slow job.
Next year I will only take me an hour at most .
Job Done. Economically ,easily and safely.
A Good Product .
