300mm HGR20 Linear Rail Guide Set,2 pcs HGR20-300 mm Linear
300mm HGR20 Linear Rail Guide Set,2 pcs HGR20-300 mm Linear Rails and 4 pcs HGH20CA Slider Block for Automated Machines
HGR15 Linear Rail Guide Set
- 2PCS HGR20 Linear Rail guide + 4PCS HGH20CA.
- HGR15 Complete Linear Rail Kits.
- High-Quality Steel Material,Easy to Install.
- Carriage blocks are able to resist high temperatures and own long service life.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

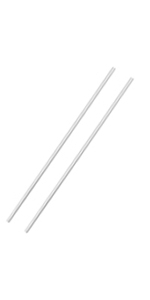

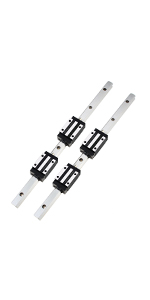

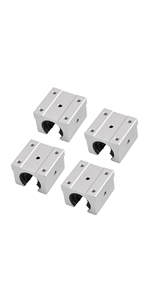

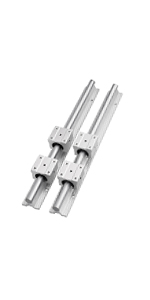

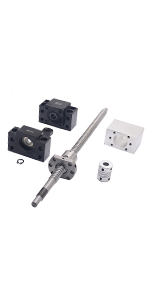

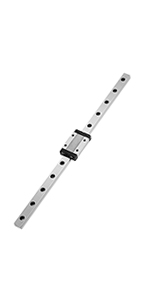

| Type | SFU1204/SFU1605 | 6mm /8mm/10mm/12mm rod | SBR12/SBR16 | MGN12H | HGR15/HGR20 | SBR12UU/SBR16UU/SBR20UU |
| Length | 250-600MM | 100-600MM | 300-600MM | 200-600MM | 200-600MM | (NONE) |
| Weight: | 2.87 kg |
| Size: | 300MM |
| Dimensions: | 35.4 x 12.7 x 6 cm; 2.87 Kilograms |
| Part: | 2 |
| Batteries Required: | No |
| Manufacture: | BUVVTPU |
| Dimensions: | 35.4 x 12.7 x 6 cm; 2.87 Kilograms |
| Reference: | 2 |
| Size: | 300MM |
The rails arrived well packaged complete with rails, blocks, guards and screws. The blocks and rails were covered in machine grease which I cleaned off with IPA. I cleaned and regreased with blocks with a lightweight grease. I have seen some people complain around these rails being greased however in my experience this is preferable to receiving ground surfaces covered in rust spots from being packaged in plastic and is standard practice in my experience.
The rails were ok quality with no real burrs and seem to be flat and straight. I havent measured them accurately and I am guessing they certainly are not hiwin standard but appear to be straight and true which for this price I am happy with.
I needed to cut the rails which I did with an angle grinder and cutting disc. They cut well and the steel looks like good quality with no voids or defects on the cur surfaces.
The fixing bolts were good quality again with no obviously malformed items and no burrs. I didnt use the bolts to affix the rails to my CNC as I needed a different length but did use them to fix the blocks to the machine and they were fine.
Overall I am pleased with these rails and for the price think they are worth the money. I will certainly be looking for more for my Ender 3. I have subsequently purchased some of the HGR20 rails for another project and these appear to be of similar quality.
