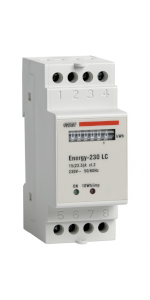

VEMER VN960100 Model ENERGY-230 LC DIN-Rail mounting Energy

Energy-230 LC is a static energy meter for displaying active energy consumption in single-phase 230 V plants.

It allows to verify the performance of consumption of individual power lines or entire plants in various sectors: residential, commercial or industrial.

The instrument is equipped with two LEDs, one red and one green. In normal operation the green led is on and the red led flashes with frequency proportional to the active power (1 flash every 10 Wh).

PHASE ERROR

When switching on the instrument it is checked that the connection to the current and voltage terminals is correct. In case of incorrect insertion, the counter freezes and you have simultaneous flashing and in the counter phase of red and green LEDs. To correct the error, you need to turn off the counter, reverse the voltage/current connection and turn on the meter again.

General characteristics

Power supply	230 V AC – 50/60 Hz	230 V AC – 50/60 Hz	230 V AC – 50/60 Hz
Assembly	on DIN bar	on DIN bar	on DIN bar
Maximum voltage	230 V	230 V	230 V
Maximum current	25 A (direct insertion)	22.5 A (direct insertion)	40 A (direct insertion)

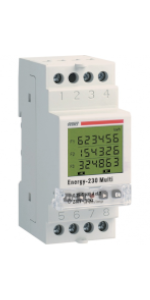

Display	–	–	LCD with backlight
Measurement resolution	0.1 kWh	0.1 kWh	0.1 kWh
counter	5+1 digits	5+1 digits	3×6 digits

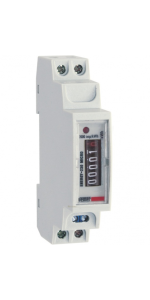

Dimensions	1 x DIN module	2 DIN modules	2 DIN modules
counting	single	single	Multiple (for time slots)
