Akasa Turing AC Pro, for Intel® NUC 13/12 Pro (Arena
Akasa Turing AC Pro, for Intel® NUC 13/12 Pro (Arena Canyon/Wall Street Canyon), Aluminium Fanless NUC Case with Thermal Kit, Supports up to 40W TDP, Vertical or Horizontal Placement, A-NUC95-M1B
Choose a Premium Fanless Case for a Wonderful Experience
Turing AC Pro | Maxwell AC Pro | Turing WS | Plato WS | Newton WS | |
Motherboard Support | Intel NUC 12/13 Pro | Intel NUC 12/13 Pro | Intel NUC 12/13 Pro | Intel NUC 11/12/13 Pro | Intel NUC 11/12/13 Pro |
CPU Thermal module | Copper | Aluminium | — | — | — |
Copper heatpipes | 6mm | 8mm | — | — | — |
Maximum TDP Support | 40W | 40W | 28W | 28W | 28W |
VESA Mounting | — | — | — | V | V |
Low Profile | — | — | — | 38.5mm high | — |

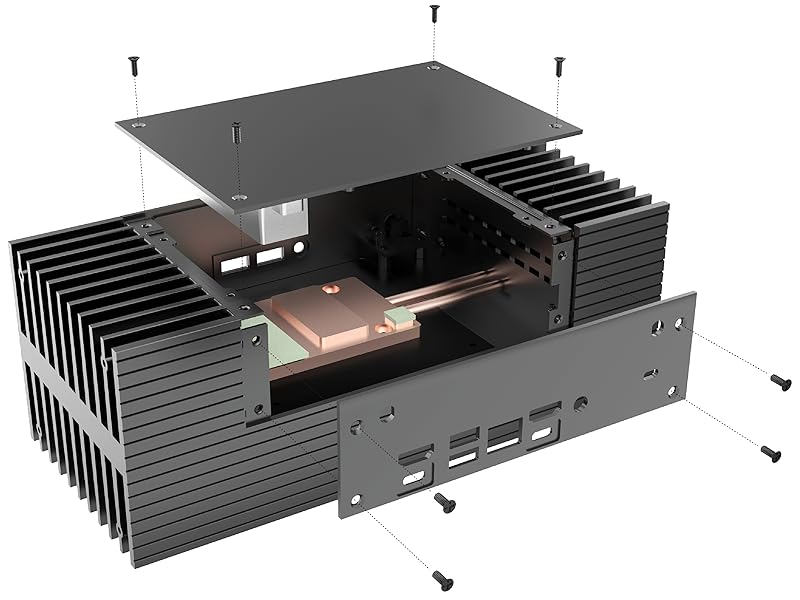

Easy Installation
Easily removable top cover and rear panel with fixed thermal module with two heat pipes to transfer the heat from the CPU. Making installation of the NUC board as easy as possible.

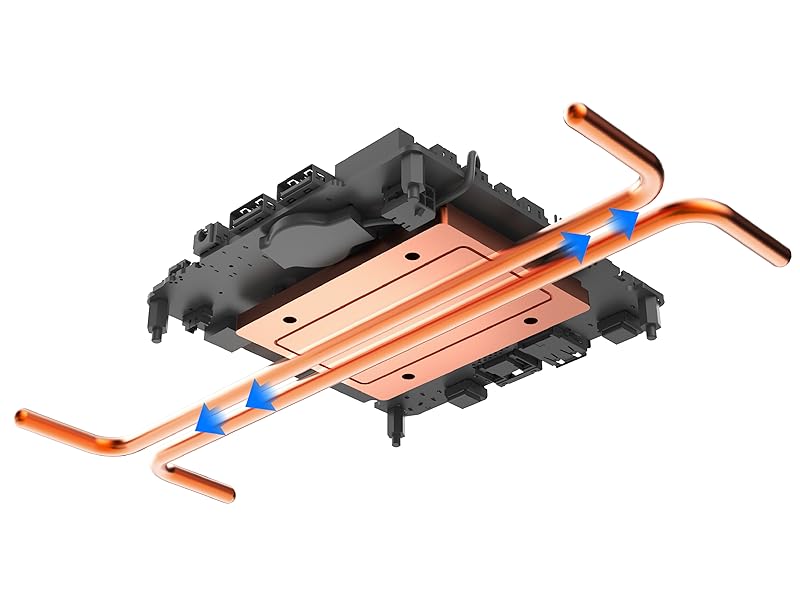

Copper Core for Advanced Performance
Bi-symmetrical extruded fins on either side of the case maximise the surface area of the exterior for increased heat dissipation. Coupled with internally hi-efficient passive copper thermal module and 6mm heatpipes to ensure the Thermal Design Point (TDP) is met, with the case supporting the Intel NUC 13 Pro up to 40W TDP.

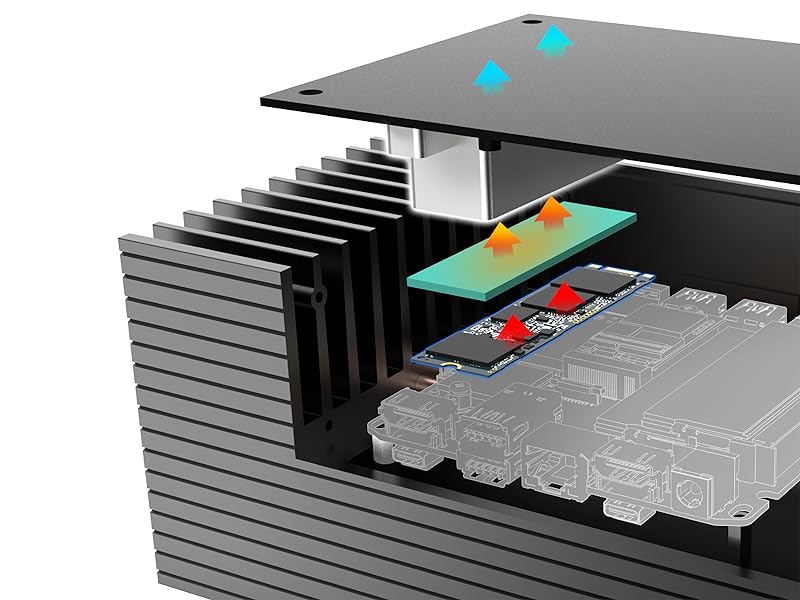

Cool Storage, Cool Performance
The internal M.2 SSD thermal kit efficiently transfer residual heat generated by the SSD to the outside of the case, effectively keeping the SSD cool and preserving its performance.

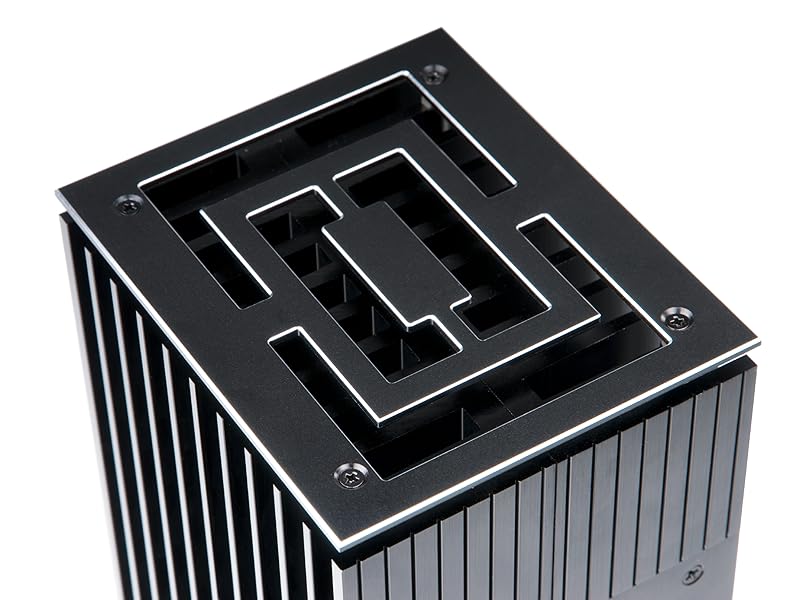

Contemporary and Made-to-Last Design
Aluminium case provides durability and long-lasting use. Coupled with symmetrically extruded fins and striking classical inspired panels for stunning aesthetics and functionality, which means the case look great in any environment.
Akasa Turing AC Pro Small PC Case SPECIFICATION
Material | Aluminium body/fins with anodised finish, Copper thermal module x1, 6mm copper heatpipe x2 |
Motherboards Types | UCFF 4″ X 4″ |
Motherboard Support | (1) Intel NUC 13 Pro (Arena Canyon) Mini PC / Board / Kit: NUC13L5Bi3 / NUC13ANBi3 / NUC13ANHi3 / NUC13ANKi3 / NUC13L3Hi3 / NUC13L3Ki3 / NUC13ANKi30WC NUC13L5Bi5 / NUC13ANBv5 / NUC13L5Bv5 / NUC13ANBi5 / NUC13ANHi5 / NUC13ANKi5 / NUC13L3Hv5 / NUC13L3Kv5 / NUC13ANKi50WC / NUC13L5Bv7 / NUC13ANBi7 / NUC13ANHi7 / NUC13ANKi7 / NUC13L3Hv7 / NUC13L3Kv7 / NUC13ANKi70QC |
Motherboard Support | (2) Intel NUC 12 Pro (Wall Street Canyon) Mini PC / Board / Kit: NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7 NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5 NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3 |
Maximum TDP Support | 40W |
Dimensions | 95 x 260 x 113.5 mm (W x D x H) |
Internal Bays | One for 2.5” HDD/SSD (max height 9.5mm) |
Antenna Fitting Holes | 2 |
Security | Kensington lock |

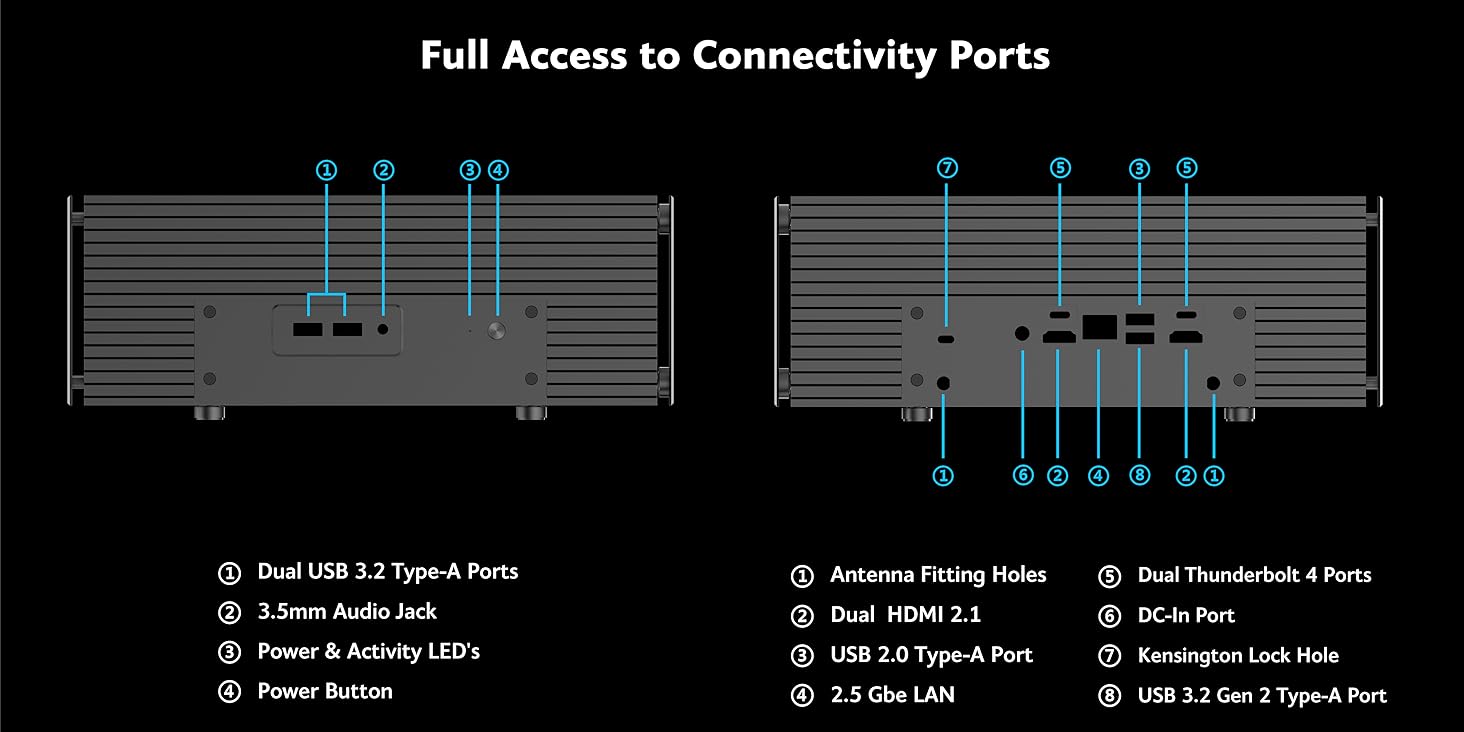

Front I/O Opening | Power button, USB Type-A port x2, 3.5mm audio jack |
Rear I/O Opening | DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1 |
Product Code | A-NUC95-M1B |
Gute Verarbeitung.
Gute Optik.
Montage des NUC12-i7-Motherboards aber etwas tricky, man mu schon sehr genau arbeiten bei der Positionierung des Boards. Die Videoanleitung weist darauf nicht hin.
Das Gehuse wird bei Vollast schon ordentlich warm. Mit zustzlichem, leise drehenden 12cm-Lfter, hat man winters einen kleinen Heizlfter.
This is a very high quality fanless case for a NUC 12/13 Pro. Top marks to Akasa for also including a high quality metal heatsink casing for the NVME drive – nice touch.
It was very easy to install the NUC motherboard into this case – in fact, it took longer to extract the motherboard from the NUC than it did to install the motherboard into this case. More credit to Akasa for providing YouTube videos showing how to extract the motherboard from the NUC and install it into this case.
The case can be set-up to be either vertical standing or horizontal standing – another nice touch.
The case gets slightly warm to the touch and sensors indicate that the CPU temperature runs around 36 – 41 degrees c – admittedly the system has relatively light workloads running on it.
The only items not included which you might need are the aerials for WiFI and “pigtails” to connect these to the motherboard. I don’t use WiFi for the system and hence not an issue for me.
Highly recommended.
Very nice case.
Finally no fan noise, which is pretty loud now and then on the NUC.
Core temperature averages between 47 and 65 degrees celcius.
Installing the board was pretty easy.
No es tan grande como esperaba, el montaje es sencillo, y viene una correccin de la posicin de la silicona trmica de las instrucciones en un papel separado. En su web hay vdeos de desmontaje del nuc y montaje en la caja.
A nivel de temperatura, la caja est diseada para soportar hasta 28w de disipacin. En mis pruebas, las temperaturas han oscilado entre 20 de temperatura de procesador hasta unos 40 sostenidos en uso normal de oficina. En el caso de uso extremadamente alto del procesador, se mantienen entre los 68-74 y sin hacer throttling, muy lejos de los 85 a 95 que llegaba a coger en la caja original.
La experiencia de silencio total es muy satisfactoria. Muy contento.
Actualizacin:
Akasa ha sacado una nueva versin, denominad Akasa Turing AC Pro, que es compatible con nuc de generacin 12 y 13, y que como novedad lleva pipes para la extraccin de calor desde el procesador y es un poco ms alta que este modelo. Lo importante es que pasa de soportar 28w sostenidos de disipacin a 40w sostenidos, lo cul es un salto bastante grande, y lleva un margen de uso del nuc muy alto bajo carga. Desgraciadamente, Amazon todava no la vende, pero hay vendedores en europa (Alemania, cartft, que s.) que la pueden mandar sin problema (pagando, claro). Estoy esperando la ma… 🙂
