WAVLINK BE6500 WiFi 7 WiFi Card PCIe WiFi Card, Wireless

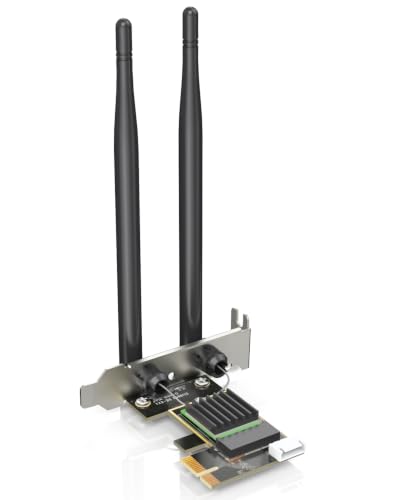

WAVLINK BE6500 WiFi 7 WiFi Card PCIe WiFi Card, Wireless Bluetooth 5.4 6500 Mbps Tri-Band (2.4/5/6 GHz) WiFi 7 PCIe Card,WPA3 Security,MU‑MIMO & OFDMA,Only Supports Windows 11
Latest Bluetooth 5.4
wifi card pc
 WN922-C |  WN922-A |  WN922-M |  WN675X3 | |
|---|---|---|---|---|
| Customer Reviews | 4.5 out of 5 stars87 | 4.5 out of 5 stars87 | 4.5 out of 5 stars87 | 4.5 out of 5 stars397 |
| Price | £49.99 | £55.99 | £36.99 | — |
| Wi-Fi generation | Wifi 7 | Wifi 7 | Wifi 7 | Wifi 6 |
| Bluetooth | 5.4 | 5.4 | 5.4 | 5.3 |
| Speed | 6500 Mbps | 6500 Mbps | 6500 Mbps | 5400 Mbps |
| Frequency band | 2.4GHz, 5GHz, 6GHz | 2.4GHz, 5GHz, 6GHz | 2.4GHz, 5GHz, 6GHz | 2.4GHz, 5GHz, 6GHz |
| Wireless security | WPA3 | WPA3 | WPA3 | WPA3 |
| Brand: | WAVLINK |
| Manufacture: | WAVLINK |
Solid WiFi 7 card that does what it promises
Installed this without any fuss and it’s been working reliably ever since. The speeds are genuinely quick when you need them, and the build quality feels sturdy enough for daily use. Multi-device connectivity runs smoothly without the lag I used to get, which makes a real difference when streaming and working simultaneously. It’s a straightforward upgrade that actually delivers on its performance claims.
Well worth $55!
I’ve recently moved my home wifi network to wifi 7, and wanted to get a new wifi card for my PC. There are lots of different options out there, but having been a pretty loyal Wavlink fan for years, they’re among the first brands I look at. This particular model came up, and was priced pretty competitively. Yeah, it’s not top notch wifi 7 speeds, but it provided the tri-band connection I was looking for. With most of my neighbors still on the slower 2.5/5 Ghz bands, I wanted to take advantage of the 6 Ghz that my network now offers.

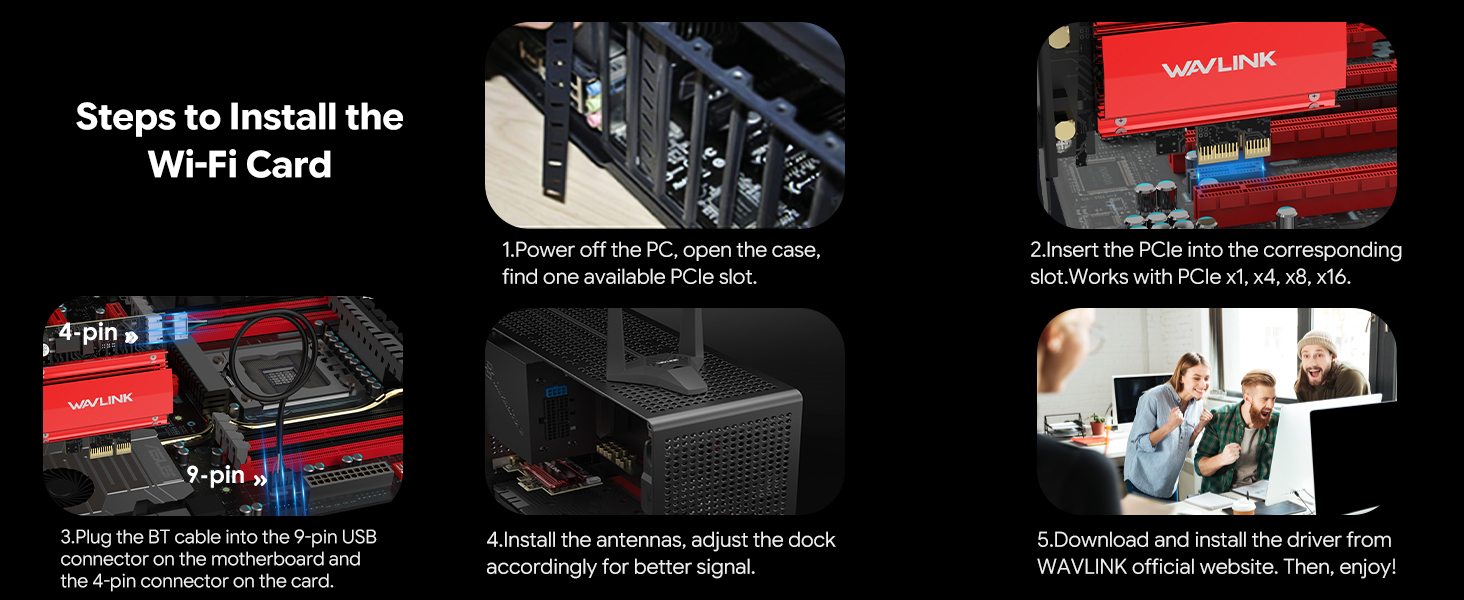

Connecting this was really easy. Opened the PC, unscrewed the screw holding the PCIe slot cover, put in this card slot, screwed it in, and then connected the included antenna. Probably, in total a 5-10 minute install job. Windows 11 picked up and recognized the card immediately, so nothing more was required from a software setup. Perhaps Wavlink has some separate software drivers you can install, if needed, but I’ve found no need.
I have a 10G symmetrical fiber connection, and seem to get around a 1.6-1.7 Gbps up/download speed with my Firewalla Gold Pro and associated Firewalla AP 7’s driving my network. I do not have MLO enabled on my network yet, and recognize I could probably achieve higher speeds if I turned that on. Perhaps some day, but these kinds of speeds are faster than what I can get with the PC’s built-in 1 Gbps ethernet LAN. This more than exceeded my expectations, and was a fairly cost effective way of upgrading the aging PC’s wifi 5 card to be able to have some faster speeds. Latency certainly has increased some, but with fiber, there has only been a change of 1-2 ms, thankfully, with most ping tests I’ve attempted.
If you’re in the market for a nice PCIe Wifi 7 upgrade card, look no further. This is the one.
+ Next-Generation Mobile Networking: M.2 2230 WiFi 7 BE6500 Module
Next-Generation Mobile Networking: M.2 2230 WiFi 7 BE6500 Module! I got this WAVLINK WiFi 7 M.2 2230 wireless card to upgrade the internal networking module inside my Minisforum N5 MAX mini PC. The technical upgrade for us from WiFi 6 is very noticeable. This uses 4K-QAM and Multi-Link Operation (MLO) features of the 802.11be standard, so my random read performance over our local network skyrocketed – BIG TIME! – drastically cutting down the time it takes to load massive Adobe Photoshop project files from our server. The Bluetooth 5.4 radio also provides a flawless, jitter-free connection to my wireless Sennheiser spatial audio headphones. My one tiny critique involves the installation for the microscopic antenna leads. Connecting the tiny MHF4 antenna wires to the A-E key module requires absolute precision and excellent lighting.I’m a big bodybuilder, so if your hands are massive and calloused like mine from lifting heavy iron, you will absolutely need a pair of fine-tipped tweezers and a magnifying glass, otherwise, you risk crushing the fragile gold connectors. Just my humble tip! Other than that, it delivers uncompromising, ultra-fast wireless throughput, made durable and at a value price. This not only gets 5-stars from me… this gets my RARE TRIED+TRUE 5+1 BONUS STAR + Rating for a total of 6-stars! I only give 5 stars to products that I use and exceeded my expectations for quality, functionality, ease-of-use, premium appearance & looks, durability, ease of installation OR time to build, value-priced & price-point, accuracy in size & fit – and when possible – sustainability & Eco-friendly environmental considerations. And my rare 6 stars rating goes to companies that bring a product that is truly INNOVATIVE and superb to have! I hope you gain some insight from my review and I appreciate you taking the time to read it.
Blazing Wi-Fi 7 Performance, But Strictly Windows 11 Friendly
The WAVLINK BE6500 is a compelling PCIe Wi-Fi 7 adapter that delivers next-generation wireless speeds and features for desktop PCs. If you’re running Windows 11 and have a modern motherboard and router, this card punches well above its weight. However, there are a few important compatibility and setup considerations to keep in mind before purchasing.
Performance & Features
Built around the Wi-Fi 7 (802.11be) standard, the BE6500 boasts a tri-band throughput of up to 6,500 Mbps, with dedicated channels on 6GHz, 5GHz, and 2.4GHz. Technologies like Multi-Link Operation (MLO), MU-MIMO, and OFDMA work together to reduce network congestion and deliver ultra-low latency, making it excellent for gaming, 4K/8K streaming, and heavy multitasking. Bluetooth 5.4 is also included, offering improved power efficiency and more stable peripheral pairing.
Installation & OS Compatibility
Installation is straightforward for Windows 11 users. The driver setup is clean, and the card registers quickly without manual tweaking. That said, WAVLINK officially supports Windows 11 (64-bit) only. While the hardware may physically work with Windows 10, driver support isn’t guaranteed, and users on older systems may encounter compatibility walls or missing features. Stick to Windows 11 for the intended experience.
Hardware & Setup Notes

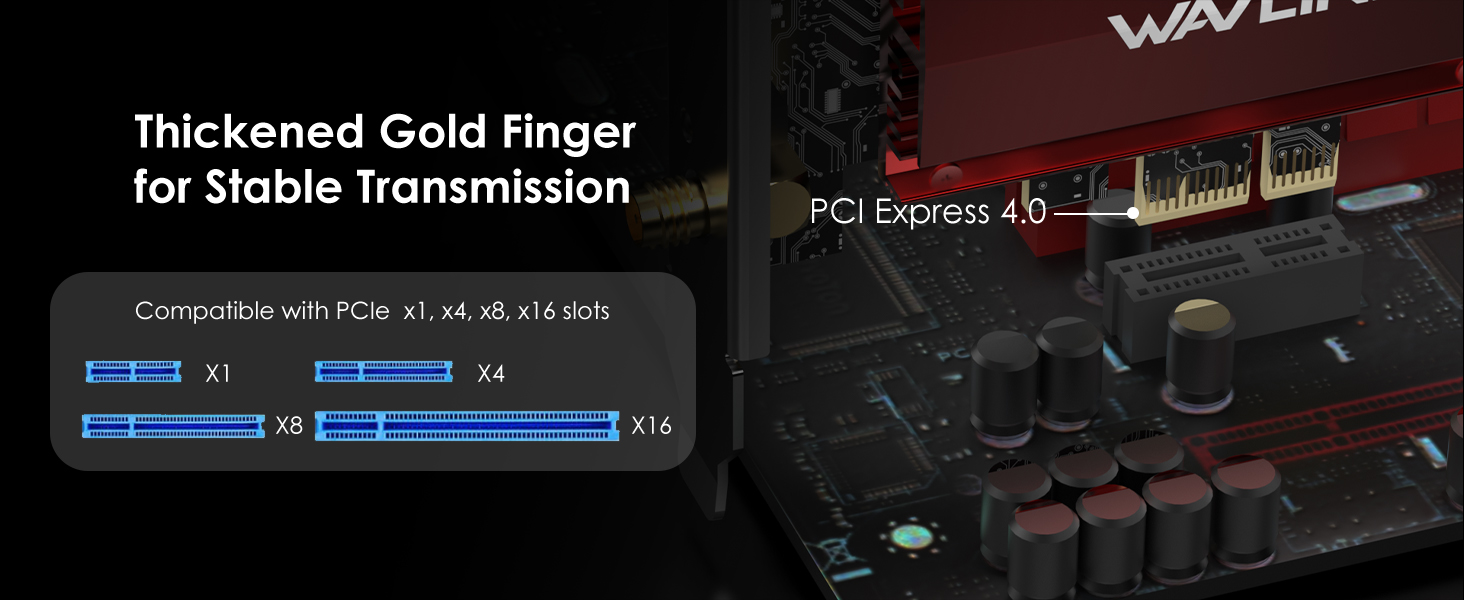

The card fits standard PCIe x1/x4/x8/x16 slots, but don’t overlook the included internal USB cable. You must connect it to a motherboard header to activate Bluetooth 5.4, if your board lacks an available header, Bluetooth functionality will be disabled. Additionally, because the antennas mount directly to the rear I/O panel, the metal chassis can occasionally block or degrade signal strength, particularly on the high-frequency 6GHz band. Using an external antenna extension base or ensuring the card isn’t tucked behind dense metal components will help maximize coverage.
Router Dependency
To unlock Wi-Fi 7’s full potential, including MLO and multi-gigabit speeds, you’ll need a compatible Wi-Fi 7 router. Without one, the adapter will seamlessly fall back to Wi-Fi 6/6E speeds, which still perform admirably but won’t fully justify the premium price.
Verdict
Overall, the WAVLINK BE6500 is a fantastic upgrade for Windows 11 desktops ready to embrace Wi-Fi 7. Just ensure your OS, motherboard, and router are on board, and you’ll enjoy blazing speeds, low latency, and future-proof connectivity.
I have never used a Wavlink card before so this was a bit of a learning experience for me.
The card itself seems pretty standard for a PCIe card of this type. The red heatsink is a nice touch and looks quite nice inside the case.
Installation was easy and the card slotted right into the motherboard, no problems at all. The wire for the bluetooth was a bit of a hassle but nothing too major – it’s just a bit fiddly.
Driver installation wasn’t as smooth as I’d like, but these things rarely are if we’re being honest. I got there in the end though and without TOO much trouble. Just be aware that this card won’t work on Windows 10 – only Windows 11.
Once all of that was done and the external antenna was set up, it worked perfectly. The Wi-Fi speeds I am now experiencing are much higher than before with my old setup – this has been a massive improvement. The connection seems solid and stable too, I haven’t experienced any disconnects or drop outs at all.
Overall, I am very happy with this card. It does everything I wanted it to at a decent price.
Wifi 7 upgrade
Installe dans un Lenovo slimpad 5 avec processeur Ryzen 7, un des rares chipsets qui me permet de profiter du wifi 7 pour ma configuration. J’aurais aim du Intel mais c’est incompatible.
Niveau stabilit et ping c’est ok. J’ai gagn environ 200 300 mga par rapport la prcdente carte en ax201 avec un ping lgrement meilleur.
Pour les pilotes, c’est dispo sur le site de Lenovo ou bien sur le site wavlink.
Seul inconvnient bande en 160 au lieu de 320.
An easy installation for improved speeds
This review is for the ‘WAVLINK BE6500 WiFi 7 WLAN Card PC with Antenna Extension’. At time of review this Wifi7 card is 55.99.

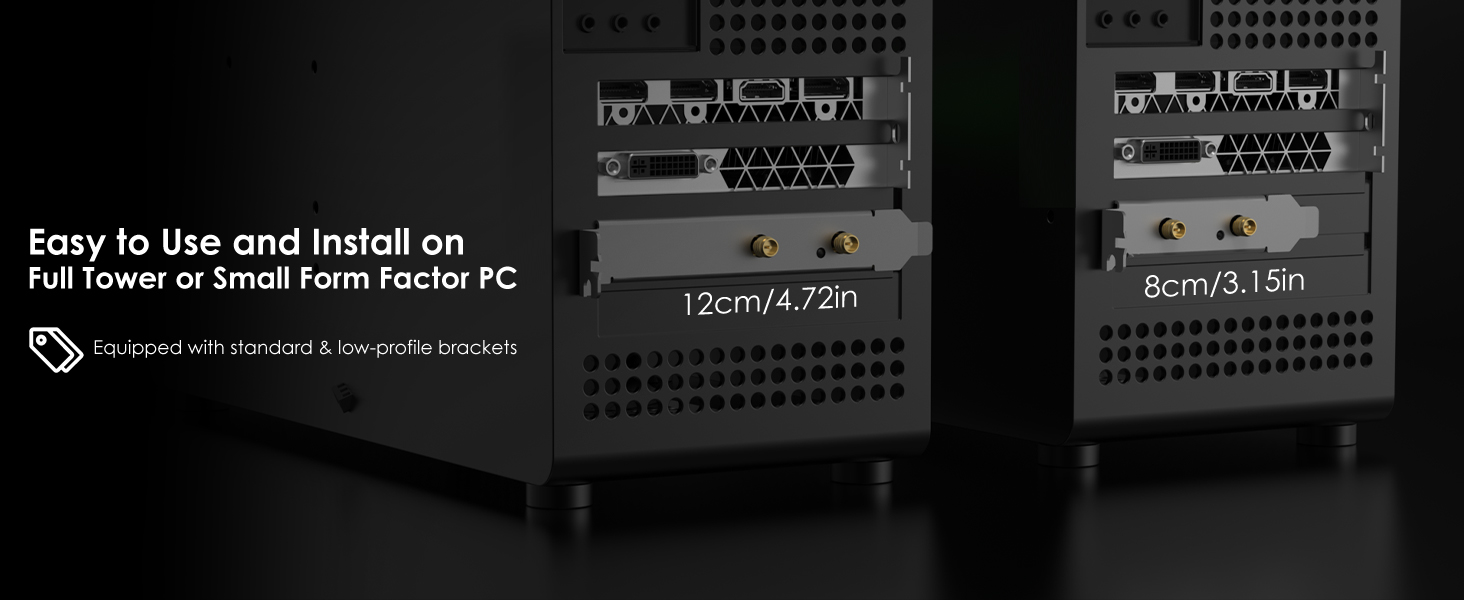

The network card arrived in Wavlink retail packaging which included the card itself, dual aerial antenna, optional half height bracket for low profile PC’s and an internal cable to route a Bluetooth connection. The quality of card and aerial both appeared to be very high. Quality plastics were used on the aerial and the card itself features a large heatsink. Drivers were not included but intended to be downloaded from the Wavlink website.
The product information leaflet provided detailed instructions on how to install the card, connect the Bluetooth cable and install the drivers. As this was a Wifi upgrade for me, I also chose to disable my onboard Wifi 6.
I am not able to make super claims about speed as my PC is located in a very poor Wifi zone of my house, but I am generally happy with the performance at this time and glad to be working with newer hardware. I can confirm Bluetooth performance does seem to have improved, as I appear to have a greater range of movement during meetings on by Bluetooth headset than I did with my old Bluetooth dongle.
Effective Wi-Fi Card Replacement for Windows 11
My son’s laptop developed a fault and would not turn on after a bit of poking and prodding. It turned out to be the Wi-Fi card that was somewhat dead. So I ordered this to install.
First, this only works on Windows 11, not Linux (at least not yet), and not on Windows 10. I think many machines needing this upgrade/replacement will be older, so check before you buy.
The card did slip into the M2 slot the original came out of, and was the same length. The antennas on these small cards can be difficult and fiddly; thankfully, they went straight onto this.
I did have to go online for driver installation, which was a pain; just have an Ethernet cable handy, ready to go.
Once fully installed, it burst into life, connected to our Wi-Fi, and felt pretty sprightly. It connected quite happily to the 5 GHz network that we have.
One area of disappointment was the lack of Bluetooth 6, but looking around, none of these cards come with that at this time.
On the whole, this is a decent Wi-Fi replacement for laptops. Just check compatibility and have a backup method for an internet connection.
Impressive Speed and Solid Connection for Windows 11
The WAVLINK BE6500 WiFi 7 PCIe card brings a notable improvement in wireless performance, especially if you’re running Windows 11 as required. Installation was straightforward, and the dual 5dBi antennas provided a solid signal boost compared to my previous adapter. The tri-band setup made a clear difference, with the 6GHz band delivering consistently high speeds—great for 4K streaming and gaming without noticeable lag. Bluetooth 5.4 connectivity was stable and had a longer range than my old card, which is a nice bonus.
On the downside, the Windows 11-only support is limiting if you use other operating systems. Also, the card’s size takes up a full PCIe slot, which may be an issue in compact builds. Still, for anyone with a compatible system looking to tap into WiFi 7’s higher throughput and enhanced multi-device efficiency, this is a solid, practical upgrade. Overall, it combines reliable range with up-to-date standards in a reasonably priced package.
Echte Triband WiFi7 WLAN-Netzwerkkarte mit Realtek-Chipsatz
Die WiFi7 WLAN-Netzwerkkarte “WL-WN922BE3-C” von “Wavlink” kommt in einer handelsblichen Verkaufsverpackung aus Karton, mit folgendem Inhalt: 1 x fertig montierte WLAN-Netzwerkkarte, 1 x internes Bluetooth-Verbindungskabel, 1 x englischsprachiges Hinweiskrtchen fr Treiber-Download, 1 x mehrsprachige Sicherheitshinweise, 2 x Informationshinweise fr Schnellinstallation in Englisch.
Zu meinem Erstaunen bietet Wavlink mit dieser WLAN-Netzwerkkarte einen Triband-Adapter fr den PCIe-Steckplatz eines Windows 11 PCs an, der ber einen echten WiFi7-Chipsatz von Realtek verfgt. Nur wenig Informationen gibt es berhaupt ber die echten WiFi7-Chipstze dieses taiwanesischen Herstellers.
Bisher musste von zu Intel BE200-Chipstzen greifen, wenn man echtes WiFi7 wollte. Hat man eine PC oder ein Notebook mit AMD-Chipsatz, kann man diese allerdings nicht verwenden, denn Intel-Chipstze der WiFi7-Generation setzen eine Intel CPU voraus. Daher blieb einem als AMD-Nutzer nur der Griff zu ltere Intel-Chipstze oder Mediatek bzw. Realtek-Chipstze. Keiner dieser alternativen Hersteller bot bisher echte WiFi7-Chipstze an.
Es gilt hierbei natrlich auch, dass WiFi7 nur in Betriebssystemen funktionieren kann, die es auf Softwareebene untersttzen. Das ist derzeit primr Windows 11 und die aktuellsten Linux-Distributionen. Treiber scheint es aber ausschlielich fr Windows 11 zu geben.
Fr diese WLAN-Netzwerkkarte werden von Wavlink auf der offiziellen Produktseite Leistungsangaben gemacht, die ltere WiFi-Standards wie 6/6E nicht bieten knnen. Daher kann man hier ganz sicher davon ausgehen, dass es sich um eine echte WiFi7-WLAN-Netzwerkkarte handelt. In vergangenen Tests hatte ich es hufig mit pseudo WiFi7-Netzwerkkarten zu tun, dessen Modellnummer bzw. Marketingname einfach mit Wifi7 in Verbindung gebracht wurden. Unglcklicherweise auch von einigen bekannten Markenherstellern. Diese WLAN-Netzwerkkarte gehrt aber nicht dazu.
Mangels Informationen zum verbauten Realtek-Chipsatz muss ich mich an die Angaben des Herstellers orientieren. Es ist schon seltsam, dass Realtek kein Interesse an der Verffentlichung von Spezifikationsdaten hat.

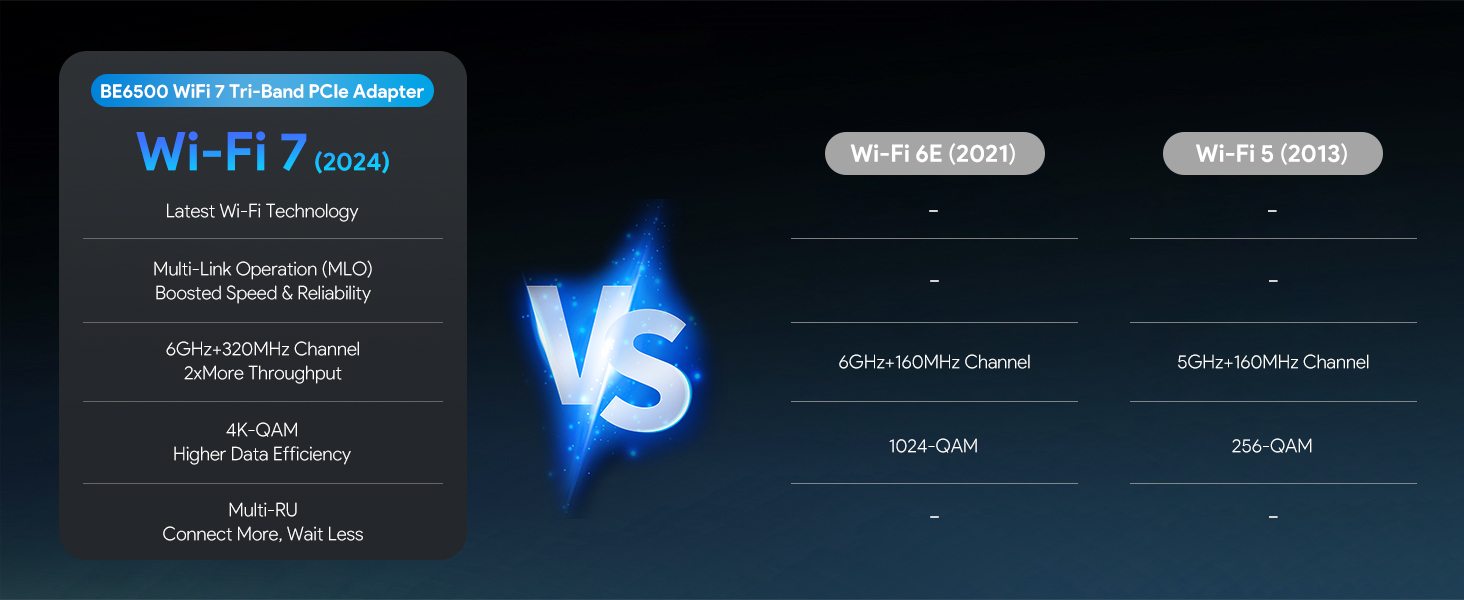

Laut Hersteller Produktseite (und anderen Quellen) beherrscht der hier verwendete Chipsatz – vermutlich Realtek RTL8922BE (ohne Gewhr) – folgende Features:
Standards:
EEE 802.11be (WiFi7), abwrtskompatibel zu 802.11ax/ac/a/b/g/n
TriBand:
2.4 GHz: 2.40-2.48 GHz
5 GHz: 5.15-5.85 GHz
6 GHz: 5.925-7.125 GHz
Modulation:
BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM bis 1024-QAM (Basis-OFDM), 4K-QAM
Kanalbandbreiten:
20/40/80/160 MHz
320 MHz (WiFi7-EHT, abhngig vom Modul)
MIMO:
22 MIMO (2T2R)
MultiLink Operation (MLO):
Simultane Nutzung von 5 GHz und 6 GHz mglich
Alle Angaben nur unter Vorbehalt, da ich mir das selbst zusammensuchen musste. Es handelt sich brigens um einen kombinierten WLAN-Adapter der auch Bluetooth 5.4 beherrscht.
Wichtig ist, diese WLAN-Netzwerkkarte kann auf allen drei Bndern bertragen. Das ist die Voraussetzung fr die hohe bertragungsleistung, die speziell mit Wifi7 eingefhrt wurde. Bisher war das den Intel BE200-WLAN-Chipstzen vorbehalten, jetzt gibt es das auch von einem anderen Hersteller.
Mit meinem WiFi7-WLAN-Router “Speedport 7” der Telekom, sehe ich keine Verbesserung der bertragungsleistung. Was mich auch nicht weiter berrascht, denn dieser Router ist eine Mogelpackung. Der kann leider kein echtes WiFi7, wird aber als solcher vermarktet. Die gleiche Irrefhrung fr zuvor schon bei lteren WiFi7-Netzwerkkarten, die auch nur WiFi6/6E beherrschten.
Daher habe ich die Tests mit einem echten WiFi7-Router (GL.iNet GL-BE9300 Flint 3 Tri-Band WiFi7 Router) durchgefhrt und kann diesem WLAN-Adapter eine WiFi7 geme bertragungsleistung attestieren. Die bertragungsleistung ist mindestens auf dem Niveau einer Intel-BE200 Lsung, ohne dabei Latenz einzuben. Mit der Einschrnkung, dass die von mir gemessenen Durchsatzraten nicht unbedingt auf jede Umgebung bertragen werden knnen. Daher spare ich mir auch Angaben dazu.
Es ist nur noch anzumerken, dass man die hohen WiFi7-Durchsatzraten in der Regel nur dann bekommt, wenn eine direkte Sichtlinie zwischen Sender und Empfnger besteht, bzw. wenn nicht allzu viele Hindernisse vom Funksignal berwunden werden mssen. Das bekommt man auch mit diesem Adapter zu spren, bei zu vielen Wnden ist es besser auf das 2,4 GHz-Band zu wechseln.
Der von Wavlink heruntergeladene Treiber ist schon ein wenig lter, man kann aber im Internet auch aktuellere Treiber finden. Diese WLAN-Karte benutzt einen unangepassten Standardtreiber von Realtek, weshalb hier keinerlei Schwierigkeiten auftreten sollten.
Der Preis ist mit derzeit ca. 50 etwas hher als bei Intel-BE200 basierten WiFi7-WLAN-Netzwerkkarte, aber da man qualitativ keinerlei Abstriche machen muss und man diese WiFi7-WLAN-Netzwerkkarte in Intel und in AMD-Systemen einsetzen kann, ist hier ein echter Mehrwert geboten. Daher auch fnf Sterne.
Speedy upgrade with small Windows catch
This Wavlink BE6500 has given my ageing desktop a proper boost. And it supports WiFi 7 with up to 6500 Mbps split across 6GHz, 5GHz and 2.4GHz, plus Bluetooth 5.4, which sounded flashy and in practice handled everything I threw at it.
I fitted it into my Ryzen tower before a Saturday night film, streamed a 4K nature doc to the living room TV while my partner had a Teams call and my laptop was syncing photos, no stutter though I did have to wrestle with drivers, yes I rebooted twice. But do note it only supports Windows 11, so if you’re on older Windows that’s a snag.
Signal stayed steady thanks to the dual 5dBi antennas and WPA3 gave some peace of mind. So, fast transfers and low latency for casual gaming — I’m happy to keep it, minor OS caveat aside.
Excellent Wi-Fi 7 Upgrade
I picked this up to boost my network speeds after getting a WiFi 7 router, and it has made a huge difference. Fitting the card into the PCIe slot was straightforward, and the red heatsink looks great inside the build.
The standalone external antenna is the best part. Being able to move the aerials up onto the desk instead of leaving them hidden behind the metal tower means the signal easily passes through couple of walls without dropping out. Network file transfers feel quick and responsive, and the Bluetooth 5.4 works seamlessly for my wireless headphones once hooked up to the motherboard USB header. It is a solid, reliable card that delivers top performance.
Comprehensive upgrade card
Designed to fitted to an internal PCIe slot the expansion card looks the part with its huge red heatsink. Wavlink I assume expect the chips underneath to heat up during usage. The card comes with a full height bracket attached and a half height one is also included. An external antenna is provided which connects using pretty thick cables and with its fixed antennas feels pretty robust. While inserting the card is pretty straight forward the Bluetooth functionality requires a separate connection to a USB pin header on the PCs mother board. This is by far the most complete part of installing that card and probably will require some technical knowledge of the system you are plugging it into (ie need the technical manual on the motherboard. If you do not care about bluetooth you can omit this step. Rather than an Intel chipset this uses a Realtek one and drivers are needed. They can be downloaded directly from the WavLink website. It seems to be for Windows 11 only. For WiFi7 card it is pretty decent value for money and what you get in the box. Everything you need is there to install it. I was pretty happy with it. Navigating by NAS box which uses a web interface was pretty nippy as where file transfers.
