AUTO-VOX CS-2 Digital Wireless Reversing Camera kit, Stable Signal Rear Camera, Super Night Vision Backup Camera and 4.3″ Rear View Monitor for Vans,Trucks,Camping Cars,RVs
AUTO-VOX CS-2 Digital Wireless Reversing Camera kit, Stable Signal Rear Camera, Super Night Vision Backup Camera and 4.3″ Rear View Monitor
For maximum reducing distortion in the reversing and avoid interference, we apply the digital wireless technology to CS2.
You can enjoy stable and clear video without running the difficult video cable.
Make parking easy, efficient and safe.
- What is digital signal ?
The digital signal is much simpler than analog signal, it is a series of discrete pulses，representing 0’s and 1’s.
Any interference is virtually eliminated once the receiver discerns whether a “0” or a “1” was transmitted.
- Installation Steps:
1. Find a suitable place and fix the monitor on windshield or dashboard as you like.
2. Install the reverse camera by connecting the red wire to the reversing light and black wire to ground (metal part on the car).
3. Connect the monitor to the car charger and done!
Fore more details, please refer to the manual or consult our service team for help.
Why choose AUTO-VOX CS-2 wireless reversing camera?
1. Stable digital signal transmission.
2. Wireless for easy installation. Wireless means there is no need to run the video cable from rear to front. Please kindly note that the camera needs to take power from the reverse light.

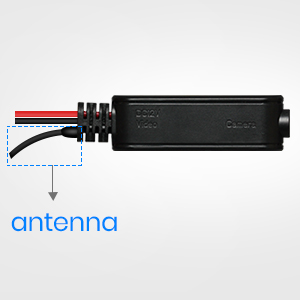

3. Transmitter is built in the camera, omitting the installation of transmitter.
4. High compatibility for cars (suit for cars which are less than 32ft).
Important tips for customers:
1. For reversing use, please connect the backup camera to the reverse light and the rear view image will show up automatically once entering into reverse mode.
2. For monitoring use, please connect the backup camera to the constant power, and the monitor will display the rear view image all the time, which can be used on towing a car/trailer/boat, there is no need to turn around to check any more.
| | | |
|---|---|---|

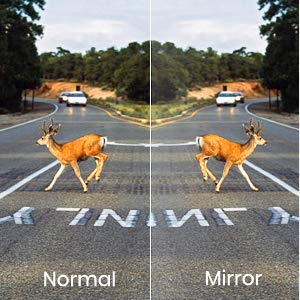

Stable Digital Signal TransmissionThere are no distortion issues like miscolored picture that appears on other backup cameras. Keep away from unstable anolog signal transmission. | Normal & Mirror ImageCS2 backup camera supports Normal and Mirror image. You can install the rear camera on the front of your car to avoid any blind spots. | Amazing Rear View CameraCS2 rear view camera provides you with a wide visible range and has 0.1 low lumen to present clear image at low-light environments. IP68 waterproof rear camera is more durable. It comes with a double-sided adhesive, you can attach it to your license plate. |
| | | |
|---|---|---|

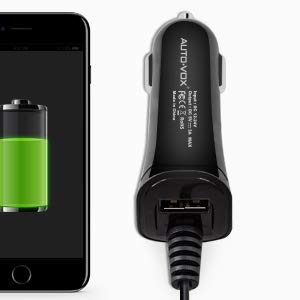

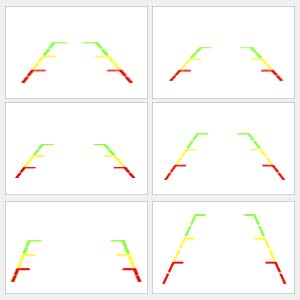

Adjustable Parking LineThere are 6 parking lines, you can choose the suitable one according to your car. If you do not need it, you can turn it off. | Extra USB Port ChargerCar charger comes with an extra USB port, you can power the DVR and charge your mobiles devices at the same time. | Small AntennaPlease pay attention during installation, please set the antenna up so it can get the best signal. |
Specification:
Screen size: 4.3 inches
Color sensor:1/3 inch color cmos sensor
Power supply: DC 12V – 24V
Resolution: 480 x 272 pixels
System TV: PAL or NTSC (convert automatically)
Product Accessories:
1 × 4.3 Inches LCD Screen
1 × Rear Camera
1 × Power Cord(1.5M)
1 × Car Charger(3.6M)
1 × User Manual
1 × Mount
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

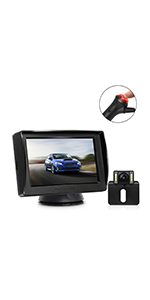

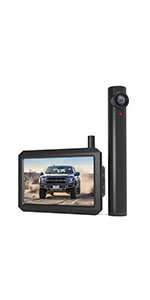

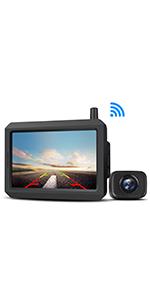

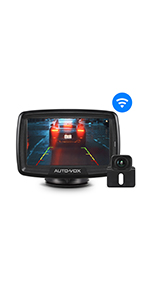

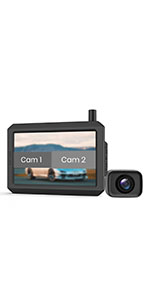

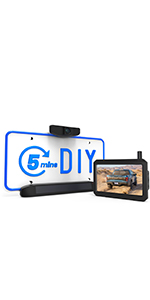

| Model Number | CS2 | TW1 | Solar 1 | W7PRO | W7 | M1pro |
| Signal | Digital Signal | Digital Signal | Digital Signal | Digital Signal | Digital Signal | Analogue Signal |
| Wireless | ✓ | ✓ | ✓ | ✓ | ✓ | Wired |
| Support Camera Channel | 1 Camera Channel | 2 Camera Channels | 1 Camera Channel | 2 Camera Channels | 1 Camera Channel | 1 Camera Channel |
| Monitor Size | 4.3″TFT | 5″TFT | 5″TFT | 5″TFT | 5″TFT | 4.3″TFT |
| Optional Parking Lines | ✓ | ✓ | ✓ | ✓ | ✓ | – |
| Optional Image | 2 Kinds: Mirror/Normal Image | 4 Kinds: Mirror/Normal/Up/Down Image | 2 Kinds: Mirror/Normal Image | 4 Kinds: Mirror/Normal/Up/Down Image | 2 Kinds: Mirror/Normal Image | 1 Kind: Mirror Image |
| Camera Waterproof | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Night Vision | Normal | Normal | Normal | Normal | Normal | Better |
| Camera Power Source | Reversing Light | 3350mah Battery | 2800mah Solar Battery | Reversing Light | Reversing Light | Reversing Light/Cigarette Lighter |
| Dimensions: | 16.7 x 12.4 x 9.6 cm; 510 Grams |
| Manufacture: | AUTO-VOX |
| Reference: | RVS-CS2 |
Fitted into lwb Renault trafic, and I was initially sceptical about it, but I took 1.5 hrs and routed power cables neatly for the monitor and rear camera, and worked first time, just a few extra minutes to angle camera for good view. Well made as well, really good.
Very easy to install, best thing is its wireless & no need to get wires from back ro front of campervan.
Camera works well, good quality picture day & night but not as wide-screen view as factory fitted camera in my car. Picture on screen is good, but in hindsight wish I’d gine for a bigger screen. Overall works well, makes reversing much easier, good value for money
Comes on immediately you engage reverse gear. Clear precise picture. Very good colour. No flickering.
It does what it says on the tin, plug and play.
Very little knowledge is needed to fit this camera, also visit YouTube and it will be fitted in minutes.
Only negative is the stalk is quite short on the monitor otherwise great product for the money
Used on a Ford transit 2018 and works perfectly, night vision is excellent. We had to spend a few euro on extra wire to fit it proffesionally, but for a car or jeep etc there’s no need the kit supplied is perfect.
Definetley get it fitted professionally as a mechanic won’t take long and it won’t be expensive, the Camera is good enough quality to be permanent in your vehicle.
Very good instant quality as good as factory fitted systems.
Bought this cam because my van has no rear window, and as you can guess, this makes any reversing pretty interesting. Does it work? Yes, totally awesome. Straight forward to instal and the bit I like the best, no need to run a cable from the back of your car to the driver seat.
You do need to connect it to one of your reverse lights to power the back end. The front end, the camera, has its own battery and you get a USB charger thrown in to recharge that. I’ve just used it in default settings and find it without fault very clear. Very precise. Nice bit of kit…
We now have three of these after being brought one for Christmas. We have one on a van to help reversing when connecting a trailer and the other two on cars. Screens are clear husband fitted them quickly. After 6 months the screen wouldn’t connect on one so after trying their suggestions to remedy they quickly sent a replacement and contacted us afterwards to make sure everything was ok. Would recommend
As long as you can locate the reversing light power supply cable, its a relative easy install. Connects straight away once the reversing light is on. Camera picture clarity is brilliant night or day. I can’t fault it.
Only problem was it is hard to install it on a split boot.
Quality and picture is very good.
Easy to fit, works as it should .
Not really Impressed with visibility especially in the dark. Don’t know if you can adjust this as technology is not really my thing.
Easy to install and pair yourself. Good strong fixings. You just need to know which one is the positive when you connect it up to your reversing light. Allow a bit of time to run the wires through your bodywork .
Works straight out of the box, WiFi ready and paired. Easy to install on my truck. Good screen monitor and simple to use. I’m happy with this and spare cameras are available if I need every change it.
I did some homework before buying this camera for my van. I am already quite handy with my hands. Instructions are straight forward. Everything you need is in the box. All in all , took me about an hour for installation. Only because I needed to remove door panels and rear light.
In my opinion well worth the money. Picture is nice and clear. So I am well happy.
I have had the camera fitted for almost two years and am absolutely delighted with the actual camera plus the ease of support in the event of any queries. My camera was replaced without question when a few months old and the replacement arrived within days.
More recently I decided to dispense with the plug in power socket / cigarette lighter fitment and take my power from an ignition live terminal in the fuse box. My local garage stated that I would need a 5volt voltage reducer to be installed so I contacted the seller asking for confirmation. Within 24 hours I received a reply confirming that a reducer was not necessary plus advice for wiring it to the fuse box.
Excellent service, great value product which is standing the test of time and it is good to know that the suppier will deal promptly with queries long after the warranty has expired.
Arrived on time and installation described step by step in clear instructions. Installation in practice will differ for every different shape and size of vehicle, but for hatchbacks it will take additional time and appropriate additional wiring lengths to complete. Work out exactly where you want to place the items, measure and check twice, before cutting/drilling anything! The end result does appear worth it though.
Wire from camera was too short for my van. Had to tape it diagonally across inner boot window for it to reach. Informed seller who acknowledged but offered no solution. Camera is actually good. Make sure you research how you’re going to fit it before you buy as installation instructions are basic.
Don’t do reviews but this thing is great, good picture and so easy to fit, hopefully it will help with the Mrs parking, would highly recommend
The camera is absolutely amazing. Works everytime I out it in reverse. Screen is super clear.
Better than I hoped for it’s great and so easy to fit. If You can cut off the car charger plug, then you will see a red wire and a black wire, connect the red wire to an accessory power fuse and the black to the ground. In this way, the monitor will only consume power when you’re driving. Before you cut off the car charger, please check if there is a suitable accessory power fuse to connect to the red wire.
I also sent power via a switch back to the camera so I can turn it on manual
I newsd it on the Camper! It’s a good produc
Ease of installation depends on the vehicle, I’ve got a new Peugeot Boxer, I had to solder the camera live wire to the reversing light circuit, apart from that fairly straight forward.
Had a problem with the camera got in touch with supplier nothing was to much trouble .
The replacement arrived a few days later all working fine now 10 out of 10 for customer service .
Easy to install but camera cable is short i had to buy a extension cable apart from that its a great item
Easy to install but expected the picture quality to be better being digital
A friend ordered one of these and raved about it being great, so I have bought one as well.
Camera was easy to install (simply wire into power to reversing light and earth) and then operates automatically when you select reverse gear, with very little delay. Screen is clear with good picture quality and grid lines on screen (optional) are really useful in judging distance when reversing. The front monitor simply plugs into the cigarette lighter, with no hard wiring necessary between the front monitor and rear camera.
Excellent customer service after initial fault with monitor new unit sent to rectify the issue.A pleasure to deal with
Screen was fuzzy. One email and given instant instructions. Sadly this was not the answer but next day new Vox arrived. Screen now black. Another email and immediate answer from Kacey with instructions. That evening grandson synced it. Now working. Amazing and caring help from Kacey. Thank you
The camera is perfect to fit it’s easy to fit and it’s got a perfect clear picture and colour and it’s very well worth the money
Installed today great little piece of kit does exactly what it says on the box
Fantastic bit of kit. Easy to install. very good picture.
I bought the camera kit & it was so easy to fit it took me less than 1 hour, no wires to run through the car the signal was great I must say its a great product. not being very tech minded the instructions were easy to follow.
Excellent value for money which is nice and neat. Easy to fi
This unit is best wired to the side light wiring circuit (number plate light) instead of the reversing lamp which only turns the camera on when reversing. Most vehicles nowdays drive with side lights on so it really becomes a rear view mirro
Easy to install good value have bought 4 to 5 in the pas
The camera isn’t too difficult to set up due to wireless interaction between camera and system. Setup is also simple if you have the right system. However getting the camera wiring to the reverse light without penetrating the cars exterior is very difficult. My suggestion is practise all the links with an old wire before ordering
Installed camera on the inside of hatch back as cables not Long enough,had too remove some trim ,but all in all working quite well
